yaze::editor::LayoutOrchestrator Class Reference

Coordinates between LayoutManager, PanelManager, and LayoutPresets. More...

#include <layout_orchestrator.h>

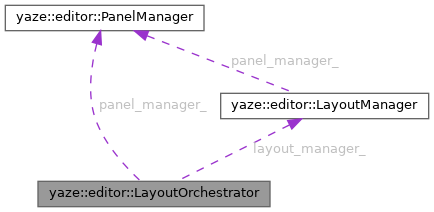

Collaboration diagram for yaze::editor::LayoutOrchestrator:

Public Member Functions
	LayoutOrchestrator ()=default
	LayoutOrchestrator (LayoutManager *layout_manager, PanelManager *panel_manager)
void	Initialize (LayoutManager *layout_manager, PanelManager *panel_manager)
	Initialize with dependencies.
void	ApplyPreset (EditorType type, size_t session_id=0)
	Apply the default layout preset for an editor type.
void	ApplyNamedPreset (const std::string &preset_name, size_t session_id=0)
	Apply a named workspace preset (Developer, Designer, Modder)
void	ResetToDefault (EditorType type, size_t session_id=0)
	Reset to default layout for an editor type.
std::string	GetWindowTitle (const std::string &card_id, size_t session_id=0) const
	Get window title for a card from the registry.
std::vector< std::string >	GetVisiblePanels (size_t session_id) const
	Get all visible panels for a session.
void	ShowPresetPanels (const PanelLayoutPreset &preset, size_t session_id, EditorType editor_type)
	Show panels specified in a preset.
void	HideOptionalPanels (EditorType type, size_t session_id=0)
	Hide all optional panels for an editor type.
void	RequestLayoutRebuild ()
	Request layout rebuild on next frame.
LayoutManager *	layout_manager ()
	Get the layout manager.
PanelManager *	panel_manager ()
	Get the card registry.
bool	IsInitialized () const
	Check if orchestrator is properly initialized.

Private Member Functions
void	ApplyDockLayout (EditorType type)
	Apply DockBuilder layout for an editor type.
std::string	GetPrefixedPanelId (const std::string &card_id, size_t session_id) const
	Get prefixed card ID for a session.

Private Attributes
LayoutManager *	layout_manager_ = nullptr
PanelManager *	panel_manager_ = nullptr
bool	rebuild_requested_ = false

Detailed Description

Coordinates between LayoutManager, PanelManager, and LayoutPresets.

This class unifies the card and layout systems by:

1. Using PanelInfo.window_title for DockBuilder operations
2. Applying layout presets that show/hide cards appropriately
3. Managing the relationship between card IDs and their window titles

Usage: LayoutOrchestrator orchestrator(&layout_manager, &card_registry); orchestrator.ApplyPreset(EditorType::kDungeon, session_id);

Definition at line 28 of file layout_orchestrator.h.

Constructor & Destructor Documentation

LayoutOrchestrator() [1/2]

yaze::editor::LayoutOrchestrator::LayoutOrchestrator ( )

default

LayoutOrchestrator() [2/2]

yaze::editor::LayoutOrchestrator::LayoutOrchestrator	(	LayoutManager *	layout_manager,
		PanelManager *	panel_manager )

Definition at line 8 of file layout_orchestrator.cc.

Member Function Documentation

Initialize()

void yaze::editor::LayoutOrchestrator::Initialize	(	LayoutManager *	layout_manager,
		PanelManager *	panel_manager )

Initialize with dependencies.

Definition at line 12 of file layout_orchestrator.cc.

References layout_manager(), layout_manager_, panel_manager(), and panel_manager_.

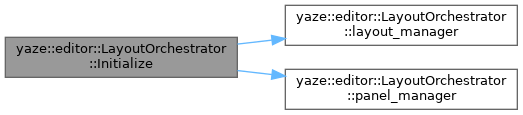

Here is the call graph for this function:

ApplyPreset()

void yaze::editor::LayoutOrchestrator::ApplyPreset	(	EditorType	type,
		size_t	session_id = 0 )

Apply the default layout preset for an editor type.

Parameters

type	The editor type to apply preset for
session_id	Session ID for multi-session support (default = 0)

This method:

1. Shows default cards for the editor type
2. Hides optional cards (they can be shown manually)
3. Applies the DockBuilder layout

Definition at line 18 of file layout_orchestrator.cc.

References ApplyDockLayout(), yaze::editor::LayoutPresets::GetDefaultPreset(), HideOptionalPanels(), IsInitialized(), and ShowPresetPanels().

Referenced by ResetToDefault().

ApplyNamedPreset()

void yaze::editor::LayoutOrchestrator::ApplyNamedPreset	(	const std::string &	preset_name,
		size_t	session_id = 0 )

Apply a named workspace preset (Developer, Designer, Modder)

Parameters

preset_name	Name of the preset to apply
session_id	Session ID (default = 0)

Definition at line 36 of file layout_orchestrator.cc.

References yaze::editor::LayoutPresets::GetDesignerPreset(), yaze::editor::LayoutPresets::GetDeveloperPreset(), yaze::editor::LayoutPresets::GetMinimalPreset(), yaze::editor::LayoutPresets::GetModderPreset(), IsInitialized(), yaze::editor::kUnknown, RequestLayoutRebuild(), and ShowPresetPanels().

ResetToDefault()

void yaze::editor::LayoutOrchestrator::ResetToDefault	(	EditorType	type,
		size_t	session_id = 0 )

Reset to default layout for an editor type.

Parameters

type	The editor type
session_id	Session ID (default = 0)

Definition at line 60 of file layout_orchestrator.cc.

References ApplyPreset(), and RequestLayoutRebuild().

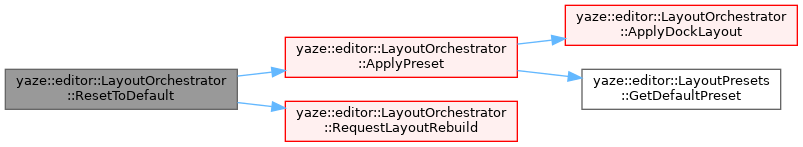

Here is the call graph for this function:

GetWindowTitle()

std::string yaze::editor::LayoutOrchestrator::GetWindowTitle	(	const std::string &	card_id,
		size_t	session_id = 0 ) const

Get window title for a card from the registry.

Parameters

card_id	The card ID
session_id	Session ID (default = 0)

Returns

Window title string, or empty if not found

Definition at line 65 of file layout_orchestrator.cc.

References yaze::editor::PanelManager::GetPanelDescriptor(), yaze::editor::PanelDescriptor::GetWindowTitle(), and panel_manager_.

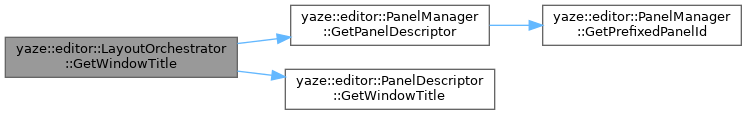

Here is the call graph for this function:

GetVisiblePanels()

std::vector< std::string > yaze::editor::LayoutOrchestrator::GetVisiblePanels

(

size_t

session_id

)

const

Get all visible panels for a session.

Parameters

session_id

The session ID

Returns

Vector of visible panel IDs

Definition at line 79 of file layout_orchestrator.cc.

ShowPresetPanels()

void yaze::editor::LayoutOrchestrator::ShowPresetPanels	(	const PanelLayoutPreset &	preset,
		size_t	session_id,
		EditorType	editor_type )

Show panels specified in a preset.

Parameters

preset	The preset containing panels to show
session_id	Optional session ID

Definition at line 86 of file layout_orchestrator.cc.

References yaze::editor::PanelLayoutPreset::default_visible_panels, panel_manager_, and yaze::editor::PanelManager::ShowPanel().

Referenced by ApplyNamedPreset(), and ApplyPreset().

Here is the call graph for this function:

HideOptionalPanels()

void yaze::editor::LayoutOrchestrator::HideOptionalPanels	(	EditorType	type,
		size_t	session_id = 0 )

Hide all optional panels for an editor type.

Parameters

type	The editor type
session_id	Optional session ID

Definition at line 98 of file layout_orchestrator.cc.

References yaze::editor::LayoutPresets::GetDefaultPreset(), yaze::editor::PanelManager::HidePanel(), and panel_manager_.

Referenced by ApplyPreset().

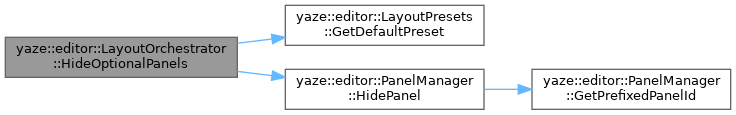

Here is the call graph for this function:

RequestLayoutRebuild()

void yaze::editor::LayoutOrchestrator::RequestLayoutRebuild

(

)

Request layout rebuild on next frame.

Definition at line 110 of file layout_orchestrator.cc.

References layout_manager_, rebuild_requested_, and yaze::editor::LayoutManager::RequestRebuild().

Referenced by ApplyNamedPreset(), and ResetToDefault().

Here is the call graph for this function:

layout_manager()

LayoutManager * yaze::editor::LayoutOrchestrator::layout_manager ( )

inline

Get the layout manager.

Definition at line 107 of file layout_orchestrator.h.

References layout_manager_.

Referenced by Initialize().

panel_manager()

PanelManager * yaze::editor::LayoutOrchestrator::panel_manager ( )

inline

Get the card registry.

Definition at line 112 of file layout_orchestrator.h.

References panel_manager_.

Referenced by Initialize().

IsInitialized()

bool yaze::editor::LayoutOrchestrator::IsInitialized ( ) const

inline

Check if orchestrator is properly initialized.

Definition at line 117 of file layout_orchestrator.h.

References layout_manager_, and panel_manager_.

Referenced by ApplyNamedPreset(), and ApplyPreset().

ApplyDockLayout()

void yaze::editor::LayoutOrchestrator::ApplyDockLayout ( EditorType type )

private

Apply DockBuilder layout for an editor type.

Definition at line 117 of file layout_orchestrator.cc.

References yaze::editor::kAssembly, yaze::editor::kDefault, yaze::editor::kDungeon, yaze::editor::kEmulator, yaze::editor::kGraphics, yaze::editor::kMessage, yaze::editor::kMusic, yaze::editor::kOverworld, yaze::editor::kPalette, yaze::editor::kScreen, yaze::editor::kSettings, yaze::editor::kSprite, layout_manager_, yaze::editor::LayoutManager::RequestRebuild(), and yaze::editor::LayoutManager::SetLayoutType().

Referenced by ApplyPreset().

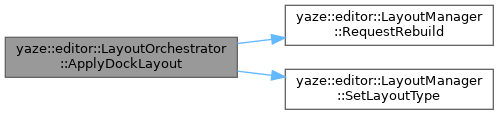

Here is the call graph for this function:

GetPrefixedPanelId()

std::string yaze::editor::LayoutOrchestrator::GetPrefixedPanelId ( const std::string & card_id, size_t session_id ) const

private

Get prefixed card ID for a session.

Definition at line 167 of file layout_orchestrator.cc.

References yaze::editor::PanelManager::MakePanelId(), and panel_manager_.

Here is the call graph for this function:

Member Data Documentation

layout_manager_

LayoutManager* yaze::editor::LayoutOrchestrator::layout_manager_ = nullptr

private

Definition at line 133 of file layout_orchestrator.h.

Referenced by ApplyDockLayout(), Initialize(), IsInitialized(), layout_manager(), and RequestLayoutRebuild().

panel_manager_

PanelManager* yaze::editor::LayoutOrchestrator::panel_manager_ = nullptr

private

Definition at line 134 of file layout_orchestrator.h.

Referenced by GetPrefixedPanelId(), GetWindowTitle(), HideOptionalPanels(), Initialize(), IsInitialized(), panel_manager(), and ShowPresetPanels().

rebuild_requested_

bool yaze::editor::LayoutOrchestrator::rebuild_requested_ = false

private

Definition at line 135 of file layout_orchestrator.h.

Referenced by RequestLayoutRebuild().

---

The documentation for this class was generated from the following files:

• src/app/editor/layout/layout_orchestrator.h
• src/app/editor/layout/layout_orchestrator.cc
