Manages ImGui DockBuilder layouts for each editor type. More...

#include <layout_manager.h>

Collaboration diagram for yaze::editor::LayoutManager:

[legend]

Classes
struct	LayoutIniState

struct	LazyDefaultDockState

struct	PendingDockTabSelection

struct	SessionSnapshot

Public Member Functions
	LayoutManager ()=default

	~LayoutManager ()

void	SetWindowManager (WorkspaceWindowManager *manager)
	Set the window manager for window title lookups.

WorkspaceWindowManager *	window_manager () const
	Get the window manager.

void	InitializeEditorLayout (EditorType type, ImGuiID dockspace_id)
	Initialize the default layout for a specific editor type.

void	RebuildLayout (EditorType type, ImGuiID dockspace_id)
	Force rebuild of layout for a specific editor type.

bool	DockDefaultPositionOnFirstOpen (size_t session_id, const std::string &panel_id)
	Dock a hidden-by-default panel at its preset position on first open.

bool	DockPresetPositionOnPanelOpen (size_t session_id, const std::string &panel_id)
	Rebind any preset panel when a visibility event opens it.

void	SaveCurrentLayout (const std::string &name, bool persist=true)
	Save the current layout with a custom name.

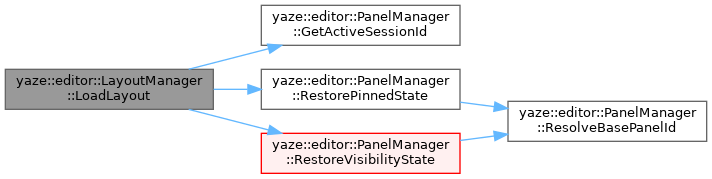

void	LoadLayout (const std::string &name)
	Load a saved layout by name.

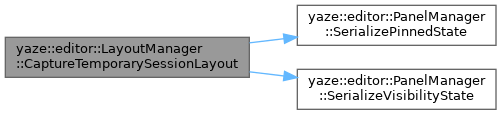

void	CaptureTemporarySessionLayout (size_t session_id)
	Capture the current workspace as a temporary session layout.

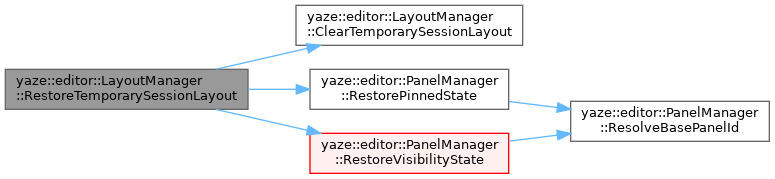

bool	RestoreTemporarySessionLayout (size_t session_id, bool clear_after_restore=false)
	Restore the temporary session layout if one has been captured.

bool	HasTemporarySessionLayout () const
	Whether a temporary session layout is available.

void	ClearTemporarySessionLayout ()
	Clear temporary session layout snapshot state.

bool	SaveNamedSnapshot (const std::string &name, size_t session_id)
	Capture the current workspace under a named, session-scoped slot.

bool	RestoreNamedSnapshot (const std::string &name, size_t session_id, bool remove_after_restore=false)
	Restore a named snapshot by name.

bool	DeleteNamedSnapshot (const std::string &name)
	Delete a named snapshot. Returns true if an entry was removed.

std::vector< std::string >	ListNamedSnapshots (size_t session_id) const
	List all named snapshots for the given session.

bool	HasNamedSnapshot (const std::string &name) const
	Whether a named snapshot with the given name exists.

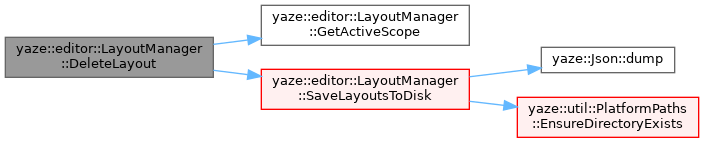

bool	DeleteLayout (const std::string &name)
	Delete a saved layout by name.

bool	ApplyBuiltInProfile (const std::string &profile_id, size_t session_id, EditorType editor_type, LayoutProfile *out_profile=nullptr)
	Apply a built-in layout profile by profile ID.

std::vector< std::string >	GetSavedLayoutNames () const
	Get list of all saved layout names.

bool	HasLayout (const std::string &name) const
	Check if a layout exists.

void	LoadLayoutsFromDisk ()
	Load layouts for the active scope (global + optional project)

void	SetProjectLayoutKey (const std::string &key)
	Set the active project layout key (enables project scope)

void	UseGlobalLayouts ()
	Clear project scope and return to global layouts only.

LayoutScope	GetActiveScope () const
	Get the active layout scope.

void	ResetToDefaultLayout (EditorType type)
	Reset the layout for an editor to its default.

bool	IsLayoutInitialized (EditorType type) const
	Check if a layout has been initialized for an editor.

void	MarkLayoutInitialized (EditorType type)
	Mark a layout as initialized.

void	ClearInitializationFlags ()
	Clear all initialization flags (for testing)

void	RequestRebuild ()
	Request a layout rebuild on next frame.

bool	IsRebuildRequested () const
	Check if rebuild was requested.

void	ClearRebuildRequest ()
	Clear rebuild request flag.

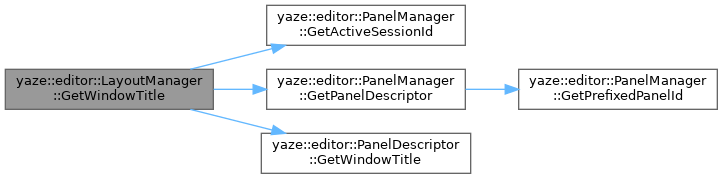

std::string	GetWindowTitle (const std::string &card_id) const
	Get window title for a card ID from registry.

absl::Status	ApplyDockTree (const layout_designer::DockTree &tree, ImGuiID dockspace_id)
	Apply a DockTree to the given dockspace.

void	ProcessPendingDockTabSelections ()

void	SetMainDockspaceId (ImGuiID id)
	Record the outer dockspace ID (OuterDockspaceId() in the app).

ImGuiID	GetMainDockspaceId () const
	Get the cached main dockspace ID.

ImGuiID	ActiveEditorDockspaceId () const
	Dockspace of the editor shown in the editor host, or 0 for kUnknown.

void	SetActiveEditorType (EditorType type)

EditorType	active_editor_type () const

void	DrawEditorHost ()
	Draw the editor host window and enforce the pin node.

ImGuiID	FindPinNode () const
	Pin node under the outer root, or 0 before the first split.

ImGuiDir	pin_dir () const

float	pin_size () const

void	RegisterLayoutIniHandler ()
	Register the "YazeLayout" ImGui settings handler on the current context.

void	ResetLayoutIniSettings ()

void	ReadLayoutIniLine (const char *line)

void	ApplyLayoutIniSettings ()

void	WriteLayoutIniSettings (ImGuiTextBuffer *buf) const

void	reset_startup_layout_consumed_for_test ()
	Test-only: reset the one-shot startup-reapply guard so a single test fixture can drive `MaybeReapplyStartupLayout` through multiple scenarios without standing up a fresh manager each time.

bool	startup_layout_consumed_for_test () const

bool	startup_reapply_pending_protection_for_test () const

void	set_current_editor_type_for_test (EditorType type)

void	set_editor_host_size_for_test (ImVec2 size)

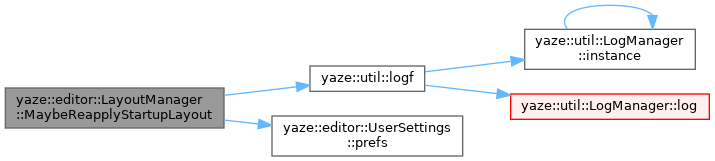

absl::Status	MaybeReapplyStartupLayout (UserSettings *settings)
	One-shot startup hook that re-applies the user's last applied named layout, if any.

absl::StatusOr< layout_designer::DockTree >	CaptureDockTree (ImGuiID dockspace_id) const
	Capture the current docking state into a DockTree.

Static Public Member Functions
static std::vector< LayoutProfile >	GetBuiltInProfiles ()
	Get built-in layout profiles.

static ImGuiID	OuterDockspaceId ()
	Outer dockspace hosted by DockSpaceWindow.

static ImGuiID	EditorDockspaceId (EditorType type)
	Dockspace that holds one editor's panels.

Static Public Attributes
static constexpr int	kLayoutIniRevision = 1
	Layout revision written to imgui.ini. A mismatch resets dock trees.

Private Member Functions

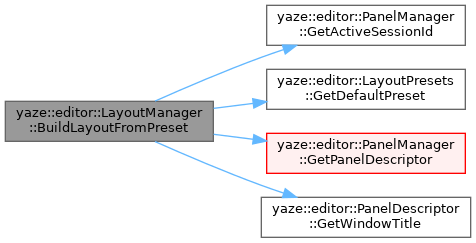

void	BuildLayoutFromPreset (EditorType type, ImGuiID dockspace_id)

void	DisableLazyDefaultDocking ()

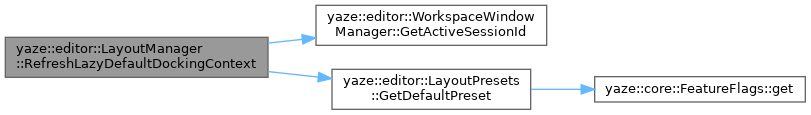

void	RefreshLazyDefaultDockingContext (EditorType type, ImGuiID dockspace_id)

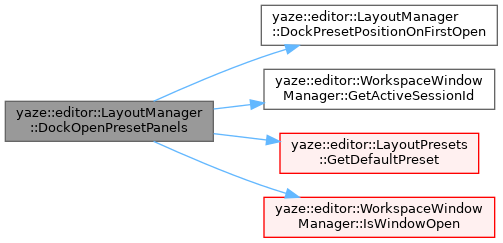

void	DockOpenPresetPanels (EditorType type)

bool	DockPresetPositionOnFirstOpen (size_t session_id, const std::string &panel_id, bool include_default_visible, bool allow_redock=false)

void	MarkLazyDefaultDockAttempted (const std::string &panel_id)

void	StashLazyDefaultDockState ()

bool	RestoreLazyDefaultDockState (EditorType type, ImGuiID dockspace_id)

ImGuiID	EnsurePinNode ()

void	RecordPinSpot ()

ImGuiID	MovePinSpot (ImGuiDir dir, float size)

ImVec2	EditorDockspaceSize () const

void	EnforcePinnedPanels (ImGuiID pin_node)

void	ProtectRestoredLayoutFromDefaultInitialization ()

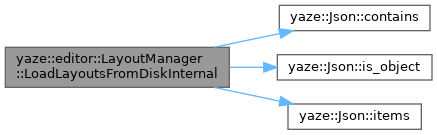

void	LoadLayoutsFromDiskInternal (LayoutScope scope, bool merge)

void	SaveLayoutsToDisk (LayoutScope scope) const

Private Attributes
std::unordered_map< EditorType, bool >	layouts_initialized_

std::vector< PendingDockTabSelection >	pending_dock_tab_selections_

WorkspaceWindowManager *	window_manager_ = nullptr

bool	rebuild_requested_ = false

ImGuiID	last_dockspace_id_ = 0

ImGuiID	main_dockspace_id_ = 0

bool	startup_layout_consumed_ = false

bool	startup_reapply_pending_protection_ = false

EditorType	current_editor_type_ = EditorType::kUnknown

EditorType	active_editor_type_ = EditorType::kUnknown

ImVec2	editor_host_size_ = ImVec2(0.0f, 0.0f)

LayoutIniState	layout_ini_

bool	layout_ini_backup_checked_ = false

ImGuiDir	pin_dir_ = ImGuiDir_Right

float	pin_size_ = 0.0f

std::unordered_set< std::string >	pinned_last_frame_

LazyDefaultDockState	lazy_default_dock_state_

std::unordered_map< EditorType, LazyDefaultDockState >	lazy_states_by_type_

std::unordered_map< size_t, std::unordered_map< EditorType, std::unordered_set< std::string > > >	lazy_default_dock_attempts_

std::unordered_map< std::string, std::unordered_map< std::string, bool > >	saved_layouts_

bool	has_temp_session_layout_ = false

size_t	temp_session_id_ = 0

std::unordered_map< std::string, bool >	temp_session_visibility_

std::unordered_map< std::string, bool >	temp_session_pinned_

std::string	temp_session_imgui_layout_

std::unordered_map< std::string, SessionSnapshot >	named_snapshots_

std::unordered_map< std::string, std::string >	saved_imgui_layouts_

std::unordered_map< std::string, std::unordered_map< std::string, bool > >	saved_pinned_layouts_

std::unordered_map< std::string, LayoutScope >	layout_scopes_

std::string	project_layout_key_

Detailed Description

Manages ImGui DockBuilder layouts for each editor type.

Provides professional default layouts using ImGui's DockBuilder API, similar to VSCode's workspace layouts. Each editor type has a custom layout optimized for its workflow.

Features:

Per-editor default layouts (Overworld, Dungeon, Graphics, etc.)
Layout persistence and restoration
Workspace presets (Developer, Designer, Modder)
Dynamic layout initialization on first editor switch
Panel manager integration for window title lookups

Definition at line 54 of file layout_manager.h.

Constructor & Destructor Documentation

◆ LayoutManager()

yaze::editor::LayoutManager::LayoutManager ( )

default

◆ ~LayoutManager()

yaze::editor::LayoutManager::~LayoutManager ( )

Definition at line 772 of file layout_manager.cc.

Member Function Documentation

◆ SetWindowManager()

void yaze::editor::LayoutManager::SetWindowManager ( WorkspaceWindowManager * manager )

inline

Set the window manager for window title lookups.

Parameters

manager Pointer to the WorkspaceWindowManager

Definition at line 63 of file layout_manager.h.

References window_manager_.

◆ window_manager()

WorkspaceWindowManager * yaze::editor::LayoutManager::window_manager ( ) const

inline

Get the window manager.

Returns: Pointer to the WorkspaceWindowManager

Definition at line 71 of file layout_manager.h.

References window_manager_.

◆ InitializeEditorLayout()

void yaze::editor::LayoutManager::InitializeEditorLayout	(	EditorType	type,
		ImGuiID	dockspace_id )

Initialize the default layout for a specific editor type.

Parameters

type	The editor type to initialize
dockspace_id	The ImGui dockspace ID to build the layout in

Definition at line 194 of file layout_manager.cc.

References active_editor_type_, BuildLayoutFromPreset(), current_editor_type_, DisableLazyDefaultDocking(), DockOpenPresetPanels(), EditorDockspaceSize(), IsLayoutInitialized(), last_dockspace_id_, LOG_INFO, MarkLayoutInitialized(), pending_dock_tab_selections_, RefreshLazyDefaultDockingContext(), startup_reapply_pending_protection_, and window_manager_.

Referenced by yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), and yaze::editor::EditorActivator::InitializeEditorLayout().

◆ RebuildLayout()

void yaze::editor::LayoutManager::RebuildLayout	(	EditorType	type,
		ImGuiID	dockspace_id )

Force rebuild of layout for a specific editor type.

Parameters

type	The editor type to rebuild
dockspace_id	The ImGui dockspace ID to build the layout in

This method rebuilds the layout even if it was already initialized. Useful for resetting layouts to their default state.

Definition at line 262 of file layout_manager.cc.

References active_editor_type_, BuildLayoutFromPreset(), current_editor_type_, DockOpenPresetPanels(), EditorDockspaceSize(), last_dockspace_id_, layouts_initialized_, LOG_ERROR, LOG_INFO, MarkLayoutInitialized(), pending_dock_tab_selections_, and window_manager_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild(), and yaze::editor::LayoutCoordinator::ResetWorkspaceLayout().

Here is the call graph for this function:

◆ DockDefaultPositionOnFirstOpen()

bool yaze::editor::LayoutManager::DockDefaultPositionOnFirstOpen	(	size_t	session_id,
		const std::string &	panel_id )

Dock a hidden-by-default panel at its preset position on first open.

This is active only for default presets that intentionally build the startup dock tree from visible panels alone. Each panel is considered at most once per default-layout build, so closing and reopening a panel never overrides a position the user chose after its first open.

Returns: true when the panel was assigned to a default dock node.

Definition at line 1396 of file layout_manager.cc.

◆ DockPresetPositionOnPanelOpen()

bool yaze::editor::LayoutManager::DockPresetPositionOnPanelOpen	(	size_t	session_id,
		const std::string &	panel_id )

Rebind any preset panel when a visibility event opens it.

Unlike DockDefaultPositionOnFirstOpen(), this accepts both default-visible and optional panels. This matters after another editor replaces the shared dock tree while a default panel is hidden: its next open event must attach it to the new live tree instead of leaving it floating.

Returns: true when the panel was assigned to a preset dock node.

Definition at line 1402 of file layout_manager.cc.

◆ SaveCurrentLayout()

void yaze::editor::LayoutManager::SaveCurrentLayout	(	const std::string &	name,
		bool	persist = true )

Save the current layout with a custom name.

Parameters

name	The name to save the layout under
persist	Whether to write the layout to disk

Definition at line 1568 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

Referenced by yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout(), yaze::editor::WorkspaceManager::SaveWorkspaceLayout(), and yaze::editor::WorkspaceManager::SaveWorkspacePreset().

◆ LoadLayout()

void yaze::editor::LayoutManager::LoadLayout ( const std::string & name )

Load a saved layout by name.

Parameters

name	The name of the layout to load

Definition at line 1603 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

Referenced by yaze::editor::WorkspaceManager::LoadWorkspaceLayout(), yaze::editor::WorkspaceManager::LoadWorkspacePreset(), and yaze::editor::LayoutCoordinator::RestorePreviousEditorLayout().

◆ CaptureTemporarySessionLayout()

void yaze::editor::LayoutManager::CaptureTemporarySessionLayout ( size_t session_id )

Capture the current workspace as a temporary session layout.

Temporary layouts are held in memory only and are never persisted to disk.

Definition at line 1647 of file layout_manager.cc.

References LOG_INFO.

◆ RestoreTemporarySessionLayout()

bool yaze::editor::LayoutManager::RestoreTemporarySessionLayout	(	size_t	session_id,
		bool	clear_after_restore = false )

Restore the temporary session layout if one has been captured.

Returns: true when a captured layout was restored

Definition at line 1672 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

◆ HasTemporarySessionLayout()

bool yaze::editor::LayoutManager::HasTemporarySessionLayout ( ) const

inline

Whether a temporary session layout is available.

Definition at line 146 of file layout_manager.h.

References has_temp_session_layout_.

◆ ClearTemporarySessionLayout()

void yaze::editor::LayoutManager::ClearTemporarySessionLayout ( )

Clear temporary session layout snapshot state.

Definition at line 1709 of file layout_manager.cc.

◆ SaveNamedSnapshot()

bool yaze::editor::LayoutManager::SaveNamedSnapshot	(	const std::string &	name,
		size_t	session_id )

Capture the current workspace under a named, session-scoped slot.

Named snapshots are held in memory only (never persisted) and identified by the caller-supplied name. Names are used as the stable lookup key; duplicate saves overwrite the existing entry.

Definition at line 1717 of file layout_manager.cc.

References yaze::editor::LayoutManager::SessionSnapshot::imgui_layout, LOG_INFO, yaze::editor::LayoutManager::SessionSnapshot::pinned, yaze::editor::LayoutManager::SessionSnapshot::session_id, and yaze::editor::LayoutManager::SessionSnapshot::visibility.

◆ RestoreNamedSnapshot()

bool yaze::editor::LayoutManager::RestoreNamedSnapshot	(	const std::string &	name,
		size_t	session_id,
		bool	remove_after_restore = false )

Restore a named snapshot by name.

Definition at line 1737 of file layout_manager.cc.

References yaze::editor::LayoutManager::SessionSnapshot::imgui_layout, yaze::editor::LayoutManager::SessionSnapshot::pinned, yaze::editor::LayoutManager::SessionSnapshot::session_id, and yaze::editor::LayoutManager::SessionSnapshot::visibility.

◆ DeleteNamedSnapshot()

bool yaze::editor::LayoutManager::DeleteNamedSnapshot ( const std::string & name )

Delete a named snapshot. Returns true if an entry was removed.

Definition at line 1769 of file layout_manager.cc.

◆ ListNamedSnapshots()

std::vector< std::string > yaze::editor::LayoutManager::ListNamedSnapshots ( size_t session_id ) const

List all named snapshots for the given session.

Definition at line 1778 of file layout_manager.cc.

◆ HasNamedSnapshot()

bool yaze::editor::LayoutManager::HasNamedSnapshot ( const std::string & name ) const

Whether a named snapshot with the given name exists.

Definition at line 1791 of file layout_manager.cc.

◆ DeleteLayout()

bool yaze::editor::LayoutManager::DeleteLayout ( const std::string & name )

Delete a saved layout by name.

Parameters

name	The name of the layout to delete

Returns: true if layout was deleted, false if not found

Definition at line 1795 of file layout_manager.cc.

References LOG_INFO, and LOG_WARN.

Referenced by yaze::editor::LayoutCoordinator::RestorePreviousEditorLayout().

◆ GetBuiltInProfiles()

std::vector< LayoutProfile > yaze::editor::LayoutManager::GetBuiltInProfiles ( )

static

Get built-in layout profiles.

Definition at line 1820 of file layout_manager.cc.

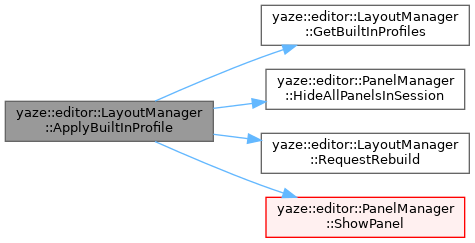

◆ ApplyBuiltInProfile()

bool yaze::editor::LayoutManager::ApplyBuiltInProfile	(	const std::string &	profile_id,
		size_t	session_id,
		EditorType	editor_type,
		LayoutProfile *	out_profile = nullptr )

Apply a built-in layout profile by profile ID.

Parameters

profile_id	Stable profile id from GetBuiltInProfiles()
session_id	Active session id
editor_type	Current editor type (for context-sensitive profiles)
out_profile	Optional resolved profile metadata

Returns: true when a matching profile was applied

Definition at line 1845 of file layout_manager.cc.

References yaze::editor::PanelLayoutPreset::default_visible_panels, LOG_INFO, LOG_WARN, and yaze::editor::LayoutProfile::preset_name.

◆ GetSavedLayoutNames()

std::vector< std::string > yaze::editor::LayoutManager::GetSavedLayoutNames ( ) const

Get list of all saved layout names.

Returns: Vector of layout names

Definition at line 1905 of file layout_manager.cc.

◆ HasLayout()

bool yaze::editor::LayoutManager::HasLayout ( const std::string & name ) const

Check if a layout exists.

Parameters

name	The layout name to check

Returns: true if layout exists

Definition at line 1914 of file layout_manager.cc.

Referenced by yaze::editor::LayoutCoordinator::HasPreviousEditorLayout(), yaze::editor::WorkspaceManager::LoadWorkspaceLayout(), yaze::editor::WorkspaceManager::LoadWorkspacePreset(), and yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout().

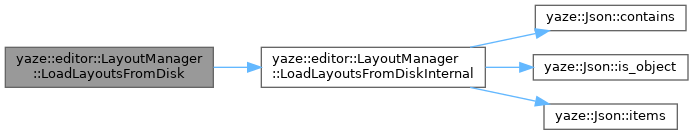

◆ LoadLayoutsFromDisk()

void yaze::editor::LayoutManager::LoadLayoutsFromDisk ( )

Load layouts for the active scope (global + optional project)

Definition at line 1918 of file layout_manager.cc.

◆ SetProjectLayoutKey()

void yaze::editor::LayoutManager::SetProjectLayoutKey ( const std::string & key )

Set the active project layout key (enables project scope)

Parameters

key	Stable project storage key (sanitized)

Definition at line 1930 of file layout_manager.cc.

◆ UseGlobalLayouts()

void yaze::editor::LayoutManager::UseGlobalLayouts ( )

Clear project scope and return to global layouts only.

Definition at line 1939 of file layout_manager.cc.

◆ GetActiveScope()

LayoutScope yaze::editor::LayoutManager::GetActiveScope ( ) const

Get the active layout scope.

Definition at line 1944 of file layout_manager.cc.

◆ ResetToDefaultLayout()

void yaze::editor::LayoutManager::ResetToDefaultLayout ( EditorType type )

Reset the layout for an editor to its default.

Parameters

type	The editor type to reset

Definition at line 2068 of file layout_manager.cc.

References LOG_INFO.

Referenced by yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout().

◆ IsLayoutInitialized()

bool yaze::editor::LayoutManager::IsLayoutInitialized ( EditorType type ) const

Check if a layout has been initialized for an editor.

Parameters

type	The editor type to check

Returns: True if layout is initialized

Definition at line 2075 of file layout_manager.cc.

Referenced by yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), yaze::editor::LayoutCoordinator::InitializeEditorLayout(), yaze::editor::EditorActivator::InitializeEditorLayout(), and InitializeEditorLayout().

◆ MarkLayoutInitialized()

void yaze::editor::LayoutManager::MarkLayoutInitialized ( EditorType type )

Mark a layout as initialized.

Parameters

type	The editor type to mark

Definition at line 2080 of file layout_manager.cc.

References LOG_INFO.

Referenced by InitializeEditorLayout(), ProtectRestoredLayoutFromDefaultInitialization(), and RebuildLayout().

◆ ClearInitializationFlags()

void yaze::editor::LayoutManager::ClearInitializationFlags ( )

Clear all initialization flags (for testing)

Definition at line 2086 of file layout_manager.cc.

References LOG_INFO.

Referenced by yaze::editor::LayoutCoordinator::ResetWorkspaceLayout().

◆ RequestRebuild()

void yaze::editor::LayoutManager::RequestRebuild ( )

inline

Request a layout rebuild on next frame.

Definition at line 268 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutCoordinator::ApplyLayoutPreset(), yaze::editor::LayoutCoordinator::ResetCurrentEditorLayout(), and yaze::editor::LayoutCoordinator::ResetWorkspaceLayout().

◆ IsRebuildRequested()

bool yaze::editor::LayoutManager::IsRebuildRequested ( ) const

inline

Check if rebuild was requested.

Definition at line 273 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild().

◆ ClearRebuildRequest()

void yaze::editor::LayoutManager::ClearRebuildRequest ( )

inline

Clear rebuild request flag.

Definition at line 278 of file layout_manager.h.

References rebuild_requested_.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild(), and yaze::editor::LayoutCoordinator::RestorePreviousEditorLayout().

◆ GetWindowTitle()

std::string yaze::editor::LayoutManager::GetWindowTitle ( const std::string & card_id ) const

Get window title for a card ID from registry.

Parameters

card_id The card ID to look up

Returns: Window title or empty string if not found

Definition at line 2093 of file layout_manager.cc.

◆ ApplyDockTree()

absl::Status yaze::editor::LayoutManager::ApplyDockTree	(	const layout_designer::DockTree &	tree,
		ImGuiID	dockspace_id )

Apply a DockTree to the given dockspace.

Removes and rebuilds dockspace_id from scratch, walking the tree and calling DockBuilder{SplitNode,DockWindow,Finish}.

Side effects beyond DockBuilder, added in Phase 8 review (2026-04-24):

Calls WorkspaceWindowManager::OpenWindow(panel_id) for every panel referenced in the tree, so the user actually sees the panels they docked rather than empty slots.
Marks the active editor's layout initialized. If no editor is active, protects the next editor's first initialization instead. Other editors can still initialize their own defaults.

Panels in the tree whose panel_id is not registered against the bound WorkspaceWindowManager are skipped with a best-effort fallback that reconstructs the window title from the PanelEntry's cached icon + display_name + id.

Parameters

tree	Tree to apply. Must pass `Validate()`.
dockspace_id	ImGui dockspace to rebuild.

Returns: FailedPrecondition when no WorkspaceWindowManager is bound; InvalidArgument when the tree fails validation; OK otherwise.

Definition at line 2273 of file layout_manager.cc.

References yaze::editor::layout_designer::DockTree::root, and yaze::editor::layout_designer::DockTree::Validate().

Referenced by yaze::editor::layout_designer::LayoutDesignerPanel::ApplyCurrentTreeToLiveDockspace(), and yaze::editor::SettingsPanel::ApplyNamedLayoutToDockspace().

Here is the call graph for this function:

◆ ProcessPendingDockTabSelections()

void yaze::editor::LayoutManager::ProcessPendingDockTabSelections ( )

Definition at line 2368 of file layout_manager.cc.

Referenced by yaze::editor::LayoutCoordinator::ProcessLayoutRebuild().

◆ SetMainDockspaceId()

void yaze::editor::LayoutManager::SetMainDockspaceId ( ImGuiID id )

inline

Record the outer dockspace ID (OuterDockspaceId() in the app).

GetMainDockspaceId() returns the active editor's dockspace when one is set and falls back to this ID. Tests that drive a single dockspace set it directly.

Definition at line 328 of file layout_manager.h.

References main_dockspace_id_.

◆ GetMainDockspaceId()

ImGuiID yaze::editor::LayoutManager::GetMainDockspaceId ( ) const

Get the cached main dockspace ID.

Returns: The ID cached by SetMainDockspaceId, or 0 before the first frame of the DockSpaceWindow has rendered.

Definition at line 800 of file layout_manager.cc.

Referenced by yaze::editor::layout_designer::LayoutDesignerPanel::ApplyCurrentTreeToLiveDockspace(), yaze::editor::SettingsPanel::ApplyNamedLayoutToDockspace(), and yaze::editor::WorkspaceManager::MaximizeCurrentWindow().

◆ OuterDockspaceId()

ImGuiID yaze::editor::LayoutManager::OuterDockspaceId ( )

static

Outer dockspace hosted by DockSpaceWindow.

Hashed with a fixed seed, so the value does not depend on the calling window's ID stack. The outer root holds the shared pin node and the central node that hosts the editor host window.

Definition at line 783 of file layout_manager.cc.

Referenced by yaze::Controller::OnLoad().

◆ EditorDockspaceId()

ImGuiID yaze::editor::LayoutManager::EditorDockspaceId ( EditorType type )

static

Dockspace that holds one editor's panels.

Each editor keeps its own dock tree. Switching editors submits a different dockspace instead of rebuilding a shared one, so closed and moved panels survive a round trip.

Definition at line 787 of file layout_manager.cc.

References yaze::editor::EditorTypeIndex(), and yaze::editor::kEditorNames.

Referenced by yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), yaze::editor::EditorActivator::InitializeEditorLayout(), yaze::editor::LayoutCoordinator::ProcessLayoutRebuild(), and yaze::editor::LayoutCoordinator::ResetWorkspaceLayout().

Here is the call graph for this function:

◆ ActiveEditorDockspaceId()

ImGuiID yaze::editor::LayoutManager::ActiveEditorDockspaceId ( ) const

Dockspace of the editor shown in the editor host, or 0 for kUnknown.

Definition at line 793 of file layout_manager.cc.

◆ SetActiveEditorType()

void yaze::editor::LayoutManager::SetActiveEditorType ( EditorType type )

inline

Definition at line 362 of file layout_manager.h.

References active_editor_type_.

Referenced by yaze::editor::EditorActivator::HandleNonEditorClassSwitch(), and yaze::editor::LayoutCoordinator::ProcessLayoutRebuild().

◆ active_editor_type()

EditorType yaze::editor::LayoutManager::active_editor_type ( ) const

inline

Definition at line 363 of file layout_manager.h.

References active_editor_type_.

◆ DrawEditorHost()

void yaze::editor::LayoutManager::DrawEditorHost ( )

Draw the editor host window and enforce the pin node.

Call once per frame after the DockSpaceWindow ends and before editor panels are drawn. Splits the outer root into the pin node and central node on first use, docks the host into the central node, submits the active editor dockspace and keeps every other editor dockspace alive.

Definition at line 960 of file layout_manager.cc.

References yaze::editor::kEditorTypeCount.

Referenced by yaze::Controller::OnLoad().

◆ FindPinNode()

ImGuiID yaze::editor::LayoutManager::FindPinNode ( ) const

Pin node under the outer root, or 0 before the first split.

Definition at line 807 of file layout_manager.cc.

◆ pin_dir()

ImGuiDir yaze::editor::LayoutManager::pin_dir ( ) const

inline

Side and size (pixels along the split axis) the pin node is rebuilt with. Follows the last pin node drawn; size 0 means the default share.

Definition at line 380 of file layout_manager.h.

References pin_dir_.

◆ pin_size()

float yaze::editor::LayoutManager::pin_size ( ) const

inline

Definition at line 381 of file layout_manager.h.

References pin_size_.

◆ RegisterLayoutIniHandler()

void yaze::editor::LayoutManager::RegisterLayoutIniHandler ( )

Register the "YazeLayout" ImGui settings handler on the current context.

Definition at line 1091 of file layout_manager.cc.

◆ ResetLayoutIniSettings()

void yaze::editor::LayoutManager::ResetLayoutIniSettings ( )

Definition at line 1113 of file layout_manager.cc.

◆ ReadLayoutIniLine()

void yaze::editor::LayoutManager::ReadLayoutIniLine ( const char * line )

Definition at line 1117 of file layout_manager.cc.

References yaze::editor::kEditorNames, and yaze::editor::LayoutManager::LayoutIniState::section_seen.

◆ ApplyLayoutIniSettings()

void yaze::editor::LayoutManager::ApplyLayoutIniSettings ( )

Definition at line 1155 of file layout_manager.cc.

References LOG_INFO.

◆ WriteLayoutIniSettings()

void yaze::editor::LayoutManager::WriteLayoutIniSettings ( ImGuiTextBuffer * buf ) const

Definition at line 1198 of file layout_manager.cc.

References yaze::editor::kEditorNames, and yaze::editor::kEditorTypeCount.

◆ reset_startup_layout_consumed_for_test()

void yaze::editor::LayoutManager::reset_startup_layout_consumed_for_test ( )

inline

Test-only: reset the one-shot startup-reapply guard so a single test fixture can drive MaybeReapplyStartupLayout through multiple scenarios without standing up a fresh manager each time.

Definition at line 404 of file layout_manager.h.

References startup_layout_consumed_.

◆ startup_layout_consumed_for_test()

bool yaze::editor::LayoutManager::startup_layout_consumed_for_test ( ) const

inline

Definition at line 407 of file layout_manager.h.

References startup_layout_consumed_.

◆ startup_reapply_pending_protection_for_test()

bool yaze::editor::LayoutManager::startup_reapply_pending_protection_for_test ( ) const

inline

Definition at line 410 of file layout_manager.h.

References startup_reapply_pending_protection_.

◆ set_current_editor_type_for_test()

void yaze::editor::LayoutManager::set_current_editor_type_for_test ( EditorType type )

inline

Definition at line 413 of file layout_manager.h.

References current_editor_type_.

◆ set_editor_host_size_for_test()

void yaze::editor::LayoutManager::set_editor_host_size_for_test ( ImVec2 size )

inline

Definition at line 416 of file layout_manager.h.

References editor_host_size_.

◆ MaybeReapplyStartupLayout()

absl::Status yaze::editor::LayoutManager::MaybeReapplyStartupLayout ( UserSettings * settings )

One-shot startup hook that re-applies the user's last applied named layout, if any.

Drives idempotently from UserSettings::last_applied_layout_name

named_layouts. The first frame this is called with a valid main_dockspace_id_ (i.e. after the controller has rendered at least one DockSpaceWindow), the matching layout is parsed, validated, and applied to the live dockspace; subsequent calls are no-ops.

Failure modes are absorbed (logged, internally consumed) rather than propagated, because there is no useful caller-side recovery for "the layout the user picked yesterday no longer parses": the editor falls through to whatever default layout the workspace shell already built. The Status return is for observability and tests.

Skipped paths (return OK, leave the consumed flag clear so the caller can retry next frame):

main_dockspace_id_ == 0 (dockspace not bound yet).

Skipped paths (return OK, set consumed):

settings == nullptr.
last_applied_layout_name is empty.

Failure paths (return error status, set consumed):

The named layout is missing from named_layouts.
Its body fails to parse / validate.
ApplyDockTree returns non-OK.

Parameters

settings UserSettings to read named_layouts and last_applied_layout_name from. May be null.

Returns: OK on legitimate skip or successful apply; the underlying error otherwise.

Definition at line 2420 of file layout_manager.cc.

References yaze::editor::UserSettings::Preferences::last_applied_layout_name, yaze::editor::UserSettings::Preferences::named_layouts, and yaze::editor::UserSettings::prefs().

Here is the call graph for this function:

◆ CaptureDockTree()

absl::StatusOr< layout_designer::DockTree > yaze::editor::LayoutManager::CaptureDockTree ( ImGuiID dockspace_id ) const

Capture the current docking state into a DockTree.

Walks ImGui's internal dock node tree rooted at dockspace_id and samples splits + leaf windows. Unknown windows (those not registered against the bound WorkspaceWindowManager) are dropped. Split ratios are recovered from measured node sizes; X-axis splits always emit SplitDirection::kLeft and Y-axis splits emit kUp (direction is lossy, since a 0.4 right-placed split is visually identical to a 0.4 left-placed split).

Parameters

dockspace_id ImGui dockspace to sample.

Returns: FailedPrecondition when no WorkspaceWindowManager is bound; NotFound when no node exists at dockspace_id; the captured tree otherwise.

Definition at line 2496 of file layout_manager.cc.

References yaze::editor::layout_designer::DockTree::root.

◆ BuildLayoutFromPreset()

void yaze::editor::LayoutManager::BuildLayoutFromPreset	(	EditorType	type,
		ImGuiID	dockspace_id )

private

Definition at line 1221 of file layout_manager.cc.

References LOG_WARN.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ DisableLazyDefaultDocking()

void yaze::editor::LayoutManager::DisableLazyDefaultDocking ( )

private

Definition at line 132 of file layout_manager.cc.

References lazy_default_dock_state_.

Referenced by InitializeEditorLayout().

◆ RefreshLazyDefaultDockingContext()

void yaze::editor::LayoutManager::RefreshLazyDefaultDockingContext	(	EditorType	type,
		ImGuiID	dockspace_id )

private

Definition at line 136 of file layout_manager.cc.

References yaze::editor::PanelLayoutPreset::dock_only_default_visible_panels, yaze::editor::LayoutManager::LazyDefaultDockState::enabled, yaze::editor::WorkspaceWindowManager::GetActiveSessionId(), yaze::editor::LayoutPresets::GetDefaultPreset(), lazy_default_dock_attempts_, lazy_default_dock_state_, RestoreLazyDefaultDockState(), and window_manager_.

Referenced by InitializeEditorLayout().

Here is the call graph for this function:

◆ DockOpenPresetPanels()

void yaze::editor::LayoutManager::DockOpenPresetPanels ( EditorType type )

private

Definition at line 165 of file layout_manager.cc.

References yaze::editor::PanelLayoutPreset::default_visible_panels, DockPresetPositionOnFirstOpen(), yaze::editor::WorkspaceWindowManager::GetActiveSessionId(), yaze::editor::LayoutPresets::GetDefaultPreset(), yaze::editor::WorkspaceWindowManager::IsWindowOpen(), yaze::editor::PanelLayoutPreset::optional_panels, and window_manager_.

Referenced by InitializeEditorLayout(), and RebuildLayout().

Here is the call graph for this function:

◆ DockPresetPositionOnFirstOpen()

bool yaze::editor::LayoutManager::DockPresetPositionOnFirstOpen	(	size_t	session_id,
		const std::string &	panel_id,
		bool	include_default_visible,
		bool	allow_redock = false )

private

Definition at line 1408 of file layout_manager.cc.

References yaze::editor::PanelLayoutPreset::default_visible_panels, yaze::editor::PanelLayoutPreset::dock_only_default_visible_panels, and yaze::editor::PanelLayoutPreset::panel_positions.

Referenced by DockOpenPresetPanels().

◆ MarkLazyDefaultDockAttempted()

void yaze::editor::LayoutManager::MarkLazyDefaultDockAttempted ( const std::string & panel_id )

private

Definition at line 158 of file layout_manager.cc.

References yaze::editor::LayoutManager::LazyDefaultDockState::attempted_panels, lazy_default_dock_attempts_, and lazy_default_dock_state_.

◆ StashLazyDefaultDockState()

void yaze::editor::LayoutManager::StashLazyDefaultDockState ( )

private

Definition at line 910 of file layout_manager.cc.

◆ RestoreLazyDefaultDockState()

bool yaze::editor::LayoutManager::RestoreLazyDefaultDockState	(	EditorType	type,
		ImGuiID	dockspace_id )

private

Definition at line 918 of file layout_manager.cc.

References yaze::editor::LayoutManager::LazyDefaultDockState::enabled.

Referenced by RefreshLazyDefaultDockingContext().

◆ EnsurePinNode()

ImGuiID yaze::editor::LayoutManager::EnsurePinNode ( )

private

Definition at line 820 of file layout_manager.cc.

◆ RecordPinSpot()

void yaze::editor::LayoutManager::RecordPinSpot ( )

private

Definition at line 855 of file layout_manager.cc.

◆ MovePinSpot()

ImGuiID yaze::editor::LayoutManager::MovePinSpot	(	ImGuiDir	dir,
		float	size )

private

Definition at line 869 of file layout_manager.cc.

◆ EditorDockspaceSize()

ImVec2 yaze::editor::LayoutManager::EditorDockspaceSize ( ) const

private

Definition at line 895 of file layout_manager.cc.

References yaze::gui::DockSpaceRenderer::GetLastDockspaceSize().

Referenced by InitializeEditorLayout(), and RebuildLayout().

Here is the call graph for this function:

◆ EnforcePinnedPanels()

void yaze::editor::LayoutManager::EnforcePinnedPanels ( ImGuiID pin_node )

private

Definition at line 1014 of file layout_manager.cc.

◆ ProtectRestoredLayoutFromDefaultInitialization()

void yaze::editor::LayoutManager::ProtectRestoredLayoutFromDefaultInitialization ( )

private

Definition at line 186 of file layout_manager.cc.

References current_editor_type_, yaze::editor::kUnknown, MarkLayoutInitialized(), and startup_reapply_pending_protection_.

Here is the call graph for this function:

◆ LoadLayoutsFromDiskInternal()

void yaze::editor::LayoutManager::LoadLayoutsFromDiskInternal	(	LayoutScope	scope,
		bool	merge )

private

Definition at line 1949 of file layout_manager.cc.

References yaze::Json::contains(), yaze::Json::is_object(), yaze::Json::items(), LOG_INFO, and LOG_WARN.

Here is the call graph for this function:

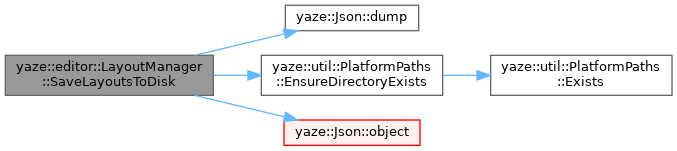

◆ SaveLayoutsToDisk()

void yaze::editor::LayoutManager::SaveLayoutsToDisk ( LayoutScope scope ) const

private

Definition at line 2012 of file layout_manager.cc.

References yaze::Json::dump(), yaze::util::PlatformPaths::EnsureDirectoryExists(), LOG_WARN, and yaze::Json::object().

Here is the call graph for this function:

Member Data Documentation

◆ kLayoutIniRevision

constexpr int yaze::editor::LayoutManager::kLayoutIniRevision = 1

staticconstexpr

Layout revision written to imgui.ini. A mismatch resets dock trees.

Definition at line 388 of file layout_manager.h.

◆ layouts_initialized_

std::unordered_map<EditorType, bool> yaze::editor::LayoutManager::layouts_initialized_

private

Definition at line 501 of file layout_manager.h.

Referenced by RebuildLayout().

◆ pending_dock_tab_selections_

std::vector<PendingDockTabSelection> yaze::editor::LayoutManager::pending_dock_tab_selections_

private

Definition at line 511 of file layout_manager.h.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ window_manager_

WorkspaceWindowManager* yaze::editor::LayoutManager::window_manager_ = nullptr

private

Definition at line 514 of file layout_manager.h.

Referenced by DockOpenPresetPanels(), InitializeEditorLayout(), RebuildLayout(), RefreshLazyDefaultDockingContext(), SetWindowManager(), and window_manager().

◆ rebuild_requested_

bool yaze::editor::LayoutManager::rebuild_requested_ = false

private

Definition at line 517 of file layout_manager.h.

Referenced by ClearRebuildRequest(), IsRebuildRequested(), and RequestRebuild().

◆ last_dockspace_id_

ImGuiID yaze::editor::LayoutManager::last_dockspace_id_ = 0

private

Definition at line 520 of file layout_manager.h.

Referenced by InitializeEditorLayout(), and RebuildLayout().

◆ main_dockspace_id_

ImGuiID yaze::editor::LayoutManager::main_dockspace_id_ = 0

private

Definition at line 525 of file layout_manager.h.

Referenced by SetMainDockspaceId().

◆ startup_layout_consumed_

bool yaze::editor::LayoutManager::startup_layout_consumed_ = false

private

Definition at line 530 of file layout_manager.h.

Referenced by reset_startup_layout_consumed_for_test(), and startup_layout_consumed_for_test().

◆ startup_reapply_pending_protection_

bool yaze::editor::LayoutManager::startup_reapply_pending_protection_ = false

private

Definition at line 540 of file layout_manager.h.

Referenced by InitializeEditorLayout(), ProtectRestoredLayoutFromDefaultInitialization(), and startup_reapply_pending_protection_for_test().

◆ current_editor_type_

EditorType yaze::editor::LayoutManager::current_editor_type_ = EditorType::kUnknown

private

Definition at line 543 of file layout_manager.h.

Referenced by InitializeEditorLayout(), ProtectRestoredLayoutFromDefaultInitialization(), RebuildLayout(), and set_current_editor_type_for_test().

◆ active_editor_type_

EditorType yaze::editor::LayoutManager::active_editor_type_ = EditorType::kUnknown

private

Definition at line 547 of file layout_manager.h.

Referenced by active_editor_type(), InitializeEditorLayout(), RebuildLayout(), and SetActiveEditorType().

◆ editor_host_size_

ImVec2 yaze::editor::LayoutManager::editor_host_size_ = ImVec2(0.0f, 0.0f)

private

Definition at line 550 of file layout_manager.h.

Referenced by set_editor_host_size_for_test().

◆ layout_ini_

LayoutIniState yaze::editor::LayoutManager::layout_ini_

private

Definition at line 560 of file layout_manager.h.

◆ layout_ini_backup_checked_

bool yaze::editor::LayoutManager::layout_ini_backup_checked_ = false

private

Definition at line 561 of file layout_manager.h.

◆ pin_dir_

ImGuiDir yaze::editor::LayoutManager::pin_dir_ = ImGuiDir_Right

private

Definition at line 565 of file layout_manager.h.

Referenced by pin_dir().

◆ pin_size_

float yaze::editor::LayoutManager::pin_size_ = 0.0f

private

Definition at line 566 of file layout_manager.h.

Referenced by pin_size().

◆ pinned_last_frame_

std::unordered_set<std::string> yaze::editor::LayoutManager::pinned_last_frame_

private

Definition at line 570 of file layout_manager.h.

◆ lazy_default_dock_state_

LazyDefaultDockState yaze::editor::LayoutManager::lazy_default_dock_state_

private

Definition at line 596 of file layout_manager.h.

Referenced by DisableLazyDefaultDocking(), MarkLazyDefaultDockAttempted(), and RefreshLazyDefaultDockingContext().

◆ lazy_states_by_type_

std::unordered_map<EditorType, LazyDefaultDockState> yaze::editor::LayoutManager::lazy_states_by_type_

private

Definition at line 598 of file layout_manager.h.

◆ lazy_default_dock_attempts_

std::unordered_map< size_t, std::unordered_map<EditorType, std::unordered_set<std::string> > > yaze::editor::LayoutManager::lazy_default_dock_attempts_

private

Definition at line 601 of file layout_manager.h.

Referenced by MarkLazyDefaultDockAttempted(), and RefreshLazyDefaultDockingContext().

◆ saved_layouts_

std::unordered_map<std::string, std::unordered_map<std::string, bool> > yaze::editor::LayoutManager::saved_layouts_

private

Definition at line 605 of file layout_manager.h.

◆ has_temp_session_layout_

bool yaze::editor::LayoutManager::has_temp_session_layout_ = false

private

Definition at line 608 of file layout_manager.h.

Referenced by HasTemporarySessionLayout().

◆ temp_session_id_

size_t yaze::editor::LayoutManager::temp_session_id_ = 0

private

Definition at line 609 of file layout_manager.h.

◆ temp_session_visibility_

std::unordered_map<std::string, bool> yaze::editor::LayoutManager::temp_session_visibility_

private

Definition at line 610 of file layout_manager.h.

◆ temp_session_pinned_

std::unordered_map<std::string, bool> yaze::editor::LayoutManager::temp_session_pinned_

private

Definition at line 611 of file layout_manager.h.

◆ temp_session_imgui_layout_

std::string yaze::editor::LayoutManager::temp_session_imgui_layout_

private

Definition at line 612 of file layout_manager.h.

◆ named_snapshots_

std::unordered_map<std::string, SessionSnapshot> yaze::editor::LayoutManager::named_snapshots_

private

Definition at line 622 of file layout_manager.h.

◆ saved_imgui_layouts_

std::unordered_map<std::string, std::string> yaze::editor::LayoutManager::saved_imgui_layouts_

private

Definition at line 625 of file layout_manager.h.

◆ saved_pinned_layouts_

std::unordered_map<std::string, std::unordered_map<std::string, bool> > yaze::editor::LayoutManager::saved_pinned_layouts_

private

Definition at line 629 of file layout_manager.h.

◆ layout_scopes_

std::unordered_map<std::string, LayoutScope> yaze::editor::LayoutManager::layout_scopes_

private

Definition at line 632 of file layout_manager.h.

◆ project_layout_key_

std::string yaze::editor::LayoutManager::project_layout_key_

private

Definition at line 635 of file layout_manager.h.

The documentation for this class was generated from the following files:

src/app/editor/layout/layout_manager.h
src/app/editor/layout/layout_manager.cc

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LayoutManager()

◆ ~LayoutManager()

Member Function Documentation

◆ SetWindowManager()

◆ window_manager()

◆ InitializeEditorLayout()

◆ RebuildLayout()

◆ DockDefaultPositionOnFirstOpen()

◆ DockPresetPositionOnPanelOpen()

◆ SaveCurrentLayout()

◆ LoadLayout()

◆ CaptureTemporarySessionLayout()

◆ RestoreTemporarySessionLayout()

◆ HasTemporarySessionLayout()

◆ ClearTemporarySessionLayout()

◆ SaveNamedSnapshot()

◆ RestoreNamedSnapshot()

◆ DeleteNamedSnapshot()

◆ ListNamedSnapshots()

◆ HasNamedSnapshot()

◆ DeleteLayout()

◆ GetBuiltInProfiles()

◆ ApplyBuiltInProfile()

◆ GetSavedLayoutNames()

◆ HasLayout()

◆ LoadLayoutsFromDisk()

◆ SetProjectLayoutKey()

◆ UseGlobalLayouts()

◆ GetActiveScope()

◆ ResetToDefaultLayout()

◆ IsLayoutInitialized()

◆ MarkLayoutInitialized()

◆ ClearInitializationFlags()

◆ RequestRebuild()

◆ IsRebuildRequested()

◆ ClearRebuildRequest()

◆ GetWindowTitle()

◆ ApplyDockTree()

◆ ProcessPendingDockTabSelections()

◆ SetMainDockspaceId()

◆ GetMainDockspaceId()

◆ OuterDockspaceId()

◆ EditorDockspaceId()

◆ ActiveEditorDockspaceId()

◆ SetActiveEditorType()

◆ active_editor_type()

◆ DrawEditorHost()

◆ FindPinNode()

◆ pin_dir()

◆ pin_size()

◆ RegisterLayoutIniHandler()

◆ ResetLayoutIniSettings()

◆ ReadLayoutIniLine()

◆ ApplyLayoutIniSettings()

◆ WriteLayoutIniSettings()

◆ reset_startup_layout_consumed_for_test()

◆ startup_layout_consumed_for_test()

◆ startup_reapply_pending_protection_for_test()

◆ set_current_editor_type_for_test()

◆ set_editor_host_size_for_test()

◆ MaybeReapplyStartupLayout()

◆ CaptureDockTree()

◆ BuildLayoutFromPreset()

◆ DisableLazyDefaultDocking()

◆ RefreshLazyDefaultDockingContext()

◆ DockOpenPresetPanels()

◆ DockPresetPositionOnFirstOpen()

◆ MarkLazyDefaultDockAttempted()

◆ StashLazyDefaultDockState()

◆ RestoreLazyDefaultDockState()

◆ EnsurePinNode()

◆ RecordPinSpot()
