Renders dungeon objects from Link to the Past. More...

#include <object_renderer.h>

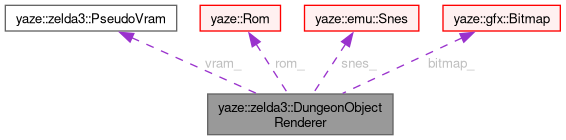

Inheritance diagram for yaze::zelda3::DungeonObjectRenderer:

Public Member Functions
	DungeonObjectRenderer ()=default

void	LoadObject (uint32_t routine_ptr, std::array< uint8_t, 16 > &sheet_ids)
	Loads and renders a dungeon object.

void	ConfigureObject ()
	Configures the CPU state for object rendering.

void	RenderObject (uint32_t routine_ptr)
	Executes the object drawing routine.

void	UpdateObjectBitmap ()
	Updates the bitmap with the rendered object.

void	SetPalette (const gfx::SnesPalette &palette, size_t transparent_index=0)
	Sets the palette for the rendered object.

gfx::Bitmap *	bitmap ()
	Gets the rendered bitmap.

auto	memory ()
	Gets the memory implementation.

auto	mutable_memory ()
	Gets a mutable pointer to the memory implementation.

Public Member Functions inherited from yaze::SharedRom
	SharedRom ()=default

virtual	~SharedRom ()=default

std::shared_ptr< Rom >	shared_rom ()

auto	rom ()

Private Attributes
std::vector< uint8_t >	tilemap_

std::vector< uint8_t >	rom_data_

PseudoVram	vram_

emu::MemoryImpl	memory_

emu::CpuCallbacks	cpu_callbacks_

emu::Ppu	ppu {memory_}

emu::Cpu	cpu {memory_, cpu_callbacks_}

gfx::Bitmap	bitmap_

Additional Inherited Members
Static Public Member Functions inherited from yaze::SharedRom
static void	set_rom (Rom *rom)

Static Public Attributes inherited from yaze::SharedRom
static std::shared_ptr< Rom >	shared_rom_ = nullptr

Detailed Description

Renders dungeon objects from Link to the Past.

This class uses the emulator subsystem to simulate the SNES CPU drawing routines for dungeon objects. It captures the tile data written to memory and renders it to a bitmap.

Definition at line 34 of file object_renderer.h.

Constructor & Destructor Documentation

◆ DungeonObjectRenderer()

yaze::zelda3::DungeonObjectRenderer::DungeonObjectRenderer ( )

default

Member Function Documentation

◆ LoadObject()

void yaze::zelda3::DungeonObjectRenderer::LoadObject	(	uint32_t	routine_ptr,
		std::array< uint8_t, 16 > &	sheet_ids )

Loads and renders a dungeon object.

Parameters

routine_ptr	Pointer to the drawing routine in ROM
sheet_ids	Array of graphics sheet IDs used by the object

Definition at line 6 of file object_renderer.cc.

References ConfigureObject(), memory_, RenderObject(), yaze::SharedRom::rom(), rom_data_, and vram_.

Here is the call graph for this function:

◆ ConfigureObject()

void yaze::zelda3::DungeonObjectRenderer::ConfigureObject ( )

Configures the CPU state for object rendering.

Definition at line 21 of file object_renderer.cc.

References cpu.

Referenced by LoadObject().

◆ RenderObject()

void yaze::zelda3::DungeonObjectRenderer::RenderObject ( uint32_t routine_ptr )

Executes the object drawing routine.

Parameters

routine_ptr Pointer to the drawing routine in ROM

Example: the STA $BF, $CD, $C2, $CE are the location of the object in the room $B2 is used for size loop so if object size is setted on 07 that draw code will be repeated 7 times and since Y is increasing by 4 it makes the object draw from left to right

RoomDraw_Rightwards2x2_1to15or32: #_018B89: JSR RoomDraw_GetSize_1to15or32 .next #_018B8C: JSR RoomDraw_Rightwards2x2 #_018B8F: DEC.b $B2 #_018B91: BNE .next #_018B93: RTS

RoomDraw_Rightwards2x2: #_019895: LDA.w RoomDrawObjectData+0,X #_019898: STA.b [$BF],Y #_01989A: LDA.w RoomDrawObjectData+2,X #_01989D: STA.b [$CB],Y #_01989F: LDA.w RoomDrawObjectData+4,X #_0198A2: STA.b [$C2],Y #_0198A4: LDA.w RoomDrawObjectData+6,X #_0198A7: STA.b [$CE],Y #_0198A9: INY #4 #_0198AD: RTS

Definition at line 61 of file object_renderer.cc.

References cpu, and UpdateObjectBitmap().

Referenced by LoadObject().

Here is the call graph for this function:

◆ UpdateObjectBitmap()

void yaze::zelda3::DungeonObjectRenderer::UpdateObjectBitmap ( )

Updates the bitmap with the rendered object.

Definition at line 104 of file object_renderer.cc.

References bitmap_, yaze::GraphicsSheetManager::GetInstance(), memory_, yaze::GraphicsSheetManager::mutable_gfx_sheets(), tilemap_, and vram_.

Referenced by RenderObject().

Here is the call graph for this function:

◆ SetPalette()

void yaze::zelda3::DungeonObjectRenderer::SetPalette	(	const gfx::SnesPalette &	palette,
		size_t	transparent_index = 0 )

Sets the palette for the rendered object.

Parameters

palette	The palette to use for the object
transparent_index	Index of the transparent color (default: 0)

Definition at line 145 of file object_renderer.cc.

References bitmap_, and vram_.

◆ bitmap()

gfx::Bitmap * yaze::zelda3::DungeonObjectRenderer::bitmap ( )

inline

Gets the rendered bitmap.

Returns: gfx::Bitmap* Pointer to the bitmap

Definition at line 76 of file object_renderer.h.

References bitmap_.

◆ memory()

auto yaze::zelda3::DungeonObjectRenderer::memory ( )

inline

Gets the memory implementation.

Returns: Memory implementation

Definition at line 83 of file object_renderer.h.

References memory_.

◆ mutable_memory()

auto yaze::zelda3::DungeonObjectRenderer::mutable_memory ( )

inline

Gets a mutable pointer to the memory implementation.

Returns: Mutable pointer to the memory implementation

Definition at line 90 of file object_renderer.h.

References memory_.

Member Data Documentation

◆ tilemap_

std::vector<uint8_t> yaze::zelda3::DungeonObjectRenderer::tilemap_

private

Definition at line 93 of file object_renderer.h.

Referenced by UpdateObjectBitmap().

◆ rom_data_

std::vector<uint8_t> yaze::zelda3::DungeonObjectRenderer::rom_data_

private

Definition at line 94 of file object_renderer.h.

Referenced by LoadObject().

◆ vram_

PseudoVram yaze::zelda3::DungeonObjectRenderer::vram_

private

Definition at line 96 of file object_renderer.h.

Referenced by LoadObject(), SetPalette(), and UpdateObjectBitmap().

◆ memory_

emu::MemoryImpl yaze::zelda3::DungeonObjectRenderer::memory_

private

Definition at line 98 of file object_renderer.h.

Referenced by LoadObject(), memory(), mutable_memory(), and UpdateObjectBitmap().

◆ cpu_callbacks_

emu::CpuCallbacks yaze::zelda3::DungeonObjectRenderer::cpu_callbacks_

private

Definition at line 99 of file object_renderer.h.

◆ ppu

emu::Ppu yaze::zelda3::DungeonObjectRenderer::ppu {memory_}

private

Definition at line 100 of file object_renderer.h.

◆ cpu

emu::Cpu yaze::zelda3::DungeonObjectRenderer::cpu {memory_, cpu_callbacks_}

private

Definition at line 101 of file object_renderer.h.

Referenced by ConfigureObject(), and RenderObject().

◆ bitmap_

gfx::Bitmap yaze::zelda3::DungeonObjectRenderer::bitmap_

private

Definition at line 103 of file object_renderer.h.

Referenced by bitmap(), SetPalette(), and UpdateObjectBitmap().

The documentation for this class was generated from the following files:

src/app/zelda3/dungeon/object_renderer.h
src/app/zelda3/dungeon/object_renderer.cc
