yaze::editor::Tile16Snapshot Struct Reference

Snapshot of a Tile16's editable state for undo/redo. More...

#include <tile16_undo_actions.h>

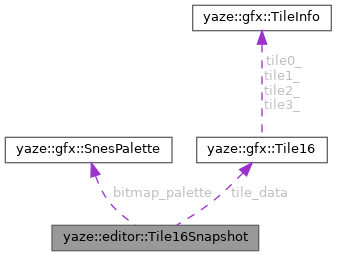

Collaboration diagram for yaze::editor::Tile16Snapshot:

Public Attributes
int	tile_id = 0
std::vector< uint8_t >	bitmap_data
gfx::SnesPalette	bitmap_palette
gfx::Tile16	tile_data
uint8_t	palette = 0
bool	x_flip = false
bool	y_flip = false
bool	priority = false

Detailed Description

Snapshot of a Tile16's editable state for undo/redo.

Captures all the data needed to fully restore a Tile16 editing state: pixel data, palette, flip/priority flags, and the tile ID.

Definition at line 25 of file tile16_undo_actions.h.

Member Data Documentation

tile_id

int yaze::editor::Tile16Snapshot::tile_id = 0

Definition at line 26 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16EditAction::Description(), yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

bitmap_data

std::vector<uint8_t> yaze::editor::Tile16Snapshot::bitmap_data

Definition at line 27 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16EditAction::MemoryUsage(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

bitmap_palette

gfx::SnesPalette yaze::editor::Tile16Snapshot::bitmap_palette

Definition at line 28 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

tile_data

gfx::Tile16 yaze::editor::Tile16Snapshot::tile_data

Definition at line 29 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

palette

uint8_t yaze::editor::Tile16Snapshot::palette = 0

Definition at line 30 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

x_flip

bool yaze::editor::Tile16Snapshot::x_flip = false

Definition at line 31 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

y_flip

bool yaze::editor::Tile16Snapshot::y_flip = false

Definition at line 32 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

priority

bool yaze::editor::Tile16Snapshot::priority = false

Definition at line 33 of file tile16_undo_actions.h.

Referenced by yaze::editor::Tile16Editor::FinalizePendingUndo(), yaze::editor::Tile16Editor::RestoreFromSnapshot(), and yaze::editor::Tile16Editor::SaveUndoState().

---

The documentation for this struct was generated from the following file:

• src/app/editor/overworld/tile16_undo_actions.h
