yaze_rom.h File Reference

ROM loading and ROM-backed helpers for the YAZE public API. More...

#include <stdint.h>
#include "yaze_errors.h"
#include "yaze_graphics.h"
#include "zelda.h"

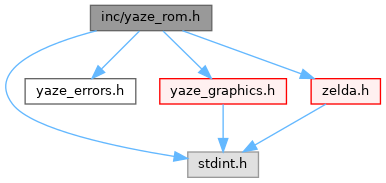

Include dependency graph for yaze_rom.h:

Go to the source code of this file.

Functions
zelda3_rom *	yaze_load_rom_file (const char *filename)
	Load a ROM file.
yaze_status	yaze_validate_rom (const zelda3_rom *rom)
	Validate ROM integrity.
yaze_status	yaze_get_rom_info (const zelda3_rom *rom, zelda3_version *version, uint64_t *size)
	Get ROM information.
snes_palette *	yaze_load_palette_from_rom (const zelda3_rom *rom, uint16_t palette_id)
	Load palette from ROM.
snes_tile8	yaze_load_tile_from_rom (const zelda3_rom *rom, uint32_t tile_id, uint8_t bpp)
	Load tile data from ROM.
snes_color	yaze_get_color_from_paletteset (const zelda3_rom *rom, int palette_set, int palette, int color)
	Get a color from a palette set.

Detailed Description

ROM loading and ROM-backed helpers for the YAZE public API.

Definition in file yaze_rom.h.

Function Documentation

yaze_load_rom_file()

zelda3_rom * yaze_load_rom_file

(

const char *

filename

)

Load a ROM file.

Loads a Zelda 3 ROM file and validates its format.

Parameters

filename

Path to ROM file (.sfc, .smc, etc.)

Returns

Pointer to ROM structure, or NULL on error

Note

Caller must call yaze_unload_rom() to free memory

yaze_validate_rom()

yaze_status yaze_validate_rom

(

const zelda3_rom *

rom

)

Validate ROM integrity.

Checks if the ROM data is valid and uncorrupted.

Parameters

rom	ROM to validate

Returns

YAZE_OK if valid, error code if corrupted

yaze_get_rom_info()

yaze_status yaze_get_rom_info	(	const zelda3_rom *	rom,
		zelda3_version *	version,
		uint64_t *	size )

Get ROM information.

Parameters

rom	ROM to query
version	Pointer to store detected ROM version
size	Pointer to store ROM size in bytes

Returns

YAZE_OK on success, error code on failure

yaze_load_palette_from_rom()

snes_palette * yaze_load_palette_from_rom	(	const zelda3_rom *	rom,
		uint16_t	palette_id )

Load palette from ROM.

Parameters

rom	ROM to load palette from
palette_id	ID of palette to load

Returns

Loaded palette, or NULL on error

yaze_load_tile_from_rom()

snes_tile8 yaze_load_tile_from_rom	(	const zelda3_rom *	rom,
		uint32_t	tile_id,
		uint8_t	bpp )

Load tile data from ROM.

Parameters

rom	ROM to load from
tile_id	ID of tile to load
bpp	Bits per pixel (1, 2, 4, 8)

Returns

Loaded tile data, or empty tile on error

yaze_get_color_from_paletteset()

snes_color yaze_get_color_from_paletteset	(	const zelda3_rom *	rom,
		int	palette_set,
		int	palette,
		int	color )

Get a color from a palette set.

Retrieves a specific color from a palette set in the ROM.

Parameters

rom	The ROM to get the color from
palette_set	The palette set index (0-255)
palette	The palette index within the set (0-15)
color	The color index within the palette (0-15)

Returns

The color from the palette set

Definition at line 191 of file yaze.cc.

References snes_color::blue, yaze::gfx::PaletteGroupMap::get_group(), snes_color::green, yaze::gfx::kPaletteGroupAddressesKeys, yaze::gfx::PaletteGroup::palette(), yaze::zelda3::GameData::palette_groups, and snes_color::red.

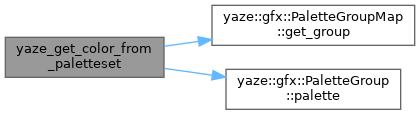

Here is the call graph for this function:
