Manages interaction mode state and transitions. More...

#include <interaction_mode.h>

Collaboration diagram for yaze::editor::InteractionModeManager:

Public Member Functions
InteractionMode	GetMode () const
	Get current interaction mode.

InteractionMode	GetPreviousMode () const
	Get previous mode (for undo/escape handling)

void	SetMode (InteractionMode mode)
	Set interaction mode.

void	CancelCurrentMode ()
	Cancel current mode and return to Select.

bool	IsPlacementActive () const
	Check if any placement mode is active.

bool	IsSelectMode () const
	Check if in normal selection mode.

bool	IsDragging () const
	Check if any dragging operation is in progress.

bool	IsRectangleSelecting () const
	Check if rectangle selection is in progress.

bool	IsObjectPlacementActive () const
	Check if object placement mode is active.

bool	IsDoorPlacementActive () const
	Check if door placement mode is active.

bool	IsSpritePlacementActive () const
	Check if sprite placement mode is active.

bool	IsItemPlacementActive () const
	Check if item placement mode is active.

bool	IsEntityPlacementActive () const
	Check if entity (non-object) placement is active.

ModeState &	GetModeState ()
	Get mutable reference to mode state.

const ModeState &	GetModeState () const
	Get const reference to mode state.

const char *	GetModeName () const
	Get mode name for debugging/UI.

Private Attributes
InteractionMode	current_mode_ = InteractionMode::Select

InteractionMode	previous_mode_ = InteractionMode::Select

ModeState	mode_state_

Detailed Description

Manages interaction mode state and transitions.

Provides a unified interface for mode management, replacing scattered boolean flags with explicit state machine semantics.

Usage: InteractionModeManager mode_manager;

// Enter placement mode mode_manager.SetMode(InteractionMode::PlaceObject); mode_manager.GetModeState().preview_object = some_object;

// Query mode if (mode_manager.IsPlacementActive()) { ... }

// Cancel and return to select mode_manager.CancelCurrentMode();

Definition at line 174 of file interaction_mode.h.

Member Function Documentation

◆ GetMode()

InteractionMode yaze::editor::InteractionModeManager::GetMode ( ) const

inline

Get current interaction mode.

Definition at line 179 of file interaction_mode.h.

References current_mode_.

Referenced by yaze::editor::DungeonObjectInteraction::CancelDoorPlacement(), yaze::editor::DungeonObjectInteraction::CancelItemPlacement(), yaze::editor::DungeonObjectInteraction::CancelSpritePlacement(), yaze::editor::CustomCollisionPanel::Draw(), yaze::editor::WaterFillPanel::Draw(), yaze::editor::DungeonObjectInteraction::HandleCanvasMouseInput(), yaze::editor::DungeonObjectInteraction::IsDoorPlacementActive(), yaze::editor::DungeonObjectInteraction::IsItemPlacementActive(), yaze::editor::DungeonObjectInteraction::IsObjectLoaded(), and yaze::editor::DungeonObjectInteraction::IsSpritePlacementActive().

◆ GetPreviousMode()

InteractionMode yaze::editor::InteractionModeManager::GetPreviousMode ( ) const

inline

Get previous mode (for undo/escape handling)

Definition at line 184 of file interaction_mode.h.

References previous_mode_.

◆ SetMode()

void yaze::editor::InteractionModeManager::SetMode ( InteractionMode mode )

Set interaction mode.

Clears appropriate state data when transitioning between modes.

Parameters

mode	The new mode to enter

Definition at line 6 of file interaction_mode.cc.

References yaze::editor::ModeState::ClearDragData(), yaze::editor::ModeState::ClearPlacementData(), yaze::editor::ModeState::ClearRectangleData(), current_mode_, yaze::editor::DraggingEntity, yaze::editor::DraggingObjects, yaze::editor::ModeState::is_painting, mode_state_, yaze::editor::ModeState::paint_last_tile_x, yaze::editor::ModeState::paint_last_tile_y, yaze::editor::ModeState::paint_mutation_started, yaze::editor::PaintCollision, yaze::editor::PaintWaterFill, yaze::editor::PlaceDoor, yaze::editor::PlaceItem, yaze::editor::PlaceObject, yaze::editor::PlaceSprite, previous_mode_, yaze::editor::RectangleSelect, and yaze::editor::Select.

Referenced by yaze::editor::CustomCollisionPanel::Draw(), and yaze::editor::WaterFillPanel::Draw().

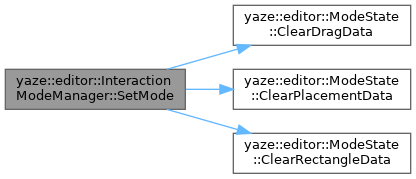

Here is the call graph for this function:

◆ CancelCurrentMode()

void yaze::editor::InteractionModeManager::CancelCurrentMode ( )

Cancel current mode and return to Select.

Clears mode-specific state and returns to normal selection mode.

Definition at line 52 of file interaction_mode.cc.

References yaze::editor::ModeState::Clear(), current_mode_, mode_state_, previous_mode_, and yaze::editor::Select.

Referenced by yaze::editor::DungeonObjectInteraction::CancelDoorPlacement(), yaze::editor::DungeonObjectInteraction::CancelItemPlacement(), and yaze::editor::DungeonObjectInteraction::CancelSpritePlacement().

Here is the call graph for this function:

◆ IsPlacementActive()

bool yaze::editor::InteractionModeManager::IsPlacementActive ( ) const

inline

Check if any placement mode is active.

Definition at line 204 of file interaction_mode.h.

References current_mode_, yaze::editor::PlaceDoor, yaze::editor::PlaceItem, yaze::editor::PlaceObject, and yaze::editor::PlaceSprite.

Referenced by yaze::editor::DungeonWorkbenchPanel::DrawInspectorShelfRoom().

◆ IsSelectMode()

bool yaze::editor::InteractionModeManager::IsSelectMode ( ) const

inline

Check if in normal selection mode.

Definition at line 214 of file interaction_mode.h.

References current_mode_, and yaze::editor::Select.

◆ IsDragging()

bool yaze::editor::InteractionModeManager::IsDragging ( ) const

inline

Check if any dragging operation is in progress.

Definition at line 219 of file interaction_mode.h.

References current_mode_, yaze::editor::DraggingEntity, and yaze::editor::DraggingObjects.

◆ IsRectangleSelecting()

bool yaze::editor::InteractionModeManager::IsRectangleSelecting ( ) const

inline

Check if rectangle selection is in progress.

Definition at line 227 of file interaction_mode.h.

References current_mode_, and yaze::editor::RectangleSelect.

◆ IsObjectPlacementActive()

bool yaze::editor::InteractionModeManager::IsObjectPlacementActive ( ) const

inline

Check if object placement mode is active.

Definition at line 234 of file interaction_mode.h.

References current_mode_, and yaze::editor::PlaceObject.

◆ IsDoorPlacementActive()

bool yaze::editor::InteractionModeManager::IsDoorPlacementActive ( ) const

inline

Check if door placement mode is active.

Definition at line 241 of file interaction_mode.h.

References current_mode_, and yaze::editor::PlaceDoor.

◆ IsSpritePlacementActive()

bool yaze::editor::InteractionModeManager::IsSpritePlacementActive ( ) const

inline

Check if sprite placement mode is active.

Definition at line 248 of file interaction_mode.h.

References current_mode_, and yaze::editor::PlaceSprite.

◆ IsItemPlacementActive()

bool yaze::editor::InteractionModeManager::IsItemPlacementActive ( ) const

inline

Check if item placement mode is active.

Definition at line 255 of file interaction_mode.h.

References current_mode_, and yaze::editor::PlaceItem.

◆ IsEntityPlacementActive()

bool yaze::editor::InteractionModeManager::IsEntityPlacementActive ( ) const

inline

Check if entity (non-object) placement is active.

Definition at line 262 of file interaction_mode.h.

References current_mode_, yaze::editor::PlaceDoor, yaze::editor::PlaceItem, and yaze::editor::PlaceSprite.

◆ GetModeState() [1/2]

ModeState & yaze::editor::InteractionModeManager::GetModeState ( )

inline

Get mutable reference to mode state.

Definition at line 271 of file interaction_mode.h.

References mode_state_.

Referenced by yaze::editor::CustomCollisionPanel::Draw(), yaze::editor::WaterFillPanel::Draw(), yaze::editor::DungeonObjectInteraction::GetPreviewDoorType(), yaze::editor::DungeonObjectInteraction::GetPreviewItemId(), yaze::editor::DungeonObjectInteraction::GetPreviewSpriteId(), yaze::editor::DungeonObjectInteraction::SetPreviewDoorType(), yaze::editor::DungeonObjectInteraction::SetPreviewItemId(), yaze::editor::DungeonObjectInteraction::SetPreviewSpriteId(), and yaze::editor::DungeonObjectInteraction::UpdateCollisionPainting().

◆ GetModeState() [2/2]

const ModeState & yaze::editor::InteractionModeManager::GetModeState ( ) const

inline

Get const reference to mode state.

Definition at line 276 of file interaction_mode.h.

References mode_state_.

◆ GetModeName()

const char * yaze::editor::InteractionModeManager::GetModeName ( ) const

Get mode name for debugging/UI.

Definition at line 59 of file interaction_mode.cc.

References current_mode_, yaze::editor::DraggingEntity, yaze::editor::DraggingObjects, yaze::editor::PaintCollision, yaze::editor::PaintWaterFill, yaze::editor::PlaceDoor, yaze::editor::PlaceItem, yaze::editor::PlaceObject, yaze::editor::PlaceSprite, yaze::editor::RectangleSelect, and yaze::editor::Select.

Member Data Documentation

◆ current_mode_

InteractionMode yaze::editor::InteractionModeManager::current_mode_ = InteractionMode::Select

private

Definition at line 284 of file interaction_mode.h.

Referenced by CancelCurrentMode(), GetMode(), GetModeName(), IsDoorPlacementActive(), IsDragging(), IsEntityPlacementActive(), IsItemPlacementActive(), IsObjectPlacementActive(), IsPlacementActive(), IsRectangleSelecting(), IsSelectMode(), IsSpritePlacementActive(), and SetMode().

◆ previous_mode_

InteractionMode yaze::editor::InteractionModeManager::previous_mode_ = InteractionMode::Select

private

Definition at line 285 of file interaction_mode.h.

Referenced by CancelCurrentMode(), GetPreviousMode(), and SetMode().

◆ mode_state_

ModeState yaze::editor::InteractionModeManager::mode_state_

private

Definition at line 286 of file interaction_mode.h.

Referenced by CancelCurrentMode(), GetModeState(), GetModeState(), and SetMode().

The documentation for this class was generated from the following files:

src/app/editor/dungeon/interaction/interaction_mode.h
src/app/editor/dungeon/interaction/interaction_mode.cc
