Loader for ZSPR (ALttP Randomizer) sprite files. More...

#include <zspr_loader.h>

Static Public Member Functions
static absl::StatusOr< ZsprData >	LoadFromFile (const std::string &path)
	Load ZSPR data from a file path.

static absl::StatusOr< ZsprData >	LoadFromData (const std::vector< uint8_t > &data)
	Load ZSPR data from a byte buffer.

static absl::Status	ApplyToRom (Rom &rom, const ZsprData &zspr)
	Apply loaded ZSPR sprite data to ROM's Link graphics.

static absl::Status	ApplyPaletteToRom (Rom &rom, const ZsprData &zspr)
	Apply ZSPR palette data to ROM.

Static Public Attributes
static constexpr uint32_t	kZsprMagic = 0x5250535A

static constexpr size_t	kExpectedSpriteDataSize = 28672

static constexpr size_t	kExpectedPaletteDataSize = 120

static constexpr size_t	kTilesPerSheet = 64

static constexpr size_t	kBytesPerTile = 32

static constexpr size_t	kLinkSheetCount = 14

Static Private Member Functions
static bool	ValidateChecksum (const std::vector< uint8_t > &data, uint32_t expected_checksum)
	Validate ZSPR checksum (Adler-32)

static uint32_t	CalculateAdler32 (const uint8_t *data, size_t length)
	Calculate Adler-32 checksum.

static std::string	ReadNullTerminatedString (const uint8_t *data, size_t max_length, size_t &bytes_read)
	Read null-terminated string from buffer.

static uint16_t	ReadU16LE (const uint8_t *data)
	Read 16-bit little-endian value.

static uint32_t	ReadU32LE (const uint8_t *data)
	Read 32-bit little-endian value.

Detailed Description

Loader for ZSPR (ALttP Randomizer) sprite files.

ZSPR Format (v1):

Offset  Size  Description
------  ----  -----------
0x00    4     Magic: "ZSPR"
0x04    1     Version (currently 1)
0x05    4     Checksum (Adler-32)
0x09    2     Sprite data offset (little-endian)
0x0B    2     Sprite data size (little-endian)
0x0D    2     Palette data offset (little-endian)
0x0F    2     Palette data size (little-endian)
0x11    2     Sprite type (0 = Link, 1 = Other)
0x13    var   Display name (null-terminated UTF-8)
...     var   Author name (null-terminated UTF-8)
...     var   Author ROM name (null-terminated)
...     28672 Sprite data (896 tiles × 32 bytes/tile, 4BPP)
...     120   Palette data (15 colors × 4 palettes × 2 bytes)
...     4     Glove colors (2 colors × 2 bytes)

Definition at line 72 of file zspr_loader.h.

Member Function Documentation

◆ LoadFromFile()

absl::StatusOr< ZsprData > yaze::gfx::ZsprLoader::LoadFromFile ( const std::string & path )

static

Load ZSPR data from a file path.

Parameters

path	Path to the .zspr file

Returns: ZsprData on success, or error status

Definition at line 14 of file zspr_loader.cc.

References LoadFromData().

Referenced by yaze::editor::LinkSpritePanel::ImportZspr().

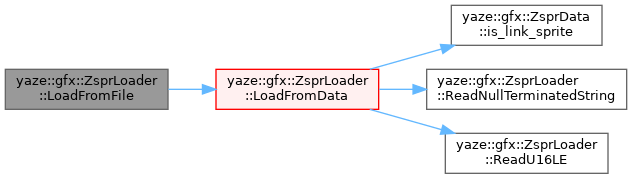

Here is the call graph for this function:

◆ LoadFromData()

absl::StatusOr< ZsprData > yaze::gfx::ZsprLoader::LoadFromData ( const std::vector< uint8_t > & data )

static

Load ZSPR data from a byte buffer.

Parameters

data	Raw file contents

Returns: ZsprData on success, or error status

Definition at line 35 of file zspr_loader.cc.

References yaze::gfx::ZsprMetadata::author, yaze::gfx::ZsprMetadata::author_rom_name, yaze::gfx::ZsprMetadata::display_name, yaze::gfx::ZsprData::glove_colors, yaze::gfx::ZsprData::is_link_sprite(), kExpectedSpriteDataSize, LOG_INFO, LOG_WARN, yaze::gfx::ZsprData::metadata, yaze::gfx::ZsprData::palette_data, ReadNullTerminatedString(), ReadU16LE(), ReadU32LE(), yaze::gfx::ZsprData::sprite_data, yaze::gfx::ZsprMetadata::sprite_type, ValidateChecksum(), and yaze::gfx::ZsprMetadata::version.

Referenced by LoadFromFile().

◆ ApplyToRom()

absl::Status yaze::gfx::ZsprLoader::ApplyToRom	(	Rom &	rom,
		const ZsprData &	zspr )

static

Apply loaded ZSPR sprite data to ROM's Link graphics.

Writes the sprite data to the ROM at Link's graphics sheet locations. The ZSPR 4BPP data is converted to the ROM's expected format.

Parameters

rom	ROM to modify
zspr	ZSPR data to apply

Returns: Status indicating success or failure

Definition at line 147 of file zspr_loader.cc.

References yaze::gfx::ZsprMetadata::display_name, yaze::gfx::ZsprData::is_link_sprite(), yaze::Rom::is_loaded(), kExpectedSpriteDataSize, kLinkSheetCount, LOG_INFO, LOG_WARN, yaze::gfx::ZsprData::metadata, yaze::gfx::ZsprData::sprite_data, and yaze::Rom::WriteByte().

Referenced by yaze::editor::LinkSpritePanel::ImportZspr().

Here is the call graph for this function:

◆ ApplyPaletteToRom()

absl::Status yaze::gfx::ZsprLoader::ApplyPaletteToRom	(	Rom &	rom,
		const ZsprData &	zspr )

static

Apply ZSPR palette data to ROM.

Writes the sprite palette data to the appropriate ROM locations.

Parameters

rom	ROM to modify
zspr	ZSPR data containing palette

Returns: Status indicating success or failure

Todo: Find exact glove color offsets for US ROM

Definition at line 206 of file zspr_loader.cc.

References yaze::Rom::is_loaded(), kExpectedPaletteDataSize, yaze::gfx::kNumPalettes, LOG_INFO, yaze::gfx::ZsprData::palette_data, and yaze::Rom::WriteByte().

Referenced by yaze::editor::LinkSpritePanel::ImportZspr().

Here is the call graph for this function:

◆ ValidateChecksum()

bool yaze::gfx::ZsprLoader::ValidateChecksum	(	const std::vector< uint8_t > &	data,
		uint32_t	expected_checksum )

staticprivate

Validate ZSPR checksum (Adler-32)

Definition at line 257 of file zspr_loader.cc.

References CalculateAdler32().

Referenced by LoadFromData().

Here is the call graph for this function:

◆ CalculateAdler32()

uint32_t yaze::gfx::ZsprLoader::CalculateAdler32	(	const uint8_t *	data,
		size_t	length )

staticprivate

Calculate Adler-32 checksum.

Definition at line 263 of file zspr_loader.cc.

Referenced by ValidateChecksum().

◆ ReadNullTerminatedString()

std::string yaze::gfx::ZsprLoader::ReadNullTerminatedString	(	const uint8_t *	data,
		size_t	max_length,
		size_t &	bytes_read )

staticprivate

Read null-terminated string from buffer.

Definition at line 275 of file zspr_loader.cc.

Referenced by LoadFromData().

◆ ReadU16LE()

uint16_t yaze::gfx::ZsprLoader::ReadU16LE ( const uint8_t * data )

staticprivate

Read 16-bit little-endian value.

Definition at line 292 of file zspr_loader.cc.

Referenced by LoadFromData().

◆ ReadU32LE()

uint32_t yaze::gfx::ZsprLoader::ReadU32LE ( const uint8_t * data )

staticprivate

Read 32-bit little-endian value.

Definition at line 297 of file zspr_loader.cc.

Referenced by LoadFromData().

Member Data Documentation

◆ kZsprMagic

constexpr uint32_t yaze::gfx::ZsprLoader::kZsprMagic = 0x5250535A

staticconstexpr

Definition at line 74 of file zspr_loader.h.

◆ kExpectedSpriteDataSize

constexpr size_t yaze::gfx::ZsprLoader::kExpectedSpriteDataSize = 28672

staticconstexpr

Definition at line 75 of file zspr_loader.h.

Referenced by ApplyToRom(), and LoadFromData().

◆ kExpectedPaletteDataSize

constexpr size_t yaze::gfx::ZsprLoader::kExpectedPaletteDataSize = 120

staticconstexpr

Definition at line 76 of file zspr_loader.h.

Referenced by ApplyPaletteToRom().

◆ kTilesPerSheet

constexpr size_t yaze::gfx::ZsprLoader::kTilesPerSheet = 64

staticconstexpr

Definition at line 77 of file zspr_loader.h.

◆ kBytesPerTile

constexpr size_t yaze::gfx::ZsprLoader::kBytesPerTile = 32

staticconstexpr

Definition at line 78 of file zspr_loader.h.

◆ kLinkSheetCount

constexpr size_t yaze::gfx::ZsprLoader::kLinkSheetCount = 14

staticconstexpr

Definition at line 79 of file zspr_loader.h.

Referenced by ApplyToRom().

The documentation for this class was generated from the following files:

src/app/gfx/util/zspr_loader.h
src/app/gfx/util/zspr_loader.cc
