Direct ROM parser for dungeon objects. More...

#include <object_parser.h>

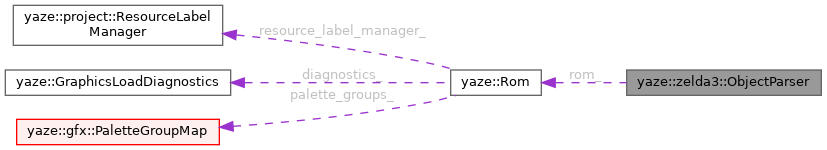

Collaboration diagram for yaze::zelda3::ObjectParser:

[legend]

Public Member Functions
	ObjectParser (Rom *rom)

absl::StatusOr< std::vector< gfx::TileInfo > >	ParseObject (int16_t object_id)
	Parse object data directly from ROM.

absl::StatusOr< std::vector< ObjectTileReadRange > >	ResolveTileReadRanges (int16_t object_id)
	Resolve every tile-data range consumed by ParseObject.

absl::StatusOr< ObjectRoutineInfo >	ParseObjectRoutine (int16_t object_id)
	Parse object routine data.

absl::StatusOr< ObjectSubtypeInfo >	GetObjectSubtype (int16_t object_id)
	Get object subtype information.

absl::StatusOr< ObjectSizeInfo >	ParseObjectSize (int16_t object_id, uint8_t size_byte)
	Parse object size and orientation.

int	DetermineSubtype (int16_t object_id) const
	Determine object subtype from ID.

ObjectDrawInfo	GetObjectDrawInfo (int16_t object_id) const
	Get draw routine information for an object.

Private Member Functions
absl::StatusOr< std::vector< gfx::TileInfo > >	ParseSubtype1 (int16_t object_id)
	Parse subtype 1 objects (0x00-0xFF)

absl::StatusOr< std::vector< gfx::TileInfo > >	ParseSubtype2 (int16_t object_id)
	Parse subtype 2 objects (0x100-0x1FF)

absl::StatusOr< std::vector< gfx::TileInfo > >	ParseSubtype3 (int16_t object_id)
	Parse subtype 3 objects (0x200+)

absl::StatusOr< std::vector< gfx::TileInfo > >	ReadTileData (int address, int tile_count)
	Read tile data from ROM.

int	GetSubtype2TileCount (int16_t object_id) const
	Get tile count for subtype 2 objects.

int	GetSubtype3TileCount (int16_t object_id) const
	Get tile count for subtype 3 objects.

int	ResolveTileCountForObject (int16_t object_id) const

Private Attributes
Rom *	rom_

std::vector< ObjectTileReadRange > *	tile_read_range_collector_ = nullptr

Detailed Description

Direct ROM parser for dungeon objects.

This class replaces the SNES emulation approach with direct ROM parsing, providing better performance and reliability for object rendering.

Definition at line 104 of file object_parser.h.

Constructor & Destructor Documentation

◆ ObjectParser()

yaze::zelda3::ObjectParser::ObjectParser ( Rom * rom )

inlineexplicit

Definition at line 106 of file object_parser.h.

Member Function Documentation

◆ ParseObject()

absl::StatusOr< std::vector< gfx::TileInfo > > yaze::zelda3::ObjectParser::ParseObject ( int16_t object_id )

Parse object data directly from ROM.

Parameters

object_id The object ID to parse

Returns: StatusOr containing the parsed tile data

Definition at line 98 of file object_parser.cc.

References DetermineSubtype(), ParseSubtype1(), ParseSubtype2(), ParseSubtype3(), and rom_.

Referenced by yaze::zelda3::RoomObject::LoadTilesWithParser(), and ResolveTileReadRanges().

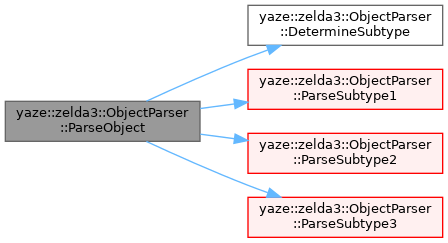

Here is the call graph for this function:

◆ ResolveTileReadRanges()

absl::StatusOr< std::vector< ObjectTileReadRange > > yaze::zelda3::ObjectParser::ResolveTileReadRanges ( int16_t object_id )

Resolve every tile-data range consumed by ParseObject.

This deliberately executes the parser's normal read path and therefore fails if any source is malformed or outside the loaded ROM. Callers must not turn a resolution error into an empty impact set.

Definition at line 126 of file object_parser.cc.

References ParseObject(), and tile_read_range_collector_.

Referenced by yaze::zelda3::ObjectTileEditor::AnalyzeStandardTileSourceImpact().

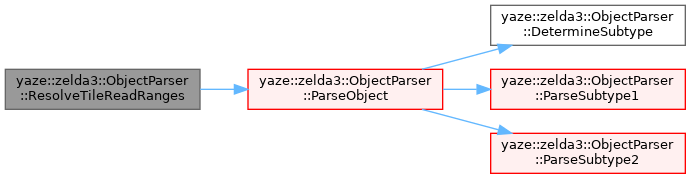

Here is the call graph for this function:

◆ ParseObjectRoutine()

absl::StatusOr< ObjectRoutineInfo > yaze::zelda3::ObjectParser::ParseObjectRoutine ( int16_t object_id )

Parse object routine data.

Parameters

object_id The object ID

Returns: StatusOr containing routine information

Definition at line 149 of file object_parser.cc.

References GetObjectSubtype(), yaze::zelda3::ObjectRoutineInfo::is_orientation_dependent, yaze::zelda3::ObjectRoutineInfo::is_repeatable, rom_, yaze::zelda3::ObjectRoutineInfo::routine_ptr, yaze::zelda3::ObjectRoutineInfo::tile_count, and yaze::zelda3::ObjectRoutineInfo::tile_ptr.

Here is the call graph for this function:

◆ GetObjectSubtype()

absl::StatusOr< ObjectSubtypeInfo > yaze::zelda3::ObjectParser::GetObjectSubtype ( int16_t object_id )

Get object subtype information.

Parameters

object_id The object ID

Returns: StatusOr containing subtype information

Definition at line 170 of file object_parser.cc.

References DetermineSubtype(), yaze::zelda3::kRoomObjectSubtype1, yaze::zelda3::kRoomObjectSubtype2, yaze::zelda3::kRoomObjectSubtype3, yaze::zelda3::ObjectSubtypeInfo::max_tile_count, ResolveTileCountForObject(), yaze::zelda3::ObjectSubtypeInfo::routine_ptr, yaze::zelda3::ObjectSubtypeInfo::subtype, and yaze::zelda3::ObjectSubtypeInfo::subtype_ptr.

Referenced by ParseObjectRoutine().

Here is the call graph for this function:

◆ ParseObjectSize()

absl::StatusOr< ObjectSizeInfo > yaze::zelda3::ObjectParser::ParseObjectSize	(	int16_t	object_id,
		uint8_t	size_byte )

Parse object size and orientation.

Parameters

object_id	The object ID
size_byte	The size byte from object data

Returns: StatusOr containing size and orientation info

Definition at line 209 of file object_parser.cc.

References yaze::zelda3::ObjectSizeInfo::height_tiles, yaze::zelda3::ObjectSizeInfo::is_horizontal, yaze::zelda3::ObjectSizeInfo::is_repeatable, yaze::zelda3::ObjectSizeInfo::repeat_count, and yaze::zelda3::ObjectSizeInfo::width_tiles.

◆ DetermineSubtype()

int yaze::zelda3::ObjectParser::DetermineSubtype ( int16_t object_id ) const

Determine object subtype from ID.

Definition at line 815 of file object_parser.cc.

Referenced by GetObjectSubtype(), ParseObject(), and ResolveTileCountForObject().

◆ GetObjectDrawInfo()

ObjectDrawInfo yaze::zelda3::ObjectParser::GetObjectDrawInfo ( int16_t object_id ) const

Get draw routine information for an object.

Parameters

object_id The object ID to look up

Returns: ObjectDrawInfo containing draw routine details

Definition at line 843 of file object_parser.cc.

References yaze::zelda3::ObjectDrawInfo::both_layers, yaze::zelda3::DrawRoutineInfo::Diagonal, yaze::zelda3::DrawRoutineInfo::Downwards, yaze::zelda3::ObjectDrawInfo::draw_routine_id, yaze::zelda3::DrawRoutineRegistry::Get(), yaze::zelda3::ObjectDrawInfo::is_horizontal, yaze::zelda3::ObjectDrawInfo::is_vertical, yaze::zelda3::DrawRoutineIds::kRightwards1x1Solid_1to16_plus3, ResolveTileCountForObject(), yaze::zelda3::ObjectDrawInfo::routine_name, and yaze::zelda3::ObjectDrawInfo::tile_count.

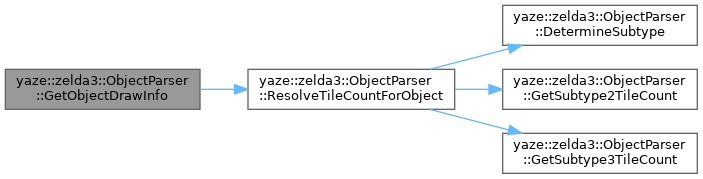

Here is the call graph for this function:

◆ ParseSubtype1()

absl::StatusOr< std::vector< gfx::TileInfo > > yaze::zelda3::ObjectParser::ParseSubtype1 ( int16_t object_id )

private

Parse subtype 1 objects (0x00-0xFF)

Definition at line 237 of file object_parser.cc.

References yaze::Rom::data(), yaze::zelda3::kRoomObjectSubtype1, yaze::zelda3::kRoomObjectTileAddress, LOG_DEBUG, ReadTileData(), rom_, and yaze::Rom::size().

Referenced by ParseObject().

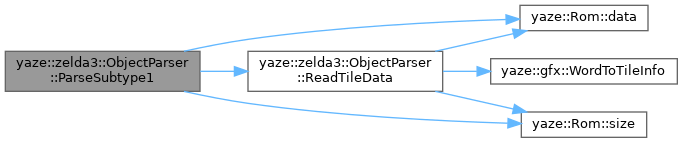

Here is the call graph for this function:

◆ ParseSubtype2()

absl::StatusOr< std::vector< gfx::TileInfo > > yaze::zelda3::ObjectParser::ParseSubtype2 ( int16_t object_id )

private

Parse subtype 2 objects (0x100-0x1FF)

Definition at line 290 of file object_parser.cc.

References yaze::Rom::data(), GetSubtype2TileCount(), yaze::zelda3::kRoomObjectSubtype2, yaze::zelda3::kRoomObjectTileAddress, LOG_DEBUG, ReadTileData(), rom_, and yaze::Rom::size().

Referenced by ParseObject().

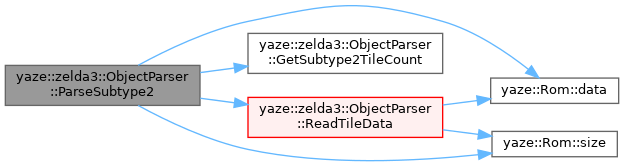

Here is the call graph for this function:

◆ ParseSubtype3()

absl::StatusOr< std::vector< gfx::TileInfo > > yaze::zelda3::ObjectParser::ParseSubtype3 ( int16_t object_id )

private

Parse subtype 3 objects (0x200+)

Definition at line 355 of file object_parser.cc.

References yaze::Rom::data(), GetSubtype3TileCount(), yaze::zelda3::kRoomObjectSubtype3, yaze::zelda3::kRoomObjectTileAddress, ReadTileData(), rom_, and yaze::Rom::size().

Referenced by ParseObject().

Here is the call graph for this function:

◆ ReadTileData()

absl::StatusOr< std::vector< gfx::TileInfo > > yaze::zelda3::ObjectParser::ReadTileData	(	int	address,
		int	tile_count )

private

Read tile data from ROM.

Parameters

address	The address to read from
tile_count	Number of tiles to read

Returns: StatusOr containing tile data

Definition at line 513 of file object_parser.cc.

References yaze::Rom::data(), LOG_DEBUG, rom_, yaze::Rom::size(), tile_read_range_collector_, and yaze::gfx::WordToTileInfo().

Referenced by ParseSubtype1(), ParseSubtype2(), and ParseSubtype3().

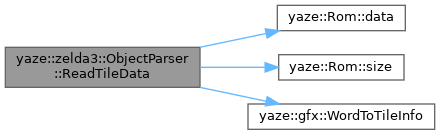

Here is the call graph for this function:

◆ GetSubtype2TileCount()

int yaze::zelda3::ObjectParser::GetSubtype2TileCount ( int16_t object_id ) const

private

Get tile count for subtype 2 objects.

Different subtype 2 objects have different tile counts:

4x4 corners (0x100-0x10F): 16 tiles
Weird corners (0x110-0x117): 12 tiles
Others: 8 tiles

Parameters

object_id The object ID

Returns: Number of tiles to read

Definition at line 573 of file object_parser.cc.

Referenced by ParseSubtype2(), and ResolveTileCountForObject().

◆ GetSubtype3TileCount()

int yaze::zelda3::ObjectParser::GetSubtype3TileCount ( int16_t object_id ) const

private

Get tile count for subtype 3 objects.

Different subtype 3 objects have different tile counts:

PrisonCell aliases (0xF8D/0xF97): 6 tiles from literal obj1488
RupeeFloor (0xF92): 2 tiles from literal obj1DD6
BigKeyLock (0xF98): 4 tiles (one closed 2x2 block)
BombableFloor (0xFC7): 32 tiles (two non-contiguous 4x4 states)
Chest/OpenChest (0xF99/0xF9A): 8/4 tiles (stateful/fixed 2x2)
BigChest/OpenBigChest (0xFB1/0xFB2): 24/12 tiles (stateful/fixed 4x3)
TableRock4x3 variants: 12 tiles
4x4 objects: 16 tiles
Most others: 8 tiles

Parameters

object_id The object ID

Returns: Number of tiles to read

Definition at line 627 of file object_parser.cc.

Referenced by ParseSubtype3(), and ResolveTileCountForObject().

◆ ResolveTileCountForObject()

int yaze::zelda3::ObjectParser::ResolveTileCountForObject ( int16_t object_id ) const

private

Definition at line 826 of file object_parser.cc.

References DetermineSubtype(), GetSubtype2TileCount(), and GetSubtype3TileCount().

Referenced by GetObjectDrawInfo(), and GetObjectSubtype().

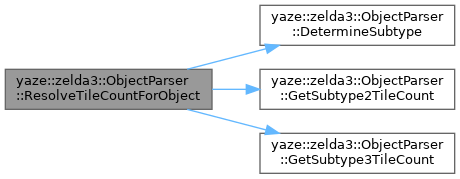

Here is the call graph for this function:

Member Data Documentation

◆ rom_

Rom* yaze::zelda3::ObjectParser::rom_

private

Definition at line 226 of file object_parser.h.

Referenced by ParseObject(), ParseObjectRoutine(), ParseSubtype1(), ParseSubtype2(), ParseSubtype3(), and ReadTileData().

◆ tile_read_range_collector_

std::vector<ObjectTileReadRange>* yaze::zelda3::ObjectParser::tile_read_range_collector_ = nullptr

private

Definition at line 227 of file object_parser.h.

Referenced by ReadTileData(), and ResolveTileReadRanges().

The documentation for this class was generated from the following files:

src/zelda3/dungeon/object_parser.h
src/zelda3/dungeon/object_parser.cc
