yaze::editor::palette_utility Namespace Reference

Utility functions for palette operations across editors. More...

Functions
bool	DrawPaletteJumpButton (const char *label, const std::string &group_name, int palette_index, PaletteEditor *editor)
	Draw a palette selector button that opens palette editor.
bool	DrawInlineColorEdit (const char *label, gfx::SnesColor *color, const std::string &group_name, int palette_index, int color_index, PaletteEditor *editor)
	Draw inline color edit with jump to palette.
bool	DrawPaletteIdSelector (const char *label, int *palette_id, const std::string &group_name, PaletteEditor *editor)
	Draw a compact palette ID selector with preview.
void	DrawColorInfoTooltip (const gfx::SnesColor &color)
	Draw color info tooltip on hover.
void	DrawPalettePreview (const std::string &group_name, int palette_index, zelda3::GameData *game_data)
	Draw a small palette preview (8 colors in a row)

Detailed Description

Utility functions for palette operations across editors.

Function Documentation

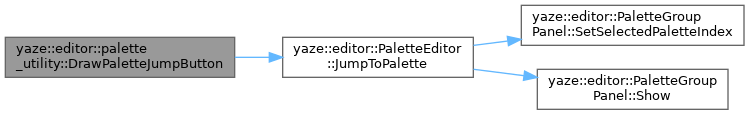

DrawPaletteJumpButton()

bool yaze::editor::palette_utility::DrawPaletteJumpButton	(	const char *	label,
		const std::string &	group_name,
		int	palette_index,
		PaletteEditor *	editor )

Draw a palette selector button that opens palette editor.

Parameters

label	Button label
group_name	The palette group name
palette_index	The palette index within the group
editor	Pointer to palette editor (can be null)

Returns

true if button was clicked

Definition at line 14 of file palette_utility.cc.

References ICON_MD_PALETTE, and yaze::editor::PaletteEditor::JumpToPalette().

Referenced by DrawPaletteIdSelector().

Here is the call graph for this function:

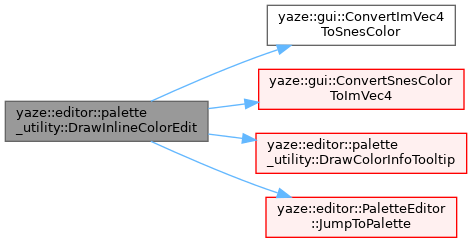

DrawInlineColorEdit()

bool yaze::editor::palette_utility::DrawInlineColorEdit	(	const char *	label,
		gfx::SnesColor *	color,
		const std::string &	group_name,
		int	palette_index,
		int	color_index,
		PaletteEditor *	editor )

Draw inline color edit with jump to palette.

Parameters

label	Label for the color widget
color	Color to edit
group_name	Palette group this color belongs to
palette_index	Palette index within group
color_index	Color index within palette
editor	Pointer to palette editor (can be null)

Returns

true if color was changed

Definition at line 31 of file palette_utility.cc.

References yaze::gui::ConvertImVec4ToSnesColor(), yaze::gui::ConvertSnesColorToImVec4(), DrawColorInfoTooltip(), ICON_MD_OPEN_IN_NEW, and yaze::editor::PaletteEditor::JumpToPalette().

Here is the call graph for this function:

DrawPaletteIdSelector()

bool yaze::editor::palette_utility::DrawPaletteIdSelector	(	const char *	label,
		int *	palette_id,
		const std::string &	group_name,
		PaletteEditor *	editor )

Draw a compact palette ID selector with preview.

Parameters

label	Label for the widget
palette_id	Current palette ID (in/out)
group_name	The palette group name
editor	Pointer to palette editor (can be null)

Returns

true if palette ID changed

Definition at line 69 of file palette_utility.cc.

References DrawPaletteJumpButton().

Here is the call graph for this function:

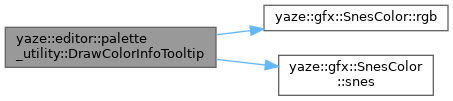

DrawColorInfoTooltip()

void yaze::editor::palette_utility::DrawColorInfoTooltip

(

const gfx::SnesColor &

color

)

Draw color info tooltip on hover.

Parameters

color

The color to show info for

Definition at line 93 of file palette_utility.cc.

References yaze::gfx::SnesColor::rgb(), and yaze::gfx::SnesColor::snes().

Referenced by DrawInlineColorEdit(), and DrawPalettePreview().

Here is the call graph for this function:

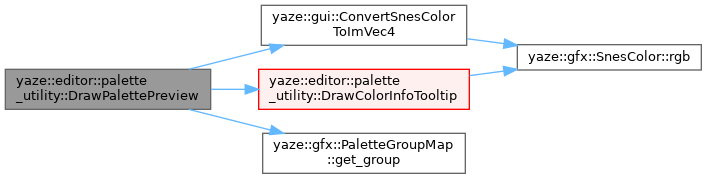

DrawPalettePreview()

void yaze::editor::palette_utility::DrawPalettePreview	(	const std::string &	group_name,
		int	palette_index,
		zelda3::GameData *	game_data )

Draw a small palette preview (8 colors in a row)

Parameters

group_name	Palette group name
palette_index	Palette index
game_data	GameData instance to read palette from

Definition at line 103 of file palette_utility.cc.

References yaze::gui::ConvertSnesColorToImVec4(), DrawColorInfoTooltip(), yaze::gfx::PaletteGroupMap::get_group(), and yaze::zelda3::GameData::palette_groups.

Here is the call graph for this function:
