Unix socket client for Mesen2-OoS fork. More...

#include <mesen_socket_client.h>

Collaboration diagram for yaze::emu::mesen::MesenSocketClient:

Public Member Functions
	MesenSocketClient ()

	~MesenSocketClient ()

	MesenSocketClient (const MesenSocketClient &)=delete

MesenSocketClient &	operator= (const MesenSocketClient &)=delete

absl::Status	Connect ()
	Auto-discover and connect to first available Mesen2 socket.

absl::Status	Connect (const std::string &socket_path)
	Connect to a specific socket path.

void	Disconnect ()
	Disconnect from Mesen2.

bool	IsConnected () const
	Check if connected to Mesen2.

const std::string &	GetSocketPath () const
	Get the current socket path.

absl::Status	Ping ()
	Ping Mesen2 to check connectivity.

absl::StatusOr< MesenState >	GetState ()
	Get current emulation state.

absl::Status	Pause ()
	Pause emulation.

absl::Status	Resume ()
	Resume emulation.

absl::Status	Reset ()
	Reset the console.

absl::Status	Frame ()
	Run exactly one frame.

absl::Status	Step (int count=1, const std::string &mode="into")
	Step N CPU instructions (default 1)

absl::Status	SetButton (emu::input::SnesButton button, bool pressed)
	Set controller button state.

absl::Status	SetButtons (const emu::input::ControllerState &state)
	Set all buttons at once.

absl::StatusOr< uint8_t >	ReadByte (uint32_t addr)
	Read a single byte from memory.

absl::StatusOr< uint16_t >	ReadWord (uint32_t addr)
	Read a 16-bit word from memory.

absl::StatusOr< std::vector< uint8_t > >	ReadBlock (uint32_t addr, size_t len)
	Read a block of bytes from memory.

absl::Status	WriteByte (uint32_t addr, uint8_t value)
	Write a single byte to memory.

absl::Status	WriteWord (uint32_t addr, uint16_t value)
	Write a 16-bit word to memory.

absl::Status	WriteBlock (uint32_t addr, const std::vector< uint8_t > &data)
	Write a block of bytes to memory.

absl::StatusOr< CpuState >	GetCpuState ()
	Get CPU register state.

absl::StatusOr< std::string >	Disassemble (uint32_t addr, int count=10)
	Disassemble instructions at address.

absl::StatusOr< int >	AddBreakpoint (uint32_t addr, BreakpointType type, const std::string &condition="")
	Add a breakpoint.

absl::Status	RemoveBreakpoint (int id)
	Remove a breakpoint by ID.

absl::Status	ClearBreakpoints ()
	Clear all breakpoints.

absl::StatusOr< std::string >	GetTrace (int count=20)
	Get execution trace log.

absl::StatusOr< GameState >	GetGameState ()
	Get comprehensive ALTTP game state.

absl::StatusOr< std::vector< SpriteInfo > >	GetSprites (bool all=false)
	Get active sprites.

absl::Status	SetCollisionOverlay (bool enable, const std::string &colmap="A")
	Enable/disable collision overlay.

absl::Status	SaveState (int slot)
	Save state to slot.

absl::Status	LoadState (int slot)
	Load state from slot.

absl::StatusOr< std::string >	Screenshot ()
	Take a screenshot.

absl::Status	Subscribe (const std::vector< std::string > &events)
	Subscribe to events.

absl::Status	Unsubscribe ()
	Unsubscribe from events.

void	SetEventCallback (EventCallback callback)
	Set callback for received events.

EventListenerId	AddEventListener (EventCallback callback)
	Add an event listener without replacing existing listeners.

void	RemoveEventListener (EventListenerId id)
	Remove a previously added event listener.

absl::StatusOr< std::string >	SendCommand (const std::string &json)
	Send a raw JSON command and get raw response.

Static Public Member Functions
static std::vector< std::string >	ListAvailableSockets ()
	List available Mesen2 sockets on the system.

Private Member Functions
absl::StatusOr< std::string >	ParseResponse (const std::string &response)
	Parse JSON response for success/error.

absl::StatusOr< std::string >	SendCommandOnSocket (int fd, const std::string &json, bool update_connection_state)
	Send a command using a specific socket descriptor.

void	EventLoop ()
	Event listening thread function.

Static Private Member Functions
static std::vector< std::string >	FindSocketPaths ()
	Find available Mesen2 socket paths.

Private Attributes
int	socket_fd_ = -1

int	event_socket_fd_ = -1

std::string	socket_path_

std::atomic< bool >	connected_ {false}

std::mutex	command_mutex_

std::mutex	event_callback_mutex_

EventCallback	event_callback_

std::unordered_map< EventListenerId, EventCallback >	event_listeners_

EventListenerId	next_event_listener_id_ = 1

std::thread	event_thread_

std::atomic< bool >	event_thread_running_ {false}

std::string	pending_event_payload_

emu::input::ControllerState	current_input_

Detailed Description

Unix socket client for Mesen2-OoS fork.

Connects to Mesen2's socket API at /tmp/mesen2-<pid>.sock and provides type-safe wrapper methods for all commands.

Definition at line 136 of file mesen_socket_client.h.

Constructor & Destructor Documentation

◆ MesenSocketClient() [1/2]

yaze::emu::mesen::MesenSocketClient::MesenSocketClient ( )

default

◆ ~MesenSocketClient()

yaze::emu::mesen::MesenSocketClient::~MesenSocketClient ( )

Definition at line 238 of file mesen_socket_client.cc.

References Disconnect().

Here is the call graph for this function:

◆ MesenSocketClient() [2/2]

yaze::emu::mesen::MesenSocketClient::MesenSocketClient ( const MesenSocketClient & )

delete

Member Function Documentation

◆ operator=()

MesenSocketClient & yaze::emu::mesen::MesenSocketClient::operator= ( const MesenSocketClient & )

delete

◆ Connect() [1/2]

absl::Status yaze::emu::mesen::MesenSocketClient::Connect ( )

Auto-discover and connect to first available Mesen2 socket.

Returns: Status indicating success or error

Definition at line 242 of file mesen_socket_client.cc.

References Connect(), and FindSocketPaths().

Referenced by Connect().

Here is the call graph for this function:

◆ Connect() [2/2]

absl::Status yaze::emu::mesen::MesenSocketClient::Connect ( const std::string & socket_path )

Connect to a specific socket path.

Parameters

socket_path Full path to Unix socket (e.g., /tmp/mesen2-12345.sock)

Definition at line 251 of file mesen_socket_client.cc.

References connected_, Disconnect(), IsConnected(), Ping(), socket_fd_, and socket_path_.

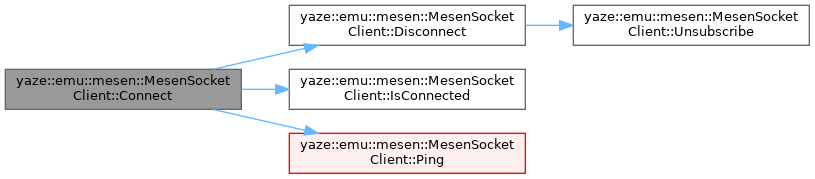

Here is the call graph for this function:

◆ Disconnect()

void yaze::emu::mesen::MesenSocketClient::Disconnect ( )

Disconnect from Mesen2.

Definition at line 276 of file mesen_socket_client.cc.

References connected_, socket_fd_, socket_path_, and Unsubscribe().

Referenced by Connect(), and ~MesenSocketClient().

Here is the call graph for this function:

◆ IsConnected()

bool yaze::emu::mesen::MesenSocketClient::IsConnected ( ) const

Check if connected to Mesen2.

Definition at line 288 of file mesen_socket_client.cc.

References connected_.

Referenced by Connect(), SendCommand(), and Subscribe().

◆ GetSocketPath()

const std::string & yaze::emu::mesen::MesenSocketClient::GetSocketPath ( ) const

inline

Get the current socket path.

Definition at line 174 of file mesen_socket_client.h.

References socket_path_.

◆ ListAvailableSockets()

std::vector< std::string > yaze::emu::mesen::MesenSocketClient::ListAvailableSockets ( )

static

List available Mesen2 sockets on the system.

Definition at line 340 of file mesen_socket_client.cc.

References FindSocketPaths().

Referenced by yaze::editor::MesenDebugPanel::RefreshSocketList(), yaze::editor::MesenScreenshotPanel::RefreshSocketList(), and yaze::editor::SramViewerPanel::RefreshSocketList().

Here is the call graph for this function:

◆ Ping()

absl::Status yaze::emu::mesen::MesenSocketClient::Ping ( )

Ping Mesen2 to check connectivity.

Definition at line 439 of file mesen_socket_client.cc.

References SendCommand().

Referenced by Connect().

Here is the call graph for this function:

◆ GetState()

absl::StatusOr< MesenState > yaze::emu::mesen::MesenSocketClient::GetState ( )

Get current emulation state.

Definition at line 446 of file mesen_socket_client.cc.

References yaze::emu::mesen::MesenState::console_type, yaze::emu::mesen::MesenState::debugging, yaze::emu::mesen::MesenState::fps, yaze::emu::mesen::MesenState::frame, yaze::emu::mesen::MesenState::paused, yaze::emu::mesen::MesenState::running, and SendCommand().

Here is the call graph for this function:

◆ Pause()

absl::Status yaze::emu::mesen::MesenSocketClient::Pause ( )

Pause emulation.

Definition at line 461 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Resume()

absl::Status yaze::emu::mesen::MesenSocketClient::Resume ( )

Resume emulation.

Definition at line 466 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Reset()

absl::Status yaze::emu::mesen::MesenSocketClient::Reset ( )

Reset the console.

Definition at line 471 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Frame()

absl::Status yaze::emu::mesen::MesenSocketClient::Frame ( )

Run exactly one frame.

Definition at line 476 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Step()

absl::Status yaze::emu::mesen::MesenSocketClient::Step	(	int	count = 1,
		const std::string &	mode = "into" )

Step N CPU instructions (default 1)

Parameters

count	Number of steps
mode	Step mode: "into", "over", "out"

Definition at line 481 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

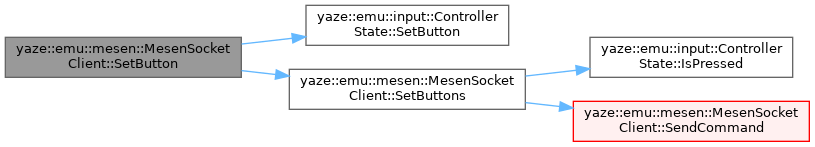

◆ SetButton()

absl::Status yaze::emu::mesen::MesenSocketClient::SetButton	(	emu::input::SnesButton	button,
		bool	pressed )

Set controller button state.

Parameters

button	SNES button
pressed	True to press, false to release

Definition at line 491 of file mesen_socket_client.cc.

References current_input_, yaze::emu::input::ControllerState::SetButton(), and SetButtons().

Here is the call graph for this function:

◆ SetButtons()

absl::Status yaze::emu::mesen::MesenSocketClient::SetButtons ( const emu::input::ControllerState & state )

Set all buttons at once.

Definition at line 497 of file mesen_socket_client.cc.

References yaze::emu::input::A, yaze::emu::input::B, current_input_, yaze::emu::input::DOWN, yaze::emu::input::ControllerState::IsPressed(), yaze::emu::input::L, yaze::emu::input::LEFT, yaze::emu::input::R, yaze::emu::input::RIGHT, yaze::emu::input::SELECT, SendCommand(), yaze::emu::input::START, yaze::emu::input::UP, yaze::emu::input::X, and yaze::emu::input::Y.

Referenced by SetButton().

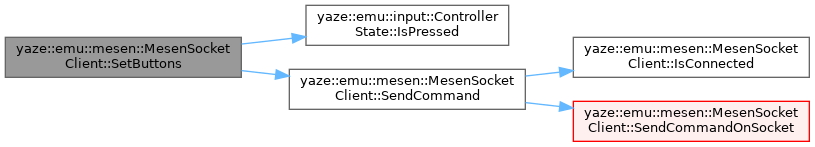

Here is the call graph for this function:

◆ ReadByte()

absl::StatusOr< uint8_t > yaze::emu::mesen::MesenSocketClient::ReadByte ( uint32_t addr )

Read a single byte from memory.

Definition at line 531 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ ReadWord()

absl::StatusOr< uint16_t > yaze::emu::mesen::MesenSocketClient::ReadWord ( uint32_t addr )

Read a 16-bit word from memory.

Definition at line 539 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ ReadBlock()

absl::StatusOr< std::vector< uint8_t > > yaze::emu::mesen::MesenSocketClient::ReadBlock	(	uint32_t	addr,
		size_t	len )

Read a block of bytes from memory.

Definition at line 547 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ WriteByte()

absl::Status yaze::emu::mesen::MesenSocketClient::WriteByte	(	uint32_t	addr,
		uint8_t	value )

Write a single byte to memory.

Definition at line 577 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ WriteWord()

absl::Status yaze::emu::mesen::MesenSocketClient::WriteWord	(	uint32_t	addr,
		uint16_t	value )

Write a 16-bit word to memory.

Definition at line 584 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ WriteBlock()

absl::Status yaze::emu::mesen::MesenSocketClient::WriteBlock	(	uint32_t	addr,
		const std::vector< uint8_t > &	data )

Write a block of bytes to memory.

Definition at line 591 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ GetCpuState()

absl::StatusOr< CpuState > yaze::emu::mesen::MesenSocketClient::GetCpuState ( )

Get CPU register state.

Definition at line 607 of file mesen_socket_client.cc.

References yaze::emu::mesen::CpuState::A, yaze::emu::mesen::CpuState::D, yaze::emu::mesen::CpuState::DBR, yaze::emu::mesen::CpuState::emulation_mode, yaze::emu::mesen::CpuState::K, yaze::emu::mesen::CpuState::P, yaze::emu::mesen::CpuState::PC, SendCommand(), yaze::emu::mesen::CpuState::SP, yaze::emu::mesen::CpuState::X, and yaze::emu::mesen::CpuState::Y.

Here is the call graph for this function:

◆ Disassemble()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::Disassemble	(	uint32_t	addr,
		int	count = 10 )

Disassemble instructions at address.

Definition at line 626 of file mesen_socket_client.cc.

References SendCommand().

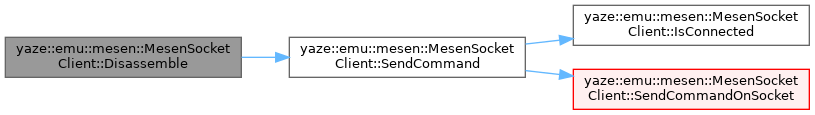

Here is the call graph for this function:

◆ AddBreakpoint()

absl::StatusOr< int > yaze::emu::mesen::MesenSocketClient::AddBreakpoint	(	uint32_t	addr,
		BreakpointType	type,
		const std::string &	condition = "" )

Add a breakpoint.

Returns: Breakpoint ID

Definition at line 636 of file mesen_socket_client.cc.

References yaze::emu::mesen::kExecute, yaze::emu::mesen::kRead, yaze::emu::mesen::kReadWrite, yaze::emu::mesen::kWrite, and SendCommand().

Here is the call graph for this function:

◆ RemoveBreakpoint()

absl::Status yaze::emu::mesen::MesenSocketClient::RemoveBreakpoint ( int id )

Remove a breakpoint by ID.

Definition at line 670 of file mesen_socket_client.cc.

References SendCommand().

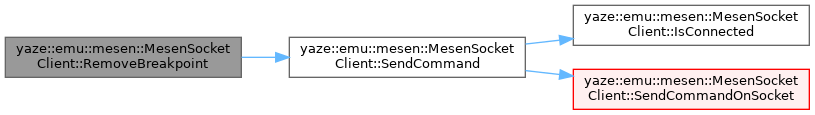

Here is the call graph for this function:

◆ ClearBreakpoints()

absl::Status yaze::emu::mesen::MesenSocketClient::ClearBreakpoints ( )

Clear all breakpoints.

Definition at line 676 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ GetTrace()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::GetTrace ( int count = 20 )

Get execution trace log.

Definition at line 682 of file mesen_socket_client.cc.

References SendCommand().

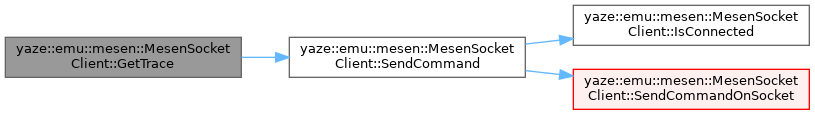

Here is the call graph for this function:

◆ GetGameState()

absl::StatusOr< GameState > yaze::emu::mesen::MesenSocketClient::GetGameState ( )

Get comprehensive ALTTP game state.

Definition at line 694 of file mesen_socket_client.cc.

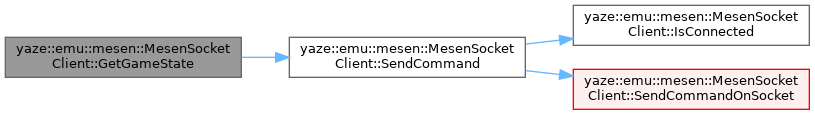

Here is the call graph for this function:

◆ GetSprites()

absl::StatusOr< std::vector< SpriteInfo > > yaze::emu::mesen::MesenSocketClient::GetSprites ( bool all = false )

Get active sprites.

Parameters

all	If true, include inactive sprites

Definition at line 741 of file mesen_socket_client.cc.

References yaze::emu::mesen::SpriteInfo::health, SendCommand(), yaze::emu::mesen::SpriteInfo::slot, yaze::emu::mesen::SpriteInfo::state, yaze::emu::mesen::SpriteInfo::subtype, yaze::emu::mesen::SpriteInfo::type, yaze::emu::mesen::SpriteInfo::x, and yaze::emu::mesen::SpriteInfo::y.

Here is the call graph for this function:

◆ SetCollisionOverlay()

absl::Status yaze::emu::mesen::MesenSocketClient::SetCollisionOverlay	(	bool	enable,
		const std::string &	colmap = "A" )

Enable/disable collision overlay.

Definition at line 792 of file mesen_socket_client.cc.

References SendCommand().

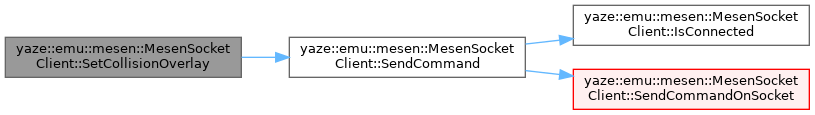

Here is the call graph for this function:

◆ SaveState()

absl::Status yaze::emu::mesen::MesenSocketClient::SaveState ( int slot )

Save state to slot.

Definition at line 804 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ LoadState()

absl::Status yaze::emu::mesen::MesenSocketClient::LoadState ( int slot )

Load state from slot.

Definition at line 810 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Screenshot()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::Screenshot ( )

Take a screenshot.

Returns: Base64-encoded PNG data

Definition at line 816 of file mesen_socket_client.cc.

References SendCommand().

Here is the call graph for this function:

◆ Subscribe()

absl::Status yaze::emu::mesen::MesenSocketClient::Subscribe ( const std::vector< std::string > & events )

Subscribe to events.

Parameters

events Event types: "breakpoint_hit", "frame_complete", "all", etc.

Definition at line 827 of file mesen_socket_client.cc.

References event_socket_fd_, event_thread_, event_thread_running_, EventLoop(), IsConnected(), ParseResponse(), pending_event_payload_, socket_path_, and Unsubscribe().

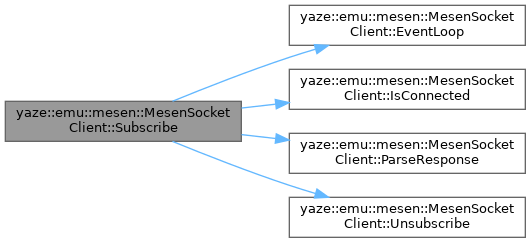

Here is the call graph for this function:

◆ Unsubscribe()

absl::Status yaze::emu::mesen::MesenSocketClient::Unsubscribe ( )

Unsubscribe from events.

Definition at line 919 of file mesen_socket_client.cc.

References event_socket_fd_, event_thread_, event_thread_running_, and pending_event_payload_.

Referenced by Disconnect(), and Subscribe().

◆ SetEventCallback()

void yaze::emu::mesen::MesenSocketClient::SetEventCallback ( EventCallback callback )

Set callback for received events.

Definition at line 935 of file mesen_socket_client.cc.

References event_callback_, and event_callback_mutex_.

◆ AddEventListener()

EventListenerId yaze::emu::mesen::MesenSocketClient::AddEventListener ( EventCallback callback )

Add an event listener without replacing existing listeners.

Returns: Listener ID used for removal.

Definition at line 940 of file mesen_socket_client.cc.

References event_callback_mutex_, event_listeners_, and next_event_listener_id_.

◆ RemoveEventListener()

void yaze::emu::mesen::MesenSocketClient::RemoveEventListener ( EventListenerId id )

Remove a previously added event listener.

Definition at line 950 of file mesen_socket_client.cc.

References event_callback_mutex_, and event_listeners_.

◆ SendCommand()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::SendCommand ( const std::string & json )

Send a raw JSON command and get raw response.

Definition at line 411 of file mesen_socket_client.cc.

References command_mutex_, IsConnected(), SendCommandOnSocket(), and socket_fd_.

Referenced by AddBreakpoint(), ClearBreakpoints(), Disassemble(), Frame(), GetCpuState(), GetGameState(), GetSprites(), GetState(), GetTrace(), LoadState(), Pause(), Ping(), ReadBlock(), ReadByte(), ReadWord(), RemoveBreakpoint(), Reset(), Resume(), SaveState(), Screenshot(), SetButtons(), SetCollisionOverlay(), Step(), WriteBlock(), WriteByte(), and WriteWord().

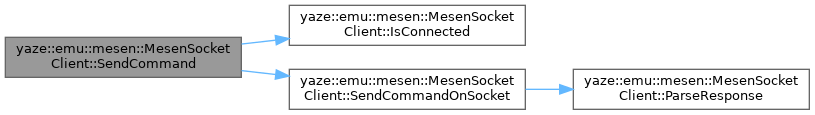

Here is the call graph for this function:

◆ FindSocketPaths()

std::vector< std::string > yaze::emu::mesen::MesenSocketClient::FindSocketPaths ( )

staticprivate

Find available Mesen2 socket paths.

Definition at line 292 of file mesen_socket_client.cc.

Referenced by Connect(), and ListAvailableSockets().

◆ ParseResponse()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::ParseResponse ( const std::string & response )

private

Parse JSON response for success/error.

Definition at line 421 of file mesen_socket_client.cc.

Referenced by SendCommandOnSocket(), and Subscribe().

◆ SendCommandOnSocket()

absl::StatusOr< std::string > yaze::emu::mesen::MesenSocketClient::SendCommandOnSocket	(	int	fd,
		const std::string &	json,
		bool	update_connection_state )

private

Send a command using a specific socket descriptor.

Definition at line 344 of file mesen_socket_client.cc.

References connected_, and ParseResponse().

Referenced by SendCommand().

Here is the call graph for this function:

◆ EventLoop()

void yaze::emu::mesen::MesenSocketClient::EventLoop ( )

private

Event listening thread function.

Definition at line 958 of file mesen_socket_client.cc.

References event_callback_, event_callback_mutex_, event_listeners_, event_socket_fd_, event_thread_running_, pending_event_payload_, yaze::emu::mesen::MesenEvent::raw_json, and yaze::emu::mesen::MesenEvent::type.

Referenced by Subscribe().

Member Data Documentation

◆ socket_fd_

int yaze::emu::mesen::MesenSocketClient::socket_fd_ = -1

private

Definition at line 411 of file mesen_socket_client.h.

Referenced by Connect(), Disconnect(), and SendCommand().

◆ event_socket_fd_

int yaze::emu::mesen::MesenSocketClient::event_socket_fd_ = -1

private

Definition at line 412 of file mesen_socket_client.h.

Referenced by EventLoop(), Subscribe(), and Unsubscribe().

◆ socket_path_

std::string yaze::emu::mesen::MesenSocketClient::socket_path_

private

Definition at line 413 of file mesen_socket_client.h.

Referenced by Connect(), Disconnect(), GetSocketPath(), and Subscribe().

◆ connected_

std::atomic<bool> yaze::emu::mesen::MesenSocketClient::connected_ {false}

private

Definition at line 414 of file mesen_socket_client.h.

Referenced by Connect(), Disconnect(), IsConnected(), and SendCommandOnSocket().

◆ command_mutex_

std::mutex yaze::emu::mesen::MesenSocketClient::command_mutex_

private

Definition at line 415 of file mesen_socket_client.h.

Referenced by SendCommand().

◆ event_callback_mutex_

std::mutex yaze::emu::mesen::MesenSocketClient::event_callback_mutex_

private

Definition at line 416 of file mesen_socket_client.h.

Referenced by AddEventListener(), EventLoop(), RemoveEventListener(), and SetEventCallback().

◆ event_callback_

EventCallback yaze::emu::mesen::MesenSocketClient::event_callback_

private

Definition at line 419 of file mesen_socket_client.h.

Referenced by EventLoop(), and SetEventCallback().

◆ event_listeners_

std::unordered_map<EventListenerId, EventCallback> yaze::emu::mesen::MesenSocketClient::event_listeners_

private

Definition at line 420 of file mesen_socket_client.h.

Referenced by AddEventListener(), EventLoop(), and RemoveEventListener().

◆ next_event_listener_id_

EventListenerId yaze::emu::mesen::MesenSocketClient::next_event_listener_id_ = 1

private

Definition at line 421 of file mesen_socket_client.h.

Referenced by AddEventListener().

◆ event_thread_

std::thread yaze::emu::mesen::MesenSocketClient::event_thread_

private

Definition at line 422 of file mesen_socket_client.h.

Referenced by Subscribe(), and Unsubscribe().

◆ event_thread_running_

std::atomic<bool> yaze::emu::mesen::MesenSocketClient::event_thread_running_ {false}

private

Definition at line 423 of file mesen_socket_client.h.

Referenced by EventLoop(), Subscribe(), and Unsubscribe().

◆ pending_event_payload_

std::string yaze::emu::mesen::MesenSocketClient::pending_event_payload_

private

Definition at line 424 of file mesen_socket_client.h.

Referenced by EventLoop(), Subscribe(), and Unsubscribe().

◆ current_input_

emu::input::ControllerState yaze::emu::mesen::MesenSocketClient::current_input_

private

Definition at line 427 of file mesen_socket_client.h.

Referenced by SetButton(), and SetButtons().

The documentation for this class was generated from the following files:

src/app/emu/mesen/mesen_socket_client.h
src/app/emu/mesen/mesen_socket_client.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MesenSocketClient() [1/2]

◆ ~MesenSocketClient()

◆ MesenSocketClient() [2/2]

Member Function Documentation

◆ operator=()

◆ Connect() [1/2]

◆ Connect() [2/2]

◆ Disconnect()

◆ IsConnected()

◆ GetSocketPath()

◆ ListAvailableSockets()

◆ Ping()

◆ GetState()

◆ Pause()

◆ Resume()

◆ Reset()

◆ Frame()

◆ Step()

◆ SetButton()

◆ SetButtons()

◆ ReadByte()

◆ ReadWord()

◆ ReadBlock()

◆ WriteByte()

◆ WriteWord()

◆ WriteBlock()

◆ GetCpuState()

◆ Disassemble()

◆ AddBreakpoint()

◆ RemoveBreakpoint()

◆ ClearBreakpoints()

◆ GetTrace()

◆ GetGameState()

◆ GetSprites()

◆ SetCollisionOverlay()

◆ SaveState()

◆ LoadState()

◆ Screenshot()

◆ Subscribe()

◆ Unsubscribe()

◆ SetEventCallback()

◆ AddEventListener()

◆ RemoveEventListener()

◆ SendCommand()

◆ FindSocketPaths()

◆ ParseResponse()

◆ SendCommandOnSocket()

◆ EventLoop()

Member Data Documentation

◆ socket_fd_

◆ event_socket_fd_

◆ socket_path_

◆ connected_

◆ command_mutex_

◆ event_callback_mutex_

◆ event_callback_

◆ event_listeners_

◆ next_event_listener_id_

◆ event_thread_

◆ event_thread_running_

◆ pending_event_payload_

◆ current_input_
