yaze::zelda3::GameEntity Class Reference

Base class for all overworld and dungeon entities. More...

#include <common.h>

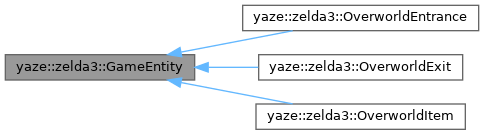

Inheritance diagram for yaze::zelda3::GameEntity:

Public Types
enum	EntityType {   kEntrance = 0 , kExit = 1 , kItem = 2 , kSprite = 3 ,   kTransport = 4 , kMusic = 5 , kTilemap = 6 , kProperties = 7 ,   kDungeonSprite = 8 }

Public Member Functions
auto	set_x (int x)
auto	set_y (int y)
	GameEntity ()=default
virtual	~GameEntity ()
virtual void	UpdateMapProperties (uint16_t map_id, const void *context=nullptr)=0
	Update entity properties based on map position.

Public Attributes
enum yaze::zelda3::GameEntity::EntityType	entity_type_
int	x_ = 0
int	y_ = 0
int	game_x_ = 0
int	game_y_ = 0
int	entity_id_ = 0
uint16_t	map_id_ = 0

Detailed Description

Base class for all overworld and dungeon entities.

Coordinate System (matches ZScream naming conventions):

• x_, y_: World coordinates in pixels (0-4095 for overworld) ZScream equivalent: PlayerX/PlayerY (ExitOW.cs), GlobalX/GlobalY (EntranceOW.cs)
• game_x_, game_y_: Map-local tile coordinates (0-63 for normal, 0-31 for small areas) ZScream equivalent: AreaX/AreaY (ExitOW.cs), GameX/GameY (items/sprites)
• map_id_: Parent map ID accounting for large/wide/tall multi-area maps ZScream equivalent: MapID property
• entity_id_: Index in entity array (for display/debugging)

Definition at line 31 of file common.h.

Member Enumeration Documentation

EntityType

enum yaze::zelda3::GameEntity::EntityType

Enumerator
kEntrance
kExit
kItem
kSprite
kTransport
kMusic
kTilemap
kProperties
kDungeonSprite

Definition at line 33 of file common.h.

Constructor & Destructor Documentation

GameEntity()

yaze::zelda3::GameEntity::GameEntity ( )

default

~GameEntity()

virtual yaze::zelda3::GameEntity::~GameEntity ( )

inlinevirtual

Definition at line 66 of file common.h.

Member Function Documentation

set_x()

auto yaze::zelda3::GameEntity::set_x ( int x )

inline

Definition at line 62 of file common.h.

References x_.

Referenced by yaze::editor::MoveEntityOnGrid().

set_y()

auto yaze::zelda3::GameEntity::set_y ( int y )

inline

Definition at line 63 of file common.h.

References y_.

Referenced by yaze::editor::MoveEntityOnGrid().

UpdateMapProperties()

virtual void yaze::zelda3::GameEntity::UpdateMapProperties ( uint16_t map_id, const void * context = nullptr )

pure virtual

Update entity properties based on map position.

Parameters

map_id	Parent map ID to update to
context	Optional context (typically const Overworld* for coordinate calculations)

ZScream equivalent: UpdateMapStuff() / UpdateMapProperties()

This method recalculates derived properties like:

• game_x_/game_y_ from world x_/y_ coordinates
• Scroll/camera values for exits (if is_automatic_ = true)
• Map position encoding for saving

Implemented in yaze::zelda3::OverworldExit, yaze::zelda3::OverworldEntrance, yaze::zelda3::Sprite, and yaze::zelda3::OverworldItem.

Referenced by yaze::editor::OverworldEditor::DrawOverworldCanvas().

Member Data Documentation

entity_type_

enum yaze::zelda3::GameEntity::EntityType yaze::zelda3::GameEntity::entity_type_

Referenced by yaze::editor::OverworldEditor::DrawEntityEditorPopups(), yaze::editor::OverworldEditor::DrawOverworldCanvas(), yaze::editor::OverworldEntityInteraction::HandleContextMenus(), yaze::editor::OverworldEntityInteraction::HandleDoubleClick(), yaze::editor::OverworldEntityInteraction::HandleDragDrop(), yaze::editor::OverworldEditor::HandleEntityContextMenus(), yaze::editor::OverworldEditor::HandleEntityDoubleClick(), yaze::zelda3::Sprite::InitSprite(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldItem::OverworldItem(), and yaze::zelda3::Sprite::Sprite().

x_

int yaze::zelda3::GameEntity::x_ = 0

Definition at line 47 of file common.h.

Referenced by yaze::zelda3::CompareOverworldItems(), yaze::editor::DrawExitEditorPopup(), yaze::editor::OverworldEditor::DrawOverworldCanvas(), yaze::editor::DrawOverworldEntrancePopup(), yaze::editor::OverworldEntityInteraction::HandleDragDrop(), yaze::zelda3::Sprite::InitSprite(), yaze::editor::InsertItem(), yaze::editor::InsertSprite(), yaze::editor::IsMouseHoveringOverEntity(), yaze::editor::IsMouseHoveringOverEntity(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldItem::OverworldItem(), set_x(), yaze::zelda3::Sprite::Sprite(), yaze::zelda3::Sprite::Sprite(), yaze::zelda3::OverworldExit::UpdateMapProperties(), yaze::zelda3::OverworldEntrance::UpdateMapProperties(), yaze::zelda3::Sprite::UpdateMapProperties(), yaze::zelda3::OverworldItem::UpdateMapProperties(), and yaze::zelda3::Sprite::x().

y_

int yaze::zelda3::GameEntity::y_ = 0

Definition at line 48 of file common.h.

Referenced by yaze::zelda3::CompareOverworldItems(), yaze::editor::DrawExitEditorPopup(), yaze::editor::OverworldEditor::DrawOverworldCanvas(), yaze::editor::DrawOverworldEntrancePopup(), yaze::editor::OverworldEntityInteraction::HandleDragDrop(), yaze::zelda3::Sprite::InitSprite(), yaze::editor::InsertItem(), yaze::editor::InsertSprite(), yaze::editor::IsMouseHoveringOverEntity(), yaze::editor::IsMouseHoveringOverEntity(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldItem::OverworldItem(), set_y(), yaze::zelda3::Sprite::Sprite(), yaze::zelda3::Sprite::Sprite(), yaze::zelda3::OverworldExit::UpdateMapProperties(), yaze::zelda3::OverworldEntrance::UpdateMapProperties(), yaze::zelda3::Sprite::UpdateMapProperties(), yaze::zelda3::OverworldItem::UpdateMapProperties(), and yaze::zelda3::Sprite::y().

game_x_

int yaze::zelda3::GameEntity::game_x_ = 0

Definition at line 52 of file common.h.

Referenced by yaze::editor::DrawExitEditorPopup(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldExit::UpdateMapProperties(), and yaze::zelda3::OverworldEntrance::UpdateMapProperties().

game_y_

int yaze::zelda3::GameEntity::game_y_ = 0

Definition at line 53 of file common.h.

Referenced by yaze::editor::DrawExitEditorPopup(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldExit::UpdateMapProperties(), and yaze::zelda3::OverworldEntrance::UpdateMapProperties().

entity_id_

int yaze::zelda3::GameEntity::entity_id_ = 0

Definition at line 56 of file common.h.

Referenced by yaze::editor::DrawExitEditorPopup(), yaze::editor::OverworldEntityRenderer::DrawExits(), yaze::editor::OverworldEntityRenderer::DrawExits(), yaze::editor::DrawItemEditorPopup(), yaze::zelda3::Sprite::InitSprite(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldItem::OverworldItem(), and yaze::zelda3::Sprite::Sprite().

map_id_

uint16_t yaze::zelda3::GameEntity::map_id_ = 0

Definition at line 60 of file common.h.

Referenced by yaze::editor::DrawExitEditorPopup(), yaze::editor::DrawItemEditorPopup(), yaze::editor::OverworldEditor::DrawOverworldCanvas(), yaze::editor::DrawOverworldEntrancePopup(), yaze::zelda3::OverworldEntrance::OverworldEntrance(), yaze::zelda3::OverworldExit::OverworldExit(), yaze::zelda3::OverworldItem::OverworldItem(), yaze::zelda3::OverworldExit::UpdateMapProperties(), and yaze::zelda3::OverworldEntrance::UpdateMapProperties().

---

The documentation for this class was generated from the following file:

• src/zelda3/common.h
