Manages door position snapping and coordinate conversion. More...

#include <door_position.h>

Static Public Member Functions
static std::vector< int >	GetSnapPositions (DoorDirection direction)
	Get all valid snap positions for a given direction.

static uint8_t	SnapToNearestPosition (int canvas_x, int canvas_y, DoorDirection direction)
	Convert canvas coordinates to nearest valid door position.

static std::pair< int, int >	PositionToTileCoords (uint8_t position, DoorDirection direction)
	Convert encoded position to tile coordinates.

static std::pair< int, int >	PositionToPixelCoords (uint8_t position, DoorDirection direction)
	Convert encoded position to pixel coordinates.

static int	GetWallEdge (DoorDirection direction)
	Get the wall edge coordinate for a direction.

static bool	IsValidPosition (uint8_t position, DoorDirection direction)
	Check if a position is valid for door placement.

static bool	DetectWallFromPosition (int canvas_x, int canvas_y, DoorDirection &out_direction)
	Detect which wall the cursor is near.

static bool	DetectWallSection (int canvas_x, int canvas_y, DoorDirection &out_direction, bool &out_is_inner)
	Detect wall with inner/outer section information.

static uint8_t	GetSectionStartPosition (DoorDirection direction, bool is_inner)
	Get the starting position index for outer/inner section.

static std::pair< uint8_t, uint8_t >	EncodeDoorBytes (uint8_t position, DoorType type, DoorDirection direction)
	Encode door data for ROM storage.

static std::tuple< int, int, int, int >	GetDoorBounds (uint8_t position, DoorDirection direction)
	Get the bounding rectangle for a door.

Static Public Attributes
static constexpr int	kRoomWidthTiles = 64

static constexpr int	kRoomHeightTiles = 64

static constexpr int	kTileSize = 8

static constexpr int	kMaxDoorPositions = 32

static constexpr int	kWallDetectionThreshold = 8

Detailed Description

Manages door position snapping and coordinate conversion.

Doors in ALTTP can only be placed at specific positions along room walls. The position is encoded as a 5-bit value that maps to tile coordinates.

Position Encoding:

ROM stores position as a full byte, but only bits 0-4 are used
Tile coordinate = (position & 0x1F) * 2
This gives 32 possible positions at tiles 0, 2, 4, ..., 62

Wall Edges:

North: doors placed at y=0 (top row)
South: doors placed at y=61 (3 tiles from bottom for door height)
West: doors placed at x=0 (left column)
East: doors placed at x=61 (3 tiles from right for door width)

Definition at line 31 of file door_position.h.

Member Function Documentation

◆ GetSnapPositions()

std::vector< int > yaze::zelda3::DoorPositionManager::GetSnapPositions ( DoorDirection direction )

static

Get all valid snap positions for a given direction.

Parameters

direction Which wall the door is on

Returns: Vector of valid tile positions (0, 2, 4, ..., 62)

Definition at line 39 of file door_position.cc.

References yaze::zelda3::East, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

Referenced by SnapToNearestPosition().

◆ SnapToNearestPosition()

uint8_t yaze::zelda3::DoorPositionManager::SnapToNearestPosition	(	int	canvas_x,
		int	canvas_y,
		DoorDirection	direction )

static

Convert canvas coordinates to nearest valid door position.

This snaps the mouse position to the nearest valid door placement position on the specified wall.

Parameters

canvas_x	X coordinate on canvas (pixels)
canvas_y	Y coordinate on canvas (pixels)
direction	Which wall the door is on

Returns: Encoded position byte for ROM storage (0-31)

Definition at line 63 of file door_position.cc.

References DetectWallSection(), GetSectionStartPosition(), GetSnapPositions(), kTileSize, yaze::zelda3::North, and yaze::zelda3::South.

Referenced by yaze::editor::DungeonObjectInteraction::DrawDoorGhostPreview(), yaze::editor::DungeonObjectInteraction::DrawDoorSnapIndicators(), yaze::editor::DungeonObjectInteraction::DrawEntitySelectionHighlights(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), yaze::editor::DungeonObjectInteraction::HandleEntityDrag(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::DungeonObjectInteraction::PlaceDoorAtPosition(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), and yaze::editor::DoorInteractionHandler::UpdateSnappedPosition().

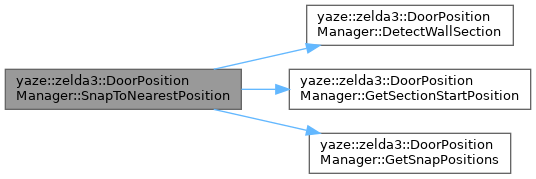

Here is the call graph for this function:

◆ PositionToTileCoords()

std::pair< int, int > yaze::zelda3::DoorPositionManager::PositionToTileCoords	(	uint8_t	position,
		DoorDirection	direction )

static

Convert encoded position to tile coordinates.

Parameters

position	Encoded position byte from ROM (0-31)
direction	Door direction

Returns: Pair of (tile_x, tile_y) coordinates

Definition at line 111 of file door_position.cc.

References yaze::zelda3::East, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

Referenced by yaze::editor::DungeonObjectInteraction::DrawDoorGhostPreview(), yaze::editor::DungeonObjectInteraction::DrawDoorSnapIndicators(), yaze::editor::DungeonObjectInteraction::DrawEntitySelectionHighlights(), yaze::editor::DoorInteractionHandler::DrawGhostPreview(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), yaze::zelda3::ObjectDrawer::DoorDef::GetTileCoords(), yaze::zelda3::Room::Door::GetTileCoords(), and PositionToPixelCoords().

◆ PositionToPixelCoords()

std::pair< int, int > yaze::zelda3::DoorPositionManager::PositionToPixelCoords	(	uint8_t	position,
		DoorDirection	direction )

static

Convert encoded position to pixel coordinates.

Parameters

position	Encoded position byte from ROM (0-31)
direction	Door direction

Returns: Pair of (pixel_x, pixel_y) coordinates

Definition at line 206 of file door_position.cc.

References kTileSize, and PositionToTileCoords().

Referenced by GetDoorBounds(), and yaze::zelda3::Room::Door::GetPixelCoords().

Here is the call graph for this function:

◆ GetWallEdge()

int yaze::zelda3::DoorPositionManager::GetWallEdge ( DoorDirection direction )

static

Get the wall edge coordinate for a direction.

Returns the fixed coordinate for the wall edge:

North: y=0
South: y=61 (accounting for door height)
West: x=0
East: x=61 (accounting for door width)

Parameters

direction Door direction

Returns: Tile coordinate of the wall edge

Definition at line 212 of file door_position.cc.

References yaze::zelda3::East, kRoomHeightTiles, kRoomWidthTiles, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

◆ IsValidPosition()

bool yaze::zelda3::DoorPositionManager::IsValidPosition	(	uint8_t	position,
		DoorDirection	direction )

static

Check if a position is valid for door placement.

Parameters

position	Encoded position (0-31)
direction	Door direction

Returns: true if position is valid

Definition at line 226 of file door_position.cc.

References yaze::zelda3::GetDoorDimensions(), kRoomHeightTiles, kRoomWidthTiles, yaze::zelda3::North, and yaze::zelda3::South.

Referenced by yaze::editor::DungeonObjectInteraction::HandleEntityDrag(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::DungeonObjectInteraction::PlaceDoorAtPosition(), and yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition().

Here is the call graph for this function:

◆ DetectWallFromPosition()

bool yaze::zelda3::DoorPositionManager::DetectWallFromPosition	(	int	canvas_x,
		int	canvas_y,
		DoorDirection &	out_direction )

static

Detect which wall the cursor is near.

Based on cursor position relative to room edges, determines which wall (if any) the user is trying to place a door on.

Parameters

canvas_x	X coordinate on canvas (pixels)
canvas_y	Y coordinate on canvas (pixels)
out_direction	Output: detected direction (if near a wall)

Returns: true if near a wall edge

Definition at line 248 of file door_position.cc.

References yaze::zelda3::East, kRoomHeightTiles, kRoomWidthTiles, kTileSize, kWallDetectionThreshold, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

Referenced by yaze::editor::DungeonObjectInteraction::DrawDoorGhostPreview(), yaze::editor::DungeonObjectInteraction::HandleEntityDrag(), yaze::editor::DoorInteractionHandler::HandleRelease(), yaze::editor::DungeonObjectInteraction::PlaceDoorAtPosition(), yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition(), and yaze::editor::DoorInteractionHandler::UpdateSnappedPosition().

◆ DetectWallSection()

bool yaze::zelda3::DoorPositionManager::DetectWallSection	(	int	canvas_x,
		int	canvas_y,
		DoorDirection &	out_direction,
		bool &	out_is_inner )

static

Detect wall with inner/outer section information.

Extended version that also detects middle seams and indicates whether the position is on the outer wall or inner seam.

Position ranges per direction:

North: Outer (0-5), Inner (6-11)
South: Inner (0-5), Outer (6-11)
West: Outer (0-5), Inner (6-11)
East: Inner (0-5), Outer (6-11)

Parameters

canvas_x	X coordinate on canvas (pixels)
canvas_y	Y coordinate on canvas (pixels)
out_direction	Output: detected direction
out_is_inner	Output: true if at inner seam, false if outer wall

Returns: true if near any wall or seam

Definition at line 284 of file door_position.cc.

References yaze::zelda3::East, kRoomHeightTiles, kRoomWidthTiles, kTileSize, kWallDetectionThreshold, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

Referenced by yaze::editor::DungeonObjectInteraction::DrawDoorSnapIndicators(), yaze::editor::DungeonObjectInteraction::DrawEntitySelectionHighlights(), yaze::editor::DoorInteractionHandler::DrawSelectionHighlight(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), and SnapToNearestPosition().

◆ GetSectionStartPosition()

uint8_t yaze::zelda3::DoorPositionManager::GetSectionStartPosition	(	DoorDirection	direction,
		bool	is_inner )

static

Get the starting position index for outer/inner section.

Parameters

direction	Door direction
is_inner	Whether at inner seam (vs outer wall)

Returns: Starting position index (0 or 6)

Definition at line 353 of file door_position.cc.

References yaze::zelda3::East, yaze::zelda3::North, yaze::zelda3::South, and yaze::zelda3::West.

Referenced by yaze::editor::DungeonObjectInteraction::DrawDoorSnapIndicators(), yaze::editor::DoorInteractionHandler::DrawSnapIndicators(), and SnapToNearestPosition().

◆ EncodeDoorBytes()

std::pair< uint8_t, uint8_t > yaze::zelda3::DoorPositionManager::EncodeDoorBytes	(	uint8_t	position,
		DoorType	type,
		DoorDirection	direction )

static

Encode door data for ROM storage.

Parameters

position	Encoded position (0-31)
type	Door type
direction	Door direction

Returns: Pair of (byte1, byte2) for ROM storage

Definition at line 373 of file door_position.cc.

Referenced by yaze::zelda3::Room::Door::EncodeBytes().

◆ GetDoorBounds()

std::tuple< int, int, int, int > yaze::zelda3::DoorPositionManager::GetDoorBounds	(	uint8_t	position,
		DoorDirection	direction )

static

Get the bounding rectangle for a door.

Parameters

position	Encoded position
direction	Door direction

Returns: Tuple of (x, y, width, height) in pixels

Definition at line 387 of file door_position.cc.

References yaze::zelda3::GetDoorDimensions(), and PositionToPixelCoords().

Referenced by yaze::zelda3::Room::Door::GetBounds().

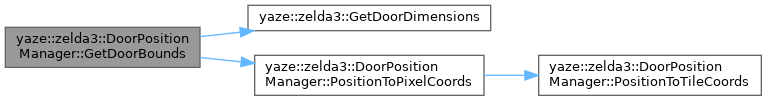

Here is the call graph for this function:

Member Data Documentation

◆ kRoomWidthTiles

constexpr int yaze::zelda3::DoorPositionManager::kRoomWidthTiles = 64

staticconstexpr

Definition at line 34 of file door_position.h.

Referenced by DetectWallFromPosition(), DetectWallSection(), GetWallEdge(), and IsValidPosition().

◆ kRoomHeightTiles

constexpr int yaze::zelda3::DoorPositionManager::kRoomHeightTiles = 64

staticconstexpr

Definition at line 35 of file door_position.h.

Referenced by DetectWallFromPosition(), DetectWallSection(), GetWallEdge(), and IsValidPosition().

◆ kTileSize

constexpr int yaze::zelda3::DoorPositionManager::kTileSize = 8

staticconstexpr

Definition at line 36 of file door_position.h.

Referenced by DetectWallFromPosition(), DetectWallSection(), PositionToPixelCoords(), and SnapToNearestPosition().

◆ kMaxDoorPositions

constexpr int yaze::zelda3::DoorPositionManager::kMaxDoorPositions = 32

staticconstexpr

Definition at line 37 of file door_position.h.

◆ kWallDetectionThreshold

constexpr int yaze::zelda3::DoorPositionManager::kWallDetectionThreshold = 8

staticconstexpr

Definition at line 40 of file door_position.h.

Referenced by DetectWallFromPosition(), and DetectWallSection().

The documentation for this class was generated from the following files:

src/zelda3/dungeon/door_position.h
src/zelda3/dungeon/door_position.cc
