Controller for intelligent step operations. More...

#include <step_controller.h>

Public Types
using	MemoryReader = std::function<uint8_t(uint32_t)>

using	SingleStepper = std::function<void()>

using	PcGetter = std::function<uint32_t()>

Public Member Functions
	StepController ()=default

void	SetMemoryReader (MemoryReader reader)

void	SetSingleStepper (SingleStepper stepper)

void	SetPcGetter (PcGetter getter)

StepResult	StepInto ()
	Step a single instruction and update call stack.

StepResult	StepOver (uint32_t max_instructions=1000000)
	Step over the current instruction.

StepResult	StepOut (uint32_t max_instructions=1000000)
	Step out of the current subroutine.

const std::vector< CallStackEntry > &	GetCallStack () const
	Get the current call stack.

size_t	GetCallDepth () const
	Get the current call depth.

void	ClearCallStack ()
	Clear the call stack (e.g., on reset)

Static Public Member Functions
static bool	IsCallInstruction (uint8_t opcode)
	Check if an opcode is a call instruction (JSR/JSL)

static bool	IsReturnInstruction (uint8_t opcode)
	Check if an opcode is a return instruction (RTS/RTL/RTI)

static bool	IsBranchInstruction (uint8_t opcode)
	Check if an opcode is a branch instruction.

static uint8_t	GetInstructionSize (uint8_t opcode, bool m_flag, bool x_flag)
	Get instruction size for step over calculations.

Private Member Functions
void	ProcessInstruction (uint32_t pc)

uint32_t	CalculateReturnAddress (uint32_t pc, uint8_t opcode) const

uint32_t	CalculateCallTarget (uint32_t pc, uint8_t opcode) const

Private Attributes
MemoryReader	read_byte_

SingleStepper	step_

PcGetter	get_pc_

std::vector< CallStackEntry >	call_stack_

Detailed Description

Controller for intelligent step operations.

Provides step-over, step-out, and step-into functionality by tracking the call stack during execution.

Usage: StepController controller; controller.SetMemoryReader([&](uint32_t addr) { return mem.ReadByte(addr); }); controller.SetSingleStepper([&]() { cpu.ExecuteInstruction(); });

// Step over a JSR - will run until it returns auto result = controller.StepOver(current_pc);

// Step out of current subroutine auto result = controller.StepOut(current_pc, call_depth);

Definition at line 70 of file step_controller.h.

Member Typedef Documentation

◆ MemoryReader

using yaze::emu::debug::StepController::MemoryReader = std::function<uint8_t(uint32_t)>

Definition at line 72 of file step_controller.h.

◆ SingleStepper

using yaze::emu::debug::StepController::SingleStepper = std::function<void()>

Definition at line 73 of file step_controller.h.

◆ PcGetter

using yaze::emu::debug::StepController::PcGetter = std::function<uint32_t()>

Definition at line 74 of file step_controller.h.

Constructor & Destructor Documentation

◆ StepController()

yaze::emu::debug::StepController::StepController ( )

default

Member Function Documentation

◆ SetMemoryReader()

void yaze::emu::debug::StepController::SetMemoryReader ( MemoryReader reader )

inline

Definition at line 78 of file step_controller.h.

References read_byte_.

Referenced by yaze::agent::EmulatorServiceImpl::InitializeStepController().

◆ SetSingleStepper()

void yaze::emu::debug::StepController::SetSingleStepper ( SingleStepper stepper )

inline

Definition at line 79 of file step_controller.h.

References step_.

Referenced by yaze::agent::EmulatorServiceImpl::InitializeStepController().

◆ SetPcGetter()

void yaze::emu::debug::StepController::SetPcGetter ( PcGetter getter )

inline

Definition at line 80 of file step_controller.h.

References get_pc_.

Referenced by yaze::agent::EmulatorServiceImpl::InitializeStepController().

◆ StepInto()

StepResult yaze::emu::debug::StepController::StepInto ( )

Step a single instruction and update call stack.

Returns: Step result with call stack info

Definition at line 204 of file step_controller.cc.

References CalculateCallTarget(), CalculateReturnAddress(), yaze::emu::debug::StepResult::call, call_stack_, get_pc_, yaze::emu::debug::StepResult::instructions_executed, IsCallInstruction(), IsReturnInstruction(), yaze::emu::debug::opcode::JSL, yaze::emu::debug::StepResult::message, yaze::emu::debug::StepResult::new_pc, read_byte_, yaze::emu::debug::StepResult::ret, step_, and yaze::emu::debug::StepResult::success.

Referenced by StepOver().

Here is the call graph for this function:

◆ StepOver()

StepResult yaze::emu::debug::StepController::StepOver ( uint32_t max_instructions = 1000000 )

Step over the current instruction.

If the current instruction is JSR/JSL, this executes until the subroutine returns. Otherwise, it's equivalent to StepInto.

Parameters

max_instructions Maximum instructions before timeout

Returns: Step result

Definition at line 257 of file step_controller.cc.

References CalculateCallTarget(), CalculateReturnAddress(), yaze::emu::debug::StepResult::call, call_stack_, get_pc_, yaze::emu::debug::StepResult::instructions_executed, IsCallInstruction(), IsReturnInstruction(), yaze::emu::debug::opcode::JSL, yaze::emu::debug::StepResult::message, yaze::emu::debug::StepResult::new_pc, read_byte_, step_, StepInto(), and yaze::emu::debug::StepResult::success.

Referenced by yaze::agent::EmulatorServiceImpl::StepOver().

◆ StepOut()

StepResult yaze::emu::debug::StepController::StepOut ( uint32_t max_instructions = 1000000 )

Step out of the current subroutine.

Executes until RTS/RTL returns to a higher call level.

Parameters

max_instructions Maximum instructions before timeout

Returns: Step result

Definition at line 328 of file step_controller.cc.

References CalculateCallTarget(), CalculateReturnAddress(), call_stack_, get_pc_, yaze::emu::debug::StepResult::instructions_executed, IsCallInstruction(), IsReturnInstruction(), yaze::emu::debug::opcode::JSL, yaze::emu::debug::StepResult::message, yaze::emu::debug::StepResult::new_pc, read_byte_, yaze::emu::debug::StepResult::ret, step_, and yaze::emu::debug::StepResult::success.

Referenced by yaze::agent::EmulatorServiceImpl::StepOut().

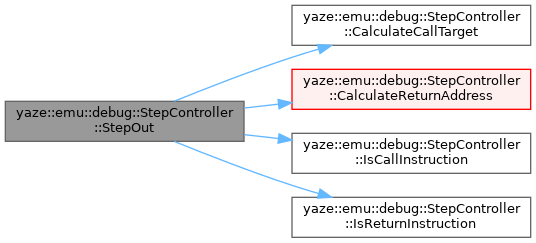

Here is the call graph for this function:

◆ GetCallStack()

const std::vector< CallStackEntry > & yaze::emu::debug::StepController::GetCallStack ( ) const

inline

Get the current call stack.

Definition at line 112 of file step_controller.h.

References call_stack_.

◆ GetCallDepth()

size_t yaze::emu::debug::StepController::GetCallDepth ( ) const

inline

Get the current call depth.

Definition at line 119 of file step_controller.h.

References call_stack_.

Referenced by yaze::agent::EmulatorServiceImpl::StepOut().

◆ ClearCallStack()

void yaze::emu::debug::StepController::ClearCallStack ( )

inline

Clear the call stack (e.g., on reset)

Definition at line 124 of file step_controller.h.

References call_stack_.

◆ IsCallInstruction()

bool yaze::emu::debug::StepController::IsCallInstruction ( uint8_t opcode )

static

Check if an opcode is a call instruction (JSR/JSL)

Definition at line 9 of file step_controller.cc.

References yaze::emu::debug::opcode::JSL, yaze::emu::debug::opcode::JSR, and yaze::emu::debug::opcode::JSR_X.

Referenced by ProcessInstruction(), StepInto(), StepOut(), and StepOver().

◆ IsReturnInstruction()

bool yaze::emu::debug::StepController::IsReturnInstruction ( uint8_t opcode )

static

Check if an opcode is a return instruction (RTS/RTL/RTI)

Definition at line 15 of file step_controller.cc.

References yaze::emu::debug::opcode::RTI, yaze::emu::debug::opcode::RTL, and yaze::emu::debug::opcode::RTS.

Referenced by ProcessInstruction(), StepInto(), StepOut(), and StepOver().

◆ IsBranchInstruction()

bool yaze::emu::debug::StepController::IsBranchInstruction ( uint8_t opcode )

static

Check if an opcode is a branch instruction.

Definition at line 21 of file step_controller.cc.

◆ GetInstructionSize()

uint8_t yaze::emu::debug::StepController::GetInstructionSize	(	uint8_t	opcode,
		bool	m_flag,
		bool	x_flag )

static

Get instruction size for step over calculations.

Definition at line 39 of file step_controller.cc.

Referenced by CalculateReturnAddress().

◆ ProcessInstruction()

void yaze::emu::debug::StepController::ProcessInstruction ( uint32_t pc )

private

Definition at line 184 of file step_controller.cc.

References CalculateCallTarget(), CalculateReturnAddress(), call_stack_, IsCallInstruction(), IsReturnInstruction(), yaze::emu::debug::opcode::JSL, and read_byte_.

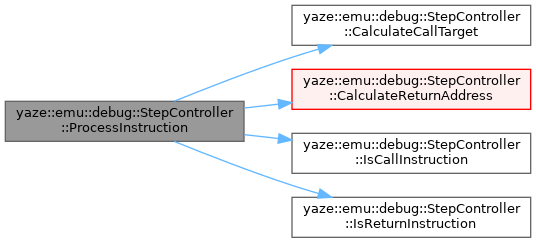

Here is the call graph for this function:

◆ CalculateReturnAddress()

uint32_t yaze::emu::debug::StepController::CalculateReturnAddress	(	uint32_t	pc,
		uint8_t	opcode ) const

private

Definition at line 142 of file step_controller.cc.

References GetInstructionSize(), and yaze::emu::debug::opcode::JSL.

Referenced by ProcessInstruction(), StepInto(), StepOut(), and StepOver().

Here is the call graph for this function:

◆ CalculateCallTarget()

uint32_t yaze::emu::debug::StepController::CalculateCallTarget	(	uint32_t	pc,
		uint8_t	opcode ) const

private

Definition at line 158 of file step_controller.cc.

References yaze::emu::debug::opcode::JSL, yaze::emu::debug::opcode::JSR, yaze::emu::debug::opcode::JSR_X, and read_byte_.

Referenced by ProcessInstruction(), StepInto(), StepOut(), and StepOver().

Member Data Documentation

◆ read_byte_

MemoryReader yaze::emu::debug::StepController::read_byte_

private

Definition at line 156 of file step_controller.h.

Referenced by CalculateCallTarget(), ProcessInstruction(), SetMemoryReader(), StepInto(), StepOut(), and StepOver().

◆ step_

SingleStepper yaze::emu::debug::StepController::step_

private

Definition at line 157 of file step_controller.h.

Referenced by SetSingleStepper(), StepInto(), StepOut(), and StepOver().

◆ get_pc_

PcGetter yaze::emu::debug::StepController::get_pc_

private

Definition at line 158 of file step_controller.h.

Referenced by SetPcGetter(), StepInto(), StepOut(), and StepOver().

◆ call_stack_

std::vector<CallStackEntry> yaze::emu::debug::StepController::call_stack_

private

Definition at line 159 of file step_controller.h.

Referenced by ClearCallStack(), GetCallDepth(), GetCallStack(), ProcessInstruction(), StepInto(), StepOut(), and StepOver().

The documentation for this class was generated from the following files:

src/app/emu/debug/step_controller.h
src/app/emu/debug/step_controller.cc
