Central registry and manager for all editor cards. More...

#include <editor_card_manager.h>

Classes
struct	WorkspacePreset

Public Member Functions
void	RegisterCard (const CardInfo &info)

void	UnregisterCard (const std::string &card_id)

void	ClearAllCards ()

bool	ShowCard (const std::string &card_id)

bool	HideCard (const std::string &card_id)

bool	ToggleCard (const std::string &card_id)

bool	IsCardVisible (const std::string &card_id) const

void	ShowAllCardsInCategory (const std::string &category)

void	HideAllCardsInCategory (const std::string &category)

void	ShowOnlyCard (const std::string &card_id)

std::vector< CardInfo >	GetCardsInCategory (const std::string &category) const

std::vector< std::string >	GetAllCategories () const

const CardInfo *	GetCardInfo (const std::string &card_id) const

void	DrawViewMenuSection (const std::string &category)

void	DrawViewMenuAll ()

void	DrawCompactCardControl (const std::string &category)

void	DrawInlineCardToggles (const std::string &category)

void	DrawCardBrowser (bool *p_open)

void	DrawCardBrowserTable (const char *search_filter, const std::string &category_filter)

void	DrawPresetsTab ()

void	SavePreset (const std::string &name, const std::string &description="")

bool	LoadPreset (const std::string &name)

void	DeletePreset (const std::string &name)

std::vector< WorkspacePreset >	GetPresets () const

void	ShowAll ()

void	HideAll ()

void	ResetToDefaults ()

size_t	GetCardCount () const

size_t	GetVisibleCardCount () const

Static Public Member Functions
static EditorCardManager &	Get ()

Private Member Functions
	EditorCardManager ()=default

	~EditorCardManager ()=default

	EditorCardManager (const EditorCardManager &)=delete

EditorCardManager &	operator= (const EditorCardManager &)=delete

void	SavePresetsToFile ()

void	LoadPresetsFromFile ()

Private Attributes
std::unordered_map< std::string, CardInfo >	cards_

std::unordered_map< std::string, WorkspacePreset >	presets_

Detailed Description

Central registry and manager for all editor cards.

This singleton provides:

Global card registration across all editors
View menu integration
Keyboard shortcut management
Workspace preset system
Quick search/filter
Programmatic card control without GUI coupling

Design Philosophy:

Cards register themselves on creation
Manager provides unified interface for visibility control
No direct GUI dependency in card logic
Supports dynamic card creation/destruction

Usage:

// In editor initialization:
auto& manager = EditorCardManager::Get();
manager.RegisterCard({
    .card_id = "dungeon.room_selector",
    .display_name = "Room Selector",
    .icon = ICON_MD_LIST,
    .category = "Dungeon",
    .visibility_flag = &show_room_selector_,
    .on_show = []() { printf("Room selector opened\n"); }
});

// Programmatic control:
manager.ShowCard("dungeon.room_selector");
manager.HideCard("dungeon.room_selector");
manager.ToggleCard("dungeon.room_selector");

// In View menu:
manager.DrawViewMenuSection("Dungeon");

Definition at line 72 of file editor_card_manager.h.

Constructor & Destructor Documentation

◆ EditorCardManager() [1/2]

yaze::gui::EditorCardManager::EditorCardManager ( )

privatedefault

◆ ~EditorCardManager()

yaze::gui::EditorCardManager::~EditorCardManager ( )

privatedefault

◆ EditorCardManager() [2/2]

yaze::gui::EditorCardManager::EditorCardManager ( const EditorCardManager & )

privatedelete

Member Function Documentation

◆ Get()

EditorCardManager & yaze::gui::EditorCardManager::Get ( )

static

Definition at line 14 of file editor_card_manager.cc.

Referenced by yaze::editor::EditorManager::DrawContextSensitiveCardControl(), yaze::editor::GraphicsEditor::Initialize(), yaze::editor::ScreenEditor::Initialize(), yaze::editor::MessageEditor::Initialize(), yaze::editor::OverworldEditor::Initialize(), yaze::editor::SpriteEditor::Initialize(), yaze::editor::EditorManager::Initialize(), yaze::emu::Emulator::Initialize(), yaze::editor::DungeonEditorV2::Initialize(), yaze::editor::AssemblyEditor::Load(), yaze::gui::RegisterCard(), yaze::editor::EditorManager::Update(), and yaze::gui::CardRegistration::~CardRegistration().

◆ RegisterCard()

void yaze::gui::EditorCardManager::RegisterCard ( const CardInfo & info )

Definition at line 19 of file editor_card_manager.cc.

References yaze::gui::CardInfo::card_id, cards_, and yaze::gui::CardInfo::display_name.

Referenced by yaze::gui::RegisterCard().

◆ UnregisterCard()

void yaze::gui::EditorCardManager::UnregisterCard ( const std::string & card_id )

Definition at line 37 of file editor_card_manager.cc.

References cards_.

Referenced by yaze::gui::CardRegistration::~CardRegistration().

◆ ClearAllCards()

void yaze::gui::EditorCardManager::ClearAllCards ( )

Definition at line 45 of file editor_card_manager.cc.

References cards_.

◆ ShowCard()

bool yaze::gui::EditorCardManager::ShowCard ( const std::string & card_id )

Definition at line 50 of file editor_card_manager.cc.

References cards_.

Referenced by LoadPreset().

◆ HideCard()

bool yaze::gui::EditorCardManager::HideCard ( const std::string & card_id )

Definition at line 69 of file editor_card_manager.cc.

References cards_.

◆ ToggleCard()

bool yaze::gui::EditorCardManager::ToggleCard ( const std::string & card_id )

Definition at line 88 of file editor_card_manager.cc.

References cards_.

Referenced by DrawViewMenuSection().

◆ IsCardVisible()

bool yaze::gui::EditorCardManager::IsCardVisible ( const std::string & card_id ) const

Definition at line 110 of file editor_card_manager.cc.

References cards_.

◆ ShowAllCardsInCategory()

void yaze::gui::EditorCardManager::ShowAllCardsInCategory ( const std::string & category )

Definition at line 118 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCompactCardControl(), DrawViewMenuAll(), and yaze::editor::EditorManager::Initialize().

◆ HideAllCardsInCategory()

void yaze::gui::EditorCardManager::HideAllCardsInCategory ( const std::string & category )

Definition at line 127 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCompactCardControl(), and DrawViewMenuAll().

◆ ShowOnlyCard()

void yaze::gui::EditorCardManager::ShowOnlyCard ( const std::string & card_id )

Definition at line 136 of file editor_card_manager.cc.

References cards_.

◆ GetCardsInCategory()

std::vector< CardInfo > yaze::gui::EditorCardManager::GetCardsInCategory ( const std::string & category ) const

Definition at line 158 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCompactCardControl(), DrawInlineCardToggles(), and DrawViewMenuSection().

◆ GetAllCategories()

std::vector< std::string > yaze::gui::EditorCardManager::GetAllCategories ( ) const

Definition at line 176 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCardBrowser(), and DrawViewMenuAll().

◆ GetCardInfo()

const CardInfo * yaze::gui::EditorCardManager::GetCardInfo ( const std::string & card_id ) const

Definition at line 189 of file editor_card_manager.cc.

References cards_.

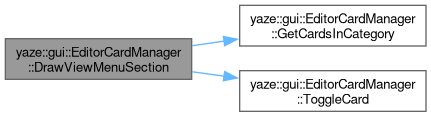

◆ DrawViewMenuSection()

void yaze::gui::EditorCardManager::DrawViewMenuSection ( const std::string & category )

Definition at line 194 of file editor_card_manager.cc.

References GetCardsInCategory(), and ToggleCard().

Referenced by DrawViewMenuAll().

Here is the call graph for this function:

◆ DrawViewMenuAll()

void yaze::gui::EditorCardManager::DrawViewMenuAll ( )

Definition at line 219 of file editor_card_manager.cc.

References DrawViewMenuSection(), GetAllCategories(), HideAll(), HideAllCardsInCategory(), ICON_MD_DASHBOARD, ICON_MD_VISIBILITY, ICON_MD_VISIBILITY_OFF, ShowAll(), and ShowAllCardsInCategory().

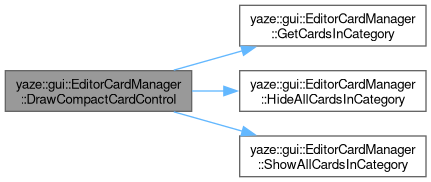

◆ DrawCompactCardControl()

void yaze::gui::EditorCardManager::DrawCompactCardControl ( const std::string & category )

Definition at line 264 of file editor_card_manager.cc.

References GetCardsInCategory(), HideAllCardsInCategory(), ICON_MD_DASHBOARD, ICON_MD_VIEW_MODULE, ICON_MD_VISIBILITY, ICON_MD_VISIBILITY_OFF, and ShowAllCardsInCategory().

Here is the call graph for this function:

◆ DrawInlineCardToggles()

void yaze::gui::EditorCardManager::DrawInlineCardToggles ( const std::string & category )

Definition at line 330 of file editor_card_manager.cc.

References GetCardsInCategory(), and ICON_MD_DASHBOARD.

Here is the call graph for this function:

◆ DrawCardBrowser()

void yaze::gui::EditorCardManager::DrawCardBrowser ( bool * p_open )

Definition at line 354 of file editor_card_manager.cc.

References DrawCardBrowserTable(), DrawPresetsTab(), GetAllCategories(), GetCardCount(), GetVisibleCardCount(), ICON_MD_APPS, ICON_MD_BOOKMARK, ICON_MD_CLEAR, ICON_MD_DASHBOARD, ICON_MD_INFO, and ICON_MD_SEARCH.

Referenced by yaze::editor::EditorManager::Update().

◆ DrawCardBrowserTable()

void yaze::gui::EditorCardManager::DrawCardBrowserTable	(	const char *	search_filter,
		const std::string &	category_filter
	)

Definition at line 417 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCardBrowser().

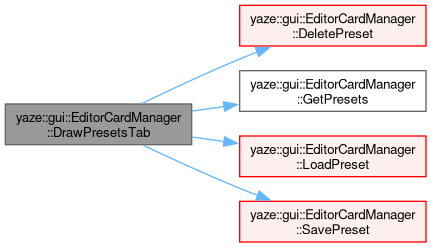

◆ DrawPresetsTab()

void yaze::gui::EditorCardManager::DrawPresetsTab ( )

Definition at line 504 of file editor_card_manager.cc.

References DeletePreset(), GetPresets(), ICON_MD_BOOKMARK, ICON_MD_DELETE, ICON_MD_FOLDER_OPEN, ICON_MD_SAVE, LoadPreset(), and SavePreset().

Referenced by DrawCardBrowser().

Here is the call graph for this function:

◆ SavePreset()

void yaze::gui::EditorCardManager::SavePreset	(	const std::string &	name,
		const std::string &	description = `""`
	)

Definition at line 560 of file editor_card_manager.cc.

References cards_, yaze::gui::EditorCardManager::WorkspacePreset::description, yaze::gui::EditorCardManager::WorkspacePreset::name, presets_, SavePresetsToFile(), and yaze::gui::EditorCardManager::WorkspacePreset::visible_cards.

Referenced by DrawPresetsTab().

Here is the call graph for this function:

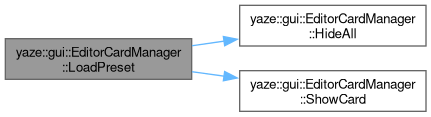

◆ LoadPreset()

bool yaze::gui::EditorCardManager::LoadPreset ( const std::string & name )

Definition at line 579 of file editor_card_manager.cc.

References HideAll(), presets_, and ShowCard().

Referenced by DrawPresetsTab().

Here is the call graph for this function:

◆ DeletePreset()

void yaze::gui::EditorCardManager::DeletePreset ( const std::string & name )

Definition at line 599 of file editor_card_manager.cc.

References presets_, and SavePresetsToFile().

Referenced by DrawPresetsTab().

Here is the call graph for this function:

◆ GetPresets()

std::vector< EditorCardManager::WorkspacePreset > yaze::gui::EditorCardManager::GetPresets ( ) const

Definition at line 608 of file editor_card_manager.cc.

References presets_.

Referenced by DrawPresetsTab().

◆ ShowAll()

void yaze::gui::EditorCardManager::ShowAll ( )

Definition at line 616 of file editor_card_manager.cc.

References cards_.

Referenced by DrawViewMenuAll().

◆ HideAll()

void yaze::gui::EditorCardManager::HideAll ( )

Definition at line 625 of file editor_card_manager.cc.

References cards_.

Referenced by DrawViewMenuAll(), and LoadPreset().

◆ ResetToDefaults()

void yaze::gui::EditorCardManager::ResetToDefaults ( )

Definition at line 634 of file editor_card_manager.cc.

References cards_.

◆ GetCardCount()

size_t yaze::gui::EditorCardManager::GetCardCount ( ) const

inline

Definition at line 128 of file editor_card_manager.h.

References cards_.

Referenced by DrawCardBrowser().

◆ GetVisibleCardCount()

size_t yaze::gui::EditorCardManager::GetVisibleCardCount ( ) const

Definition at line 650 of file editor_card_manager.cc.

References cards_.

Referenced by DrawCardBrowser().

◆ operator=()

EditorCardManager & yaze::gui::EditorCardManager::operator= ( const EditorCardManager & )

privatedelete

◆ SavePresetsToFile()

void yaze::gui::EditorCardManager::SavePresetsToFile ( )

private

Todo:: Implement file I/O

Definition at line 660 of file editor_card_manager.cc.

References presets_.

Referenced by DeletePreset(), and SavePreset().

◆ LoadPresetsFromFile()

void yaze::gui::EditorCardManager::LoadPresetsFromFile ( )

private

Todo:: Implement file I/O

Definition at line 666 of file editor_card_manager.cc.

Member Data Documentation

◆ cards_

std::unordered_map<std::string, CardInfo> yaze::gui::EditorCardManager::cards_

private

Definition at line 137 of file editor_card_manager.h.

Referenced by ClearAllCards(), DrawCardBrowserTable(), GetAllCategories(), GetCardCount(), GetCardInfo(), GetCardsInCategory(), GetVisibleCardCount(), HideAll(), HideAllCardsInCategory(), HideCard(), IsCardVisible(), RegisterCard(), ResetToDefaults(), SavePreset(), ShowAll(), ShowAllCardsInCategory(), ShowCard(), ShowOnlyCard(), ToggleCard(), and UnregisterCard().

◆ presets_

std::unordered_map<std::string, WorkspacePreset> yaze::gui::EditorCardManager::presets_

private

Definition at line 138 of file editor_card_manager.h.

Referenced by DeletePreset(), GetPresets(), LoadPreset(), SavePreset(), and SavePresetsToFile().

The documentation for this class was generated from the following files:

src/app/gui/editor_card_manager.h
src/app/gui/editor_card_manager.cc

	yaze 0.3.2 Link to the Past ROM Editor

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EditorCardManager() [1/2]

◆ ~EditorCardManager()

◆ EditorCardManager() [2/2]

Member Function Documentation

◆ Get()

◆ RegisterCard()

◆ UnregisterCard()

◆ ClearAllCards()

◆ ShowCard()

◆ HideCard()

◆ ToggleCard()

◆ IsCardVisible()

◆ ShowAllCardsInCategory()

◆ HideAllCardsInCategory()

◆ ShowOnlyCard()

◆ GetCardsInCategory()

◆ GetAllCategories()

◆ GetCardInfo()

◆ DrawViewMenuSection()

◆ DrawViewMenuAll()

◆ DrawCompactCardControl()

◆ DrawInlineCardToggles()

◆ DrawCardBrowser()

◆ DrawCardBrowserTable()

◆ DrawPresetsTab()

◆ SavePreset()

◆ LoadPreset()

◆ DeletePreset()

◆ GetPresets()

◆ ShowAll()

◆ HideAll()

◆ ResetToDefaults()

◆ GetCardCount()

◆ GetVisibleCardCount()

◆ operator=()

◆ SavePresetsToFile()

◆ LoadPresetsFromFile()

Member Data Documentation

◆ cards_

◆ presets_
