Exports MusicSong to Oracle of Secrets music_macros.asm format. More...

#include <asm_exporter.h>

Public Member Functions
	AsmExporter ()=default

	~AsmExporter ()=default

absl::StatusOr< std::string >	ExportSong (const MusicSong &song, const AsmExportOptions &options)
	Export a song to ASM string.

absl::Status	ExportToFile (const MusicSong &song, const std::string &path, const AsmExportOptions &options)
	Export a song to a file.

Private Member Functions
std::string	GenerateHeader (const MusicSong &song, const AsmExportOptions &options)

std::string	GenerateChannelPointers (const MusicSong &song, const AsmExportOptions &options)

std::string	GenerateChannelData (const MusicTrack &track, int channel_index, const AsmExportOptions &options)

std::string	ConvertEventToAsm (const TrackEvent &event, const AsmExportOptions &options, uint8_t &current_duration)

std::string	ConvertNoteToAsm (const Note &note, const AsmExportOptions &options, uint8_t &current_duration)

std::string	ConvertCommandToAsm (const MusicCommand &cmd, const AsmExportOptions &options)

Static Private Member Functions
static const char *	GetDurationConstant (uint8_t duration)

static std::string	GetNoteName (uint8_t pitch)

static const char *	GetInstrumentMacro (uint8_t instrument_id)

static const char *	GetCommandMacro (uint8_t opcode)

static int	GetCommandParamCount (uint8_t opcode)

Detailed Description

Exports MusicSong to Oracle of Secrets music_macros.asm format.

The exported ASM file can be assembled with asar and integrated into Oracle of Secrets or similar ROM hack music systems.

Output format follows the music_macros.asm conventions:

Duration constants (!4th, !8th, etc.)
Instrument helper macros (Piano(), Strings(), etc.)
N-SPC command macros (SetTempo, SetPan, etc.)
ARAM address calculations (!ARAMAddr, !ARAMC)

Definition at line 41 of file asm_exporter.h.

Constructor & Destructor Documentation

◆ AsmExporter()

yaze::zelda3::music::AsmExporter::AsmExporter ( )

default

◆ ~AsmExporter()

yaze::zelda3::music::AsmExporter::~AsmExporter ( )

default

Member Function Documentation

◆ ExportSong()

absl::StatusOr< std::string > yaze::zelda3::music::AsmExporter::ExportSong	(	const MusicSong &	song,
		const AsmExportOptions &	options )

Export a song to ASM string.

Parameters

song	The song to export.
options	Export options.

Returns: ASM source code string or error.

Definition at line 12 of file asm_exporter.cc.

References GenerateChannelData(), GenerateChannelPointers(), GenerateHeader(), yaze::zelda3::music::AsmExportOptions::include_comments, yaze::zelda3::music::MusicSong::name, and yaze::zelda3::music::MusicSong::segments.

Referenced by yaze::editor::MusicEditor::ExportSongToAsm(), and ExportToFile().

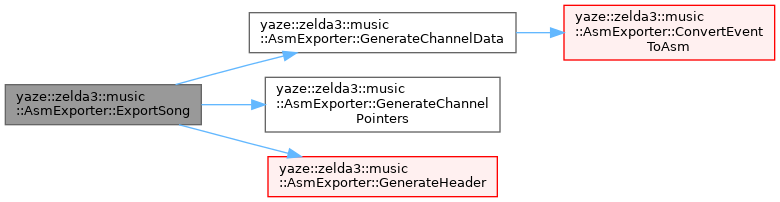

Here is the call graph for this function:

◆ ExportToFile()

absl::Status yaze::zelda3::music::AsmExporter::ExportToFile	(	const MusicSong &	song,
		const std::string &	path,
		const AsmExportOptions &	options )

Export a song to a file.

Parameters

song	The song to export.
path	Output file path.
options	Export options.

Returns: Status indicating success or failure.

Definition at line 53 of file asm_exporter.cc.

References ExportSong().

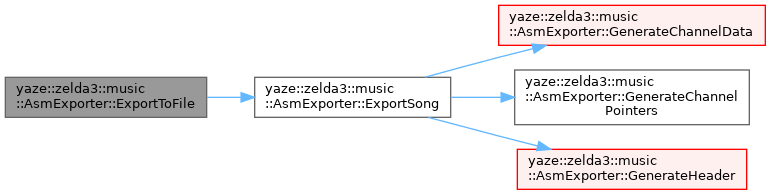

Here is the call graph for this function:

◆ GenerateHeader()

std::string yaze::zelda3::music::AsmExporter::GenerateHeader	(	const MusicSong &	song,
		const AsmExportOptions &	options )

private

Definition at line 73 of file asm_exporter.cc.

References yaze::zelda3::music::AsmExportOptions::base_aram_address, yaze::zelda3::music::MusicSong::HasLoop(), and yaze::zelda3::music::AsmExportOptions::label_prefix.

Referenced by ExportSong().

Here is the call graph for this function:

◆ GenerateChannelPointers()

std::string yaze::zelda3::music::AsmExporter::GenerateChannelPointers	(	const MusicSong &	song,
		const AsmExportOptions &	options )

private

Definition at line 102 of file asm_exporter.cc.

References yaze::zelda3::music::AsmExportOptions::label_prefix, and yaze::zelda3::music::MusicSong::segments.

Referenced by ExportSong().

◆ GenerateChannelData()

std::string yaze::zelda3::music::AsmExporter::GenerateChannelData	(	const MusicTrack &	track,
		int	channel_index,
		const AsmExportOptions &	options )

private

Definition at line 129 of file asm_exporter.cc.

References ConvertEventToAsm(), and yaze::zelda3::music::MusicTrack::events.

Referenced by ExportSong().

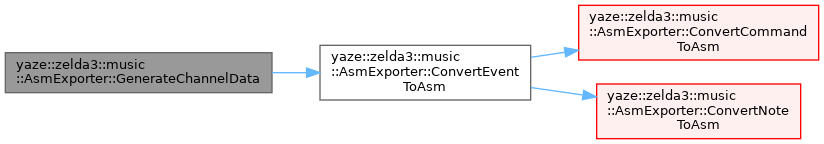

Here is the call graph for this function:

◆ ConvertEventToAsm()

std::string yaze::zelda3::music::AsmExporter::ConvertEventToAsm	(	const TrackEvent &	event,
		const AsmExportOptions &	options,
		uint8_t &	current_duration )
