Serializer for N-SPC music data to ROM format. More...

#include <spc_parser.h>

Classes
struct	SerializeOptions
	Serialization options. More...

struct	SerializeResult
	Result of serialization with relocation info. More...

Public Member Functions
	SpcSerializer ()=default

	~SpcSerializer ()=default

Static Public Member Functions
static absl::StatusOr< SerializeResult >	SerializeSong (const MusicSong &song, uint16_t base_address)
	Serialize a complete song to binary format.

static std::vector< uint8_t >	SerializeTrack (const MusicTrack &track)
	Serialize a single track to binary format.

static int	CalculateRequiredSpace (const MusicSong &song)
	Calculate the space required for a song.

static std::vector< uint8_t >	SerializeNote (const Note &note, uint8_t *current_duration)
	Serialize a note event.

static std::vector< uint8_t >	SerializeCommand (const MusicCommand &command)
	Serialize a command event.

static void	ApplyBaseAddress (SerializeResult *result, uint16_t new_base_address)
	Adjust all serialized pointers to a new base address.

static absl::StatusOr< SerializeResult >	SerializeSong (const MusicSong &song, uint16_t base_address)

static absl::StatusOr< SerializeResult >	SerializeSongFromSegment (const MusicSong &song, int start_segment, uint16_t base_address)
	Serialize a song starting from a specific segment (for seeking).

static void	ApplyBaseAddress (SerializeResult *result, uint16_t new_base_address)

static int	CalculateRequiredSpace (const MusicSong &song)

Static Private Member Functions
static std::vector< uint8_t >	SerializeTrack (const MusicTrack &track)

static std::vector< uint8_t >	SerializeNote (const Note &note, uint8_t *current_duration)

static std::vector< uint8_t >	SerializeCommand (const MusicCommand &command)

Detailed Description

Serializer for N-SPC music data to ROM format.

Serializes MusicSong to N-SPC byte format for direct ARAM upload.

This class handles converting the internal song representation back to the binary format expected by the SNES APU.

Produces a complete sound bank block that can be uploaded to ARAM:

Song header (section pointers)
Channel pointer table
Channel data (notes, commands, durations)

This enables preview of custom songs without saving to ROM first.

Definition at line 175 of file spc_parser.h.

Constructor & Destructor Documentation

◆ SpcSerializer()

yaze::zelda3::music::SpcSerializer::SpcSerializer ( )

default

◆ ~SpcSerializer()

yaze::zelda3::music::SpcSerializer::~SpcSerializer ( )

default

Member Function Documentation

◆ SerializeSong() [1/2]

absl::StatusOr< SpcSerializer::SerializeResult > yaze::zelda3::music::SpcSerializer::SerializeSong	(	const MusicSong &	song,
		uint16_t	base_address )

static

Serialize a complete song to binary format.

Parameters

song	The song to serialize.
base_address	The target SPC address.

Returns: Serialization result with binary data and relocations.

Definition at line 9 of file spc_serializer.cc.

References yaze::zelda3::music::SpcSerializer::SerializeResult::base_address, yaze::zelda3::music::SpcSerializer::SerializeResult::data, yaze::zelda3::music::MusicSong::HasLoop(), yaze::zelda3::music::MusicSong::loop_point, yaze::zelda3::music::SpcSerializer::SerializeResult::relocations, yaze::zelda3::music::MusicSong::segments, and SerializeTrack().

Referenced by yaze::editor::music::MusicPlayer::PreviewCustomSong(), yaze::editor::music::MusicPlayer::PreviewSegment(), yaze::zelda3::music::MusicBank::SaveSongTable(), and SerializeSongFromSegment().

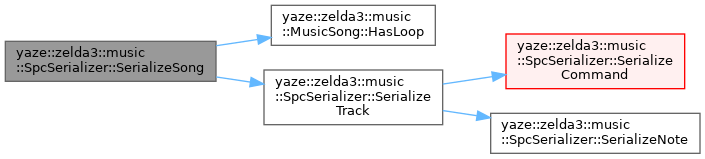

Here is the call graph for this function:

◆ SerializeTrack() [1/2]

std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeTrack ( const MusicTrack & track )

static

Serialize a single track to binary format.

Parameters

track The track to serialize.

Returns: Binary data for the track.

Definition at line 159 of file spc_serializer.cc.

References yaze::zelda3::music::TrackEvent::Command, yaze::zelda3::music::TrackEvent::End, yaze::zelda3::music::MusicTrack::events, yaze::zelda3::music::kTrackEnd, yaze::zelda3::music::TrackEvent::Note, SerializeCommand(), and SerializeNote().

Referenced by CalculateRequiredSpace(), and SerializeSong().

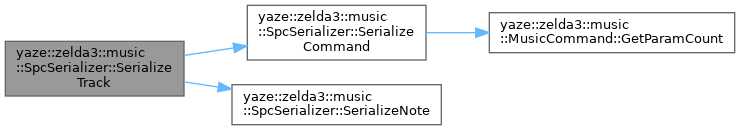

Here is the call graph for this function:

◆ CalculateRequiredSpace() [1/2]

int yaze::zelda3::music::SpcSerializer::CalculateRequiredSpace ( const MusicSong & song )

static

Calculate the space required for a song.

Parameters

song	The song to measure.

Returns: Size in bytes.

Definition at line 194 of file spc_serializer.cc.

References yaze::zelda3::music::MusicSong::HasLoop(), yaze::zelda3::music::MusicSong::segments, and SerializeTrack().

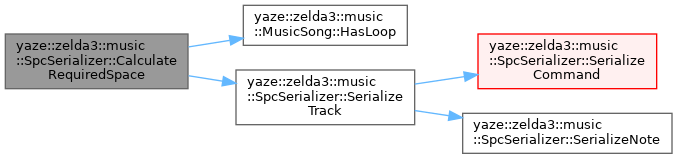

Here is the call graph for this function:

◆ SerializeNote() [1/2]

std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeNote	(	const Note &	note,
		uint8_t *	current_duration )

static

Serialize a note event.

Parameters

note	The note to serialize.
current_duration	The current duration state.

Returns: Binary bytes for the note.

Definition at line 215 of file spc_serializer.cc.

References yaze::zelda3::music::Note::duration, yaze::zelda3::music::Note::has_duration_prefix, yaze::zelda3::music::Note::pitch, and yaze::zelda3::music::Note::velocity.

Referenced by SerializeTrack().

◆ SerializeCommand() [1/2]

std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeCommand ( const MusicCommand & command )

static

Serialize a command event.

Parameters

command The command to serialize.

Returns: Binary bytes for the command.

Definition at line 236 of file spc_serializer.cc.

References yaze::zelda3::music::MusicCommand::GetParamCount(), yaze::zelda3::music::MusicCommand::opcode, and yaze::zelda3::music::MusicCommand::params.

Referenced by SerializeTrack().

Here is the call graph for this function:

◆ ApplyBaseAddress() [1/2]

void yaze::zelda3::music::SpcSerializer::ApplyBaseAddress	(	SerializeResult *	result,
		uint16_t	new_base_address )

static

Adjust all serialized pointers to a new base address.

Parameters

result	Serialized blob to patch (in-place).
new_base_address	Target SPC base address.

Definition at line 249 of file spc_serializer.cc.

References yaze::zelda3::music::SpcSerializer::SerializeResult::base_address, yaze::zelda3::music::SpcSerializer::SerializeResult::data, and yaze::zelda3::music::SpcSerializer::SerializeResult::relocations.

Referenced by yaze::zelda3::music::MusicBank::SaveSongTable().

◆ SerializeSong() [2/2]

static absl::StatusOr< SerializeResult > yaze::zelda3::music::SpcSerializer::SerializeSong	(	const MusicSong &	song,
		uint16_t	base_address )

static

◆ SerializeSongFromSegment()

absl::StatusOr< SpcSerializer::SerializeResult > yaze::zelda3::music::SpcSerializer::SerializeSongFromSegment	(	const MusicSong &	song,
		int	start_segment,
		uint16_t	base_address )

static

Serialize a song starting from a specific segment (for seeking).

Creates song data starting from segment_index, allowing playback to resume from a specific point in the song.

Definition at line 123 of file spc_serializer.cc.

References yaze::zelda3::music::MusicSong::bank, yaze::zelda3::music::MusicSong::HasLoop(), yaze::zelda3::music::MusicSong::loop_point, yaze::zelda3::music::MusicSong::name, yaze::zelda3::music::MusicSong::segments, and SerializeSong().

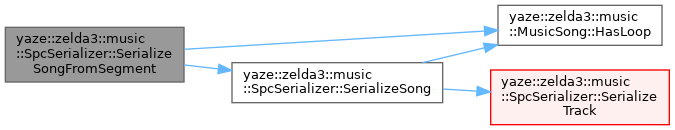

Here is the call graph for this function:

◆ ApplyBaseAddress() [2/2]

static void yaze::zelda3::music::SpcSerializer::ApplyBaseAddress	(	SerializeResult *	result,
		uint16_t	new_base_address )

static

◆ CalculateRequiredSpace() [2/2]

static int yaze::zelda3::music::SpcSerializer::CalculateRequiredSpace ( const MusicSong & song )

static

◆ SerializeTrack() [2/2]

static std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeTrack ( const MusicTrack & track )

staticprivate

◆ SerializeNote() [2/2]

static std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeNote	(	const Note &	note,
		uint8_t *	current_duration )

staticprivate

◆ SerializeCommand() [2/2]

static std::vector< uint8_t > yaze::zelda3::music::SpcSerializer::SerializeCommand ( const MusicCommand & command )

staticprivate

The documentation for this class was generated from the following files:

src/zelda3/music/spc_parser.h
src/zelda3/music/spc_serializer.h
src/zelda3/music/spc_serializer.cc
