yaze::zelda3::GeometryBounds Struct Reference

Bounding box result for a draw routine execution. More...

#include <object_geometry.h>

Public Member Functions
int	max_x_tiles () const
int	max_y_tiles () const
int	width_pixels () const
int	height_pixels () const
int	min_x_pixels () const
int	min_y_pixels () const
bool	RequiresBG1Mask () const
	Check if this object requires BG1 masking.
bool	HasTighterSelectionBounds () const
	Check if this object has a tighter selection hitbox.
SelectionRect	GetSelectionBounds () const
	Get the selection bounds for hit testing.
std::tuple< int, int, int, int >	GetBG1MaskRect (int obj_x, int obj_y) const
	Get the BG1 mask rectangle in pixel coordinates.

Public Attributes
int	min_x_tiles = 0
int	min_y_tiles = 0
int	width_tiles = 0
int	height_tiles = 0
bool	is_bg2_overlay = false
std::optional< SelectionRect >	selection_bounds

Detailed Description

Bounding box result for a draw routine execution.

All values are in tile units. Convenience helpers expose pixel sizes for callers that need screen-space values.

For BG2 overlay objects (Layer 1 objects), the bounds also serve as the BG1 mask rectangle - the area where BG1 pixels should be transparent to allow BG2 content to show through during compositing.

For triangular shapes (diagonal ceilings 0xA0-0xA3), the selection_bounds provides a tighter hitbox than the full render_bounds bounding box.

Definition at line 42 of file object_geometry.h.

Member Function Documentation

max_x_tiles()

int yaze::zelda3::GeometryBounds::max_x_tiles ( ) const

inline

Definition at line 56 of file object_geometry.h.

References min_x_tiles, and width_tiles.

max_y_tiles()

int yaze::zelda3::GeometryBounds::max_y_tiles ( ) const

inline

Definition at line 57 of file object_geometry.h.

References height_tiles, and min_y_tiles.

width_pixels()

int yaze::zelda3::GeometryBounds::width_pixels ( ) const

inline

Definition at line 58 of file object_geometry.h.

References width_tiles.

Referenced by GetBG1MaskRect().

height_pixels()

int yaze::zelda3::GeometryBounds::height_pixels ( ) const

inline

Definition at line 59 of file object_geometry.h.

References height_tiles.

Referenced by GetBG1MaskRect().

min_x_pixels()

int yaze::zelda3::GeometryBounds::min_x_pixels ( ) const

inline

Definition at line 62 of file object_geometry.h.

References min_x_tiles.

min_y_pixels()

int yaze::zelda3::GeometryBounds::min_y_pixels ( ) const

inline

Definition at line 63 of file object_geometry.h.

References min_y_tiles.

RequiresBG1Mask()

bool yaze::zelda3::GeometryBounds::RequiresBG1Mask ( ) const

inline

Check if this object requires BG1 masking.

BG2 overlay objects need corresponding pixels in BG1 marked as transparent so the BG2 content shows through during layer compositing. 94 rooms in vanilla ALTTP have such objects.

Definition at line 72 of file object_geometry.h.

References is_bg2_overlay, and width_tiles.

HasTighterSelectionBounds()

bool yaze::zelda3::GeometryBounds::HasTighterSelectionBounds ( ) const

inline

Check if this object has a tighter selection hitbox.

For non-rectangular shapes like diagonal ceilings, the selection_bounds provides a more accurate hitbox for mouse interaction.

Definition at line 80 of file object_geometry.h.

References selection_bounds.

GetSelectionBounds()

SelectionRect yaze::zelda3::GeometryBounds::GetSelectionBounds ( ) const

inline

Get the selection bounds for hit testing.

Returns selection_bounds if set, otherwise returns the full render bounds.

Definition at line 87 of file object_geometry.h.

References height_tiles, min_x_tiles, min_y_tiles, selection_bounds, and width_tiles.

GetBG1MaskRect()

std::tuple< int, int, int, int > yaze::zelda3::GeometryBounds::GetBG1MaskRect ( int obj_x, int obj_y ) const

inline

Get the BG1 mask rectangle in pixel coordinates.

Parameters

obj_x	Object's base X position in tiles
obj_y	Object's base Y position in tiles

Returns

Tuple of (start_x, start_y, width, height) in pixels

Definition at line 101 of file object_geometry.h.

References height_pixels(), min_x_tiles, min_y_tiles, and width_pixels().

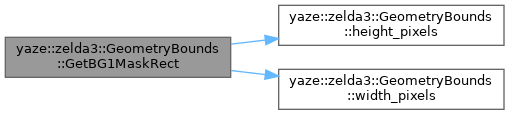

Here is the call graph for this function:

Member Data Documentation

min_x_tiles

int yaze::zelda3::GeometryBounds::min_x_tiles = 0

Definition at line 44 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::ApplySelectionBounds(), GetBG1MaskRect(), GetSelectionBounds(), max_x_tiles(), yaze::zelda3::ObjectGeometry::MeasureRoutine(), and min_x_pixels().

min_y_tiles

int yaze::zelda3::GeometryBounds::min_y_tiles = 0

Definition at line 45 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::ApplySelectionBounds(), GetBG1MaskRect(), GetSelectionBounds(), max_y_tiles(), yaze::zelda3::ObjectGeometry::MeasureRoutine(), and min_y_pixels().

width_tiles

int yaze::zelda3::GeometryBounds::width_tiles = 0

Definition at line 46 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::ApplySelectionBounds(), GetSelectionBounds(), max_x_tiles(), yaze::zelda3::ObjectGeometry::MeasureRoutine(), RequiresBG1Mask(), and width_pixels().

height_tiles

int yaze::zelda3::GeometryBounds::height_tiles = 0

Definition at line 47 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::ApplySelectionBounds(), GetSelectionBounds(), height_pixels(), max_y_tiles(), and yaze::zelda3::ObjectGeometry::MeasureRoutine().

is_bg2_overlay

bool yaze::zelda3::GeometryBounds::is_bg2_overlay = false

Definition at line 50 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::MeasureForLayerCompositing(), yaze::zelda3::ObjectGeometry::MeasureRoutine(), and RequiresBG1Mask().

selection_bounds

std::optional<SelectionRect> yaze::zelda3::GeometryBounds::selection_bounds

Definition at line 54 of file object_geometry.h.

Referenced by yaze::zelda3::ObjectGeometry::ApplySelectionBounds(), GetSelectionBounds(), and HasTighterSelectionBounds().

---

The documentation for this struct was generated from the following file:

• src/zelda3/dungeon/geometry/object_geometry.h
