Manages keyboard shortcuts and provides an overlay UI. More...

#include <keyboard_shortcuts.h>

Public Member Functions
void	RegisterShortcut (const Shortcut &shortcut)

void	RegisterShortcut (const std::string &id, const std::string &description, ImGuiKey key, bool ctrl, bool shift, bool alt, const std::string &category, ShortcutContext context, std::function< void()> action)

void	UnregisterShortcut (const std::string &id)

void	SetShortcutEnabled (const std::string &id, bool enabled)

void	ProcessInput ()

void	DrawOverlay ()

void	ToggleOverlay ()

void	ShowOverlay ()

void	HideOverlay ()

bool	IsOverlayVisible () const

void	SetCurrentContext (ShortcutContext context)

ShortcutContext	GetCurrentContext () const

std::vector< const Shortcut * >	GetShortcutsInCategory (const std::string &category) const

std::vector< const Shortcut * >	GetContextShortcuts () const

std::vector< std::string >	GetCategories () const

void	RegisterDefaultShortcuts (std::function< void()> open_callback, std::function< void()> save_callback, std::function< void()> save_as_callback, std::function< void()> close_callback, std::function< void()> undo_callback, std::function< void()> redo_callback, std::function< void()> copy_callback, std::function< void()> paste_callback, std::function< void()> cut_callback, std::function< void()> find_callback)

Static Public Member Functions
static KeyboardShortcuts &	Get ()

static bool	IsTextInputActive ()

Private Member Functions
	KeyboardShortcuts ()=default

	~KeyboardShortcuts ()=default

	KeyboardShortcuts (const KeyboardShortcuts &)=delete

KeyboardShortcuts &	operator= (const KeyboardShortcuts &)=delete

void	DrawOverlayContent ()

void	DrawShortcutRow (const Shortcut &shortcut)

void	DrawCategorySection (const std::string &category, const std::vector< const Shortcut * > &shortcuts)

bool	IsShortcutActiveInContext (const Shortcut &shortcut) const

Private Attributes
std::map< std::string, Shortcut >	shortcuts_

std::vector< std::string >	category_order_

bool	show_overlay_ = false

char	search_filter_ [256] = {}

std::string	expanded_category_

ShortcutContext	current_context_ = ShortcutContext::kGlobal

bool	toggle_key_was_pressed_ = false

Detailed Description

Manages keyboard shortcuts and provides an overlay UI.

This class provides a centralized system for registering, displaying, and processing keyboard shortcuts. It includes an overlay UI that can be toggled with the '?' key to show all available shortcuts.

Usage:

KeyboardShortcuts::Get().RegisterShortcut({ .id = "file.save", .description = "Save Project", .key = ImGuiKey_S, .requires_ctrl = true, .category = "File", .context = ShortcutContext::kGlobal, .action = []() { SaveProject(); } });

KeyboardShortcuts::Get().ProcessInput(); KeyboardShortcuts::Get().DrawOverlay();

Definition at line 85 of file keyboard_shortcuts.h.

Constructor & Destructor Documentation

◆ KeyboardShortcuts() [1/2]

yaze::gui::KeyboardShortcuts::KeyboardShortcuts ( )

privatedefault

◆ ~KeyboardShortcuts()

yaze::gui::KeyboardShortcuts::~KeyboardShortcuts ( )

privatedefault

◆ KeyboardShortcuts() [2/2]

yaze::gui::KeyboardShortcuts::KeyboardShortcuts ( const KeyboardShortcuts & )

privatedelete

Member Function Documentation

◆ Get()

KeyboardShortcuts & yaze::gui::KeyboardShortcuts::Get ( )

static

Definition at line 144 of file keyboard_shortcuts.cc.

◆ RegisterShortcut() [1/2]

void yaze::gui::KeyboardShortcuts::RegisterShortcut ( const Shortcut & shortcut )

Definition at line 149 of file keyboard_shortcuts.cc.

References yaze::gui::Shortcut::id, and shortcuts_.

Referenced by RegisterDefaultShortcuts(), and RegisterShortcut().

◆ RegisterShortcut() [2/2]

void yaze::gui::KeyboardShortcuts::RegisterShortcut	(	const std::string &	id,
		const std::string &	description,
		ImGuiKey	key,
		bool	ctrl,
		bool	shift,
		bool	alt,
		const std::string &	category,
		ShortcutContext	context,
		std::function< void()>	action )

Definition at line 153 of file keyboard_shortcuts.cc.

References yaze::gui::Shortcut::action, yaze::gui::Shortcut::category, yaze::gui::Shortcut::context, yaze::gui::Shortcut::description, yaze::gui::Shortcut::enabled, yaze::gui::Shortcut::id, yaze::gui::Shortcut::key, RegisterShortcut(), yaze::gui::Shortcut::requires_alt, yaze::gui::Shortcut::requires_ctrl, and yaze::gui::Shortcut::requires_shift.

Here is the call graph for this function:

◆ UnregisterShortcut()

void yaze::gui::KeyboardShortcuts::UnregisterShortcut ( const std::string & id )

Definition at line 173 of file keyboard_shortcuts.cc.

References shortcuts_.

◆ SetShortcutEnabled()

void yaze::gui::KeyboardShortcuts::SetShortcutEnabled	(	const std::string &	id,
		bool	enabled )

Definition at line 177 of file keyboard_shortcuts.cc.

References shortcuts_.

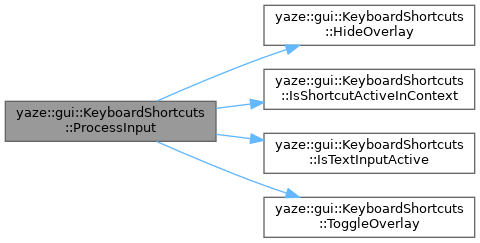

◆ ProcessInput()

void yaze::gui::KeyboardShortcuts::ProcessInput ( )

Definition at line 191 of file keyboard_shortcuts.cc.

References HideOverlay(), IsShortcutActiveInContext(), IsTextInputActive(), shortcuts_, show_overlay_, toggle_key_was_pressed_, and ToggleOverlay().

Here is the call graph for this function:

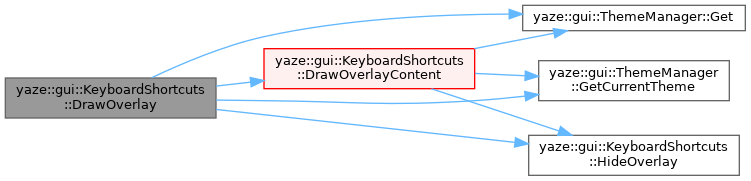

◆ DrawOverlay()

void yaze::gui::KeyboardShortcuts::DrawOverlay ( )

Definition at line 249 of file keyboard_shortcuts.cc.

References DrawOverlayContent(), yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), HideOverlay(), and show_overlay_.

Here is the call graph for this function:

◆ ToggleOverlay()

void yaze::gui::KeyboardShortcuts::ToggleOverlay ( )

Definition at line 241 of file keyboard_shortcuts.cc.

References search_filter_, and show_overlay_.

Referenced by ProcessInput().

◆ ShowOverlay()

void yaze::gui::KeyboardShortcuts::ShowOverlay ( )

inline

Definition at line 118 of file keyboard_shortcuts.h.

References show_overlay_.

◆ HideOverlay()

void yaze::gui::KeyboardShortcuts::HideOverlay ( )

inline

Definition at line 119 of file keyboard_shortcuts.h.

References show_overlay_.

Referenced by DrawOverlay(), DrawOverlayContent(), and ProcessInput().

◆ IsOverlayVisible()

bool yaze::gui::KeyboardShortcuts::IsOverlayVisible ( ) const

inline

Definition at line 120 of file keyboard_shortcuts.h.

References show_overlay_.

◆ SetCurrentContext()

void yaze::gui::KeyboardShortcuts::SetCurrentContext ( ShortcutContext context )

inline

Definition at line 123 of file keyboard_shortcuts.h.

References current_context_.

◆ GetCurrentContext()

ShortcutContext yaze::gui::KeyboardShortcuts::GetCurrentContext ( ) const

inline

Definition at line 124 of file keyboard_shortcuts.h.

References current_context_.

◆ GetShortcutsInCategory()

std::vector< const Shortcut * > yaze::gui::KeyboardShortcuts::GetShortcutsInCategory ( const std::string & category ) const

Definition at line 507 of file keyboard_shortcuts.cc.

References shortcuts_.

◆ GetContextShortcuts()

std::vector< const Shortcut * > yaze::gui::KeyboardShortcuts::GetContextShortcuts ( ) const

Definition at line 518 of file keyboard_shortcuts.cc.

References IsShortcutActiveInContext(), and shortcuts_.

Here is the call graph for this function:

◆ GetCategories()

std::vector< std::string > yaze::gui::KeyboardShortcuts::GetCategories ( ) const

Definition at line 528 of file keyboard_shortcuts.cc.

References shortcuts_.

◆ RegisterDefaultShortcuts()

void yaze::gui::KeyboardShortcuts::RegisterDefaultShortcuts	(	std::function< void()>	open_callback,
		std::function< void()>	save_callback,
		std::function< void()>	save_as_callback,
		std::function< void()>	close_callback,
		std::function< void()>	undo_callback,
		std::function< void()>	redo_callback,
		std::function< void()>	copy_callback,
		std::function< void()>	paste_callback,
		std::function< void()>	cut_callback,
		std::function< void()>	find_callback )

Definition at line 545 of file keyboard_shortcuts.cc.

References yaze::gui::kDungeon, yaze::gui::kEmulator, yaze::gui::kGlobal, yaze::gui::kOverworld, and RegisterShortcut().

Here is the call graph for this function:

◆ IsTextInputActive()

bool yaze::gui::KeyboardShortcuts::IsTextInputActive ( )

static

Definition at line 185 of file keyboard_shortcuts.cc.

Referenced by ProcessInput().

◆ operator=()

KeyboardShortcuts & yaze::gui::KeyboardShortcuts::operator= ( const KeyboardShortcuts & )

privatedelete

◆ DrawOverlayContent()

void yaze::gui::KeyboardShortcuts::DrawOverlayContent ( )

private

Definition at line 291 of file keyboard_shortcuts.cc.

References category_order_, yaze::gui::ConvertColorToImVec4(), current_context_, DrawCategorySection(), yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), HideOverlay(), search_filter_, yaze::gui::ShortcutContextToString(), and shortcuts_.

Referenced by DrawOverlay().

◆ DrawShortcutRow()

void yaze::gui::KeyboardShortcuts::DrawShortcutRow ( const Shortcut & shortcut )

private

Definition at line 461 of file keyboard_shortcuts.cc.

References yaze::gui::Shortcut::context, yaze::gui::ConvertColorToImVec4(), yaze::gui::Shortcut::description, yaze::gui::ThemeManager::Get(), yaze::gui::ThemeManager::GetCurrentTheme(), yaze::gui::Shortcut::GetDisplayString(), IsShortcutActiveInContext(), yaze::gui::kGlobal, and yaze::gui::ShortcutContextToString().

Referenced by DrawCategorySection().

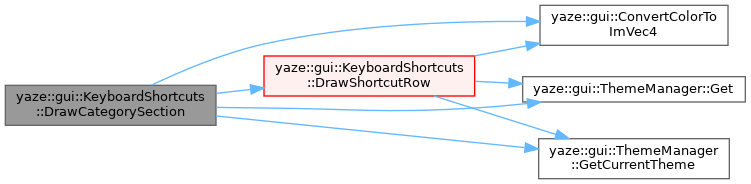

◆ DrawCategorySection()

void yaze::gui::KeyboardShortcuts::DrawCategorySection	(	const std::string &	category,
		const std::vector< const Shortcut * > &	shortcuts )

private

Definition at line 420 of file keyboard_shortcuts.cc.

References yaze::gui::ConvertColorToImVec4(), DrawShortcutRow(), yaze::gui::ThemeManager::Get(), and yaze::gui::ThemeManager::GetCurrentTheme().

Referenced by DrawOverlayContent().

Here is the call graph for this function:

◆ IsShortcutActiveInContext()

bool yaze::gui::KeyboardShortcuts::IsShortcutActiveInContext ( const Shortcut & shortcut ) const

private

Definition at line 499 of file keyboard_shortcuts.cc.

References yaze::gui::Shortcut::context, current_context_, and yaze::gui::kGlobal.

Referenced by DrawShortcutRow(), GetContextShortcuts(), and ProcessInput().

Member Data Documentation

◆ shortcuts_

std::map<std::string, Shortcut> yaze::gui::KeyboardShortcuts::shortcuts_

private

Definition at line 171 of file keyboard_shortcuts.h.

Referenced by DrawOverlayContent(), GetCategories(), GetContextShortcuts(), GetShortcutsInCategory(), ProcessInput(), RegisterShortcut(), SetShortcutEnabled(), and UnregisterShortcut().

◆ category_order_

std::vector<std::string> yaze::gui::KeyboardShortcuts::category_order_

private

Initial value:

= {
    "File", "Edit", "View", "Navigation", "Tools", "Editor", "Other"
  }

Definition at line 174 of file keyboard_shortcuts.h.

Referenced by DrawOverlayContent().

◆ show_overlay_

bool yaze::gui::KeyboardShortcuts::show_overlay_ = false

private

Definition at line 179 of file keyboard_shortcuts.h.

Referenced by DrawOverlay(), HideOverlay(), IsOverlayVisible(), ProcessInput(), ShowOverlay(), and ToggleOverlay().

◆ search_filter_

char yaze::gui::KeyboardShortcuts::search_filter_[256] = {}

private

Definition at line 180 of file keyboard_shortcuts.h.

Referenced by DrawOverlayContent(), and ToggleOverlay().

◆ expanded_category_

std::string yaze::gui::KeyboardShortcuts::expanded_category_

private

Definition at line 181 of file keyboard_shortcuts.h.

◆ current_context_

ShortcutContext yaze::gui::KeyboardShortcuts::current_context_ = ShortcutContext::kGlobal

private

Definition at line 182 of file keyboard_shortcuts.h.

Referenced by DrawOverlayContent(), GetCurrentContext(), IsShortcutActiveInContext(), and SetCurrentContext().

◆ toggle_key_was_pressed_

bool yaze::gui::KeyboardShortcuts::toggle_key_was_pressed_ = false

private

Definition at line 185 of file keyboard_shortcuts.h.

Referenced by ProcessInput().

The documentation for this class was generated from the following files:

src/app/gui/keyboard_shortcuts.h
src/app/gui/keyboard_shortcuts.cc
