Represents a door in a dungeon room. More...

#include <room.h>

Public Member Functions
std::pair< int, int >	GetTileCoords () const
	Get tile coordinates for this door.

std::pair< int, int >	GetPixelCoords () const
	Get pixel coordinates for this door.

DoorDimensions	GetDimensions () const
	Get door dimensions in tiles.

std::tuple< int, int, int, int >	GetBounds () const
	Get bounding rectangle (x, y, width, height in pixels)

std::string_view	GetTypeName () const
	Get human-readable type name.

std::string_view	GetDirectionName () const
	Get human-readable direction name.

std::pair< uint8_t, uint8_t >	EncodeBytes () const
	Encode door data for ROM storage.

Static Public Member Functions
static Door	FromRomBytes (uint8_t b1, uint8_t b2)

Public Attributes
uint8_t	position
	Encoded position (5-bit, 0-31)

DoorType	type
	Door type (determines appearance/behavior)

DoorDirection	direction
	Which wall the door is on.

uint8_t	byte1
	Original ROM byte 1 (position data)

uint8_t	byte2
	Original ROM byte 2 (type + direction)

Detailed Description

Represents a door in a dungeon room.

Doors connect rooms and can have various types (locked, bombable, etc.) They are placed at fixed positions along room walls.

Definition at line 263 of file room.h.

Member Function Documentation

◆ GetTileCoords()

std::pair< int, int > yaze::zelda3::Room::Door::GetTileCoords ( ) const

inline

Get tile coordinates for this door.

Definition at line 272 of file room.h.

References direction, position, and yaze::zelda3::DoorPositionManager::PositionToTileCoords().

Here is the call graph for this function:

◆ GetPixelCoords()

std::pair< int, int > yaze::zelda3::Room::Door::GetPixelCoords ( ) const

inline

Get pixel coordinates for this door.

Definition at line 277 of file room.h.

References direction, position, and yaze::zelda3::DoorPositionManager::PositionToPixelCoords().

Here is the call graph for this function:

◆ GetDimensions()

DoorDimensions yaze::zelda3::Room::Door::GetDimensions ( ) const

inline

Get door dimensions in tiles.

Definition at line 282 of file room.h.

References direction, and yaze::zelda3::GetDoorDimensions().

Here is the call graph for this function:

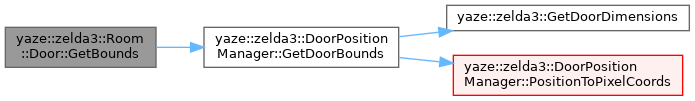

◆ GetBounds()

std::tuple< int, int, int, int > yaze::zelda3::Room::Door::GetBounds ( ) const

inline

Get bounding rectangle (x, y, width, height in pixels)

Definition at line 287 of file room.h.

References direction, yaze::zelda3::DoorPositionManager::GetDoorBounds(), and position.

Here is the call graph for this function:

◆ GetTypeName()

std::string_view yaze::zelda3::Room::Door::GetTypeName ( ) const

inline

Get human-readable type name.

Definition at line 292 of file room.h.

References yaze::zelda3::GetDoorTypeName(), and type.

Here is the call graph for this function:

◆ GetDirectionName()

std::string_view yaze::zelda3::Room::Door::GetDirectionName ( ) const

inline

Get human-readable direction name.

Definition at line 297 of file room.h.

References direction, and yaze::zelda3::GetDoorDirectionName().

Here is the call graph for this function:

◆ EncodeBytes()

std::pair< uint8_t, uint8_t > yaze::zelda3::Room::Door::EncodeBytes ( ) const

inline

Encode door data for ROM storage.

Definition at line 302 of file room.h.

References direction, yaze::zelda3::DoorPositionManager::EncodeDoorBytes(), position, and type.

Referenced by yaze::editor::DungeonObjectInteraction::PlaceDoorAtPosition(), and yaze::editor::DoorInteractionHandler::PlaceDoorAtSnappedPosition().

Here is the call graph for this function:

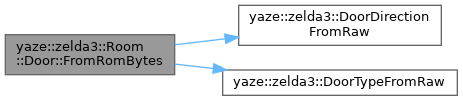

◆ FromRomBytes()

static Door yaze::zelda3::Room::Door::FromRomBytes	(	uint8_t	b1,
		uint8_t	b2 )

inlinestatic

Create a door from raw ROM bytes Format (from ASM RoomDraw_DoorObject): b1: bits 4-7 = position index, bits 0-1 = direction b2: door type (full byte, values 0x00, 0x02, 0x04, etc.)

Definition at line 310 of file room.h.

References byte1, byte2, direction, yaze::zelda3::DoorDirectionFromRaw(), yaze::zelda3::DoorTypeFromRaw(), position, and type.

Referenced by yaze::zelda3::Room::ParseObjectsFromLocation().

Here is the call graph for this function:
