yaze::gui::BackgroundRenderer Class Reference

Renders themed background effects for docking windows. More...

#include <background_renderer.h>

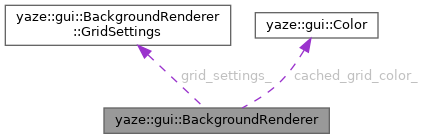

Collaboration diagram for yaze::gui::BackgroundRenderer:

Classes
struct	GridSettings

Public Member Functions
void	RenderDockingBackground (ImDrawList *draw_list, const ImVec2 &window_pos, const ImVec2 &window_size, const Color &theme_color)
void	RenderGridBackground (ImDrawList *draw_list, const ImVec2 &window_pos, const ImVec2 &window_size, const Color &grid_color)
void	RenderRadialGradient (ImDrawList *draw_list, const ImVec2 &center, float radius, const Color &inner_color, const Color &outer_color)
void	SetGridSettings (const GridSettings &settings)
const GridSettings &	GetGridSettings () const
void	UpdateAnimation (float delta_time)
void	SetAnimationEnabled (bool enabled)
void	UpdateForTheme (const Color &primary_color, const Color &background_color)
void	DrawSettingsUI ()

Static Public Member Functions
static BackgroundRenderer &	Get ()

Private Member Functions
	BackgroundRenderer ()=default
float	CalculateRadialFade (const ImVec2 &pos, const ImVec2 &center, float max_distance) const
ImU32	BlendColorWithFade (const Color &base_color, float fade_factor) const
void	DrawGridLine (ImDrawList *draw_list, const ImVec2 &start, const ImVec2 &end, ImU32 color, float thickness) const
void	DrawGridDot (ImDrawList *draw_list, const ImVec2 &pos, ImU32 color, float size) const

Private Attributes
GridSettings	grid_settings_
float	animation_time_ = 0.0f
Color	cached_grid_color_ {0.5f, 0.5f, 0.5f, 0.1f}

Detailed Description

Renders themed background effects for docking windows.

Definition at line 18 of file background_renderer.h.

Constructor & Destructor Documentation

BackgroundRenderer()

yaze::gui::BackgroundRenderer::BackgroundRenderer ( )

privatedefault

Member Function Documentation

Get()

BackgroundRenderer & yaze::gui::BackgroundRenderer::Get ( )

static

Definition at line 18 of file background_renderer.cc.

Referenced by yaze::editor::UICoordinator::DrawBackground(), yaze::gui::DrawDisplaySettings(), and yaze::gui::DrawDisplaySettingsForPopup().

RenderDockingBackground()

void yaze::gui::BackgroundRenderer::RenderDockingBackground	(	ImDrawList *	draw_list,
		const ImVec2 &	window_pos,
		const ImVec2 &	window_size,
		const Color &	theme_color )

Definition at line 23 of file background_renderer.cc.

References yaze::gui::Color::alpha, animation_time_, yaze::gui::ConvertColorToImVec4(), yaze::gui::ThemeManager::Get(), yaze::TimingManager::Get(), grid_settings_, yaze::gui::BackgroundRenderer::GridSettings::grid_size, yaze::gui::Color::red, RenderGridBackground(), and UpdateAnimation().

RenderGridBackground()

void yaze::gui::BackgroundRenderer::RenderGridBackground	(	ImDrawList *	draw_list,
		const ImVec2 &	window_pos,
		const ImVec2 &	window_size,
		const Color &	grid_color )

Definition at line 77 of file background_renderer.cc.

References yaze::gui::Color::alpha, yaze::gui::BackgroundRenderer::GridSettings::animation_speed, animation_time_, BlendColorWithFade(), yaze::gui::Color::blue, yaze::gui::BackgroundRenderer::GridSettings::breathing_intensity, yaze::gui::BackgroundRenderer::GridSettings::breathing_speed, yaze::gui::BackgroundRenderer::GridSettings::dot_size, DrawGridDot(), DrawGridLine(), yaze::gui::BackgroundRenderer::GridSettings::enable_animation, yaze::gui::BackgroundRenderer::GridSettings::enable_breathing, yaze::gui::BackgroundRenderer::GridSettings::enable_dots, yaze::gui::BackgroundRenderer::GridSettings::fade_distance, yaze::gui::Color::green, grid_settings_, yaze::gui::BackgroundRenderer::GridSettings::grid_size, yaze::gui::BackgroundRenderer::GridSettings::line_thickness, yaze::gui::BackgroundRenderer::GridSettings::opacity, yaze::gui::BackgroundRenderer::GridSettings::radial_fade, and yaze::gui::Color::red.

Referenced by DrawSettingsUI(), and RenderDockingBackground().

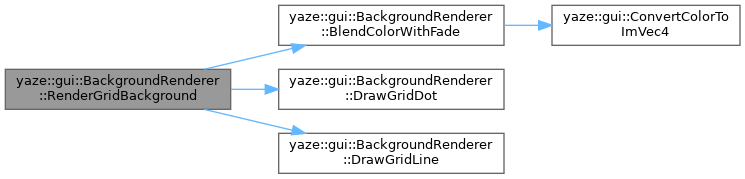

Here is the call graph for this function:

RenderRadialGradient()

void yaze::gui::BackgroundRenderer::RenderRadialGradient	(	ImDrawList *	draw_list,
		const ImVec2 &	center,
		float	radius,
		const Color &	inner_color,
		const Color &	outer_color )

Definition at line 209 of file background_renderer.cc.

References yaze::gui::Color::alpha, yaze::gui::Color::blue, yaze::gui::ConvertColorToImVec4(), yaze::gui::Color::green, M_PI, and yaze::gui::Color::red.

Here is the call graph for this function:

SetGridSettings()

void yaze::gui::BackgroundRenderer::SetGridSettings ( const GridSettings & settings )

inline

Definition at line 50 of file background_renderer.h.

References grid_settings_.

GetGridSettings()

const GridSettings & yaze::gui::BackgroundRenderer::GetGridSettings ( ) const

inline

Definition at line 53 of file background_renderer.h.

References grid_settings_.

UpdateAnimation()

void yaze::gui::BackgroundRenderer::UpdateAnimation

(

float

delta_time

)

Definition at line 258 of file background_renderer.cc.

References animation_time_, yaze::gui::BackgroundRenderer::GridSettings::enable_animation, and grid_settings_.

Referenced by RenderDockingBackground().

SetAnimationEnabled()

void yaze::gui::BackgroundRenderer::SetAnimationEnabled ( bool enabled )

inline

Definition at line 57 of file background_renderer.h.

References yaze::gui::BackgroundRenderer::GridSettings::enable_animation, and grid_settings_.

UpdateForTheme()

void yaze::gui::BackgroundRenderer::UpdateForTheme	(	const Color &	primary_color,
		const Color &	background_color )

Definition at line 264 of file background_renderer.cc.

References yaze::gui::Color::blue, cached_grid_color_, yaze::gui::Color::green, grid_settings_, yaze::gui::BackgroundRenderer::GridSettings::opacity, and yaze::gui::Color::red.

DrawSettingsUI()

void yaze::gui::BackgroundRenderer::DrawSettingsUI

(

)

Definition at line 275 of file background_renderer.cc.

References yaze::gui::BackgroundRenderer::GridSettings::animation_speed, yaze::gui::BackgroundRenderer::GridSettings::breathing_intensity, yaze::gui::BackgroundRenderer::GridSettings::breathing_speed, yaze::gui::BackgroundRenderer::GridSettings::dot_size, yaze::gui::BackgroundRenderer::GridSettings::enable_animation, yaze::gui::BackgroundRenderer::GridSettings::enable_breathing, yaze::gui::BackgroundRenderer::GridSettings::enable_dots, yaze::gui::BackgroundRenderer::GridSettings::fade_distance, yaze::gui::ThemeManager::Get(), grid_settings_, yaze::gui::BackgroundRenderer::GridSettings::grid_size, yaze::gui::BackgroundRenderer::GridSettings::line_thickness, yaze::gui::BackgroundRenderer::GridSettings::opacity, yaze::gui::BackgroundRenderer::GridSettings::radial_fade, and RenderGridBackground().

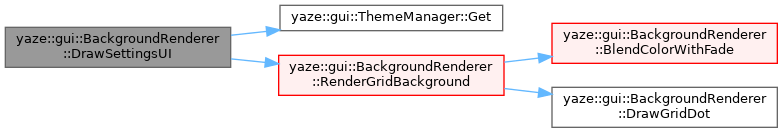

Here is the call graph for this function:

CalculateRadialFade()

float yaze::gui::BackgroundRenderer::CalculateRadialFade ( const ImVec2 & pos, const ImVec2 & center, float max_distance ) const

private

Definition at line 354 of file background_renderer.cc.

BlendColorWithFade()

ImU32 yaze::gui::BackgroundRenderer::BlendColorWithFade ( const Color & base_color, float fade_factor ) const

private

Definition at line 363 of file background_renderer.cc.

References yaze::gui::Color::alpha, yaze::gui::Color::blue, yaze::gui::ConvertColorToImVec4(), yaze::gui::Color::green, and yaze::gui::Color::red.

Referenced by RenderGridBackground().

Here is the call graph for this function:

DrawGridLine()

void yaze::gui::BackgroundRenderer::DrawGridLine ( ImDrawList * draw_list, const ImVec2 & start, const ImVec2 & end, ImU32 color, float thickness ) const

private

Definition at line 370 of file background_renderer.cc.

Referenced by RenderGridBackground().

DrawGridDot()

void yaze::gui::BackgroundRenderer::DrawGridDot ( ImDrawList * draw_list, const ImVec2 & pos, ImU32 color, float size ) const

private

Definition at line 376 of file background_renderer.cc.

Referenced by RenderGridBackground().

Member Data Documentation

grid_settings_

GridSettings yaze::gui::BackgroundRenderer::grid_settings_

private

Definition at line 71 of file background_renderer.h.

Referenced by DrawSettingsUI(), GetGridSettings(), RenderDockingBackground(), RenderGridBackground(), SetAnimationEnabled(), SetGridSettings(), UpdateAnimation(), and UpdateForTheme().

animation_time_

float yaze::gui::BackgroundRenderer::animation_time_ = 0.0f

private

Definition at line 72 of file background_renderer.h.

Referenced by RenderDockingBackground(), RenderGridBackground(), and UpdateAnimation().

cached_grid_color_

Color yaze::gui::BackgroundRenderer::cached_grid_color_ {0.5f, 0.5f, 0.5f, 0.1f}

private

Definition at line 73 of file background_renderer.h.

Referenced by UpdateForTheme().

---

The documentation for this class was generated from the following files:

• src/app/gui/core/background_renderer.h
• src/app/gui/core/background_renderer.cc
