song_data.h File Reference

#include <array>
#include <cstdint>
#include <string>
#include <vector>

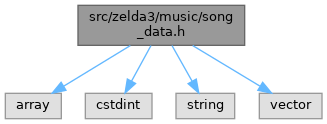

Include dependency graph for song_data.h:

Go to the source code of this file.

Classes
struct	yaze::zelda3::music::Note
	Represents a single musical note. More...
struct	yaze::zelda3::music::MusicCommand
	Represents an N-SPC command (opcodes 0xE0-0xFF). More...
struct	yaze::zelda3::music::TrackEvent
	A single event in a music track (note, command, or control). More...
struct	yaze::zelda3::music::MusicTrack
	One of 8 channels in a music segment. More...
struct	yaze::zelda3::music::MusicSegment
	A segment containing 8 parallel tracks. More...
struct	yaze::zelda3::music::MusicSong
	A complete song composed of segments. More...
struct	yaze::zelda3::music::MusicInstrument
	An instrument definition with ADSR envelope. More...
struct	yaze::zelda3::music::MusicSample
	A BRR-encoded audio sample. More...

Namespaces
namespace	yaze
namespace	yaze::zelda3
	Zelda 3 specific classes and functions.
namespace	yaze::zelda3::music
	Contains classes and functions for handling music data in Zelda 3.

Enumerations
enum class	yaze::zelda3::music::CommandType : uint8_t {   yaze::zelda3::music::SetInstrument = 0xE0 , yaze::zelda3::music::SetPan = 0xE1 , yaze::zelda3::music::PanFade = 0xE2 , yaze::zelda3::music::VibratoOn = 0xE3 ,   yaze::zelda3::music::VibratoOff = 0xE4 , yaze::zelda3::music::SetMasterVolume = 0xE5 , yaze::zelda3::music::MasterVolumeFade = 0xE6 , yaze::zelda3::music::SetTempo = 0xE7 ,   yaze::zelda3::music::TempoFade = 0xE8 , yaze::zelda3::music::GlobalTranspose = 0xE9 , yaze::zelda3::music::ChannelTranspose = 0xEA , yaze::zelda3::music::TremoloOn = 0xEB ,   yaze::zelda3::music::TremoloOff = 0xEC , yaze::zelda3::music::SetChannelVolume = 0xED , yaze::zelda3::music::ChannelVolumeFade = 0xEE , yaze::zelda3::music::CallSubroutine = 0xEF ,   yaze::zelda3::music::VibratoFade = 0xF0 , yaze::zelda3::music::PitchEnvelopeTo = 0xF1 , yaze::zelda3::music::PitchEnvelopeFrom = 0xF2 , yaze::zelda3::music::PitchEnvelopeOff = 0xF3 ,   yaze::zelda3::music::Tuning = 0xF4 , yaze::zelda3::music::EchoVBits = 0xF5 , yaze::zelda3::music::EchoOff = 0xF6 , yaze::zelda3::music::EchoParams = 0xF7 ,   yaze::zelda3::music::EchoVolumeFade = 0xF8 , yaze::zelda3::music::PitchSlide = 0xF9 , yaze::zelda3::music::PercussionPatch = 0xFA }

Functions
uint16_t	yaze::zelda3::music::LookupNSpcPitch (uint8_t note_byte)
	Look up the DSP pitch value for an N-SPC note byte.

Variables
constexpr int	yaze::zelda3::music::kCommandParamCount [32]
constexpr uint8_t	yaze::zelda3::music::kNoteMinPitch = 0x80
constexpr uint8_t	yaze::zelda3::music::kNoteMaxPitch = 0xC7
constexpr uint8_t	yaze::zelda3::music::kNoteTie = 0xC8
constexpr uint8_t	yaze::zelda3::music::kNoteRest = 0xC9
constexpr uint8_t	yaze::zelda3::music::kTrackEnd = 0x00
constexpr uint8_t	yaze::zelda3::music::kDurationQuarter = 0x48
constexpr uint8_t	yaze::zelda3::music::kDurationQuarterDot = 0x6C
constexpr uint8_t	yaze::zelda3::music::kDurationQuarterTrip = 0x30
constexpr uint8_t	yaze::zelda3::music::kDurationEighth = 0x24
constexpr uint8_t	yaze::zelda3::music::kDurationEighthDot = 0x36
constexpr uint8_t	yaze::zelda3::music::kDurationEighthTrip = 0x18
constexpr uint8_t	yaze::zelda3::music::kDurationSixteenth = 0x12
constexpr uint8_t	yaze::zelda3::music::kDurationSixteenthDot = 0x1B
constexpr uint8_t	yaze::zelda3::music::kDurationThirtySecond = 0x09
constexpr uint32_t	yaze::zelda3::music::kOverworldBankRom = 0xD1EF5
constexpr uint32_t	yaze::zelda3::music::kDungeonBankRom = 0xD8000
constexpr uint32_t	yaze::zelda3::music::kCreditsBankRom = 0xD5380
constexpr uint16_t	yaze::zelda3::music::kSongTableAram = 0xD000
constexpr uint16_t	yaze::zelda3::music::kInstrumentTableAram = 0x3D00
constexpr uint16_t	yaze::zelda3::music::kSampleTableAram = 0x3C00
constexpr uint16_t	yaze::zelda3::music::kSampleDataAram = 0x4000
constexpr int	yaze::zelda3::music::kOverworldBankMaxSize = 12032
constexpr int	yaze::zelda3::music::kDungeonBankMaxSize = 11200
constexpr int	yaze::zelda3::music::kCreditsBankMaxSize = 4200
constexpr uint16_t	yaze::zelda3::music::kNSpcPitchTable [72]
constexpr uint32_t	yaze::zelda3::music::kExpandedOverworldBankRom = 0x1A9EF5
constexpr uint32_t	yaze::zelda3::music::kExpandedAuxBankRom = 0x1ACCA7
constexpr uint16_t	yaze::zelda3::music::kAuxSongTableAram = 0x2B00
constexpr int	yaze::zelda3::music::kExpandedOverworldBankMaxSize = 0x2DAE
constexpr int	yaze::zelda3::music::kAuxBankMaxSize = 0x0688
constexpr uint32_t	yaze::zelda3::music::kExpandedMusicHookAddress = 0x008919
constexpr uint8_t	yaze::zelda3::music::kJslOpcode = 0x22
constexpr const char *	yaze::zelda3::music::kDefaultInstrumentNames []
constexpr const char *	yaze::zelda3::music::kNoteNames []
