yaze::cli::agent::MemoryDebuggingExample Class Reference

Demonstrates memory debugging capabilities for AI agents. More...

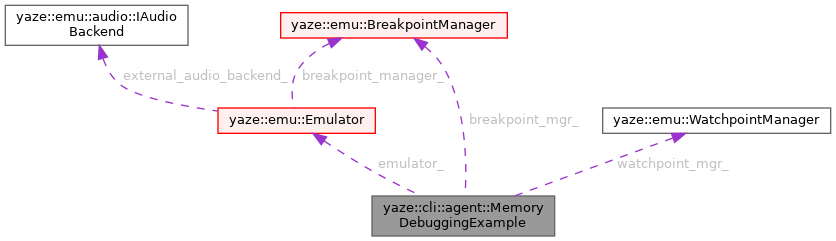

Collaboration diagram for yaze::cli::agent::MemoryDebuggingExample:

Public Member Functions
	MemoryDebuggingExample (emu::Emulator *emulator)
absl::Status	TrackPlayerHealth ()
absl::Status	MonitorInventory ()
absl::Status	DebugSpriteData ()
absl::Status	TrackDMATransfers ()
absl::Status	AnalyzeWatchpointData ()
absl::Status	ExportWatchpointHistory (const std::string &filename)
void	ClearDebugging ()
absl::Status	RunMemoryDebuggingSession ()

Private Attributes
emu::Emulator *	emulator_
emu::BreakpointManager &	breakpoint_mgr_
emu::WatchpointManager &	watchpoint_mgr_

Detailed Description

Demonstrates memory debugging capabilities for AI agents.

This example shows how to:

1. Set memory breakpoints to pause on specific memory access
2. Use watchpoints to track memory changes over time
3. Analyze memory access patterns
4. Export watchpoint data for analysis

Definition at line 32 of file memory_debugging_example.cc.

Constructor & Destructor Documentation

MemoryDebuggingExample()

yaze::cli::agent::MemoryDebuggingExample::MemoryDebuggingExample ( emu::Emulator * emulator )

inline

Definition at line 34 of file memory_debugging_example.cc.

Member Function Documentation

TrackPlayerHealth()

absl::Status yaze::cli::agent::MemoryDebuggingExample::TrackPlayerHealth ( )

inline

Example 1: Track writes to the player's health address

Definition at line 42 of file memory_debugging_example.cc.

References yaze::emu::BreakpointManager::AddBreakpoint(), yaze::emu::WatchpointManager::AddWatchpoint(), breakpoint_mgr_, yaze::emu::BreakpointManager::CPU_65816, LOG_INFO, watchpoint_mgr_, and yaze::emu::BreakpointManager::WRITE.

Referenced by RunMemoryDebuggingSession().

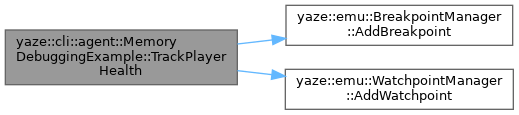

Here is the call graph for this function:

MonitorInventory()

absl::Status yaze::cli::agent::MemoryDebuggingExample::MonitorInventory ( )

inline

Example 2: Monitor item inventory changes

Definition at line 77 of file memory_debugging_example.cc.

References yaze::emu::WatchpointManager::AddWatchpoint(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

Here is the call graph for this function:

DebugSpriteData()

absl::Status yaze::cli::agent::MemoryDebuggingExample::DebugSpriteData ( )

inline

Example 3: Debug sprite corruption by tracking sprite data

Definition at line 100 of file memory_debugging_example.cc.

References yaze::emu::WatchpointManager::AddWatchpoint(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

Here is the call graph for this function:

TrackDMATransfers()

absl::Status yaze::cli::agent::MemoryDebuggingExample::TrackDMATransfers ( )

inline

Example 4: Track DMA transfers

Definition at line 123 of file memory_debugging_example.cc.

References yaze::emu::WatchpointManager::AddWatchpoint(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

Here is the call graph for this function:

AnalyzeWatchpointData()

absl::Status yaze::cli::agent::MemoryDebuggingExample::AnalyzeWatchpointData ( )

inline

Analyze collected watchpoint data

Definition at line 146 of file memory_debugging_example.cc.

References yaze::emu::WatchpointManager::GetAllWatchpoints(), yaze::emu::WatchpointManager::GetHistory(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

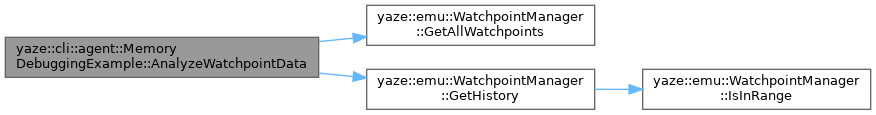

Here is the call graph for this function:

ExportWatchpointHistory()

absl::Status yaze::cli::agent::MemoryDebuggingExample::ExportWatchpointHistory ( const std::string & filename )

inline

Export watchpoint data for external analysis

Definition at line 193 of file memory_debugging_example.cc.

References yaze::emu::WatchpointManager::ExportHistoryToCSV(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

Here is the call graph for this function:

ClearDebugging()

void yaze::cli::agent::MemoryDebuggingExample::ClearDebugging ( )

inline

Clear all debugging state

Definition at line 204 of file memory_debugging_example.cc.

References breakpoint_mgr_, yaze::emu::BreakpointManager::ClearAll(), yaze::emu::WatchpointManager::ClearAll(), LOG_INFO, and watchpoint_mgr_.

Referenced by RunMemoryDebuggingSession().

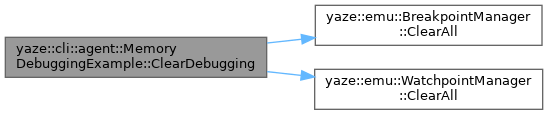

Here is the call graph for this function:

RunMemoryDebuggingSession()

absl::Status yaze::cli::agent::MemoryDebuggingExample::RunMemoryDebuggingSession ( )

inline

Example usage in an AI agent

Definition at line 213 of file memory_debugging_example.cc.

References AnalyzeWatchpointData(), ClearDebugging(), DebugSpriteData(), emulator_, ExportWatchpointHistory(), LOG_INFO, MonitorInventory(), RETURN_IF_ERROR, yaze::emu::Emulator::set_debugging(), TrackDMATransfers(), and TrackPlayerHealth().

Member Data Documentation

emulator_

emu::Emulator* yaze::cli::agent::MemoryDebuggingExample::emulator_

private

Definition at line 242 of file memory_debugging_example.cc.

Referenced by RunMemoryDebuggingSession().

breakpoint_mgr_

emu::BreakpointManager& yaze::cli::agent::MemoryDebuggingExample::breakpoint_mgr_

private

Definition at line 243 of file memory_debugging_example.cc.

Referenced by ClearDebugging(), and TrackPlayerHealth().

watchpoint_mgr_

emu::WatchpointManager& yaze::cli::agent::MemoryDebuggingExample::watchpoint_mgr_

private

Definition at line 244 of file memory_debugging_example.cc.

Referenced by AnalyzeWatchpointData(), ClearDebugging(), DebugSpriteData(), ExportWatchpointHistory(), MonitorInventory(), TrackDMATransfers(), and TrackPlayerHealth().

---

The documentation for this class was generated from the following file:

• src/cli/service/agent/memory_debugging_example.cc
