Touch input handling system for iPad and tablet browsers. More...

#include <touch_input.h>

Static Public Member Functions
static void	Initialize ()
	Initialize the touch input system.

static void	Shutdown ()
	Shutdown and cleanup touch input system.

static void	Update ()
	Process touch events for the current frame.

static bool	IsTouchActive ()
	Check if touch input is currently being used.

static bool	IsTouchMode ()
	Check if we're in touch mode (vs mouse mode)

static GestureState	GetCurrentGesture ()
	Get the current gesture state.

static TouchPoint	GetTouchPoint (int index)
	Get raw touch point data.

static int	GetActiveTouchCount ()
	Get number of active touch points.

static void	SetPanZoomEnabled (bool enabled)
	Enable or disable pan/zoom gestures for canvas.

static bool	IsPanZoomEnabled ()
	Check if pan/zoom is enabled.

static ImVec2	GetPanOffset ()
	Get cumulative pan offset from touch gestures.

static float	GetZoomLevel ()
	Get cumulative zoom level from pinch gestures.

static float	GetRotation ()
	Get rotation angle from two-finger rotation.

static ImVec2	GetZoomCenter ()
	Get the zoom center point in screen coordinates.

static void	ApplyPanOffset (ImVec2 offset)
	Apply pan offset to the current value.

static void	SetZoomLevel (float zoom)
	Set the zoom level directly.

static void	SetPanOffset (ImVec2 offset)
	Set the pan offset directly.

static void	ResetCanvasState ()
	Reset canvas transform state.

static TouchConfig &	GetConfig ()
	Get the current touch configuration.

static void	SetGestureCallback (std::function< void(const GestureState &)> callback)
	Set gesture callback.

Static Public Attributes
static constexpr int	kMaxTouchPoints = 10
	Maximum number of simultaneous touch points supported.

Private Member Functions
	TouchInput ()=delete

Static Private Member Functions
static void	UpdateGestureRecognition ()

static void	ProcessInertia ()

static void	TranslateToImGuiEvents ()

static double	GetCurrentTime ()

static void	InitializePlatform ()

static void	ShutdownPlatform ()

Detailed Description

Touch input handling system for iPad and tablet browsers.

Provides gesture recognition and touch event handling for the yaze editor. Integrates with ImGui's input system and the Canvas pan/zoom functionality.

Features:

Single tap: Translates to left mouse click
Double tap: Context menu or zoom-to-fit
Long press: Context menu activation
Two-finger pan: Canvas scrolling
Pinch to zoom: Canvas zoom in/out
Two-finger rotate: Optional sprite rotation

Usage:

// Initialize once at startup
TouchInput::Initialize();

// Call each frame before ImGui::NewFrame()
TouchInput::Update();

// Check touch state in your code
if (TouchInput::IsTouchActive()) {
  auto gesture = TouchInput::GetCurrentGesture();
  // Handle gesture...
}

// Get canvas transform values
ImVec2 pan = TouchInput::GetPanOffset();
float zoom = TouchInput::GetZoomLevel();

Definition at line 137 of file touch_input.h.

Constructor & Destructor Documentation

◆ TouchInput()

yaze::gui::TouchInput::TouchInput ( )

privatedelete

Member Function Documentation

◆ Initialize()

void yaze::gui::TouchInput::Initialize ( )

static

Initialize the touch input system.

Sets up touch event handlers. On web builds, this registers JavaScript callbacks for touch events. On native builds, it configures SDL touch support.

Definition at line 140 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::initialized, InitializePlatform(), LOG_INFO, and yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::touch_points.

Referenced by yaze::gui::CanvasTouchHandler::Initialize().

Here is the call graph for this function:

◆ Shutdown()

void yaze::gui::TouchInput::Shutdown ( )

static

Shutdown and cleanup touch input system.

Definition at line 160 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::initialized, LOG_INFO, and ShutdownPlatform().

Here is the call graph for this function:

◆ Update()

void yaze::gui::TouchInput::Update ( )

static

Process touch events for the current frame.

Call this once per frame, before ImGui::NewFrame(). Updates gesture recognition state and translates touch events to ImGui mouse events.

Definition at line 171 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::current_gesture, yaze::gui::GestureState::gesture, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::gesture_callback, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::inertia_active, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::initialized, yaze::gui::kNone, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::previous_gesture, ProcessInertia(), TranslateToImGuiEvents(), and UpdateGestureRecognition().

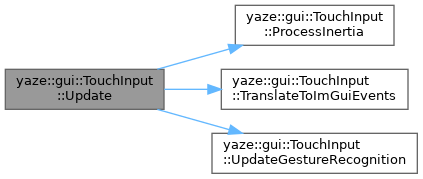

Here is the call graph for this function:

◆ IsTouchActive()

bool yaze::gui::TouchInput::IsTouchActive ( )

static

Check if touch input is currently being used.

Returns: true if any touch points are active

Definition at line 198 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::active_touch_count.

Referenced by yaze::gui::CanvasTouchHandler::IsTouchActive(), and yaze::gui::CanvasTouchHandler::Update().

◆ IsTouchMode()

bool yaze::gui::TouchInput::IsTouchMode ( )

static

Check if we're in touch mode (vs mouse mode)

Returns true if the last input was from touch, even if no touches are currently active. Used for UI adaptation (larger hit targets, etc.)

Returns: true if touch mode is active

Definition at line 202 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::touch_mode.

Referenced by yaze::gui::CanvasTouchHandler::IsTouchMode().

◆ GetCurrentGesture()

GestureState yaze::gui::TouchInput::GetCurrentGesture ( )

static

Get the current gesture state.

Returns: Current gesture recognition result

Definition at line 206 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::current_gesture.

Referenced by yaze::gui::CanvasTouchHandler::Update().

◆ GetTouchPoint()

TouchPoint yaze::gui::TouchInput::GetTouchPoint ( int index )

static

Get raw touch point data.

Parameters

index Touch point index (0 to kMaxTouchPoints-1)

Returns: Touch point data, or inactive touch if index invalid

Definition at line 210 of file touch_input.cc.

References kMaxTouchPoints, and yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::touch_points.

◆ GetActiveTouchCount()

int yaze::gui::TouchInput::GetActiveTouchCount ( )

static

Get number of active touch points.

Returns: Number of currently active touches

Definition at line 217 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::active_touch_count.

◆ SetPanZoomEnabled()

void yaze::gui::TouchInput::SetPanZoomEnabled ( bool enabled )

static

Enable or disable pan/zoom gestures for canvas.

Parameters

enabled Whether to process pan/zoom gestures

Definition at line 221 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_zoom_enabled.

◆ IsPanZoomEnabled()

bool yaze::gui::TouchInput::IsPanZoomEnabled ( )

static

Check if pan/zoom is enabled.

Returns: true if pan/zoom gestures are being processed

Definition at line 225 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_zoom_enabled.

◆ GetPanOffset()

ImVec2 yaze::gui::TouchInput::GetPanOffset ( )

static

Get cumulative pan offset from touch gestures.

This value accumulates pan translations. Reset with ResetCanvasState().

Returns: Pan offset in pixels

Definition at line 229 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_offset.

Referenced by yaze::gui::CanvasTouchHandler::ProcessGesture().

◆ GetZoomLevel()

float yaze::gui::TouchInput::GetZoomLevel ( )

static

Get cumulative zoom level from pinch gestures.

Starts at 1.0. Multiply your canvas scale by this value.

Returns: Zoom level (1.0 = no zoom, >1.0 = zoomed in, <1.0 = zoomed out)

Definition at line 233 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::zoom_level.

Referenced by yaze::gui::CanvasTouchHandler::ProcessGesture().

◆ GetRotation()

float yaze::gui::TouchInput::GetRotation ( )

static

Get rotation angle from two-finger rotation.

Returns: Rotation in radians

Definition at line 237 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::rotation.

◆ GetZoomCenter()

ImVec2 yaze::gui::TouchInput::GetZoomCenter ( )

static

Get the zoom center point in screen coordinates.

Use this as the pivot point when applying zoom transformations.

Returns: Center point of the pinch gesture

Definition at line 241 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::zoom_center.

Referenced by yaze::gui::CanvasTouchHandler::ProcessGesture().

◆ ApplyPanOffset()

void yaze::gui::TouchInput::ApplyPanOffset ( ImVec2 offset )

static

Apply pan offset to the current value.

Parameters

offset Pan offset to apply

Definition at line 245 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_offset.

◆ SetZoomLevel()

void yaze::gui::TouchInput::SetZoomLevel ( float zoom )

static

Set the zoom level directly.

Parameters

zoom	New zoom level

Definition at line 250 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::config, and yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::zoom_level.

◆ SetPanOffset()

void yaze::gui::TouchInput::SetPanOffset ( ImVec2 offset )

static

Set the pan offset directly.

Parameters

offset New pan offset

Definition at line 255 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_offset.

◆ ResetCanvasState()

void yaze::gui::TouchInput::ResetCanvasState ( )

static

Reset canvas transform state.

Resets pan offset to (0,0), zoom to 1.0, rotation to 0.0

Definition at line 259 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::inertia_active, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::inertia_velocity, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::pan_offset, yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::rotation, and yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::zoom_level.

Referenced by yaze::gui::CanvasTouchHandler::Reset().

◆ GetConfig()

TouchConfig & yaze::gui::TouchInput::GetConfig ( )

static

Get the current touch configuration.

Returns: Reference to configuration struct

Definition at line 267 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::config.

◆ SetGestureCallback()

void yaze::gui::TouchInput::SetGestureCallback ( std::function< void(const GestureState &)> callback )

static

Set gesture callback.

Optional callback invoked when gestures are recognized.

Parameters

callback Function to call with gesture state

Definition at line 271 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::gesture_callback.

◆ UpdateGestureRecognition()

void yaze::gui::TouchInput::UpdateGestureRecognition ( )

staticprivate

Definition at line 278 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::current_gesture, yaze::gui::kBegan, yaze::gui::kChanged, yaze::gui::kDoubleTap, yaze::gui::kEnded, yaze::gui::kLongPress, yaze::gui::kNone, yaze::gui::kPan, yaze::gui::kPinchZoom, yaze::gui::kRotate, yaze::gui::kTap, M_PI, yaze::gui::TouchPoint::position, yaze::gui::TouchPoint::previous_position, yaze::gui::TouchPoint::start_position, and yaze::gui::TouchPoint::timestamp.

Referenced by Update().

◆ ProcessInertia()

void yaze::gui::TouchInput::ProcessInertia ( )

staticprivate

Definition at line 501 of file touch_input.cc.

References yaze::gui::anonymous_namespace{touch_input.cc}::TouchInputState::config.

Referenced by Update().

◆ TranslateToImGuiEvents()

void yaze::gui::TouchInput::TranslateToImGuiEvents ( )

staticprivate

Definition at line 525 of file touch_input.cc.

References yaze::gui::kDoubleTap, yaze::gui::kLongPress, yaze::gui::kTap, and yaze::gui::TouchPoint::position.

Referenced by Update().

◆ GetCurrentTime()

double yaze::gui::TouchInput::GetCurrentTime ( )

staticprivate

Definition at line 570 of file touch_input.cc.

◆ InitializePlatform()

void yaze::gui::TouchInput::InitializePlatform ( )

staticprivate

Definition at line 731 of file touch_input.cc.

References LOG_INFO.

Referenced by Initialize().

◆ ShutdownPlatform()

void yaze::gui::TouchInput::ShutdownPlatform ( )

staticprivate

Definition at line 738 of file touch_input.cc.

Referenced by Shutdown().

Member Data Documentation

◆ kMaxTouchPoints

constexpr int yaze::gui::TouchInput::kMaxTouchPoints = 10

staticconstexpr

Maximum number of simultaneous touch points supported.

Definition at line 142 of file touch_input.h.

Referenced by GetTouchPoint().

The documentation for this class was generated from the following files:

src/app/gui/core/touch_input.h
src/app/gui/core/touch_input.cc

	yaze 0.3.2 Link to the Past ROM Editor

Static Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ TouchInput()

Member Function Documentation

◆ Initialize()

◆ Shutdown()

◆ Update()

◆ IsTouchActive()

◆ IsTouchMode()

◆ GetCurrentGesture()

◆ GetTouchPoint()

◆ GetActiveTouchCount()

◆ SetPanZoomEnabled()

◆ IsPanZoomEnabled()

◆ GetPanOffset()

◆ GetZoomLevel()

◆ GetRotation()

◆ GetZoomCenter()

◆ ApplyPanOffset()

◆ SetZoomLevel()

◆ SetPanOffset()

◆ ResetCanvasState()

◆ GetConfig()

◆ SetGestureCallback()

◆ UpdateGestureRecognition()

◆ ProcessInertia()

◆ TranslateToImGuiEvents()

◆ GetCurrentTime()

◆ InitializePlatform()

◆ ShutdownPlatform()

Member Data Documentation

◆ kMaxTouchPoints
