Native WebSocket implementation using HTTP fallback. More...

#include <httplib_websocket.h>

Inheritance diagram for yaze::net::HttpLibWebSocket:

Collaboration diagram for yaze::net::HttpLibWebSocket:

Public Member Functions
	HttpLibWebSocket ()

	~HttpLibWebSocket () override

absl::Status	Connect (const std::string &url) override
	Connect to a WebSocket server.

absl::Status	Send (const std::string &message) override
	Send a text message.

absl::Status	SendBinary (const uint8_t *data, size_t length) override
	Send a binary message.

absl::Status	Close (int code=1000, const std::string &reason="") override
	Close the WebSocket connection.

WebSocketState	GetState () const override
	Get the current connection state.

void	OnMessage (MessageCallback callback) override
	Set callback for text message events.

void	OnBinaryMessage (BinaryMessageCallback callback) override
	Set callback for binary message events.

void	OnOpen (OpenCallback callback) override
	Set callback for connection open events.

void	OnClose (CloseCallback callback) override
	Set callback for connection close events.

void	OnError (ErrorCallback callback) override
	Set callback for error events.

Public Member Functions inherited from yaze::net::IWebSocket
virtual	~IWebSocket ()=default

virtual bool	IsConnected () const
	Check if the WebSocket is connected.

virtual std::string	GetUrl () const
	Get the WebSocket URL.

virtual void	SetAutoReconnect (bool enable, int delay_seconds=5)
	Set automatic reconnection.

Private Member Functions
absl::Status	ParseWebSocketUrl (const std::string &ws_url, std::string &http_url)
	Parse WebSocket URL into HTTP components.

void	ReceiveLoop ()
	Background thread for receiving messages (polling)

void	StopReceiveLoop ()
	Stop the receive loop.

Private Attributes
std::shared_ptr< httplib::Client >	client_

std::thread	receive_thread_

std::atomic< bool >	stop_receive_

std::string	session_id_

std::string	http_endpoint_

Additional Inherited Members
Public Types inherited from yaze::net::IWebSocket
using	MessageCallback = std::function<void(const std::string& message)>

using	BinaryMessageCallback = std::function<void(const uint8_t* data, size_t length)>

using	OpenCallback = std::function<void()>

using	CloseCallback = std::function<void(int code, const std::string& reason)>

using	ErrorCallback = std::function<void(const std::string& error)>

Protected Attributes inherited from yaze::net::IWebSocket
std::string	url_

WebSocketState	state_ = WebSocketState::kDisconnected

MessageCallback	message_callback_

BinaryMessageCallback	binary_message_callback_

OpenCallback	open_callback_

CloseCallback	close_callback_

ErrorCallback	error_callback_

bool	auto_reconnect_ = false

int	reconnect_delay_seconds_ = 5

Detailed Description

Native WebSocket implementation using HTTP fallback.

Note: cpp-httplib doesn't have full WebSocket support, so this implementation uses HTTP long-polling as a fallback. For production use, consider integrating a proper WebSocket library like websocketpp or libwebsockets.

Definition at line 27 of file httplib_websocket.h.

Constructor & Destructor Documentation

◆ HttpLibWebSocket()

yaze::net::HttpLibWebSocket::HttpLibWebSocket ( )

Definition at line 16 of file httplib_websocket.cc.

References yaze::net::kDisconnected, and yaze::net::IWebSocket::state_.

◆ ~HttpLibWebSocket()

yaze::net::HttpLibWebSocket::~HttpLibWebSocket ( )

override

Definition at line 20 of file httplib_websocket.cc.

References Close(), yaze::net::kDisconnected, and yaze::net::IWebSocket::state_.

Here is the call graph for this function:

Member Function Documentation

◆ Connect()

absl::Status yaze::net::HttpLibWebSocket::Connect ( const std::string & url )

overridevirtual

Connect to a WebSocket server.

Parameters

url	The WebSocket URL (ws:// or wss://)

Returns: Status indicating success or failure

Implements yaze::net::IWebSocket.

Definition at line 51 of file httplib_websocket.cc.

References client_, http_endpoint_, yaze::net::kConnected, yaze::net::kConnecting, yaze::net::kDisconnected, yaze::net::kError, yaze::net::IWebSocket::open_callback_, ParseWebSocketUrl(), receive_thread_, ReceiveLoop(), RETURN_IF_ERROR, session_id_, yaze::net::IWebSocket::state_, and stop_receive_.

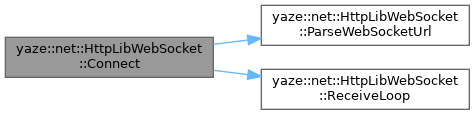

Here is the call graph for this function:

◆ Send()

absl::Status yaze::net::HttpLibWebSocket::Send ( const std::string & message )

overridevirtual

Send a text message.

Parameters

message The text message to send

Returns: Status indicating success or failure

Implements yaze::net::IWebSocket.

Definition at line 121 of file httplib_websocket.cc.

References client_, yaze::net::kConnected, session_id_, and yaze::net::IWebSocket::state_.

◆ SendBinary()

absl::Status yaze::net::HttpLibWebSocket::SendBinary	(	const uint8_t *	data,
		size_t	length )

overridevirtual

Send a binary message.

Parameters

data	The binary data to send
length	The length of the data

Returns: Status indicating success or failure

Reimplemented from yaze::net::IWebSocket.

Definition at line 152 of file httplib_websocket.cc.

References client_, yaze::net::kConnected, session_id_, and yaze::net::IWebSocket::state_.

◆ Close()

absl::Status yaze::net::HttpLibWebSocket::Close	(	int	code = 1000,
		const std::string &	reason = "" )

overridevirtual

Close the WebSocket connection.

Parameters

code	Optional close code
reason	Optional close reason

Returns: Status indicating success or failure

Implements yaze::net::IWebSocket.

Definition at line 184 of file httplib_websocket.cc.

References client_, yaze::net::IWebSocket::close_callback_, yaze::net::kClosed, yaze::net::kClosing, yaze::net::kDisconnected, session_id_, yaze::net::IWebSocket::state_, and StopReceiveLoop().

Referenced by ~HttpLibWebSocket().

Here is the call graph for this function:

◆ GetState()

WebSocketState yaze::net::HttpLibWebSocket::GetState ( ) const

inlineoverridevirtual

Get the current connection state.

Returns: Current WebSocket state

Implements yaze::net::IWebSocket.

Definition at line 67 of file httplib_websocket.h.

References yaze::net::IWebSocket::state_.

◆ OnMessage()

void yaze::net::HttpLibWebSocket::OnMessage ( MessageCallback callback )

inlineoverridevirtual

Set callback for text message events.

Parameters

callback Function to call when a text message is received

Implements yaze::net::IWebSocket.

Definition at line 73 of file httplib_websocket.h.

References yaze::net::IWebSocket::message_callback_.

◆ OnBinaryMessage()

void yaze::net::HttpLibWebSocket::OnBinaryMessage ( BinaryMessageCallback callback )

inlineoverridevirtual

Set callback for binary message events.

Parameters

callback Function to call when binary data is received

Reimplemented from yaze::net::IWebSocket.

Definition at line 81 of file httplib_websocket.h.

References yaze::net::IWebSocket::binary_message_callback_.

◆ OnOpen()

void yaze::net::HttpLibWebSocket::OnOpen ( OpenCallback callback )

inlineoverridevirtual

Set callback for connection open events.

Parameters

callback Function to call when connection is established

Implements yaze::net::IWebSocket.

Definition at line 89 of file httplib_websocket.h.

References yaze::net::IWebSocket::open_callback_.

◆ OnClose()

void yaze::net::HttpLibWebSocket::OnClose ( CloseCallback callback )

inlineoverridevirtual

Set callback for connection close events.

Parameters

callback Function to call when connection is closed

Implements yaze::net::IWebSocket.

Definition at line 97 of file httplib_websocket.h.

References yaze::net::IWebSocket::close_callback_.

◆ OnError()

void yaze::net::HttpLibWebSocket::OnError ( ErrorCallback callback )

inlineoverridevirtual

Set callback for error events.

Parameters

callback Function to call when an error occurs

Implements yaze::net::IWebSocket.

Definition at line 105 of file httplib_websocket.h.

References yaze::net::IWebSocket::error_callback_.

◆ ParseWebSocketUrl()

absl::Status yaze::net::HttpLibWebSocket::ParseWebSocketUrl	(	const std::string &	ws_url,
		std::string &	http_url )

private

Parse WebSocket URL into HTTP components.

Parameters

ws_url	WebSocket URL (ws:// or wss://)
http_url	Output: Converted HTTP URL

Returns: Status indicating success or failure

Definition at line 26 of file httplib_websocket.cc.

References yaze::net::IWebSocket::url_.

Referenced by Connect().

◆ ReceiveLoop()

void yaze::net::HttpLibWebSocket::ReceiveLoop ( )

private

Background thread for receiving messages (polling)

Definition at line 219 of file httplib_websocket.cc.

References client_, yaze::net::IWebSocket::error_callback_, yaze::net::kConnected, yaze::net::IWebSocket::message_callback_, session_id_, yaze::net::IWebSocket::state_, and stop_receive_.

Referenced by Connect().

◆ StopReceiveLoop()

void yaze::net::HttpLibWebSocket::StopReceiveLoop ( )

private

Stop the receive loop.

Definition at line 265 of file httplib_websocket.cc.

References receive_thread_, and stop_receive_.

Referenced by Close().

Member Data Documentation

◆ client_

std::shared_ptr<httplib::Client> yaze::net::HttpLibWebSocket::client_

private

Definition at line 130 of file httplib_websocket.h.

Referenced by Close(), Connect(), ReceiveLoop(), Send(), and SendBinary().

◆ receive_thread_

std::thread yaze::net::HttpLibWebSocket::receive_thread_

private

Definition at line 133 of file httplib_websocket.h.

Referenced by Connect(), and StopReceiveLoop().

◆ stop_receive_

std::atomic<bool> yaze::net::HttpLibWebSocket::stop_receive_

private

Definition at line 134 of file httplib_websocket.h.

Referenced by Connect(), ReceiveLoop(), and StopReceiveLoop().

◆ session_id_

std::string yaze::net::HttpLibWebSocket::session_id_

private

Definition at line 137 of file httplib_websocket.h.

Referenced by Close(), Connect(), ReceiveLoop(), Send(), and SendBinary().

◆ http_endpoint_

std::string yaze::net::HttpLibWebSocket::http_endpoint_

private

Definition at line 138 of file httplib_websocket.h.

Referenced by Connect().

The documentation for this class was generated from the following files:

src/app/net/native/httplib_websocket.h
src/app/net/native/httplib_websocket.cc
