Comprehensive BPP format management system for SNES ROM hacking. More...

#include <bpp_format_manager.h>

Public Member Functions
void	Initialize ()
	Initialize the BPP format manager.

const BppFormatInfo &	GetFormatInfo (BppFormat format) const
	Get BPP format information.

std::vector< BppFormat >	GetAvailableFormats () const
	Get all available BPP formats.

std::vector< uint8_t >	ConvertFormat (const std::vector< uint8_t > &data, BppFormat from_format, BppFormat to_format, int width, int height)
	Convert bitmap data between BPP formats.

GraphicsSheetAnalysis	AnalyzeGraphicsSheet (const std::vector< uint8_t > &sheet_data, int sheet_id, const SnesPalette &palette)
	Analyze graphics sheet to determine original and current BPP formats.

BppFormat	DetectFormat (const std::vector< uint8_t > &data, int width, int height)
	Detect BPP format from bitmap data.

SnesPalette	OptimizePaletteForFormat (const SnesPalette &palette, BppFormat target_format, const std::vector< int > &used_colors)
	Optimize palette for specific BPP format.

std::unordered_map< std::string, int >	GetConversionStats () const
	Get conversion statistics.

void	ClearCache ()
	Clear conversion cache.

std::pair< size_t, size_t >	GetMemoryStats () const
	Get memory usage statistics.

Static Public Member Functions
static BppFormatManager &	Get ()

Private Member Functions
	BppFormatManager ()=default

	~BppFormatManager ()=default

void	InitializeFormatInfo ()

std::string	GenerateCacheKey (const std::vector< uint8_t > &data, BppFormat from_format, BppFormat to_format, int width, int height)

BppFormat	AnalyzeColorDepth (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert2BppTo8Bpp (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert3BppTo8Bpp (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert4BppTo8Bpp (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert8BppTo2Bpp (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert8BppTo3Bpp (const std::vector< uint8_t > &data, int width, int height)

std::vector< uint8_t >	Convert8BppTo4Bpp (const std::vector< uint8_t > &data, int width, int height)

int	CountUsedColors (const std::vector< uint8_t > &data, int max_colors)

float	CalculateCompressionRatio (const std::vector< uint8_t > &original, const std::vector< uint8_t > &compressed)

std::vector< int >	AnalyzeTileUsagePattern (const std::vector< uint8_t > &data, int width, int height, int tile_size)

Private Attributes
std::unordered_map< BppFormat, BppFormatInfo >	format_info_

std::unordered_map< std::string, std::vector< uint8_t > >	conversion_cache_

std::unordered_map< int, GraphicsSheetAnalysis >	analysis_cache_

std::unordered_map< std::string, int >	conversion_stats_

size_t	cache_memory_usage_

size_t	max_cache_size_

Detailed Description

Comprehensive BPP format management system for SNES ROM hacking.

The BppFormatManager provides advanced BPP format handling, conversion, and analysis capabilities specifically designed for Link to the Past ROM hacking workflows.

Key Features:

Multi-format BPP support (2BPP, 3BPP, 4BPP, 8BPP)
Intelligent format detection and analysis
High-performance format conversion with caching
Graphics sheet analysis and conversion history tracking
Palette depth analysis and optimization
Memory-efficient conversion algorithms

Performance Optimizations:

Cached conversion results to avoid redundant processing
SIMD-optimized conversion algorithms where possible
Lazy evaluation for expensive analysis operations
Memory pool integration for efficient temporary allocations

ROM Hacking Specific:

SNES-specific BPP format handling
Graphics sheet format analysis and conversion tracking
Palette optimization based on actual color usage
Integration with existing YAZE graphics pipeline

Definition at line 109 of file bpp_format_manager.h.

Constructor & Destructor Documentation

◆ BppFormatManager()

yaze::gfx::BppFormatManager::BppFormatManager ( )

privatedefault

◆ ~BppFormatManager()

yaze::gfx::BppFormatManager::~BppFormatManager ( )

privatedefault

Member Function Documentation

◆ Get()

BppFormatManager & yaze::gfx::BppFormatManager::Get ( )

static

Definition at line 14 of file bpp_format_manager.cc.

Referenced by yaze::gfx::AtlasRenderer::AddBitmap(), yaze::gfx::AtlasRenderer::AddBitmapWithBppOptimization(), yaze::gfx::GraphicsOptimizer::AnalyzeSheet(), yaze::gfx::GraphicsOptimizer::ApplyOptimizations(), yaze::gfx::GraphicsOptimizer::CalculateMemorySavings(), yaze::gui::BppComparisonTool::CalculateMetrics(), yaze::gfx::BppConversionScope::Convert(), yaze::gui::Canvas::ConvertBitmapFormat(), yaze::gui::BppComparisonTool::GenerateComparisons(), yaze::gfx::GraphicsOptimizer::GenerateOptimizationReason(), yaze::gui::Canvas::GetCurrentBppFormat(), yaze::gui::BppFormatUI::GetFormatDescription(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppComparisonTool::RenderComparisonGrid(), yaze::gui::BppFormatUI::RenderConversionPreview(), yaze::gui::BppConversionDialog::RenderFormatSelector(), yaze::gui::BppFormatUI::RenderFormatSelector(), yaze::gui::BppComparisonTool::RenderMetrics(), yaze::gui::BppFormatUI::RenderSheetAnalysis(), and yaze::gui::BppConversionDialog::UpdatePreview().

◆ Initialize()

void yaze::gfx::BppFormatManager::Initialize ( )

Initialize the BPP format manager.

Definition at line 19 of file bpp_format_manager.cc.

References cache_memory_usage_, InitializeFormatInfo(), and max_cache_size_.

Here is the call graph for this function:

◆ GetFormatInfo()

const BppFormatInfo & yaze::gfx::BppFormatManager::GetFormatInfo ( BppFormat format ) const

Get BPP format information.

Parameters

format BPP format to get info for

Returns: Format information structure

Definition at line 44 of file bpp_format_manager.cc.

References format_info_.

Referenced by AnalyzeGraphicsSheet(), yaze::gfx::GraphicsOptimizer::AnalyzeSheet(), yaze::gfx::GraphicsOptimizer::CalculateMemorySavings(), yaze::gui::BppComparisonTool::CalculateMetrics(), yaze::gfx::GraphicsOptimizer::GenerateOptimizationReason(), yaze::gui::BppFormatUI::GetFormatDescription(), OptimizePaletteForFormat(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppComparisonTool::RenderComparisonGrid(), yaze::gui::BppFormatUI::RenderConversionPreview(), yaze::gui::BppConversionDialog::RenderFormatSelector(), yaze::gui::BppFormatUI::RenderFormatSelector(), and yaze::gui::BppComparisonTool::RenderMetrics().

◆ GetAvailableFormats()

std::vector< BppFormat > yaze::gfx::BppFormatManager::GetAvailableFormats ( ) const

Get all available BPP formats.

Returns: Vector of all supported BPP formats

Definition at line 52 of file bpp_format_manager.cc.

References yaze::gfx::kBpp2, yaze::gfx::kBpp3, yaze::gfx::kBpp4, and yaze::gfx::kBpp8.

Referenced by yaze::gui::BppComparisonTool::GenerateComparisons(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppComparisonTool::RenderComparisonGrid(), and yaze::gui::BppComparisonTool::RenderMetrics().

◆ ConvertFormat()

std::vector< uint8_t > yaze::gfx::BppFormatManager::ConvertFormat	(	const std::vector< uint8_t > &	data,
		BppFormat	from_format,
		BppFormat	to_format,
		int	width,
		int	height )

Convert bitmap data between BPP formats.

Parameters

data	Source bitmap data
from_format	Source BPP format
to_format	Target BPP format
width	Bitmap width
height	Bitmap height

Returns: Converted bitmap data

Definition at line 57 of file bpp_format_manager.cc.

References cache_memory_usage_, conversion_cache_, conversion_stats_, Convert2BppTo8Bpp(), Convert3BppTo8Bpp(), Convert4BppTo8Bpp(), Convert8BppTo2Bpp(), Convert8BppTo3Bpp(), Convert8BppTo4Bpp(), GenerateCacheKey(), yaze::gfx::kBpp2, yaze::gfx::kBpp3, yaze::gfx::kBpp4, yaze::gfx::kBpp8, and max_cache_size_.

Referenced by yaze::gfx::AtlasRenderer::AddBitmapWithBppOptimization(), yaze::gfx::GraphicsOptimizer::ApplyOptimizations(), yaze::gfx::BppConversionScope::Convert(), yaze::gui::Canvas::ConvertBitmapFormat(), yaze::gui::BppComparisonTool::GenerateComparisons(), yaze::gui::BppFormatUI::RenderConversionPreview(), and yaze::gui::BppConversionDialog::UpdatePreview().

◆ AnalyzeGraphicsSheet()

GraphicsSheetAnalysis yaze::gfx::BppFormatManager::AnalyzeGraphicsSheet	(	const std::vector< uint8_t > &	sheet_data,
		int	sheet_id,
		const SnesPalette &	palette )

Analyze graphics sheet to determine original and current BPP formats.

Parameters

sheet_data	Graphics sheet data
sheet_id	Sheet identifier
palette	Palette data for analysis

Returns: Analysis result with format information

Definition at line 128 of file bpp_format_manager.cc.

Referenced by yaze::gui::BppFormatUI::RenderSheetAnalysis().

◆ DetectFormat()

BppFormat yaze::gfx::BppFormatManager::DetectFormat	(	const std::vector< uint8_t > &	data,
		int	width,
		int	height )

Detect BPP format from bitmap data.

Parameters

data	Bitmap data to analyze
width	Bitmap width
height	Bitmap height

Returns: Detected BPP format

Definition at line 192 of file bpp_format_manager.cc.

References AnalyzeColorDepth(), and yaze::gfx::kBpp8.

Referenced by yaze::gfx::AtlasRenderer::AddBitmap(), yaze::gfx::AtlasRenderer::AddBitmapWithBppOptimization(), AnalyzeGraphicsSheet(), yaze::gfx::GraphicsOptimizer::AnalyzeSheet(), yaze::gui::BppComparisonTool::GenerateComparisons(), yaze::gui::Canvas::GetCurrentBppFormat(), yaze::gui::BppFormatUI::RenderAnalysisPanel(), yaze::gui::BppFormatUI::RenderConversionPreview(), yaze::gui::BppFormatUI::RenderFormatSelector(), and yaze::gui::BppConversionDialog::UpdatePreview().

Here is the call graph for this function:

◆ OptimizePaletteForFormat()

SnesPalette yaze::gfx::BppFormatManager::OptimizePaletteForFormat	(	const SnesPalette &	palette,
		BppFormat	target_format,
		const std::vector< int > &	used_colors )

Optimize palette for specific BPP format.

Parameters

palette	Source palette
target_format	Target BPP format
used_colors	Vector of actually used color indices

Returns: Optimized palette

Definition at line 202 of file bpp_format_manager.cc.

References yaze::gfx::SnesPalette::AddColor(), GetFormatInfo(), and yaze::gfx::SnesPalette::size().

Referenced by yaze::gfx::GraphicsOptimizer::ApplyOptimizations().

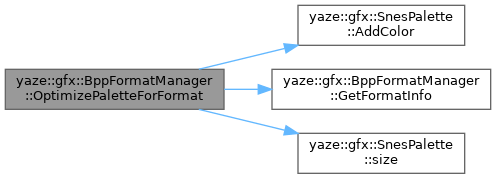

Here is the call graph for this function:

◆ GetConversionStats()

std::unordered_map< std::string, int > yaze::gfx::BppFormatManager::GetConversionStats ( ) const

Get conversion statistics.

Returns: Map of conversion operation statistics

Definition at line 232 of file bpp_format_manager.cc.

References conversion_stats_.

◆ ClearCache()

void yaze::gfx::BppFormatManager::ClearCache ( )

Clear conversion cache.

Definition at line 237 of file bpp_format_manager.cc.

References analysis_cache_, cache_memory_usage_, yaze::gfx::SnesPalette::clear(), conversion_cache_, and conversion_stats_.

Here is the call graph for this function:

◆ GetMemoryStats()

std::pair< size_t, size_t > yaze::gfx::BppFormatManager::GetMemoryStats ( ) const

Get memory usage statistics.

Returns: Memory usage information

Definition at line 244 of file bpp_format_manager.cc.

References cache_memory_usage_, and max_cache_size_.

◆ InitializeFormatInfo()

void yaze::gfx::BppFormatManager::InitializeFormatInfo ( )

private

Definition at line 25 of file bpp_format_manager.cc.

References format_info_, yaze::gfx::kBpp2, yaze::gfx::kBpp3, yaze::gfx::kBpp4, and yaze::gfx::kBpp8.

Referenced by Initialize().

◆ GenerateCacheKey()

std::string yaze::gfx::BppFormatManager::GenerateCacheKey	(	const std::vector< uint8_t > &	data,
		BppFormat	from_format,
		BppFormat	to_format,
		int	width,
		int	height )
