widget_auto_register.h File Reference

Automatic widget registration helpers for ImGui Test Engine integration. More...

#include <string>
#include "imgui/imgui.h"
#include "app/gui/automation/widget_id_registry.h"
#include "absl/strings/str_cat.h"

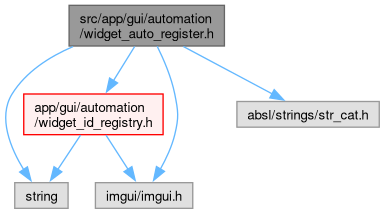

Include dependency graph for widget_auto_register.h:

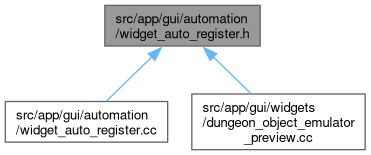

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	yaze::gui::AutoWidgetScope
	RAII scope that enables automatic widget registration. More...

Namespaces
namespace	yaze
	Main namespace for the application.
namespace	yaze::gui
	Graphical User Interface (GUI) components for the application.

Functions
void	yaze::gui::AutoRegisterLastItem (const std::string &widget_type, const std::string &explicit_label="", const std::string &description="")
	Automatically register the last ImGui item.
bool	yaze::gui::AutoButton (const char *label, const ImVec2 &size=ImVec2(0, 0))
bool	yaze::gui::AutoSmallButton (const char *label)
bool	yaze::gui::AutoCheckbox (const char *label, bool *v)
bool	yaze::gui::AutoRadioButton (const char *label, bool active)
bool	yaze::gui::AutoRadioButton (const char *label, int *v, int v_button)
bool	yaze::gui::AutoInputText (const char *label, char *buf, size_t buf_size, ImGuiInputTextFlags flags=0, ImGuiInputTextCallback callback=nullptr, void *user_data=nullptr)
bool	yaze::gui::AutoInputTextMultiline (const char *label, char *buf, size_t buf_size, const ImVec2 &size=ImVec2(0, 0), ImGuiInputTextFlags flags=0, ImGuiInputTextCallback callback=nullptr, void *user_data=nullptr)
bool	yaze::gui::AutoInputInt (const char *label, int *v, int step=1, int step_fast=100, ImGuiInputTextFlags flags=0)
bool	yaze::gui::AutoInputFloat (const char *label, float *v, float step=0.0f, float step_fast=0.0f, const char *format="%.3f", ImGuiInputTextFlags flags=0)
bool	yaze::gui::AutoSliderInt (const char *label, int *v, int v_min, int v_max, const char *format="%d", ImGuiSliderFlags flags=0)
bool	yaze::gui::AutoSliderFloat (const char *label, float *v, float v_min, float v_max, const char *format="%.3f", ImGuiSliderFlags flags=0)
bool	yaze::gui::AutoCombo (const char *label, int *current_item, const char *const items[], int items_count, int popup_max_height_in_items=-1)
bool	yaze::gui::AutoSelectable (const char *label, bool selected=false, ImGuiSelectableFlags flags=0, const ImVec2 &size=ImVec2(0, 0))
bool	yaze::gui::AutoSelectable (const char *label, bool *p_selected, ImGuiSelectableFlags flags=0, const ImVec2 &size=ImVec2(0, 0))
bool	yaze::gui::AutoMenuItem (const char *label, const char *shortcut=nullptr, bool selected=false, bool enabled=true)
bool	yaze::gui::AutoMenuItem (const char *label, const char *shortcut, bool *p_selected, bool enabled=true)
bool	yaze::gui::AutoBeginMenu (const char *label, bool enabled=true)
bool	yaze::gui::AutoBeginTabItem (const char *label, bool *p_open=nullptr, ImGuiTabItemFlags flags=0)
bool	yaze::gui::AutoTreeNode (const char *label)
bool	yaze::gui::AutoTreeNodeEx (const char *label, ImGuiTreeNodeFlags flags=0)
bool	yaze::gui::AutoCollapsingHeader (const char *label, ImGuiTreeNodeFlags flags=0)
void	yaze::gui::RegisterCanvas (const char *canvas_name, const std::string &description="")
	Register a canvas widget after BeginChild or similar.
void	yaze::gui::RegisterTable (const char *table_name, const std::string &description="")
	Register a table after BeginTable.

Detailed Description

Automatic widget registration helpers for ImGui Test Engine integration.

This file provides inline wrappers and RAII helpers that automatically register ImGui widgets with the WidgetIdRegistry for test automation.

Usage: { gui::AutoWidgetScope scope("Dungeon/Canvas"); if (gui::AutoButton("Save##DungeonSave")) { // Button clicked } gui::AutoInputText("RoomName", buffer, sizeof(buffer)); }

All widgets created within this scope will be automatically registered with their full hierarchical paths for test harness discovery.

Definition in file widget_auto_register.h.
