yaze::editor::ObjectEditorCard Class Reference

Unified card combining object selection, emulator preview, and canvas interaction. More...

#include <object_editor_card.h>

Public Member Functions

 ObjectEditorCard (gfx::IRenderer *renderer, Rom *rom, DungeonCanvasViewer *canvas_viewer)

void Draw (bool *p_open)

DungeonObjectSelector & object_selector ()

gui::DungeonObjectEmulatorPreview & emulator_preview ()

void SetCurrentRoom (int room_id)


Private Types

enum class  InteractionMode { None , Place , Select , Delete }


Private Member Functions

void DrawObjectSelector ()

void DrawEmulatorPreview ()

void DrawInteractionControls ()

void DrawSelectedObjectInfo ()

void DrawObjectPreviewIcon (int object_id, const ImVec2 &size)


Private Attributes

Rom * rom_

DungeonCanvasViewer * canvas_viewer_

int current_room_id_ = 0

DungeonObjectSelector object_selector_

gui::DungeonObjectEmulatorPreview emulator_preview_

std::unordered_map< int, gui::Canvas > object_preview_canvases_

int selected_tab_ = 0

bool show_emulator_preview_ = false

bool show_object_list_ = true

bool show_interaction_controls_ = true

InteractionMode interaction_mode_ = InteractionMode::None

zelda3::RoomObject preview_object_ {0, 0, 0, 0, 0}

bool has_preview_object_ = false

gfx::IRenderer * renderer_


Detailed Description

Unified card combining object selection, emulator preview, and canvas interaction.

This card replaces three separate components:

  • Object Selector (choosing which object to place)
  • Emulator Preview (seeing how objects look in-game)
  • Object Interaction Controls (placing, selecting, deleting objects)

It provides a complete workflow for managing dungeon objects in one place.

Definition at line 29 of file object_editor_card.h.

Member Enumeration Documentation

◆ InteractionMode

enum class yaze::editor::ObjectEditorCard::InteractionMode
strongprivate
Enumerator
None
Place
Select
Delete

Definition at line 68 of file object_editor_card.h.

Constructor & Destructor Documentation

◆ ObjectEditorCard()

yaze::editor::ObjectEditorCard::ObjectEditorCard ( gfx::IRenderer *  renderer,
Rom *  rom,
DungeonCanvasViewer *  canvas_viewer
)

Definition at line 11 of file object_editor_card.cc.

References emulator_preview_, and yaze::gui::DungeonObjectEmulatorPreview::Initialize().

Here is the call graph for this function:

Member Function Documentation

◆ Draw()

void yaze::editor::ObjectEditorCard::Draw ( bool *  p_open)

Definition at line 16 of file object_editor_card.cc.

References yaze::gui::EditorCard::Begin(), canvas_viewer_, yaze::editor::DungeonCanvasViewer::ClearPreviewObject(), Delete, DrawEmulatorPreview(), DrawObjectSelector(), DrawSelectedObjectInfo(), yaze::gui::EditorCard::End(), has_preview_object_, ICON_MD_CONSTRUCTION, ICON_MD_LIST, ICON_MD_MONITOR, interaction_mode_, None, Place, preview_object_, yaze::gui::EditorCard::Right, Select, yaze::gui::EditorCard::SetDefaultSize(), yaze::editor::DungeonCanvasViewer::SetObjectInteractionEnabled(), yaze::gui::EditorCard::SetPosition(), and yaze::editor::DungeonCanvasViewer::SetPreviewObject().

◆ object_selector()

DungeonObjectSelector & yaze::editor::ObjectEditorCard::object_selector ( )
inline

Definition at line 37 of file object_editor_card.h.

References object_selector_.

◆ emulator_preview()

gui::DungeonObjectEmulatorPreview & yaze::editor::ObjectEditorCard::emulator_preview ( )
inline

Definition at line 38 of file object_editor_card.h.

References emulator_preview_.

◆ SetCurrentRoom()

void yaze::editor::ObjectEditorCard::SetCurrentRoom ( int  room_id)
inline

Definition at line 41 of file object_editor_card.h.

References current_room_id_.

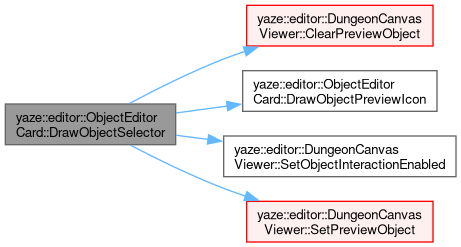

◆ DrawObjectSelector()

void yaze::editor::ObjectEditorCard::DrawObjectSelector ( )
private

Definition at line 81 of file object_editor_card.cc.

References canvas_viewer_, yaze::editor::DungeonCanvasViewer::ClearPreviewObject(), DrawObjectPreviewIcon(), has_preview_object_, ICON_MD_BORDER_ALL, ICON_MD_BORDER_VERTICAL, ICON_MD_CLEAR, ICON_MD_GRID_ON, ICON_MD_INFO, ICON_MD_SEARCH, ICON_MD_STAR, yaze::zelda3::RoomObject::id_, interaction_mode_, None, Place, preview_object_, yaze::editor::DungeonCanvasViewer::SetObjectInteractionEnabled(), and yaze::editor::DungeonCanvasViewer::SetPreviewObject().

Referenced by Draw().

Here is the call graph for this function:

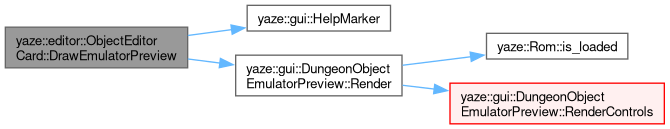

◆ DrawEmulatorPreview()

void yaze::editor::ObjectEditorCard::DrawEmulatorPreview ( )
private

Definition at line 202 of file object_editor_card.cc.

References emulator_preview_, yaze::gui::HelpMarker(), ICON_MD_INFO, ICON_MD_PREVIEW, yaze::gui::DungeonObjectEmulatorPreview::Render(), and show_emulator_preview_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawInteractionControls()

void yaze::editor::ObjectEditorCard::DrawInteractionControls ( )
private

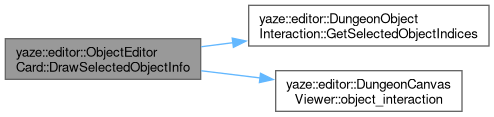

◆ DrawSelectedObjectInfo()

void yaze::editor::ObjectEditorCard::DrawSelectedObjectInfo ( )
private

Definition at line 270 of file object_editor_card.cc.

References yaze::zelda3::RoomObject::BG1, yaze::zelda3::RoomObject::BG2, canvas_viewer_, Delete, yaze::editor::DungeonObjectInteraction::GetSelectedObjectIndices(), has_preview_object_, ICON_MD_ADD_BOX, ICON_MD_CHECK_BOX, ICON_MD_CHECKLIST, ICON_MD_CLEAR, ICON_MD_DELETE, ICON_MD_INFO, yaze::zelda3::RoomObject::id_, interaction_mode_, yaze::zelda3::RoomObject::layer_, yaze::editor::DungeonCanvasViewer::object_interaction(), Place, preview_object_, and Select.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawObjectPreviewIcon()

void yaze::editor::ObjectEditorCard::DrawObjectPreviewIcon ( int  object_id,
const ImVec2 &  size
)
private

Definition at line 232 of file object_editor_card.cc.

Referenced by DrawObjectSelector().

Member Data Documentation

◆ rom_

Rom* yaze::editor::ObjectEditorCard::rom_
private

Definition at line 50 of file object_editor_card.h.

◆ canvas_viewer_

DungeonCanvasViewer* yaze::editor::ObjectEditorCard::canvas_viewer_
private

Definition at line 51 of file object_editor_card.h.

Referenced by Draw(), DrawObjectSelector(), and DrawSelectedObjectInfo().

◆ current_room_id_

int yaze::editor::ObjectEditorCard::current_room_id_ = 0
private

Definition at line 52 of file object_editor_card.h.

Referenced by SetCurrentRoom().

◆ object_selector_

DungeonObjectSelector yaze::editor::ObjectEditorCard::object_selector_
private

Definition at line 55 of file object_editor_card.h.

Referenced by object_selector().

◆ emulator_preview_

gui::DungeonObjectEmulatorPreview yaze::editor::ObjectEditorCard::emulator_preview_
private

Definition at line 56 of file object_editor_card.h.

Referenced by DrawEmulatorPreview(), emulator_preview(), and ObjectEditorCard().

◆ object_preview_canvases_

std::unordered_map<int, gui::Canvas> yaze::editor::ObjectEditorCard::object_preview_canvases_
private

Definition at line 59 of file object_editor_card.h.

◆ selected_tab_

int yaze::editor::ObjectEditorCard::selected_tab_ = 0
private

Definition at line 62 of file object_editor_card.h.

◆ show_emulator_preview_

bool yaze::editor::ObjectEditorCard::show_emulator_preview_ = false
private

Definition at line 63 of file object_editor_card.h.

Referenced by DrawEmulatorPreview().

◆ show_object_list_

bool yaze::editor::ObjectEditorCard::show_object_list_ = true
private

Definition at line 64 of file object_editor_card.h.

◆ show_interaction_controls_

bool yaze::editor::ObjectEditorCard::show_interaction_controls_ = true
private

Definition at line 65 of file object_editor_card.h.

◆ interaction_mode_

InteractionMode yaze::editor::ObjectEditorCard::interaction_mode_ = InteractionMode::None
private

Definition at line 74 of file object_editor_card.h.

Referenced by Draw(), DrawObjectSelector(), and DrawSelectedObjectInfo().

◆ preview_object_

zelda3::RoomObject yaze::editor::ObjectEditorCard::preview_object_ {0, 0, 0, 0, 0}
private

Definition at line 77 of file object_editor_card.h.

Referenced by Draw(), DrawObjectSelector(), and DrawSelectedObjectInfo().

◆ has_preview_object_

bool yaze::editor::ObjectEditorCard::has_preview_object_ = false
private

Definition at line 78 of file object_editor_card.h.

Referenced by Draw(), DrawObjectSelector(), and DrawSelectedObjectInfo().

◆ renderer_

gfx::IRenderer* yaze::editor::ObjectEditorCard::renderer_
private

Definition at line 79 of file object_editor_card.h.

The documentation for this class was generated from the following files:
