Modern C++ wrapper for Asar 65816 assembler integration. More...

#include <asar_wrapper.h>

Public Member Functions
	AsarWrapper ()

	~AsarWrapper ()

	AsarWrapper (const AsarWrapper &)=delete

AsarWrapper &	operator= (const AsarWrapper &)=delete

	AsarWrapper (AsarWrapper &&)=default

AsarWrapper &	operator= (AsarWrapper &&)=default

absl::Status	Initialize ()
	Initialize the Asar library.

void	Shutdown ()
	Clean up and close the Asar library.

bool	IsInitialized () const
	Check if Asar is initialized and ready.

std::string	GetVersion () const
	Get Asar version information.

int	GetApiVersion () const
	Get Asar API version.

absl::StatusOr< AsarPatchResult >	ApplyPatch (const std::string &patch_path, std::vector< uint8_t > &rom_data, const std::vector< std::string > &include_paths={})
	Apply an assembly patch to a ROM.

absl::StatusOr< AsarPatchResult >	ApplyPatchFromString (const std::string &patch_content, std::vector< uint8_t > &rom_data, const std::string &base_path="")
	Apply an assembly patch from string content.

absl::StatusOr< std::vector< AsarSymbol > >	ExtractSymbols (const std::string &asm_path, const std::vector< std::string > &include_paths={})
	Extract symbols from an assembly file without patching.

std::map< std::string, AsarSymbol >	GetSymbolTable () const
	Get all available symbols from the last patch operation.

std::optional< AsarSymbol >	FindSymbol (const std::string &name) const
	Find a symbol by name.

std::vector< AsarSymbol >	GetSymbolsAtAddress (uint32_t address) const
	Get symbols at a specific address.

void	Reset ()
	Reset the Asar state (clear errors, warnings, symbols)

std::vector< std::string >	GetLastErrors () const
	Get the last error messages.

std::vector< std::string >	GetLastWarnings () const
	Get the last warning messages.

absl::Status	CreatePatch (const std::vector< uint8_t > &original_rom, const std::vector< uint8_t > &modified_rom, const std::string &patch_path)
	Create a patch that can be applied to transform one ROM to another.

absl::Status	ValidateAssembly (const std::string &asm_path)
	Validate an assembly file for syntax errors.

Private Member Functions
void	ProcessErrors ()
	Process errors from Asar and store them.

void	ProcessWarnings ()
	Process warnings from Asar and store them.

void	ExtractSymbolsFromLastOperation ()
	Extract symbols from the last Asar operation.

AsarSymbol	ConvertAsarSymbol (const void *asar_symbol_data) const
	Convert Asar symbol data to AsarSymbol struct.

Private Attributes
bool	initialized_

std::map< std::string, AsarSymbol >	symbol_table_

std::vector< std::string >	last_errors_

std::vector< std::string >	last_warnings_

Detailed Description

Modern C++ wrapper for Asar 65816 assembler integration.

This class provides a high-level interface for:

Patching ROMs with assembly code
Extracting symbol names and opcodes
Cross-platform compatibility (Windows, macOS, Linux)

Definition at line 48 of file asar_wrapper.h.

Constructor & Destructor Documentation

◆ AsarWrapper() [1/3]

yaze::core::AsarWrapper::AsarWrapper ( )

Definition at line 17 of file asar_wrapper.cc.

◆ ~AsarWrapper()

yaze::core::AsarWrapper::~AsarWrapper ( )

Definition at line 19 of file asar_wrapper.cc.

References initialized_, and Shutdown().

Here is the call graph for this function:

◆ AsarWrapper() [2/3]

yaze::core::AsarWrapper::AsarWrapper ( const AsarWrapper & )

delete

◆ AsarWrapper() [3/3]

yaze::core::AsarWrapper::AsarWrapper ( AsarWrapper && )

default

Member Function Documentation

◆ operator=() [1/2]

AsarWrapper & yaze::core::AsarWrapper::operator= ( const AsarWrapper & )

delete

◆ operator=() [2/2]

AsarWrapper & yaze::core::AsarWrapper::operator= ( AsarWrapper && )

default

◆ Initialize()

absl::Status yaze::core::AsarWrapper::Initialize ( )

Initialize the Asar library.

Returns: Status indicating success or failure

Definition at line 25 of file asar_wrapper.cc.

References initialized_.

◆ Shutdown()

void yaze::core::AsarWrapper::Shutdown ( )

Clean up and close the Asar library.

Definition at line 41 of file asar_wrapper.cc.

References initialized_.

Referenced by ~AsarWrapper().

◆ IsInitialized()

bool yaze::core::AsarWrapper::IsInitialized ( ) const

inline

Check if Asar is initialized and ready.

Returns: True if initialized, false otherwise

Definition at line 76 of file asar_wrapper.h.

References initialized_.

◆ GetVersion()

std::string yaze::core::AsarWrapper::GetVersion ( ) const

Get Asar version information.

Returns: Version string

Definition at line 48 of file asar_wrapper.cc.

References initialized_.

◆ GetApiVersion()

int yaze::core::AsarWrapper::GetApiVersion ( ) const

Get Asar API version.

Returns: API version number

Definition at line 61 of file asar_wrapper.cc.

References initialized_.

◆ ApplyPatch()

absl::StatusOr< AsarPatchResult > yaze::core::AsarWrapper::ApplyPatch	(	const std::string &	patch_path,
		std::vector< uint8_t > &	rom_data,
		const std::vector< std::string > &	include_paths = `{}`
	)

Apply an assembly patch to a ROM.

Parameters

patch_path	Path to the .asm patch file
rom_data	ROM data to patch (will be modified)
include_paths	Additional include paths for assembly files

Returns: Patch result with status and extracted information

Todo:: Implement CRC32 calculation

Definition at line 68 of file asar_wrapper.cc.

References yaze::core::AsarPatchResult::crc32, yaze::core::AsarPatchResult::errors, ExtractSymbolsFromLastOperation(), initialized_, last_errors_, last_warnings_, ProcessErrors(), ProcessWarnings(), Reset(), yaze::core::AsarPatchResult::rom_size, yaze::core::AsarPatchResult::success, symbol_table_, yaze::core::AsarPatchResult::symbols, and yaze::core::AsarPatchResult::warnings.

Referenced by ApplyPatchFromString(), ExtractSymbols(), and ValidateAssembly().

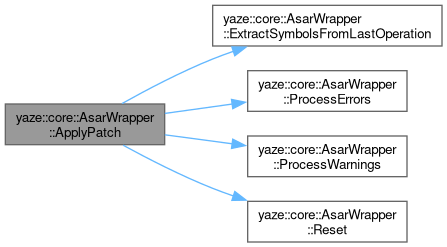

Here is the call graph for this function:

◆ ApplyPatchFromString()

absl::StatusOr< AsarPatchResult > yaze::core::AsarWrapper::ApplyPatchFromString	(	const std::string &	patch_content,
		std::vector< uint8_t > &	rom_data,
		const std::string &	base_path = `""`
	)

Apply an assembly patch from string content.

Parameters

patch_content	Assembly source code as string
rom_data	ROM data to patch (will be modified)
base_path	Base path for resolving includes

Returns: Patch result with status and extracted information

Definition at line 130 of file asar_wrapper.cc.

References ApplyPatch().

Here is the call graph for this function:

◆ ExtractSymbols()

absl::StatusOr< std::vector< AsarSymbol > > yaze::core::AsarWrapper::ExtractSymbols	(	const std::string &	asm_path,
		const std::vector< std::string > &	include_paths = `{}`
	)

Extract symbols from an assembly file without patching.

Parameters

asm_path	Path to the assembly file
include_paths	Additional include paths

Returns: Vector of extracted symbols

Definition at line 160 of file asar_wrapper.cc.

References ApplyPatch(), and initialized_.

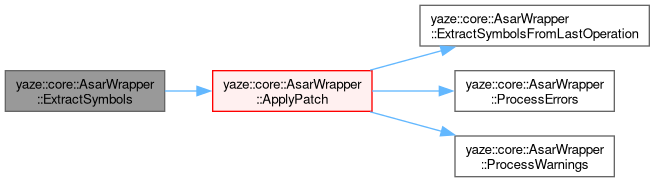

Here is the call graph for this function:

◆ GetSymbolTable()

std::map< std::string, AsarSymbol > yaze::core::AsarWrapper::GetSymbolTable ( ) const

Get all available symbols from the last patch operation.

Returns: Map of symbol names to symbol information

Definition at line 179 of file asar_wrapper.cc.

References symbol_table_.

◆ FindSymbol()

std::optional< AsarSymbol > yaze::core::AsarWrapper::FindSymbol ( const std::string & name ) const

Find a symbol by name.

Parameters

name	Symbol name to search for

Returns: Symbol information if found

Definition at line 183 of file asar_wrapper.cc.

References symbol_table_.

◆ GetSymbolsAtAddress()

std::vector< AsarSymbol > yaze::core::AsarWrapper::GetSymbolsAtAddress ( uint32_t address ) const

Get symbols at a specific address.

Parameters

address Memory address to search

Returns: Vector of symbols at that address

Definition at line 191 of file asar_wrapper.cc.

References symbol_table_.

◆ Reset()

void yaze::core::AsarWrapper::Reset ( )

Reset the Asar state (clear errors, warnings, symbols)

Definition at line 201 of file asar_wrapper.cc.

References initialized_, last_errors_, last_warnings_, and symbol_table_.

Referenced by ApplyPatch().

◆ GetLastErrors()

std::vector< std::string > yaze::core::AsarWrapper::GetLastErrors ( ) const

inline

Get the last error messages.

Returns: Vector of error strings

Definition at line 153 of file asar_wrapper.h.

References last_errors_.

◆ GetLastWarnings()

std::vector< std::string > yaze::core::AsarWrapper::GetLastWarnings ( ) const

inline

Get the last warning messages.

Returns: Vector of warning strings

Definition at line 159 of file asar_wrapper.h.

References last_warnings_.

◆ CreatePatch()

absl::Status yaze::core::AsarWrapper::CreatePatch	(	const std::vector< uint8_t > &	original_rom,
		const std::vector< uint8_t > &	modified_rom,
		const std::string &	patch_path
	)

Create a patch that can be applied to transform one ROM to another.

Parameters

original_rom	Original ROM data
modified_rom	Modified ROM data
patch_path	Output path for the generated patch

Returns: Status indicating success or failure

Definition at line 210 of file asar_wrapper.cc.

◆ ValidateAssembly()

absl::Status yaze::core::AsarWrapper::ValidateAssembly ( const std::string & asm_path )

Validate an assembly file for syntax errors.

Parameters

asm_path Path to the assembly file

Returns: Status indicating validation result

Definition at line 225 of file asar_wrapper.cc.

References ApplyPatch().

Here is the call graph for this function:

◆ ProcessErrors()

void yaze::core::AsarWrapper::ProcessErrors ( )

private

Process errors from Asar and store them.

Definition at line 243 of file asar_wrapper.cc.

References last_errors_.

Referenced by ApplyPatch().

◆ ProcessWarnings()

void yaze::core::AsarWrapper::ProcessWarnings ( )

private

Process warnings from Asar and store them.

Definition at line 254 of file asar_wrapper.cc.

References last_warnings_.

Referenced by ApplyPatch().

◆ ExtractSymbolsFromLastOperation()

void yaze::core::AsarWrapper::ExtractSymbolsFromLastOperation ( )

private

Extract symbols from the last Asar operation.

Definition at line 265 of file asar_wrapper.cc.

References yaze::core::AsarSymbol::address, yaze::core::AsarSymbol::comment, yaze::core::AsarSymbol::file, yaze::core::AsarSymbol::line, yaze::core::AsarSymbol::name, yaze::core::AsarSymbol::opcode, and symbol_table_.

Referenced by ApplyPatch().

◆ ConvertAsarSymbol()

AsarSymbol yaze::core::AsarWrapper::ConvertAsarSymbol ( const void * asar_symbol_data ) const

private

Convert Asar symbol data to AsarSymbol struct.

Definition at line 285 of file asar_wrapper.cc.

Member Data Documentation

◆ initialized_

bool yaze::core::AsarWrapper::initialized_

private

Definition at line 181 of file asar_wrapper.h.

Referenced by ApplyPatch(), ExtractSymbols(), GetApiVersion(), GetVersion(), Initialize(), IsInitialized(), Reset(), Shutdown(), and ~AsarWrapper().

◆ symbol_table_

std::map<std::string, AsarSymbol> yaze::core::AsarWrapper::symbol_table_

private

Definition at line 182 of file asar_wrapper.h.

Referenced by ApplyPatch(), ExtractSymbolsFromLastOperation(), FindSymbol(), GetSymbolsAtAddress(), GetSymbolTable(), and Reset().

◆ last_errors_

std::vector<std::string> yaze::core::AsarWrapper::last_errors_

private

Definition at line 183 of file asar_wrapper.h.

Referenced by ApplyPatch(), GetLastErrors(), ProcessErrors(), and Reset().

◆ last_warnings_

std::vector<std::string> yaze::core::AsarWrapper::last_warnings_

private

Definition at line 184 of file asar_wrapper.h.

Referenced by ApplyPatch(), GetLastWarnings(), ProcessWarnings(), and Reset().

The documentation for this class was generated from the following files:

src/app/core/asar_wrapper.h
src/app/core/asar_wrapper.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AsarWrapper() [1/3]

◆ ~AsarWrapper()

◆ AsarWrapper() [2/3]

◆ AsarWrapper() [3/3]

Member Function Documentation

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Initialize()

◆ Shutdown()

◆ IsInitialized()

◆ GetVersion()

◆ GetApiVersion()

◆ ApplyPatch()

◆ ApplyPatchFromString()

◆ ExtractSymbols()

◆ GetSymbolTable()

◆ FindSymbol()

◆ GetSymbolsAtAddress()

◆ Reset()

◆ GetLastErrors()

◆ GetLastWarnings()

◆ CreatePatch()

◆ ValidateAssembly()

◆ ProcessErrors()

◆ ProcessWarnings()

◆ ExtractSymbolsFromLastOperation()

◆ ConvertAsarSymbol()

Member Data Documentation

◆ initialized_

◆ symbol_table_

◆ last_errors_

◆ last_warnings_
