yaze::editor::OverworldEntityRenderer Class Reference

Handles visualization of all overworld entities (entrances, exits, items, sprites) More...

#include <overworld_entity_renderer.h>

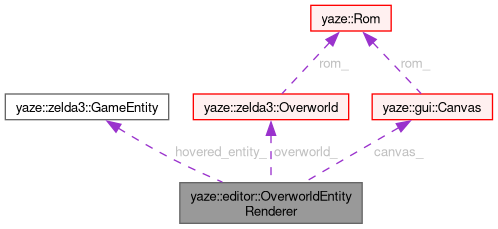

Collaboration diagram for yaze::editor::OverworldEntityRenderer:

Public Member Functions
	OverworldEntityRenderer (zelda3::Overworld *overworld, gui::Canvas *canvas, std::vector< gfx::Bitmap > *sprite_previews)
void	DrawEntrances (ImVec2 canvas_p0, ImVec2 scrolling, int current_world, int current_mode)
void	DrawExits (ImVec2 canvas_p0, ImVec2 scrolling, int current_world, int current_mode)
void	DrawItems (int current_world, int current_mode)
void	DrawSprites (int current_world, int game_state, int current_mode)
auto	hovered_entity () const

Private Attributes
zelda3::GameEntity *	hovered_entity_ = nullptr
zelda3::Overworld *	overworld_
gui::Canvas *	canvas_
std::vector< gfx::Bitmap > *	sprite_previews_

Detailed Description

Handles visualization of all overworld entities (entrances, exits, items, sprites)

This class separates entity rendering logic from the main OverworldEditor, making it easier to maintain and test entity visualization independently.

Definition at line 24 of file overworld_entity_renderer.h.

Constructor & Destructor Documentation

OverworldEntityRenderer()

yaze::editor::OverworldEntityRenderer::OverworldEntityRenderer ( zelda3::Overworld *  overworld, gui::Canvas *  canvas, std::vector< gfx::Bitmap > *  sprite_previews  )

inline

Definition at line 26 of file overworld_entity_renderer.h.

Member Function Documentation

DrawEntrances()

void yaze::editor::OverworldEntityRenderer::DrawEntrances	(	ImVec2	canvas_p0,
		ImVec2	scrolling,
		int	current_world,
		int	current_mode
	)

Definition at line 24 of file overworld_entity_renderer.cc.

References canvas_, yaze::gui::Canvas::DrawRect(), yaze::gui::Canvas::DrawText(), yaze::zelda3::Overworld::entrances(), yaze::util::HexByte(), hovered_entity_, yaze::editor::IsMouseHoveringOverEntity(), and overworld_.

DrawExits()

void yaze::editor::OverworldEntityRenderer::DrawExits	(	ImVec2	canvas_p0,
		ImVec2	scrolling,
		int	current_world,
		int	current_mode
	)

Definition at line 56 of file overworld_entity_renderer.cc.

References canvas_, yaze::gui::Canvas::DrawRect(), yaze::gui::Canvas::DrawText(), yaze::zelda3::GameEntity::entity_id_, yaze::util::HexByte(), hovered_entity_, yaze::editor::IsMouseHoveringOverEntity(), yaze::zelda3::Overworld::mutable_exits(), and overworld_.

DrawItems()

void yaze::editor::OverworldEntityRenderer::DrawItems	(	int	current_world,
		int	current_mode
	)

Definition at line 80 of file overworld_entity_renderer.cc.

References canvas_, yaze::gui::Canvas::DrawRect(), yaze::gui::Canvas::DrawText(), hovered_entity_, yaze::editor::IsMouseHoveringOverEntity(), yaze::zelda3::kSecretItemNames, yaze::zelda3::Overworld::mutable_all_items(), overworld_, yaze::gui::Canvas::scrolling(), and yaze::gui::Canvas::zero_point().

DrawSprites()

void yaze::editor::OverworldEntityRenderer::DrawSprites	(	int	current_world,
		int	game_state,
		int	current_mode
	)

Definition at line 108 of file overworld_entity_renderer.cc.

References canvas_, yaze::gui::Canvas::DrawBitmap(), yaze::gui::Canvas::DrawRect(), yaze::gui::Canvas::DrawText(), yaze::core::FeatureFlags::get(), hovered_entity_, yaze::editor::IsMouseHoveringOverEntity(), yaze::core::FeatureFlags::Flags::Overworld::kDrawOverworldSprites, yaze::zelda3::Overworld::mutable_sprites(), yaze::core::FeatureFlags::Flags::overworld, overworld_, yaze::gui::Canvas::scrolling(), sprite_previews_, and yaze::gui::Canvas::zero_point().

hovered_entity()

auto yaze::editor::OverworldEntityRenderer::hovered_entity ( ) const

inline

Definition at line 39 of file overworld_entity_renderer.h.

References hovered_entity_.

Member Data Documentation

hovered_entity_

zelda3::GameEntity* yaze::editor::OverworldEntityRenderer::hovered_entity_ = nullptr

private

Definition at line 42 of file overworld_entity_renderer.h.

Referenced by DrawEntrances(), DrawExits(), DrawItems(), DrawSprites(), and hovered_entity().

overworld_

zelda3::Overworld* yaze::editor::OverworldEntityRenderer::overworld_

private

Definition at line 43 of file overworld_entity_renderer.h.

Referenced by DrawEntrances(), DrawExits(), DrawItems(), and DrawSprites().

canvas_

gui::Canvas* yaze::editor::OverworldEntityRenderer::canvas_

private

Definition at line 44 of file overworld_entity_renderer.h.

Referenced by DrawEntrances(), DrawExits(), DrawItems(), and DrawSprites().

sprite_previews_

std::vector<gfx::Bitmap>* yaze::editor::OverworldEntityRenderer::sprite_previews_

private

Definition at line 45 of file overworld_entity_renderer.h.

Referenced by DrawSprites().

---

The documentation for this class was generated from the following files:

• src/app/editor/overworld/overworld_entity_renderer.h
• src/app/editor/overworld/overworld_entity_renderer.cc
