Public Member Functions | Private Member Functions | Private Attributes | List of all members
yaze::gui::canvas::CanvasUsageTracker Class Reference

Canvas usage tracking and analysis system. More...

#include <canvas_usage_tracker.h>

Collaboration diagram for yaze::gui::canvas::CanvasUsageTracker:
Collaboration graph
[legend]

Public Member Functions

 CanvasUsageTracker ()=default

void Initialize (const std::string &canvas_id)
 Initialize the usage tracker.

void SetUsageMode (CanvasUsage usage)
 Set the current usage mode.

void RecordInteraction (CanvasInteraction interaction, const std::string &details="")
 Record an interaction.

void RecordOperation (const std::string &operation_name, double time_ms)
 Record operation timing.

void UpdateCanvasState (const ImVec2 &canvas_size, const ImVec2 &content_size, float global_scale, float grid_step, bool enable_grid, bool enable_hex_labels, bool enable_custom_labels)
 Update canvas state.

const CanvasUsageStats & GetCurrentStats () const
 Get current usage statistics.

const std::vector< CanvasUsageStats > & GetUsageHistory () const
 Get usage history.

std::string GetUsageModeName (CanvasUsage usage) const
 Get usage mode name.

ImVec4 GetUsageModeColor (CanvasUsage usage) const
 Get usage mode color for UI.

std::vector< std::string > GetUsageRecommendations () const
 Get usage recommendations.

std::string ExportUsageReport () const
 Export usage report.

void ClearHistory ()
 Clear usage history.

void StartSession ()
 Start session.

void EndSession ()
 End session.


Private Member Functions

void UpdateActiveTime ()

void UpdateIdleTime ()

void SaveCurrentStats ()

double CalculateAverageOperationTime (const std::string &operation_name) const

std::string FormatDuration (const std::chrono::milliseconds &duration) const


Private Attributes

std::string canvas_id_

CanvasUsageStats current_stats_

std::vector< CanvasUsageStats > usage_history_

std::chrono::steady_clock::time_point last_activity_

std::chrono::steady_clock::time_point session_start_

std::vector< std::pair< CanvasInteraction, std::string > > interaction_history_

std::unordered_map< std::string, std::vector< double > > operation_times_


Detailed Description

Canvas usage tracking and analysis system.

Definition at line 98 of file canvas_usage_tracker.h.

Constructor & Destructor Documentation

◆ CanvasUsageTracker()

yaze::gui::canvas::CanvasUsageTracker::CanvasUsageTracker ( )
default

Member Function Documentation

◆ Initialize()

void yaze::gui::canvas::CanvasUsageTracker::Initialize ( const std::string &  canvas_id)

Initialize the usage tracker.

Definition at line 14 of file canvas_usage_tracker.cc.

References canvas_id_, current_stats_, last_activity_, yaze::gui::canvas::CanvasUsageStats::Reset(), yaze::gui::canvas::CanvasUsageStats::session_start, and session_start_.

Here is the call graph for this function:

◆ SetUsageMode()

void yaze::gui::canvas::CanvasUsageTracker::SetUsageMode ( CanvasUsage  usage)

Set the current usage mode.

Definition at line 22 of file canvas_usage_tracker.cc.

References canvas_id_, current_stats_, GetUsageModeName(), yaze::gui::canvas::kModeChange, LOG_DEBUG, yaze::gui::canvas::CanvasUsageStats::mode_changes, RecordInteraction(), SaveCurrentStats(), and yaze::gui::canvas::CanvasUsageStats::usage_mode.

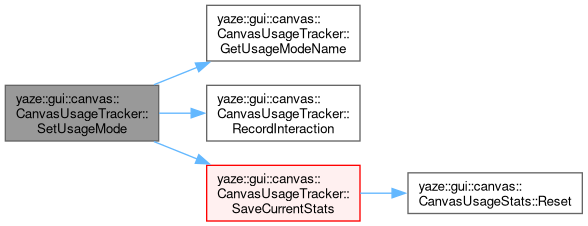

Here is the call graph for this function:

◆ RecordInteraction()

void yaze::gui::canvas::CanvasUsageTracker::RecordInteraction ( CanvasInteraction  interaction,
const std::string &  details = ""
)

Record an interaction.

Definition at line 39 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::context_menu_opens, current_stats_, interaction_history_, yaze::gui::canvas::kContextMenu, yaze::gui::canvas::kModalOpen, yaze::gui::canvas::kModeChange, yaze::gui::canvas::kMouseClick, yaze::gui::canvas::kMouseDrag, yaze::gui::canvas::kToolChange, last_activity_, yaze::gui::canvas::CanvasUsageStats::modal_opens, yaze::gui::canvas::CanvasUsageStats::mode_changes, yaze::gui::canvas::CanvasUsageStats::mouse_clicks, yaze::gui::canvas::CanvasUsageStats::mouse_drags, and yaze::gui::canvas::CanvasUsageStats::tool_changes.

Referenced by RecordOperation(), and SetUsageMode().

◆ RecordOperation()

void yaze::gui::canvas::CanvasUsageTracker::RecordOperation ( const std::string &  operation_name,
double  time_ms
)

Record operation timing.

Definition at line 71 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::average_operation_time_ms, current_stats_, yaze::gui::canvas::kKeyboardInput, yaze::gui::canvas::CanvasUsageStats::max_operation_time_ms, operation_times_, RecordInteraction(), and yaze::gui::canvas::CanvasUsageStats::total_operations.

Here is the call graph for this function:

◆ UpdateCanvasState()

void yaze::gui::canvas::CanvasUsageTracker::UpdateCanvasState ( const ImVec2 &  canvas_size,
const ImVec2 &  content_size,
float  global_scale,
float  grid_step,
bool  enable_grid,
bool  enable_hex_labels,
bool  enable_custom_labels
)

Update canvas state.

Definition at line 99 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::canvas_size, yaze::gui::canvas::CanvasUsageStats::content_size, current_stats_, yaze::gui::canvas::CanvasUsageStats::enable_custom_labels, yaze::gui::canvas::CanvasUsageStats::enable_grid, yaze::gui::canvas::CanvasUsageStats::enable_hex_labels, yaze::gui::canvas::CanvasUsageStats::global_scale, yaze::gui::canvas::CanvasUsageStats::grid_step, and last_activity_.

◆ GetCurrentStats()

const CanvasUsageStats & yaze::gui::canvas::CanvasUsageTracker::GetCurrentStats ( ) const
inline

Get current usage statistics.

Definition at line 138 of file canvas_usage_tracker.h.

References current_stats_.

◆ GetUsageHistory()

const std::vector< CanvasUsageStats > & yaze::gui::canvas::CanvasUsageTracker::GetUsageHistory ( ) const
inline

Get usage history.

Definition at line 143 of file canvas_usage_tracker.h.

References usage_history_.

◆ GetUsageModeName()

std::string yaze::gui::canvas::CanvasUsageTracker::GetUsageModeName ( CanvasUsage  usage) const

Get usage mode name.

Definition at line 120 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::kBitmapEditing, yaze::gui::canvas::kBppConversion, yaze::gui::canvas::kColorPainting, yaze::gui::canvas::kPaletteEditing, yaze::gui::canvas::kPerformanceMode, yaze::gui::canvas::kSelectRectangle, yaze::gui::canvas::kTilePainting, yaze::gui::canvas::kTileSelecting, and yaze::gui::canvas::kUnknown.

Referenced by ExportUsageReport(), and SetUsageMode().

◆ GetUsageModeColor()

ImVec4 yaze::gui::canvas::CanvasUsageTracker::GetUsageModeColor ( CanvasUsage  usage) const

Get usage mode color for UI.

Definition at line 135 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::kBitmapEditing, yaze::gui::canvas::kBppConversion, yaze::gui::canvas::kColorPainting, yaze::gui::canvas::kPaletteEditing, yaze::gui::canvas::kPerformanceMode, yaze::gui::canvas::kSelectRectangle, yaze::gui::canvas::kTilePainting, yaze::gui::canvas::kTileSelecting, and yaze::gui::canvas::kUnknown.

◆ GetUsageRecommendations()

std::vector< std::string > yaze::gui::canvas::CanvasUsageTracker::GetUsageRecommendations ( ) const

Get usage recommendations.

Definition at line 150 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::average_operation_time_ms, yaze::gui::canvas::CanvasUsageStats::context_menu_opens, current_stats_, yaze::gui::canvas::CanvasUsageStats::modal_opens, yaze::gui::canvas::CanvasUsageStats::mode_changes, and yaze::gui::canvas::CanvasUsageStats::mouse_clicks.

Referenced by ExportUsageReport().

◆ ExportUsageReport()

std::string yaze::gui::canvas::CanvasUsageTracker::ExportUsageReport ( ) const

Export usage report.

Definition at line 177 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::average_operation_time_ms, CalculateAverageOperationTime(), canvas_id_, yaze::gui::canvas::CanvasUsageStats::canvas_size, yaze::gui::canvas::CanvasUsageStats::content_size, yaze::gui::canvas::CanvasUsageStats::context_menu_opens, current_stats_, yaze::gui::canvas::CanvasUsageStats::enable_custom_labels, yaze::gui::canvas::CanvasUsageStats::enable_grid, yaze::gui::canvas::CanvasUsageStats::enable_hex_labels, FormatDuration(), GetUsageModeName(), GetUsageRecommendations(), yaze::gui::canvas::CanvasUsageStats::global_scale, yaze::gui::canvas::CanvasUsageStats::grid_step, yaze::gui::canvas::CanvasUsageStats::max_operation_time_ms, yaze::gui::canvas::CanvasUsageStats::modal_opens, yaze::gui::canvas::CanvasUsageStats::mode_changes, yaze::gui::canvas::CanvasUsageStats::mouse_clicks, yaze::gui::canvas::CanvasUsageStats::mouse_drags, operation_times_, session_start_, yaze::gui::canvas::CanvasUsageStats::tool_changes, yaze::gui::canvas::CanvasUsageStats::total_operations, and yaze::gui::canvas::CanvasUsageStats::usage_mode.

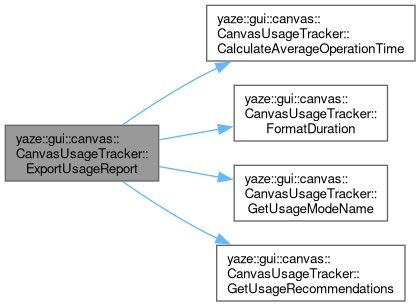

Here is the call graph for this function:

◆ ClearHistory()

void yaze::gui::canvas::CanvasUsageTracker::ClearHistory ( )

Clear usage history.

Definition at line 246 of file canvas_usage_tracker.cc.

References current_stats_, interaction_history_, last_activity_, operation_times_, yaze::gui::canvas::CanvasUsageStats::Reset(), yaze::gui::canvas::CanvasUsageStats::session_start, session_start_, and usage_history_.

Here is the call graph for this function:

◆ StartSession()

void yaze::gui::canvas::CanvasUsageTracker::StartSession ( )

Start session.

Definition at line 256 of file canvas_usage_tracker.cc.

References current_stats_, last_activity_, yaze::gui::canvas::CanvasUsageStats::session_start, and session_start_.

◆ EndSession()

void yaze::gui::canvas::CanvasUsageTracker::EndSession ( )

End session.

Definition at line 262 of file canvas_usage_tracker.cc.

References canvas_id_, current_stats_, FormatDuration(), LOG_DEBUG, SaveCurrentStats(), session_start_, yaze::gui::canvas::CanvasUsageStats::total_operations, UpdateActiveTime(), and UpdateIdleTime().

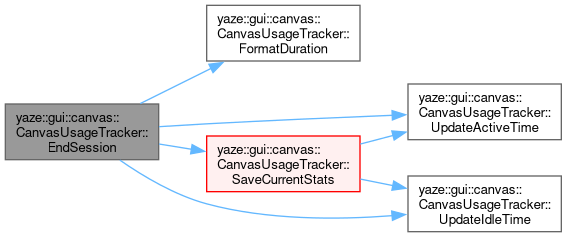

Here is the call graph for this function:

◆ UpdateActiveTime()

void yaze::gui::canvas::CanvasUsageTracker::UpdateActiveTime ( )
private

Definition at line 277 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::active_time, current_stats_, and last_activity_.

Referenced by EndSession(), and SaveCurrentStats().

◆ UpdateIdleTime()

void yaze::gui::canvas::CanvasUsageTracker::UpdateIdleTime ( )
private

Definition at line 287 of file canvas_usage_tracker.cc.

References current_stats_, yaze::gui::canvas::CanvasUsageStats::idle_time, and last_activity_.

Referenced by EndSession(), and SaveCurrentStats().

◆ SaveCurrentStats()

void yaze::gui::canvas::CanvasUsageTracker::SaveCurrentStats ( )
private

Definition at line 297 of file canvas_usage_tracker.cc.

References yaze::gui::canvas::CanvasUsageStats::active_time, current_stats_, yaze::gui::canvas::CanvasUsageStats::idle_time, yaze::gui::canvas::CanvasUsageStats::Reset(), yaze::gui::canvas::CanvasUsageStats::session_start, yaze::gui::canvas::CanvasUsageStats::total_time, UpdateActiveTime(), UpdateIdleTime(), and usage_history_.

Referenced by EndSession(), and SetUsageMode().

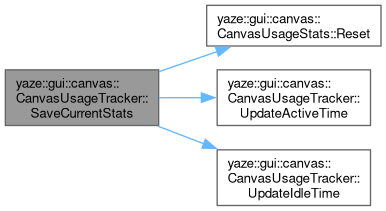

Here is the call graph for this function:

◆ CalculateAverageOperationTime()

double yaze::gui::canvas::CanvasUsageTracker::CalculateAverageOperationTime ( const std::string &  operation_name) const
private

Definition at line 313 of file canvas_usage_tracker.cc.

References operation_times_.

Referenced by ExportUsageReport().

◆ FormatDuration()

std::string yaze::gui::canvas::CanvasUsageTracker::FormatDuration ( const std::chrono::milliseconds &  duration) const
private

Definition at line 327 of file canvas_usage_tracker.cc.

Referenced by EndSession(), and ExportUsageReport().

Member Data Documentation

◆ canvas_id_

std::string yaze::gui::canvas::CanvasUsageTracker::canvas_id_
private

Definition at line 181 of file canvas_usage_tracker.h.

Referenced by EndSession(), ExportUsageReport(), Initialize(), and SetUsageMode().

◆ current_stats_

CanvasUsageStats yaze::gui::canvas::CanvasUsageTracker::current_stats_
private

Definition at line 182 of file canvas_usage_tracker.h.

Referenced by ClearHistory(), EndSession(), ExportUsageReport(), GetCurrentStats(), GetUsageRecommendations(), Initialize(), RecordInteraction(), RecordOperation(), SaveCurrentStats(), SetUsageMode(), StartSession(), UpdateActiveTime(), UpdateCanvasState(), and UpdateIdleTime().

◆ usage_history_

std::vector<CanvasUsageStats> yaze::gui::canvas::CanvasUsageTracker::usage_history_
private

Definition at line 183 of file canvas_usage_tracker.h.

Referenced by ClearHistory(), GetUsageHistory(), and SaveCurrentStats().

◆ last_activity_

std::chrono::steady_clock::time_point yaze::gui::canvas::CanvasUsageTracker::last_activity_
private

Definition at line 184 of file canvas_usage_tracker.h.

Referenced by ClearHistory(), Initialize(), RecordInteraction(), StartSession(), UpdateActiveTime(), UpdateCanvasState(), and UpdateIdleTime().

◆ session_start_

std::chrono::steady_clock::time_point yaze::gui::canvas::CanvasUsageTracker::session_start_
private

Definition at line 185 of file canvas_usage_tracker.h.

Referenced by ClearHistory(), EndSession(), ExportUsageReport(), Initialize(), and StartSession().

◆ interaction_history_

std::vector<std::pair<CanvasInteraction, std::string> > yaze::gui::canvas::CanvasUsageTracker::interaction_history_
private

Definition at line 188 of file canvas_usage_tracker.h.

Referenced by ClearHistory(), and RecordInteraction().

◆ operation_times_

std::unordered_map<std::string, std::vector<double> > yaze::gui::canvas::CanvasUsageTracker::operation_times_
private

Definition at line 189 of file canvas_usage_tracker.h.

Referenced by CalculateAverageOperationTime(), ClearHistory(), ExportUsageReport(), and RecordOperation().

The documentation for this class was generated from the following files:
