yaze::cli::ai::AIGUIController Class Reference

High-level controller for AI-driven GUI automation with vision feedback. More...

#include <ai_gui_controller.h>

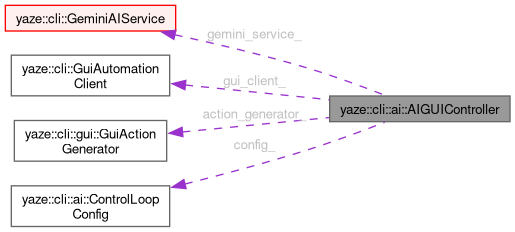

Collaboration diagram for yaze::cli::ai::AIGUIController:

Public Member Functions
	AIGUIController (GeminiAIService *gemini_service, GuiAutomationClient *gui_client)
	Construct controller with required services.
	~AIGUIController ()=default
absl::Status	Initialize (const ControlLoopConfig &config)
	Initialize the controller with configuration.
absl::StatusOr< ControlResult >	ExecuteCommand (const std::string &command)
	Execute a natural language command with AI vision guidance.
absl::StatusOr< ControlResult >	ExecuteActions (const std::vector< ai::AIAction > &actions)
	Execute a sequence of pre-parsed actions.
absl::StatusOr< VisionAnalysisResult >	ExecuteSingleAction (const AIAction &action, bool verify_with_vision=true)
	Execute a single action with optional vision verification.
absl::StatusOr< VisionAnalysisResult >	AnalyzeCurrentGUIState (const std::string &context="")
	Analyze the current GUI state without executing actions.
const ControlLoopConfig &	config () const
	Get the current configuration.
void	SetConfig (const ControlLoopConfig &config)
	Update configuration.

Private Member Functions
absl::StatusOr< std::filesystem::path >	CaptureCurrentState (const std::string &description)
absl::Status	ExecuteGRPCAction (const AIAction &action)
absl::StatusOr< VisionAnalysisResult >	VerifyActionSuccess (const AIAction &action, const std::filesystem::path &before_screenshot, const std::filesystem::path &after_screenshot)
absl::StatusOr< AIAction >	RefineActionWithVision (const AIAction &original_action, const VisionAnalysisResult &analysis)
void	EnsureScreenshotsDirectory ()
std::filesystem::path	GenerateScreenshotPath (const std::string &suffix)

Private Attributes
GeminiAIService *	gemini_service_
GuiAutomationClient *	gui_client_
std::unique_ptr< VisionActionRefiner >	vision_refiner_
gui::GuiActionGenerator	action_generator_
ControlLoopConfig	config_
std::filesystem::path	screenshots_dir_

Detailed Description

High-level controller for AI-driven GUI automation with vision feedback.

This class implements the complete vision-guided control loop:

1. Parse Command → Natural language → AIActions
2. Take Screenshot → Capture current GUI state
3. Analyze Vision → Gemini analyzes screenshot
4. Execute Action → Send gRPC command to GUI
5. Verify Success → Compare before/after screenshots
6. Refine & Retry → Adjust parameters if action failed
7. Repeat → Until goal achieved or max iterations reached

Example usage:

AIGUIController controller(gemini_service, gui_client);
controller.Initialize(config);

auto result = controller.ExecuteCommand(
    "Place tile 0x42 at overworld position (5, 7)"
);

if (result->success) {
  std::cout << "Success! Took " << result->iterations_performed
            << " iterations\n";
}

Definition at line 80 of file ai_gui_controller.h.

Constructor & Destructor Documentation

AIGUIController()

yaze::cli::ai::AIGUIController::AIGUIController	(	GeminiAIService *	gemini_service,
		GuiAutomationClient *	gui_client
	)

Construct controller with required services.

Parameters

gemini_service	Gemini AI service for vision analysis
gui_client	gRPC client for GUI automation

Definition at line 21 of file ai_gui_controller.cc.

References gemini_service_, and gui_client_.

~AIGUIController()

yaze::cli::ai::AIGUIController::~AIGUIController ( )

default

Member Function Documentation

Initialize()

absl::Status yaze::cli::ai::AIGUIController::Initialize

(

const ControlLoopConfig &

config

)

Initialize the controller with configuration.

Definition at line 36 of file ai_gui_controller.cc.

References config(), config_, EnsureScreenshotsDirectory(), yaze::cli::ai::ControlLoopConfig::screenshots_dir, and screenshots_dir_.

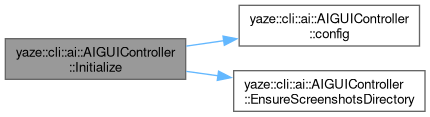

Here is the call graph for this function:

ExecuteCommand()

absl::StatusOr< ControlResult > yaze::cli::ai::AIGUIController::ExecuteCommand

(

const std::string &

command

)

Execute a natural language command with AI vision guidance.

Parameters

command

Natural language command (e.g., "Place tile 0x42 at (5, 7)")

Returns

Result including success status and execution details

Definition at line 45 of file ai_gui_controller.cc.

References ExecuteActions(), and yaze::cli::ai::AIActionParser::ParseCommand().

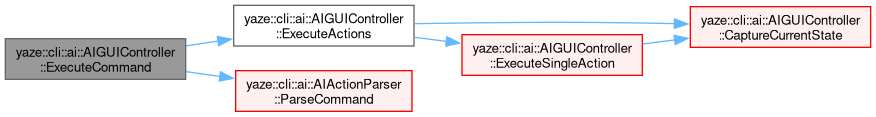

Here is the call graph for this function:

ExecuteActions()

absl::StatusOr< ControlResult > yaze::cli::ai::AIGUIController::ExecuteActions

(

const std::vector< ai::AIAction > &

actions

)

Execute a sequence of pre-parsed actions.

Parameters

actions

Vector of AI actions to execute

Returns

Result including success status

Definition at line 57 of file ai_gui_controller.cc.

References yaze::cli::ai::ControlResult::actions_executed, CaptureCurrentState(), config_, yaze::cli::ai::ControlLoopConfig::enable_iterative_refinement, yaze::cli::ai::ControlLoopConfig::enable_vision_verification, yaze::cli::ai::ControlResult::error_message, ExecuteSingleAction(), yaze::cli::ai::ControlResult::final_state_description, yaze::cli::ai::ControlResult::iterations_performed, yaze::cli::ai::ControlLoopConfig::max_iterations, yaze::cli::ai::ControlLoopConfig::max_retries_per_action, yaze::cli::ai::AIAction::parameters, yaze::cli::ai::ControlResult::screenshots_taken, yaze::cli::ai::ControlResult::success, yaze::cli::ai::ControlResult::vision_analyses, and vision_refiner_.

Referenced by ExecuteCommand().

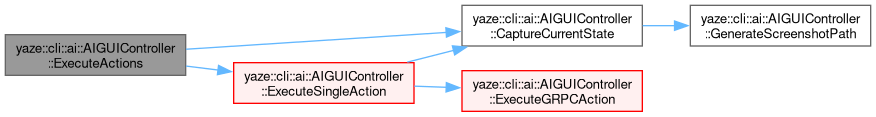

Here is the call graph for this function:

ExecuteSingleAction()

absl::StatusOr< VisionAnalysisResult > yaze::cli::ai::AIGUIController::ExecuteSingleAction	(	const AIAction &	action,
		bool	verify_with_vision = true
	)

Execute a single action with optional vision verification.

Parameters

action	The action to execute
verify_with_vision	Whether to use vision to verify success

Returns

Success status and vision analysis

Definition at line 158 of file ai_gui_controller.cc.

References yaze::cli::ai::VisionAnalysisResult::action_successful, CaptureCurrentState(), config_, yaze::cli::ai::VisionAnalysisResult::description, yaze::cli::ai::VisionAnalysisResult::error_message, ExecuteGRPCAction(), yaze::cli::ai::ControlLoopConfig::screenshot_delay_ms, and VerifyActionSuccess().

Referenced by ExecuteActions().

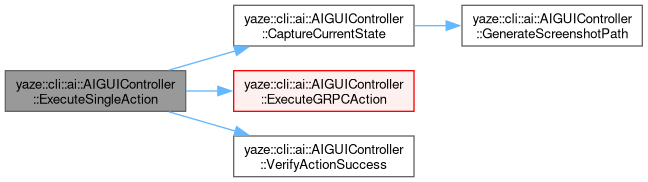

Here is the call graph for this function:

AnalyzeCurrentGUIState()

absl::StatusOr< VisionAnalysisResult > yaze::cli::ai::AIGUIController::AnalyzeCurrentGUIState

(

const std::string &

context = ""

)

Analyze the current GUI state without executing actions.

Parameters

context

What to look for in the GUI

Returns

Vision analysis of current state

Definition at line 210 of file ai_gui_controller.cc.

References CaptureCurrentState(), and vision_refiner_.

Here is the call graph for this function:

config()

const ControlLoopConfig & yaze::cli::ai::AIGUIController::config ( ) const

inline

Get the current configuration.

Definition at line 133 of file ai_gui_controller.h.

References config_.

Referenced by Initialize(), and SetConfig().

SetConfig()

void yaze::cli::ai::AIGUIController::SetConfig ( const ControlLoopConfig &  config )

inline

Update configuration.

Definition at line 138 of file ai_gui_controller.h.

References config(), and config_.

Here is the call graph for this function:

CaptureCurrentState()

absl::StatusOr< std::filesystem::path > yaze::cli::ai::AIGUIController::CaptureCurrentState ( const std::string &  description )

private

Definition at line 223 of file ai_gui_controller.cc.

References GenerateScreenshotPath().

Referenced by AnalyzeCurrentGUIState(), ExecuteActions(), and ExecuteSingleAction().

Here is the call graph for this function:

ExecuteGRPCAction()

absl::Status yaze::cli::ai::AIGUIController::ExecuteGRPCAction ( const AIAction &  action )

private

Definition at line 240 of file ai_gui_controller.cc.

References action_generator_, yaze::cli::GuiAutomationClient::Assert(), yaze::cli::GuiAutomationClient::Click(), yaze::cli::gui::GuiActionGenerator::GenerateTestScript(), gui_client_, yaze::cli::ai::kClickButton, yaze::cli::kDouble, yaze::cli::kLeft, yaze::cli::kMiddle, yaze::cli::ai::kPlaceTile, yaze::cli::kRight, yaze::cli::ai::kSelectTile, yaze::cli::ai::kVerifyTile, yaze::cli::ai::kWait, yaze::cli::ai::AIAction::parameters, yaze::cli::ai::AIAction::type, yaze::cli::GuiAutomationClient::Type(), and yaze::cli::GuiAutomationClient::Wait().

Referenced by ExecuteSingleAction().

VerifyActionSuccess()

absl::StatusOr< VisionAnalysisResult > yaze::cli::ai::AIGUIController::VerifyActionSuccess ( const AIAction &  action, const std::filesystem::path &  before_screenshot, const std::filesystem::path &  after_screenshot  )

private

Definition at line 419 of file ai_gui_controller.cc.

References vision_refiner_.

Referenced by ExecuteSingleAction().

RefineActionWithVision()

absl::StatusOr< AIAction > yaze::cli::ai::AIGUIController::RefineActionWithVision ( const AIAction &  original_action, const VisionAnalysisResult &  analysis  )

private

Definition at line 427 of file ai_gui_controller.cc.

References yaze::cli::ai::AIAction::parameters, and vision_refiner_.

EnsureScreenshotsDirectory()

void yaze::cli::ai::AIGUIController::EnsureScreenshotsDirectory ( )

private

Definition at line 446 of file ai_gui_controller.cc.

References screenshots_dir_.

Referenced by Initialize().

GenerateScreenshotPath()

std::filesystem::path yaze::cli::ai::AIGUIController::GenerateScreenshotPath ( const std::string &  suffix )

private

Definition at line 456 of file ai_gui_controller.cc.

References screenshots_dir_.

Referenced by CaptureCurrentState().

Member Data Documentation

gemini_service_

GeminiAIService* yaze::cli::ai::AIGUIController::gemini_service_

private

Definition at line 141 of file ai_gui_controller.h.

Referenced by AIGUIController().

gui_client_

GuiAutomationClient* yaze::cli::ai::AIGUIController::gui_client_

private

Definition at line 142 of file ai_gui_controller.h.

Referenced by AIGUIController(), and ExecuteGRPCAction().

vision_refiner_

std::unique_ptr<VisionActionRefiner> yaze::cli::ai::AIGUIController::vision_refiner_

private

Definition at line 143 of file ai_gui_controller.h.

Referenced by AnalyzeCurrentGUIState(), ExecuteActions(), RefineActionWithVision(), and VerifyActionSuccess().

action_generator_

gui::GuiActionGenerator yaze::cli::ai::AIGUIController::action_generator_

private

Definition at line 144 of file ai_gui_controller.h.

Referenced by ExecuteGRPCAction().

config_

ControlLoopConfig yaze::cli::ai::AIGUIController::config_

private

Definition at line 145 of file ai_gui_controller.h.

Referenced by config(), ExecuteActions(), ExecuteSingleAction(), Initialize(), and SetConfig().

screenshots_dir_

std::filesystem::path yaze::cli::ai::AIGUIController::screenshots_dir_

private

Definition at line 146 of file ai_gui_controller.h.

Referenced by EnsureScreenshotsDirectory(), GenerateScreenshotPath(), and Initialize().

---

The documentation for this class was generated from the following files:

• src/cli/service/ai/ai_gui_controller.h
• src/cli/service/ai/ai_gui_controller.cc
