Uses Gemini Vision to analyze GUI screenshots and refine AI actions. More...

#include <vision_action_refiner.h>

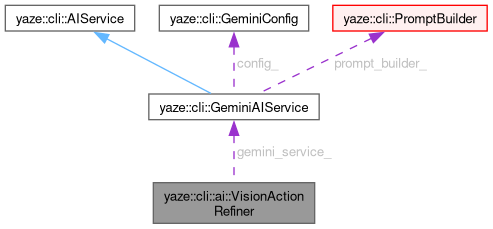

Collaboration diagram for yaze::cli::ai::VisionActionRefiner:

[legend]

Public Member Functions
	VisionActionRefiner (GeminiAIService *gemini_service)
	Construct refiner with Gemini service.

absl::StatusOr< VisionAnalysisResult >	AnalyzeScreenshot (const std::filesystem::path &screenshot_path, const std::string &context="")
	Analyze the current GUI state from a screenshot.

absl::StatusOr< VisionAnalysisResult >	VerifyAction (const AIAction &action, const std::filesystem::path &before_screenshot, const std::filesystem::path &after_screenshot)
	Verify an action was successful by comparing before/after screenshots.

absl::StatusOr< ActionRefinement >	RefineAction (const AIAction &original_action, const VisionAnalysisResult &analysis)
	Refine an action based on vision analysis feedback.

absl::StatusOr< std::map< std::string, std::string > >	LocateUIElement (const std::filesystem::path &screenshot_path, const std::string &element_name)
	Find a specific UI element in a screenshot.

absl::StatusOr< std::vector< std::string > >	ExtractVisibleWidgets (const std::filesystem::path &screenshot_path)
	Extract all visible widgets from a screenshot.

Private Member Functions
std::string	BuildAnalysisPrompt (const std::string &context)

std::string	BuildVerificationPrompt (const AIAction &action)

std::string	BuildElementLocationPrompt (const std::string &element_name)

std::string	BuildWidgetExtractionPrompt ()

VisionAnalysisResult	ParseAnalysisResponse (const std::string &response)

VisionAnalysisResult	ParseVerificationResponse (const std::string &response, const AIAction &action)

Private Attributes
GeminiAIService *	gemini_service_

Detailed Description

Uses Gemini Vision to analyze GUI screenshots and refine AI actions.

This class implements the vision-guided action loop:

Take screenshot of current GUI state
Send to Gemini Vision with contextual prompt
Analyze response to determine next action
Verify action success by comparing screenshots

Example usage:

VisionActionRefiner refiner(gemini_service);

// Analyze current state
auto analysis = refiner.AnalyzeCurrentState(
    "overworld_editor",
    "Looking for tile selector"
);

// Verify action was successful
auto verification = refiner.VerifyAction(
    AIAction(kPlaceTile, {{"x", "5"}, {"y", "7"}}),
    before_screenshot,
    after_screenshot
);

// Refine failed action
if (!verification->action_successful) {
  auto refinement = refiner.RefineAction(
      original_action,
      *verification
  );
}

Definition at line 78 of file vision_action_refiner.h.

Constructor & Destructor Documentation

◆ VisionActionRefiner()

yaze::cli::ai::VisionActionRefiner::VisionActionRefiner ( GeminiAIService * gemini_service )

explicit

Construct refiner with Gemini service.

Parameters

gemini_service Pointer to Gemini AI service (not owned)

Definition at line 15 of file vision_action_refiner.cc.

References gemini_service_.

Member Function Documentation

◆ AnalyzeScreenshot()

absl::StatusOr< VisionAnalysisResult > yaze::cli::ai::VisionActionRefiner::AnalyzeScreenshot	(	const std::filesystem::path &	screenshot_path,
		const std::string &	context = `""`
	)

Analyze the current GUI state from a screenshot.

Parameters

screenshot_path	Path to screenshot file
context	Additional context about what we're looking for

Returns: Vision analysis result

Definition at line 22 of file vision_action_refiner.cc.

References BuildAnalysisPrompt(), gemini_service_, yaze::cli::GeminiAIService::GenerateMultimodalResponse(), and ParseAnalysisResponse().

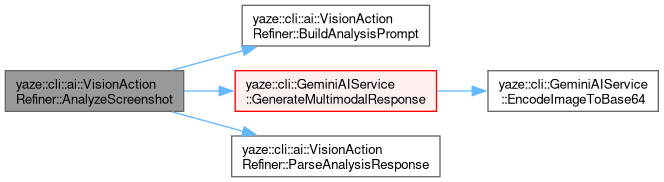

Here is the call graph for this function:

◆ VerifyAction()

absl::StatusOr< VisionAnalysisResult > yaze::cli::ai::VisionActionRefiner::VerifyAction	(	const AIAction &	action,
		const std::filesystem::path &	before_screenshot,
		const std::filesystem::path &	after_screenshot
	)

Verify an action was successful by comparing before/after screenshots.

Parameters

action	The action that was performed
before_screenshot	Screenshot before action
after_screenshot	Screenshot after action

Returns: Analysis indicating whether action succeeded

Definition at line 45 of file vision_action_refiner.cc.

References BuildVerificationPrompt(), gemini_service_, yaze::cli::GeminiAIService::GenerateMultimodalResponse(), and ParseVerificationResponse().

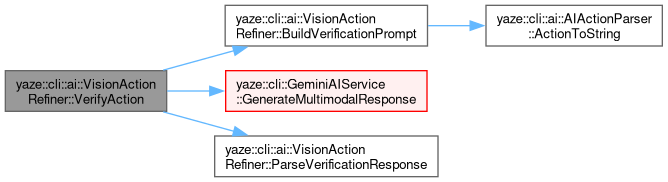

Here is the call graph for this function:

◆ RefineAction()

absl::StatusOr< ActionRefinement > yaze::cli::ai::VisionActionRefiner::RefineAction	(	const AIAction &	original_action,
		const VisionAnalysisResult &	analysis
	)

Refine an action based on vision analysis feedback.

Parameters

original_action	The action that failed or needs adjustment
analysis	Vision analysis showing why action failed

Returns: Refined action with adjusted parameters

Definition at line 73 of file vision_action_refiner.cc.

References yaze::cli::ai::VisionAnalysisResult::action_successful, yaze::cli::ai::ActionRefinement::adjusted_parameters, yaze::cli::ai::VisionAnalysisResult::error_message, yaze::cli::ai::ActionRefinement::needs_different_approach, yaze::cli::ai::ActionRefinement::needs_retry, yaze::cli::ai::ActionRefinement::reasoning, and yaze::cli::ai::VisionAnalysisResult::suggestions.

◆ LocateUIElement()

absl::StatusOr< std::map< std::string, std::string > > yaze::cli::ai::VisionActionRefiner::LocateUIElement	(	const std::filesystem::path &	screenshot_path,
		const std::string &	element_name
	)

Find a specific UI element in a screenshot.

Parameters

screenshot_path	Path to screenshot
element_name	Name/description of element to find

Returns: Coordinates or description of where element is located

Definition at line 131 of file vision_action_refiner.cc.

References BuildElementLocationPrompt(), gemini_service_, and yaze::cli::GeminiAIService::GenerateMultimodalResponse().

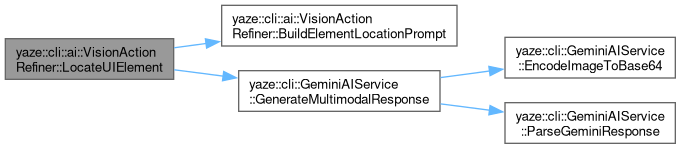

Here is the call graph for this function:

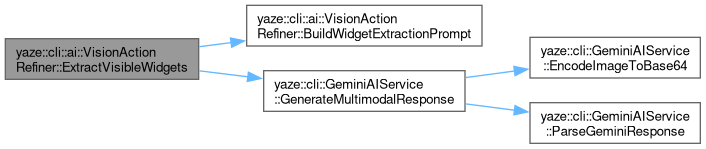

◆ ExtractVisibleWidgets()

absl::StatusOr< std::vector< std::string > > yaze::cli::ai::VisionActionRefiner::ExtractVisibleWidgets ( const std::filesystem::path & screenshot_path )

Extract all visible widgets from a screenshot.

Parameters

screenshot_path Path to screenshot
