ImGui drawer for displaying and managing agent proposals. More...

#include <proposal_drawer.h>

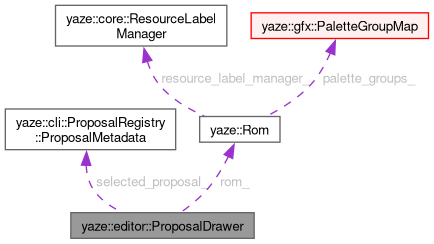

Collaboration diagram for yaze::editor::ProposalDrawer:

[legend]

Public Member Functions
	ProposalDrawer ()

	~ProposalDrawer ()=default

void	SetRom (Rom *rom)

void	Draw ()

void	Show ()

void	Hide ()

void	Toggle ()

bool	IsVisible () const

void	FocusProposal (const std::string &proposal_id)

Private Types
enum class	StatusFilter { kAll , kPending , kAccepted , kRejected }

Private Member Functions
void	DrawProposalList ()

void	DrawProposalDetail ()

void	DrawPolicyStatus ()

void	DrawStatusFilter ()

void	DrawActionButtons ()

absl::Status	AcceptProposal (const std::string &proposal_id)

absl::Status	RejectProposal (const std::string &proposal_id)

absl::Status	DeleteProposal (const std::string &proposal_id)

void	RefreshProposals ()

void	SelectProposal (const std::string &proposal_id)

Private Attributes
bool	visible_ = false

bool	needs_refresh_ = true

StatusFilter	status_filter_ = StatusFilter::kAll

std::vector< cli::ProposalRegistry::ProposalMetadata >	proposals_

std::string	selected_proposal_id_

cli::ProposalRegistry::ProposalMetadata *	selected_proposal_ = nullptr

std::string	diff_content_

std::string	log_content_

int	log_display_lines_ = 50

float	drawer_width_ = 400.0f

bool	show_confirm_dialog_ = false

bool	show_override_dialog_ = false

std::string	confirm_action_

std::string	confirm_proposal_id_

Rom *	rom_ = nullptr

Detailed Description

ImGui drawer for displaying and managing agent proposals.

Provides a UI for reviewing agent-generated ROM modification proposals, including:

List of all proposals with status indicators
Detailed view of selected proposal (metadata, diff, logs)
Accept/Reject controls
Filtering by status (Pending/Accepted/Rejected)

Integrates with the CLI ProposalRegistry service to enable human-in-the-loop review of agentic modifications.

Definition at line 31 of file proposal_drawer.h.

Member Enumeration Documentation

◆ StatusFilter

enum class yaze::editor::ProposalDrawer::StatusFilter

strongprivate

Enumerator
kAll
kPending
kAccepted
kRejected

Definition at line 67 of file proposal_drawer.h.

Constructor & Destructor Documentation

◆ ProposalDrawer()

yaze::editor::ProposalDrawer::ProposalDrawer ( )

Definition at line 21 of file proposal_drawer.cc.

References RefreshProposals().

Here is the call graph for this function:

◆ ~ProposalDrawer()

yaze::editor::ProposalDrawer::~ProposalDrawer ( )

default

Member Function Documentation

◆ SetRom()

void yaze::editor::ProposalDrawer::SetRom ( Rom * rom )

inline

Definition at line 37 of file proposal_drawer.h.

References rom_.

Referenced by yaze::editor::EditorManager::DrawMenuBar().

◆ Draw()

void yaze::editor::ProposalDrawer::Draw ( )

Definition at line 25 of file proposal_drawer.cc.

References AcceptProposal(), confirm_action_, confirm_proposal_id_, DeleteProposal(), drawer_width_, DrawProposalDetail(), DrawProposalList(), DrawStatusFilter(), ICON_MD_REFRESH, ICON_MD_WARNING, needs_refresh_, RefreshProposals(), RejectProposal(), selected_proposal_, selected_proposal_id_, SelectProposal(), show_confirm_dialog_, show_override_dialog_, and visible_.

Referenced by yaze::editor::EditorManager::DrawMenuBar(), and yaze::editor::EditorManager::Update().

◆ Show()

void yaze::editor::ProposalDrawer::Show ( )

inline

Definition at line 43 of file proposal_drawer.h.

References visible_.

Referenced by yaze::editor::EditorManager::Initialize().

◆ Hide()

void yaze::editor::ProposalDrawer::Hide ( )

inline

Definition at line 44 of file proposal_drawer.h.

References visible_.

◆ Toggle()

void yaze::editor::ProposalDrawer::Toggle ( )

inline

Definition at line 45 of file proposal_drawer.h.

References visible_.

Referenced by yaze::editor::EditorManager::BuildModernMenu(), and yaze::editor::EditorManager::Initialize().

◆ IsVisible()

bool yaze::editor::ProposalDrawer::IsVisible ( ) const

inline

Definition at line 46 of file proposal_drawer.h.

References visible_.

◆ FocusProposal()

void yaze::editor::ProposalDrawer::FocusProposal ( const std::string & proposal_id )

Definition at line 447 of file proposal_drawer.cc.

References needs_refresh_, selected_proposal_, selected_proposal_id_, and visible_.

Referenced by yaze::editor::AgentChatWidget::FocusProposalDrawer(), yaze::editor::EditorManager::Initialize(), and yaze::editor::AgentChatWidget::SetProposalDrawer().

◆ DrawProposalList()

void yaze::editor::ProposalDrawer::DrawProposalList ( )

private

Definition at line 137 of file proposal_drawer.cc.

References yaze::cli::ProposalRegistry::kAccepted, yaze::cli::ProposalRegistry::kPending, yaze::cli::ProposalRegistry::kRejected, proposals_, selected_proposal_id_, and SelectProposal().

Referenced by Draw().

Here is the call graph for this function:

◆ DrawProposalDetail()

void yaze::editor::ProposalDrawer::DrawProposalDetail ( )

private

Definition at line 193 of file proposal_drawer.cc.

References diff_content_, DrawActionButtons(), DrawPolicyStatus(), log_content_, log_display_lines_, and selected_proposal_.

Referenced by Draw().

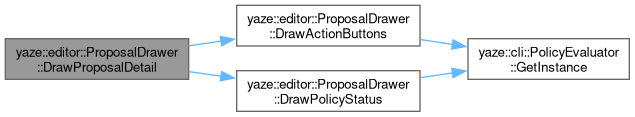

Here is the call graph for this function:

◆ DrawPolicyStatus()

void yaze::editor::ProposalDrawer::DrawPolicyStatus ( )

private

Definition at line 284 of file proposal_drawer.cc.

References yaze::cli::PolicyEvaluator::GetInstance(), ICON_MD_BLOCK, ICON_MD_CANCEL, ICON_MD_CHECK_CIRCLE, ICON_MD_ERROR, ICON_MD_INFO, ICON_MD_WARNING, yaze::cli::ProposalRegistry::kPending, and selected_proposal_.

Referenced by DrawProposalDetail().

Here is the call graph for this function:

◆ DrawStatusFilter()

void yaze::editor::ProposalDrawer::DrawStatusFilter ( )

private

Definition at line 273 of file proposal_drawer.cc.

References RefreshProposals(), and status_filter_.

Referenced by Draw().

Here is the call graph for this function:

◆ DrawActionButtons()

void yaze::editor::ProposalDrawer::DrawActionButtons ( )

private

Definition at line 381 of file proposal_drawer.cc.

References confirm_action_, confirm_proposal_id_, yaze::cli::PolicyEvaluator::GetInstance(), ICON_MD_CHECK, ICON_MD_CLOSE, ICON_MD_DELETE, yaze::cli::ProposalRegistry::kPending, selected_proposal_, show_confirm_dialog_, show_override_dialog_, and yaze::cli::ProposalRegistry::ProposalMetadata::status.

Referenced by DrawProposalDetail().

Here is the call graph for this function:

◆ AcceptProposal()

absl::Status yaze::editor::ProposalDrawer::AcceptProposal ( const std::string & proposal_id )

private

Definition at line 508 of file proposal_drawer.cc.

References yaze::cli::ProposalRegistry::Instance(), yaze::cli::RomSandboxManager::Instance(), yaze::cli::ProposalRegistry::kAccepted, yaze::Rom::LoadFromFile(), needs_refresh_, rom_, yaze::Rom::vector(), and yaze::Rom::WriteVector().

Referenced by Draw().

◆ RejectProposal()

absl::Status yaze::editor::ProposalDrawer::RejectProposal ( const std::string & proposal_id )

private

Definition at line 584 of file proposal_drawer.cc.

References yaze::cli::ProposalRegistry::Instance(), yaze::cli::ProposalRegistry::kRejected, and needs_refresh_.

Referenced by Draw().

Here is the call graph for this function:

◆ DeleteProposal()

absl::Status yaze::editor::ProposalDrawer::DeleteProposal ( const std::string & proposal_id )

private

Definition at line 593 of file proposal_drawer.cc.

References diff_content_, yaze::cli::ProposalRegistry::Instance(), log_content_, needs_refresh_, selected_proposal_, and selected_proposal_id_.

Referenced by Draw().

Here is the call graph for this function:

◆ RefreshProposals()

void yaze::editor::ProposalDrawer::RefreshProposals ( )

private

Definition at line 454 of file proposal_drawer.cc.

References diff_content_, yaze::cli::ProposalRegistry::Instance(), kAccepted, yaze::cli::ProposalRegistry::kAccepted, kAll, kPending, yaze::cli::ProposalRegistry::kPending, kRejected, yaze::cli::ProposalRegistry::kRejected, log_content_, proposals_, selected_proposal_, selected_proposal_id_, and status_filter_.

Referenced by Draw(), DrawStatusFilter(), and ProposalDrawer().

Here is the call graph for this function:

◆ SelectProposal()

void yaze::editor::ProposalDrawer::SelectProposal ( const std::string & proposal_id )

private

Definition at line 493 of file proposal_drawer.cc.

References diff_content_, log_content_, proposals_, selected_proposal_, and selected_proposal_id_.

Referenced by Draw(), and DrawProposalList().

Member Data Documentation

◆ visible_

bool yaze::editor::ProposalDrawer::visible_ = false

private

Definition at line 63 of file proposal_drawer.h.

Referenced by Draw(), FocusProposal(), Hide(), IsVisible(), Show(), and Toggle().

◆ needs_refresh_

bool yaze::editor::ProposalDrawer::needs_refresh_ = true

private

Definition at line 64 of file proposal_drawer.h.

Referenced by AcceptProposal(), DeleteProposal(), Draw(), FocusProposal(), and RejectProposal().

◆ status_filter_

StatusFilter yaze::editor::ProposalDrawer::status_filter_ = StatusFilter::kAll

private

Definition at line 73 of file proposal_drawer.h.

Referenced by DrawStatusFilter(), and RefreshProposals().

◆ proposals_

std::vector<cli::ProposalRegistry::ProposalMetadata> yaze::editor::ProposalDrawer::proposals_

private

Definition at line 76 of file proposal_drawer.h.

Referenced by DrawProposalList(), RefreshProposals(), and SelectProposal().

◆ selected_proposal_id_

std::string yaze::editor::ProposalDrawer::selected_proposal_id_

private

Definition at line 77 of file proposal_drawer.h.

Referenced by DeleteProposal(), Draw(), DrawProposalList(), FocusProposal(), RefreshProposals(), and SelectProposal().

◆ selected_proposal_

cli::ProposalRegistry::ProposalMetadata* yaze::editor::ProposalDrawer::selected_proposal_ = nullptr

private

Definition at line 78 of file proposal_drawer.h.

Referenced by DeleteProposal(), Draw(), DrawActionButtons(), DrawPolicyStatus(), DrawProposalDetail(), FocusProposal(), RefreshProposals(), and SelectProposal().

◆ diff_content_

std::string yaze::editor::ProposalDrawer::diff_content_

private

Definition at line 81 of file proposal_drawer.h.

Referenced by DeleteProposal(), DrawProposalDetail(), RefreshProposals(), and SelectProposal().

◆ log_content_

std::string yaze::editor::ProposalDrawer::log_content_

private

Definition at line 82 of file proposal_drawer.h.

Referenced by DeleteProposal(), DrawProposalDetail(), RefreshProposals(), and SelectProposal().

◆ log_display_lines_

int yaze::editor::ProposalDrawer::log_display_lines_ = 50

private

Definition at line 83 of file proposal_drawer.h.

Referenced by DrawProposalDetail().

◆ drawer_width_

float yaze::editor::ProposalDrawer::drawer_width_ = 400.0f

private

Definition at line 86 of file proposal_drawer.h.

Referenced by Draw().

◆ show_confirm_dialog_

bool yaze::editor::ProposalDrawer::show_confirm_dialog_ = false

private

Definition at line 87 of file proposal_drawer.h.

Referenced by Draw(), and DrawActionButtons().

◆ show_override_dialog_

bool yaze::editor::ProposalDrawer::show_override_dialog_ = false

private

Definition at line 88 of file proposal_drawer.h.

Referenced by Draw(), and DrawActionButtons().

◆ confirm_action_

std::string yaze::editor::ProposalDrawer::confirm_action_

private

Definition at line 89 of file proposal_drawer.h.

Referenced by Draw(), and DrawActionButtons().

◆ confirm_proposal_id_

std::string yaze::editor::ProposalDrawer::confirm_proposal_id_

private

Definition at line 90 of file proposal_drawer.h.

Referenced by Draw(), and DrawActionButtons().

◆ rom_

Rom* yaze::editor::ProposalDrawer::rom_ = nullptr

private

Definition at line 93 of file proposal_drawer.h.

Referenced by AcceptProposal(), and SetRom().

The documentation for this class was generated from the following files:

src/app/editor/system/proposal_drawer.h
src/app/editor/system/proposal_drawer.cc
