yaze::editor::GfxGroupEditor Class Reference

Manage graphics group configurations in a Rom. More...

#include <gfx_group_editor.h>

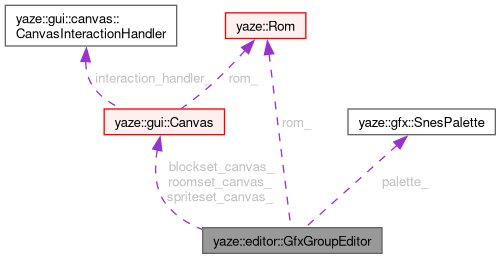

Collaboration diagram for yaze::editor::GfxGroupEditor:

Public Member Functions
absl::Status	Update ()
void	DrawBlocksetViewer (bool sheet_only=false)
void	DrawRoomsetViewer ()
void	DrawSpritesetViewer (bool sheet_only=false)
void	DrawPaletteViewer ()
void	SetSelectedBlockset (uint8_t blockset)
void	SetSelectedRoomset (uint8_t roomset)
void	SetSelectedSpriteset (uint8_t spriteset)
void	set_rom (Rom *rom)
Rom *	rom () const

Private Attributes
uint8_t	selected_blockset_ = 0
uint8_t	selected_roomset_ = 0
uint8_t	selected_spriteset_ = 0
uint8_t	selected_paletteset_ = 0
gui::Canvas	blockset_canvas_
gui::Canvas	roomset_canvas_
gui::Canvas	spriteset_canvas_
gfx::SnesPalette	palette_
Rom *	rom_ = nullptr

Detailed Description

Manage graphics group configurations in a Rom.

Definition at line 16 of file gfx_group_editor.h.

Member Function Documentation

Update()

absl::Status yaze::editor::GfxGroupEditor::Update

(

)

Definition at line 43 of file gfx_group_editor.cc.

References DrawBlocksetViewer(), DrawPaletteViewer(), DrawRoomsetViewer(), DrawSpritesetViewer(), yaze::gui::InputHexByte(), yaze::Rom::resource_label(), rom(), yaze::project::ResourceLabelManager::SelectableLabelWithNameEdit(), selected_blockset_, selected_roomset_, and selected_spriteset_.

Referenced by yaze::editor::OverworldEditor::DrawOverworldProperties(), and yaze::editor::OverworldEditor::Update().

DrawBlocksetViewer()

void yaze::editor::GfxGroupEditor::DrawBlocksetViewer

(

bool

sheet_only = false

)

Definition at line 86 of file gfx_group_editor.cc.

References yaze::gui::BitmapCanvasPipeline(), blockset_canvas_, yaze::gfx::Arena::Get(), yaze::gui::InputHexByte(), yaze::Rom::main_blockset_ids, yaze::gfx::Arena::mutable_gfx_sheets(), rom(), and selected_blockset_.

Referenced by Update().

DrawRoomsetViewer()

void yaze::editor::GfxGroupEditor::DrawRoomsetViewer

(

)

Definition at line 125 of file gfx_group_editor.cc.

References yaze::gui::BitmapCanvasPipeline(), yaze::gfx::Arena::Get(), yaze::gui::InputHexByte(), yaze::gfx::Arena::mutable_gfx_sheets(), yaze::Rom::resource_label(), rom(), yaze::Rom::room_blockset_ids, roomset_canvas_, yaze::project::ResourceLabelManager::SelectableLabelWithNameEdit(), and selected_roomset_.

Referenced by Update().

DrawSpritesetViewer()

void yaze::editor::GfxGroupEditor::DrawSpritesetViewer

(

bool

sheet_only = false

)

Definition at line 178 of file gfx_group_editor.cc.

References yaze::gui::BitmapCanvasPipeline(), yaze::gfx::Arena::Get(), yaze::gui::InputHexByte(), yaze::gfx::Arena::mutable_gfx_sheets(), rom(), selected_spriteset_, spriteset_canvas_, and yaze::Rom::spriteset_ids.

Referenced by Update().

DrawPaletteViewer()

void yaze::editor::GfxGroupEditor::DrawPaletteViewer

(

)

Definition at line 238 of file gfx_group_editor.cc.

References yaze::gui::InputHexByte(), yaze::Rom::mutable_palette_group(), yaze::Rom::paletteset_ids, yaze::Rom::resource_label(), rom(), yaze::project::ResourceLabelManager::SelectableLabelWithNameEdit(), and selected_paletteset_.

Referenced by Update().

SetSelectedBlockset()

void yaze::editor::GfxGroupEditor::SetSelectedBlockset ( uint8_t  blockset )

inline

Definition at line 25 of file gfx_group_editor.h.

References selected_blockset_.

SetSelectedRoomset()

void yaze::editor::GfxGroupEditor::SetSelectedRoomset ( uint8_t  roomset )

inline

Definition at line 26 of file gfx_group_editor.h.

References selected_roomset_.

SetSelectedSpriteset()

void yaze::editor::GfxGroupEditor::SetSelectedSpriteset ( uint8_t  spriteset )

inline

Definition at line 27 of file gfx_group_editor.h.

References selected_spriteset_.

set_rom()

void yaze::editor::GfxGroupEditor::set_rom ( Rom *  rom )

inline

Definition at line 30 of file gfx_group_editor.h.

References rom(), and rom_.

Referenced by yaze::editor::OverworldEditor::OverworldEditor().

Here is the call graph for this function:

rom()

Rom * yaze::editor::GfxGroupEditor::rom ( ) const

inline

Definition at line 31 of file gfx_group_editor.h.

References rom_.

Referenced by DrawBlocksetViewer(), DrawPaletteViewer(), DrawRoomsetViewer(), DrawSpritesetViewer(), set_rom(), and Update().

Member Data Documentation

selected_blockset_

uint8_t yaze::editor::GfxGroupEditor::selected_blockset_ = 0

private

Definition at line 34 of file gfx_group_editor.h.

Referenced by DrawBlocksetViewer(), SetSelectedBlockset(), and Update().

selected_roomset_

uint8_t yaze::editor::GfxGroupEditor::selected_roomset_ = 0

private

Definition at line 35 of file gfx_group_editor.h.

Referenced by DrawRoomsetViewer(), SetSelectedRoomset(), and Update().

selected_spriteset_

uint8_t yaze::editor::GfxGroupEditor::selected_spriteset_ = 0

private

Definition at line 36 of file gfx_group_editor.h.

Referenced by DrawSpritesetViewer(), SetSelectedSpriteset(), and Update().

selected_paletteset_

uint8_t yaze::editor::GfxGroupEditor::selected_paletteset_ = 0

private

Definition at line 37 of file gfx_group_editor.h.

Referenced by DrawPaletteViewer().

blockset_canvas_

gui::Canvas yaze::editor::GfxGroupEditor::blockset_canvas_

private

Definition at line 39 of file gfx_group_editor.h.

Referenced by DrawBlocksetViewer().

roomset_canvas_

gui::Canvas yaze::editor::GfxGroupEditor::roomset_canvas_

private

Definition at line 40 of file gfx_group_editor.h.

Referenced by DrawRoomsetViewer().

spriteset_canvas_

gui::Canvas yaze::editor::GfxGroupEditor::spriteset_canvas_

private

Definition at line 41 of file gfx_group_editor.h.

Referenced by DrawSpritesetViewer().

palette_

gfx::SnesPalette yaze::editor::GfxGroupEditor::palette_

private

Definition at line 43 of file gfx_group_editor.h.

rom_

Rom* yaze::editor::GfxGroupEditor::rom_ = nullptr

private

Definition at line 44 of file gfx_group_editor.h.

Referenced by rom(), and set_rom().

---

The documentation for this class was generated from the following files:

• src/app/editor/graphics/gfx_group_editor.h
• src/app/editor/graphics/gfx_group_editor.cc
