The Apu class represents the Audio Processing Unit (APU) of a system. More...

#include <apu.h>

Public Member Functions
	Apu (MemoryImpl &memory)

void	Init ()

void	Reset ()

void	RunCycles (uint64_t cycles)

uint8_t	SpcRead (uint16_t address)

void	SpcWrite (uint16_t address, uint8_t data)

void	SpcIdle (bool waiting)

void	Cycle ()

uint8_t	Read (uint16_t address)

void	Write (uint16_t address, uint8_t data)

auto	dsp () -> Dsp &

auto	spc700 () -> Spc700 &

uint64_t	GetCycles () const

void	set_handshake_tracker (debug::ApuHandshakeTracker *tracker)

uint8_t	GetStatus () const

uint8_t	GetControl () const

void	GetSamples (int16_t *buffer, int count, bool loop=false)

void	WriteDma (uint16_t address, const uint8_t *data, int count)

Public Attributes
std::array< uint8_t, 6 >	in_ports_

std::array< uint8_t, 4 >	out_ports_

std::vector< uint8_t >	ram = std::vector<uint8_t>(0x10000, 0)

Private Attributes
bool	rom_readable_ = false

uint8_t	dsp_adr_ = 0

uint32_t	cycles_ = 0

uint8_t	transfer_size_ = 0

bool	in_transfer_ = false

MemoryImpl &	memory_

std::array< Timer, 3 >	timer_

debug::ApuHandshakeTracker *	handshake_tracker_ = nullptr

ApuCallbacks	callbacks_

Dsp	dsp_ {ram}

Spc700	spc700_ {callbacks_}

Detailed Description

The Apu class represents the Audio Processing Unit (APU) of a system.

The Apu class is responsible for generating audio samples and managing the APU state. It interacts with the Memory, AudioRam, and Clock classes to read/write data and update the clock. The class also implements the Observer interface to receive notifications from the system.

IPL ROM Info: 64 kilobytes of RAM are mapped across the 16-bit memory space of the SPC-700. Some regions of this space are overlaid with special hardware functions.

Range Note: $0000-00EF Zero Page RAM $00F0-00FF Sound CPU Registers $0100-01FF Stack Page RAM $0200-FFBF RAM $FFC0-FFFF IPL ROM or RAM

The region at $FFC0-FFFF will normally read from the 64-byte IPL ROM, but the underlying RAM can always be written to, and the high bit of the Control register $F1 can be cleared to unmap the IPL ROM and allow read access to this RAM.

Definition at line 53 of file apu.h.

Constructor & Destructor Documentation

◆ Apu()

yaze::emu::Apu::Apu ( MemoryImpl & memory )

inline

Definition at line 55 of file apu.h.

Member Function Documentation

◆ Init()

void yaze::emu::Apu::Init ( )

Definition at line 45 of file apu.cc.

References ram.

Referenced by yaze::emu::Snes::Init(), yaze::emu::ApuDspTest::SetUp(), yaze::emu::ApuIplHandshakeTest::SetUp(), and yaze::emu::TEST().

◆ Reset()

void yaze::emu::Apu::Reset ( )

Definition at line 52 of file apu.cc.

References cycles_, dsp_, dsp_adr_, handshake_tracker_, in_ports_, in_transfer_, LOG_DEBUG, out_ports_, ram, yaze::emu::Spc700::read_word(), yaze::emu::Dsp::Reset(), yaze::emu::debug::ApuHandshakeTracker::Reset(), yaze::emu::Spc700::Reset(), rom_readable_, spc700_, timer_, and transfer_size_.

Referenced by yaze::emu::Snes::Reset(), yaze::emu::ApuDspTest::SetUp(), yaze::emu::ApuIplHandshakeTest::SetUp(), and yaze::emu::TEST().

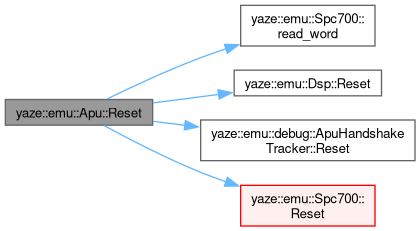

Here is the call graph for this function:

◆ RunCycles()

void yaze::emu::Apu::RunCycles ( uint64_t cycles )

Definition at line 84 of file apu.cc.

References Cycle(), cycles_, handshake_tracker_, in_ports_, LOG_DEBUG, memory_, yaze::emu::debug::ApuHandshakeTracker::OnSpcPCChange(), out_ports_, yaze::emu::MemoryImpl::pal_timing(), yaze::emu::Spc700::PC, ram, rom_readable_, spc700_, yaze::emu::Spc700::Step(), and yaze::emu::Spc700::Y.

Referenced by yaze::emu::Snes::CatchUpApu().

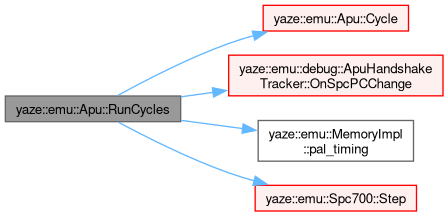

Here is the call graph for this function:

◆ SpcRead()

uint8_t yaze::emu::Apu::SpcRead ( uint16_t address )

Definition at line 334 of file apu.cc.

References Cycle(), and Read().

Here is the call graph for this function:

◆ SpcWrite()

void yaze::emu::Apu::SpcWrite	(	uint16_t	address,
		uint8_t	data
	)

Definition at line 339 of file apu.cc.

References Cycle(), and Write().

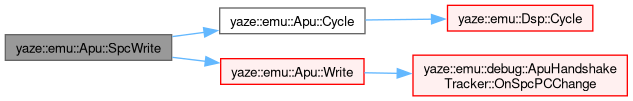

Here is the call graph for this function:

◆ SpcIdle()

void yaze::emu::Apu::SpcIdle ( bool waiting )

Definition at line 344 of file apu.cc.

References Cycle().

Here is the call graph for this function:

◆ Cycle()

void yaze::emu::Apu::Cycle ( )

Definition at line 161 of file apu.cc.

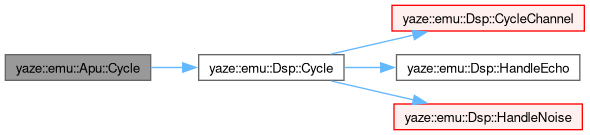

References yaze::emu::Dsp::Cycle(), cycles_, dsp_, and timer_.

Referenced by RunCycles(), SpcIdle(), SpcRead(), SpcWrite(), and yaze::emu::TEST().

Here is the call graph for this function:

◆ Read()

uint8_t yaze::emu::Apu::Read ( uint16_t address )

Definition at line 186 of file apu.cc.

References dsp_, dsp_adr_, in_ports_, LOG_DEBUG, yaze::emu::Spc700::PC, ram, yaze::emu::Dsp::Read(), rom_readable_, spc700_, and timer_.

Referenced by SpcRead().

Here is the call graph for this function:

◆ Write()

void yaze::emu::Apu::Write	(	uint16_t	address,
		uint8_t	data
	)

Definition at line 233 of file apu.cc.

References cycles_, dsp_, dsp_adr_, handshake_tracker_, in_ports_, in_transfer_, LOG_DEBUG, yaze::emu::debug::ApuHandshakeTracker::OnSpcPCChange(), yaze::emu::debug::ApuHandshakeTracker::OnSpcPortWrite(), out_ports_, yaze::emu::Spc700::PC, ram, rom_readable_, spc700_, timer_, transfer_size_, and yaze::emu::Dsp::Write().

Referenced by SpcWrite(), and yaze::emu::TEST_F().

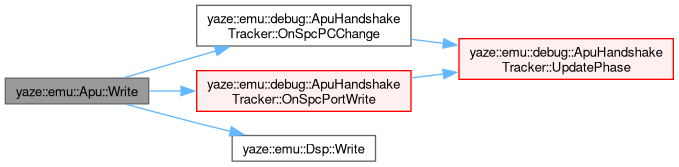

Here is the call graph for this function:

◆ dsp()

auto yaze::emu::Apu::dsp ( ) -> Dsp &

inline

Definition at line 70 of file apu.h.

References dsp_.

Referenced by yaze::emu::Snes::RunCycle(), and yaze::emu::Snes::SetSamples().

◆ spc700()

auto yaze::emu::Apu::spc700 ( ) -> Spc700 &

inline

Definition at line 71 of file apu.h.

References spc700_.

Referenced by yaze::emu::TEST(), and yaze::emu::TEST_F().

◆ GetCycles()

uint64_t yaze::emu::Apu::GetCycles ( ) const

inline

Definition at line 73 of file apu.h.

References cycles_.

Referenced by yaze::emu::Snes::ReadBBus().

◆ set_handshake_tracker()

void yaze::emu::Apu::set_handshake_tracker ( debug::ApuHandshakeTracker * tracker )

inline

Definition at line 76 of file apu.h.

References handshake_tracker_.

Referenced by yaze::emu::Snes::Init().

◆ GetStatus()

uint8_t yaze::emu::Apu::GetStatus ( ) const

inline

Definition at line 79 of file apu.h.

References ram.

◆ GetControl()

uint8_t yaze::emu::Apu::GetControl ( ) const

inline

Definition at line 80 of file apu.h.

References ram.

◆ GetSamples()

void yaze::emu::Apu::GetSamples	(	int16_t *	buffer,
		int	count,
		bool	loop = `false`
	)

inline

Definition at line 81 of file apu.h.

References dsp_, and yaze::emu::Dsp::GetSamples().

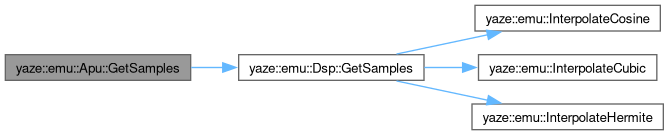

Here is the call graph for this function:

◆ WriteDma()

void yaze::emu::Apu::WriteDma	(	uint16_t	address,
		const uint8_t *	data,
		int	count
	)

inline

Definition at line 84 of file apu.h.

References ram.

Member Data Documentation

◆ in_ports_

std::array<uint8_t, 6> yaze::emu::Apu::in_ports_

Definition at line 91 of file apu.h.

Referenced by Read(), Reset(), RunCycles(), Write(), and yaze::emu::Snes::WriteBBus().

◆ out_ports_

std::array<uint8_t, 4> yaze::emu::Apu::out_ports_

Definition at line 92 of file apu.h.

Referenced by yaze::emu::Snes::ReadBBus(), Reset(), RunCycles(), and Write().

◆ ram

std::vector<uint8_t> yaze::emu::Apu::ram = std::vector<uint8_t>(0x10000, 0)

Definition at line 93 of file apu.h.

Referenced by GetControl(), GetStatus(), Init(), Read(), Reset(), RunCycles(), Write(), and WriteDma().

◆ rom_readable_

bool yaze::emu::Apu::rom_readable_ = false

private

Definition at line 96 of file apu.h.

Referenced by Read(), Reset(), RunCycles(), and Write().

◆ dsp_adr_

uint8_t yaze::emu::Apu::dsp_adr_ = 0

private

Definition at line 98 of file apu.h.

Referenced by Read(), Reset(), and Write().

◆ cycles_

uint32_t yaze::emu::Apu::cycles_ = 0

private

Definition at line 99 of file apu.h.

Referenced by Cycle(), GetCycles(), Reset(), RunCycles(), and Write().

◆ transfer_size_

uint8_t yaze::emu::Apu::transfer_size_ = 0

private

Definition at line 102 of file apu.h.

Referenced by Reset(), and Write().

◆ in_transfer_

bool yaze::emu::Apu::in_transfer_ = false

private

Definition at line 103 of file apu.h.

Referenced by Reset(), and Write().

◆ memory_

MemoryImpl& yaze::emu::Apu::memory_

private

Definition at line 105 of file apu.h.

Referenced by RunCycles().

◆ timer_

std::array<Timer, 3> yaze::emu::Apu::timer_

private

Definition at line 106 of file apu.h.

Referenced by Cycle(), Read(), Reset(), and Write().

◆ handshake_tracker_

debug::ApuHandshakeTracker* yaze::emu::Apu::handshake_tracker_ = nullptr

private

Definition at line 109 of file apu.h.

Referenced by Reset(), RunCycles(), set_handshake_tracker(), and Write().

◆ callbacks_

ApuCallbacks yaze::emu::Apu::callbacks_

private

Initial value:

= {
      [&](uint16_t adr, uint8_t val) { SpcWrite(adr, val); },
      [&](uint16_t adr) { return SpcRead(adr); },
      [&](bool waiting) { SpcIdle(waiting); },
  }

Definition at line 111 of file apu.h.

◆ dsp_

Dsp yaze::emu::Apu::dsp_ {ram}

private

Definition at line 116 of file apu.h.

Referenced by Cycle(), dsp(), GetSamples(), Read(), Reset(), and Write().

◆ spc700_

Spc700 yaze::emu::Apu::spc700_ {callbacks_}

private

Definition at line 117 of file apu.h.

Referenced by Read(), Reset(), RunCycles(), spc700(), and Write().

The documentation for this class was generated from the following files:

src/app/emu/audio/apu.h
src/app/emu/audio/apu.cc
