Centralized palette management system. More...

#include <palette_manager.h>

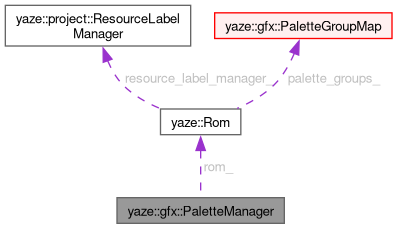

Collaboration diagram for yaze::gfx::PaletteManager:

[legend]

Public Types
using	ChangeCallback = std::function< void(const PaletteChangeEvent &)>

Public Member Functions
	PaletteManager (const PaletteManager &)=delete

PaletteManager &	operator= (const PaletteManager &)=delete

	PaletteManager (PaletteManager &&)=delete

PaletteManager &	operator= (PaletteManager &&)=delete

void	Initialize (Rom *rom)
	Initialize the palette manager with ROM data.

bool	IsInitialized () const
	Check if manager is initialized.

SnesColor	GetColor (const std::string &group_name, int palette_index, int color_index) const
	Get a color from a palette.

absl::Status	SetColor (const std::string &group_name, int palette_index, int color_index, const SnesColor &new_color)
	Set a color in a palette (records change for undo)

absl::Status	ResetColor (const std::string &group_name, int palette_index, int color_index)
	Reset a single color to its original ROM value.

absl::Status	ResetPalette (const std::string &group_name, int palette_index)
	Reset an entire palette to original ROM values.

bool	HasUnsavedChanges () const
	Check if there are ANY unsaved changes.

std::vector< std::string >	GetModifiedGroups () const
	Get list of modified palette group names.

bool	IsGroupModified (const std::string &group_name) const
	Check if a specific palette group has modifications.

bool	IsPaletteModified (const std::string &group_name, int palette_index) const
	Check if a specific palette is modified.

bool	IsColorModified (const std::string &group_name, int palette_index, int color_index) const
	Check if a specific color is modified.

size_t	GetModifiedColorCount () const
	Get count of modified colors across all groups.

absl::Status	SaveGroup (const std::string &group_name)
	Save a specific palette group to ROM.

absl::Status	SaveAllToRom ()
	Save ALL modified palettes to ROM.

void	DiscardGroup (const std::string &group_name)
	Discard changes for a specific group.

void	DiscardAllChanges ()
	Discard ALL unsaved changes.

void	Undo ()
	Undo the most recent change.

void	Redo ()
	Redo the most recently undone change.

bool	CanUndo () const
	Check if undo is available.

bool	CanRedo () const
	Check if redo is available.

size_t	GetUndoStackSize () const
	Get size of undo stack.

size_t	GetRedoStackSize () const
	Get size of redo stack.

void	ClearHistory ()
	Clear undo/redo history.

int	RegisterChangeListener (ChangeCallback callback)
	Register a callback for palette change events.

void	UnregisterChangeListener (int callback_id)
	Unregister a change listener.

void	BeginBatch ()
	Begin a batch operation (groups multiple changes into one undo step)

void	EndBatch ()
	End a batch operation.

bool	InBatch () const
	Check if currently in a batch operation.

Static Public Member Functions
static PaletteManager &	Get ()
	Get the singleton instance.

Private Member Functions
	PaletteManager ()=default

	~PaletteManager ()=default

PaletteGroup *	GetMutableGroup (const std::string &group_name)
	Helper: Get mutable palette group.

const PaletteGroup *	GetGroup (const std::string &group_name) const
	Helper: Get const palette group.

SnesColor	GetOriginalColor (const std::string &group_name, int palette_index, int color_index) const
	Helper: Get original color from snapshot.

void	RecordChange (const PaletteColorChange &change)
	Helper: Record a change for undo.

void	NotifyListeners (const PaletteChangeEvent &event)
	Helper: Notify all listeners of an event.

void	MarkModified (const std::string &group_name, int palette_index, int color_index)
	Helper: Mark a color as modified.

void	ClearModifiedFlags (const std::string &group_name)
	Helper: Clear modified flags for a group.

Private Attributes
Rom *	rom_ = nullptr
	ROM instance (not owned)

std::unordered_map< std::string, std::vector< SnesPalette > >	original_palettes_

std::unordered_map< std::string, std::unordered_set< int > >	modified_palettes_

std::unordered_map< std::string, std::unordered_map< int, std::unordered_set< int > > >	modified_colors_

std::deque< PaletteColorChange >	undo_stack_
	Undo/redo stacks.

std::deque< PaletteColorChange >	redo_stack_

std::unordered_map< int, ChangeCallback >	change_listeners_
	Change listeners.

int	next_callback_id_ = 1

int	batch_depth_ = 0
	Batch operation support.

std::vector< PaletteColorChange >	batch_changes_

Static Private Attributes
static constexpr size_t	kMaxUndoHistory = 500

Detailed Description

Centralized palette management system.

Singleton coordinator for ALL palette editing operations. Provides:

Global dirty tracking across all palette groups
Transaction-based editing with automatic ROM synchronization
Unified undo/redo stack shared across all editors
Batch operations (save all, discard all)
Change notifications via observer pattern
Conflict resolution when multiple editors modify same palette

Thread-safety: This class is NOT thread-safe. All operations must be called from the main UI thread.

Definition at line 68 of file palette_manager.h.

Member Typedef Documentation

◆ ChangeCallback

using yaze::gfx::PaletteManager::ChangeCallback = std::function<void(const PaletteChangeEvent&)>

Definition at line 70 of file palette_manager.h.

Constructor & Destructor Documentation

◆ PaletteManager() [1/3]

yaze::gfx::PaletteManager::PaletteManager ( const PaletteManager & )

delete

◆ PaletteManager() [2/3]

yaze::gfx::PaletteManager::PaletteManager ( PaletteManager && )

delete

◆ PaletteManager() [3/3]

yaze::gfx::PaletteManager::PaletteManager ( )

privatedefault

◆ ~PaletteManager()

yaze::gfx::PaletteManager::~PaletteManager ( )

privatedefault

Member Function Documentation

◆ Get()

static PaletteManager & yaze::gfx::PaletteManager::Get ( )

inlinestatic

Get the singleton instance.

Definition at line 73 of file palette_manager.h.

◆ operator=() [1/2]

PaletteManager & yaze::gfx::PaletteManager::operator= ( const PaletteManager & )

delete

◆ operator=() [2/2]

PaletteManager & yaze::gfx::PaletteManager::operator= ( PaletteManager && )

delete

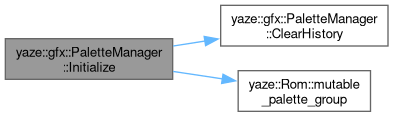

◆ Initialize()

void yaze::gfx::PaletteManager::Initialize ( Rom * rom )

Initialize the palette manager with ROM data.

Parameters

rom	Pointer to ROM instance (must outlive PaletteManager)

Definition at line 12 of file palette_manager.cc.

References ClearHistory(), modified_colors_, modified_palettes_, yaze::Rom::mutable_palette_group(), original_palettes_, and rom_.

Referenced by yaze::editor::DungeonEditorV2::Load(), and yaze::editor::PaletteEditor::Load().

Here is the call graph for this function:

◆ IsInitialized()

bool yaze::gfx::PaletteManager::IsInitialized ( ) const

inline

Check if manager is initialized.

Definition at line 95 of file palette_manager.h.

References rom_.

Referenced by DiscardAllChanges(), DiscardGroup(), GetGroup(), GetMutableGroup(), ResetPalette(), SaveAllToRom(), SaveGroup(), and SetColor().

◆ GetColor()

SnesColor yaze::gfx::PaletteManager::GetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index
	)		const

Get a color from a palette.

Parameters

group_name	Palette group name
palette_index	Palette index within group
color_index	Color index within palette

Returns: The color, or default SnesColor if invalid indices

Definition at line 53 of file palette_manager.cc.

References GetGroup().

Referenced by yaze::editor::PaletteGroupCard::GetOriginalColor().

Here is the call graph for this function:

◆ SetColor()

absl::Status yaze::gfx::PaletteManager::SetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index,
		const SnesColor &	new_color
	)

Set a color in a palette (records change for undo)

Parameters

group_name	Palette group name
palette_index	Palette index within group
color_index	Color index within palette
new_color	The new color value

Returns: Status of the operation

Definition at line 69 of file palette_manager.cc.

References batch_changes_, GetMutableGroup(), InBatch(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kColorChanged, MarkModified(), NotifyListeners(), and RecordChange().

Referenced by ResetColor(), and yaze::editor::PaletteGroupCard::SetColor().

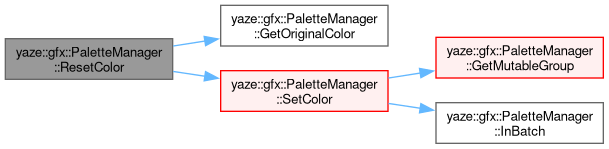

◆ ResetColor()

absl::Status yaze::gfx::PaletteManager::ResetColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index
	)

Reset a single color to its original ROM value.

Definition at line 134 of file palette_manager.cc.

References GetOriginalColor(), and SetColor().

Referenced by yaze::editor::PaletteGroupCard::ResetColor().

Here is the call graph for this function:

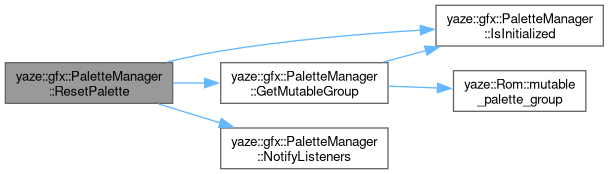

◆ ResetPalette()

absl::Status yaze::gfx::PaletteManager::ResetPalette	(	const std::string &	group_name,
		int	palette_index
	)

Reset an entire palette to original ROM values.

Definition at line 140 of file palette_manager.cc.

References GetMutableGroup(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kPaletteReset, modified_colors_, modified_palettes_, NotifyListeners(), and original_palettes_.

Referenced by yaze::editor::PaletteGroupCard::ResetPalette().

Here is the call graph for this function:

◆ HasUnsavedChanges()

bool yaze::gfx::PaletteManager::HasUnsavedChanges ( ) const

Check if there are ANY unsaved changes.

Definition at line 175 of file palette_manager.cc.

References modified_palettes_.

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

◆ GetModifiedGroups()

std::vector< std::string > yaze::gfx::PaletteManager::GetModifiedGroups ( ) const

Get list of modified palette group names.

Definition at line 179 of file palette_manager.cc.

References modified_palettes_.

Referenced by DiscardAllChanges(), and SaveAllToRom().

◆ IsGroupModified()

bool yaze::gfx::PaletteManager::IsGroupModified ( const std::string & group_name ) const

Check if a specific palette group has modifications.

Definition at line 187 of file palette_manager.cc.

References modified_palettes_.

Referenced by yaze::editor::PaletteGroupCard::DrawToolbar(), and yaze::editor::PaletteGroupCard::HasUnsavedChanges().

◆ IsPaletteModified()

bool yaze::gfx::PaletteManager::IsPaletteModified	(	const std::string &	group_name,
		int	palette_index
	)		const

Check if a specific palette is modified.

Definition at line 192 of file palette_manager.cc.

References modified_palettes_.

Referenced by yaze::editor::PaletteGroupCard::IsPaletteModified().

◆ IsColorModified()

bool yaze::gfx::PaletteManager::IsColorModified	(	const std::string &	group_name,
		int	palette_index,
		int	color_index
	)		const

Check if a specific color is modified.

Definition at line 201 of file palette_manager.cc.

References modified_colors_.

Referenced by yaze::editor::PaletteGroupCard::IsColorModified().

◆ GetModifiedColorCount()

size_t yaze::gfx::PaletteManager::GetModifiedColorCount ( ) const

Get count of modified colors across all groups.

Definition at line 217 of file palette_manager.cc.

References modified_colors_.

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

◆ SaveGroup()

absl::Status yaze::gfx::PaletteManager::SaveGroup ( const std::string & group_name )

Save a specific palette group to ROM.

Definition at line 229 of file palette_manager.cc.

References ClearModifiedFlags(), GetMutableGroup(), yaze::gfx::GetPaletteAddress(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kGroupSaved, modified_colors_, modified_palettes_, NotifyListeners(), original_palettes_, rom_, yaze::Rom::set_dirty(), and yaze::Rom::WriteShort().

Referenced by SaveAllToRom(), and yaze::editor::PaletteGroupCard::SaveToRom().

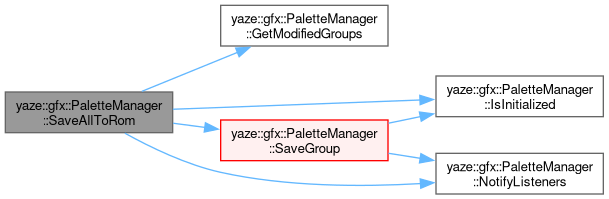

◆ SaveAllToRom()

absl::Status yaze::gfx::PaletteManager::SaveAllToRom ( )

Save ALL modified palettes to ROM.

Definition at line 284 of file palette_manager.cc.

References GetModifiedGroups(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kAllSaved, NotifyListeners(), RETURN_IF_ERROR, and SaveGroup().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel(), and yaze::editor::DungeonEditorV2::Save().

Here is the call graph for this function:

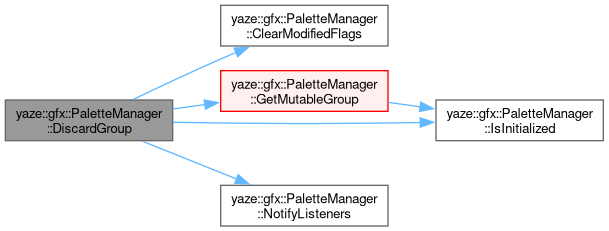

◆ DiscardGroup()

void yaze::gfx::PaletteManager::DiscardGroup ( const std::string & group_name )

Discard changes for a specific group.

Definition at line 301 of file palette_manager.cc.

References ClearModifiedFlags(), GetMutableGroup(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kGroupDiscarded, modified_palettes_, NotifyListeners(), and original_palettes_.

Referenced by DiscardAllChanges(), and yaze::editor::PaletteGroupCard::DiscardChanges().

Here is the call graph for this function:

◆ DiscardAllChanges()

void yaze::gfx::PaletteManager::DiscardAllChanges ( )

Discard ALL unsaved changes.

Definition at line 336 of file palette_manager.cc.

References ClearHistory(), DiscardGroup(), GetModifiedGroups(), IsInitialized(), yaze::gfx::PaletteChangeEvent::kAllDiscarded, and NotifyListeners().

Referenced by yaze::editor::PaletteEditor::DrawControlPanel().

◆ Undo()

void yaze::gfx::PaletteManager::Undo ( )

Undo the most recent change.

Definition at line 357 of file palette_manager.cc.

References CanUndo(), GetMutableGroup(), yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, NotifyListeners(), redo_stack_, and undo_stack_.

Referenced by yaze::editor::PaletteGroupCard::Undo().

Here is the call graph for this function:

◆ Redo()

void yaze::gfx::PaletteManager::Redo ( )

Redo the most recently undone change.

Definition at line 384 of file palette_manager.cc.

References CanRedo(), GetMutableGroup(), yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, NotifyListeners(), redo_stack_, and undo_stack_.

Referenced by yaze::editor::PaletteGroupCard::Redo().

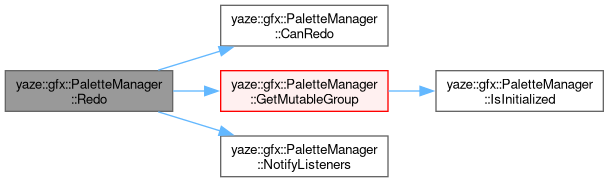

Here is the call graph for this function:

◆ CanUndo()

bool yaze::gfx::PaletteManager::CanUndo ( ) const

inline

Check if undo is available.

Definition at line 202 of file palette_manager.h.

References undo_stack_.

Referenced by yaze::editor::PaletteGroupCard::CanUndo(), and Undo().

◆ CanRedo()

bool yaze::gfx::PaletteManager::CanRedo ( ) const

inline

Check if redo is available.

Definition at line 207 of file palette_manager.h.

References redo_stack_.

Referenced by yaze::editor::PaletteGroupCard::CanRedo(), and Redo().

◆ GetUndoStackSize()

size_t yaze::gfx::PaletteManager::GetUndoStackSize ( ) const

inline

Get size of undo stack.

Definition at line 212 of file palette_manager.h.

References undo_stack_.

◆ GetRedoStackSize()

size_t yaze::gfx::PaletteManager::GetRedoStackSize ( ) const

inline

Get size of redo stack.

Definition at line 217 of file palette_manager.h.

References redo_stack_.

◆ ClearHistory()

void yaze::gfx::PaletteManager::ClearHistory ( )

Clear undo/redo history.

Definition at line 411 of file palette_manager.cc.

References redo_stack_, and undo_stack_.

Referenced by yaze::editor::PaletteGroupCard::ClearHistory(), DiscardAllChanges(), and Initialize().

◆ RegisterChangeListener()

int yaze::gfx::PaletteManager::RegisterChangeListener ( ChangeCallback callback )

Register a callback for palette change events.

Returns: Unique ID for this callback (use to unregister)

Definition at line 418 of file palette_manager.cc.

References change_listeners_, and next_callback_id_.

◆ UnregisterChangeListener()

void yaze::gfx::PaletteManager::UnregisterChangeListener ( int callback_id )

Unregister a change listener.

Definition at line 424 of file palette_manager.cc.

References change_listeners_.

◆ BeginBatch()

void yaze::gfx::PaletteManager::BeginBatch ( )

Begin a batch operation (groups multiple changes into one undo step)

Note: Must be paired with EndBatch()

Definition at line 430 of file palette_manager.cc.

References batch_changes_, and batch_depth_.

◆ EndBatch()

void yaze::gfx::PaletteManager::EndBatch ( )

End a batch operation.

Definition at line 437 of file palette_manager.cc.

References batch_changes_, batch_depth_, yaze::gfx::PaletteChangeEvent::group_name, yaze::gfx::PaletteChangeEvent::kColorChanged, NotifyListeners(), and RecordChange().

Here is the call graph for this function:

◆ InBatch()

bool yaze::gfx::PaletteManager::InBatch ( ) const

inline

Check if currently in a batch operation.

Definition at line 253 of file palette_manager.h.

References batch_depth_.

Referenced by SetColor().

◆ GetMutableGroup()

PaletteGroup * yaze::gfx::PaletteManager::GetMutableGroup ( const std::string & group_name )

private

Helper: Get mutable palette group.

Definition at line 462 of file palette_manager.cc.

References IsInitialized(), yaze::Rom::mutable_palette_group(), and rom_.

Referenced by DiscardGroup(), Redo(), ResetPalette(), SaveGroup(), SetColor(), and Undo().

Here is the call graph for this function:

◆ GetGroup()

const PaletteGroup * yaze::gfx::PaletteManager::GetGroup ( const std::string & group_name ) const

private

Helper: Get const palette group.

Definition at line 473 of file palette_manager.cc.

References IsInitialized(), and rom_.

Referenced by GetColor().

Here is the call graph for this function:

◆ GetOriginalColor()

SnesColor yaze::gfx::PaletteManager::GetOriginalColor	(	const std::string &	group_name,
		int	palette_index,
		int	color_index
	)		const

private

Helper: Get original color from snapshot.

Definition at line 487 of file palette_manager.cc.

References original_palettes_.

Referenced by ResetColor().

◆ RecordChange()

void yaze::gfx::PaletteManager::RecordChange ( const PaletteColorChange & change )

private

Helper: Record a change for undo.

Definition at line 503 of file palette_manager.cc.

References kMaxUndoHistory, redo_stack_, and undo_stack_.

Referenced by EndBatch(), and SetColor().

◆ NotifyListeners()

void yaze::gfx::PaletteManager::NotifyListeners ( const PaletteChangeEvent & event )

private

Helper: Notify all listeners of an event.

Definition at line 515 of file palette_manager.cc.

References change_listeners_.

Referenced by DiscardAllChanges(), DiscardGroup(), EndBatch(), Redo(), ResetPalette(), SaveAllToRom(), SaveGroup(), SetColor(), and Undo().

◆ MarkModified()

void yaze::gfx::PaletteManager::MarkModified	(	const std::string &	group_name,
		int	palette_index,
		int	color_index
	)

private

Helper: Mark a color as modified.

Definition at line 521 of file palette_manager.cc.

References modified_colors_, and modified_palettes_.

Referenced by SetColor().

◆ ClearModifiedFlags()

void yaze::gfx::PaletteManager::ClearModifiedFlags ( const std::string & group_name )

private

Helper: Clear modified flags for a group.

Definition at line 527 of file palette_manager.cc.

References modified_colors_, and modified_palettes_.

Referenced by DiscardGroup(), and SaveGroup().

Member Data Documentation

◆ rom_

Rom* yaze::gfx::PaletteManager::rom_ = nullptr

private

ROM instance (not owned)

Definition at line 285 of file palette_manager.h.

Referenced by GetGroup(), GetMutableGroup(), Initialize(), IsInitialized(), and SaveGroup().

◆ original_palettes_

std::unordered_map<std::string, std::vector<SnesPalette> > yaze::gfx::PaletteManager::original_palettes_

private

Original palette snapshots (loaded from ROM for reset/comparison) Key: group_name, Value: vector of original palettes

Definition at line 290 of file palette_manager.h.

Referenced by DiscardGroup(), GetOriginalColor(), Initialize(), ResetPalette(), and SaveGroup().

◆ modified_palettes_

std::unordered_map<std::string, std::unordered_set<int> > yaze::gfx::PaletteManager::modified_palettes_

private

Modified tracking Key: group_name, Value: set of modified palette indices

Definition at line 295 of file palette_manager.h.

Referenced by ClearModifiedFlags(), DiscardGroup(), GetModifiedGroups(), HasUnsavedChanges(), Initialize(), IsGroupModified(), IsPaletteModified(), MarkModified(), ResetPalette(), and SaveGroup().

◆ modified_colors_

std::unordered_map<std::string, std::unordered_map<int, std::unordered_set<int> > > yaze::gfx::PaletteManager::modified_colors_

private

Detailed color modification tracking Key: group_name, Value: map of palette_index -> set of color indices

Definition at line 301 of file palette_manager.h.

Referenced by ClearModifiedFlags(), GetModifiedColorCount(), Initialize(), IsColorModified(), MarkModified(), ResetPalette(), and SaveGroup().

◆ undo_stack_

std::deque<PaletteColorChange> yaze::gfx::PaletteManager::undo_stack_

private

Undo/redo stacks.

Definition at line 304 of file palette_manager.h.

Referenced by CanUndo(), ClearHistory(), GetUndoStackSize(), RecordChange(), Redo(), and Undo().

◆ redo_stack_

std::deque<PaletteColorChange> yaze::gfx::PaletteManager::redo_stack_

private

Definition at line 305 of file palette_manager.h.

Referenced by CanRedo(), ClearHistory(), GetRedoStackSize(), RecordChange(), Redo(), and Undo().

◆ kMaxUndoHistory

constexpr size_t yaze::gfx::PaletteManager::kMaxUndoHistory = 500

staticconstexprprivate

Definition at line 306 of file palette_manager.h.

Referenced by RecordChange().

◆ change_listeners_

std::unordered_map<int, ChangeCallback> yaze::gfx::PaletteManager::change_listeners_

private

Change listeners.

Definition at line 309 of file palette_manager.h.

Referenced by NotifyListeners(), RegisterChangeListener(), and UnregisterChangeListener().

◆ next_callback_id_

int yaze::gfx::PaletteManager::next_callback_id_ = 1

private

Definition at line 310 of file palette_manager.h.

Referenced by RegisterChangeListener().

◆ batch_depth_

int yaze::gfx::PaletteManager::batch_depth_ = 0

private

Batch operation support.

Definition at line 313 of file palette_manager.h.

Referenced by BeginBatch(), EndBatch(), and InBatch().

◆ batch_changes_

std::vector<PaletteColorChange> yaze::gfx::PaletteManager::batch_changes_

private

Definition at line 314 of file palette_manager.h.

Referenced by BeginBatch(), EndBatch(), and SetColor().

The documentation for this class was generated from the following files:

src/app/gfx/util/palette_manager.h
src/app/gfx/util/palette_manager.cc

	yaze 0.3.2 Link to the Past ROM Editor

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ ChangeCallback

Constructor & Destructor Documentation

◆ PaletteManager() [1/3]

◆ PaletteManager() [2/3]

◆ PaletteManager() [3/3]

◆ ~PaletteManager()

Member Function Documentation

◆ Get()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ Initialize()

◆ IsInitialized()

◆ GetColor()

◆ SetColor()

◆ ResetColor()

◆ ResetPalette()

◆ HasUnsavedChanges()

◆ GetModifiedGroups()

◆ IsGroupModified()

◆ IsPaletteModified()

◆ IsColorModified()

◆ GetModifiedColorCount()

◆ SaveGroup()

◆ SaveAllToRom()

◆ DiscardGroup()

◆ DiscardAllChanges()

◆ Undo()

◆ Redo()

◆ CanUndo()

◆ CanRedo()

◆ GetUndoStackSize()

◆ GetRedoStackSize()

◆ ClearHistory()

◆ RegisterChangeListener()

◆ UnregisterChangeListener()

◆ BeginBatch()

◆ EndBatch()

◆ InBatch()

◆ GetMutableGroup()

◆ GetGroup()

◆ GetOriginalColor()

◆ RecordChange()

◆ NotifyListeners()

◆ MarkModified()

◆ ClearModifiedFlags()

Member Data Documentation

◆ rom_

◆ original_palettes_

◆ modified_palettes_

◆ modified_colors_

◆ undo_stack_

◆ redo_stack_

◆ kMaxUndoHistory

◆ change_listeners_

◆ next_callback_id_

◆ batch_depth_

◆ batch_changes_
